Tutorial
Missing Image!
Part 27 - PetaLinux 2022.2 to 2023.2 migration

Introduction

This tutorial details the steps required to migrate the zedboard_linux project from PetaLinux 2022.2 to PetaLinux 2023.2. Unlike in the last migration tutorial, which simply upgraded the PetaLinux project from one version to another, this one shall create a brand new project from scratch and then integrate the absent & differing sources into it. By using this approach a better understanding of what has actually changed under the hood should be achieved.

Worth taking a look at the OS support vs. PetaLinux version at this point. A green Yes indicates the progress this tutorial is making towards bumping both the OS & PetaLinux to something later.

UbuntuPetaLinux
OS versionCode nameRelease dateStandard support untilPetaLinux 2021.2PetaLinux 2022.2PetaLinux 2023.2PetaLinux 2024.2PetaLinux 2025.2
Ubuntu 16.04 LTSXenial Xerus21 Apr 201630 Apr 2021Yes----
Ubuntu 18.04 LTSBionic Beaver26 Apr 201831 May 2023YesYesYes--
Ubuntu 20.04 LTSFocal Fossa23 Apr 202029 May 2025YesYesYes (this)Yes-
Ubuntu 22.04 LTSJammy Jellyfish21 Apr 202201 Jun 2027--YesYesYes
Ubuntu 24.04 LTSNoble Numbat25 Apr 202431 May 2029-----

Aims

The aims of this tutorial are as follows :-

    Part 1 - Setup environment

    1. Pre-requisites

    Part 2 - Move Zedboard Linux project from 2022.2 to 2023.2

    1. Create PetaLinux project
    2. Add hardware platform
    3. Align PetaLinux
    4. Bump version

    Part 3 - Build & package PetaLinux

    1. Build PetaLinux
    2. Package PetaLinux

    Part 4 - Hardware Deployment

    1. Copy files to SD-Card

    Part 5 - Check everything is working as expected

    1. Check Secure Shell communication
    2. Check Userspace I/O
    3. Check the Webserver
    4. Notes about the SD-Card label

    Part 6 - Setup for root & petalinux accounts

    1. Where to go from here

    Part 7 - Enhance the upload scripts

    1. Enhance the upload binary script
    2. Enhance the upload BOOT files script

    Part 8 - Make the changes permanent

    1. Update attributes for the petalinux account
    2. Update the auto-start application

    Part 9 - Revision Control

    1. Commit new & updated files
    2. Create production release

    Part 10 - Hardware Deployment

    1. Copy files to SD Card

    Part 11 - Check everything is working as expected

    1. OS boot & Firmware load
    2. Upload BOOT files script

    Part 12 - Final resulting build file(s)

    1. Resulting BOOT files
    #### Part 1 - Setup environment ####

    1. Pre-requisites

    Starting from this point is possible but requires a few pre-requisites.
    #### Part 2 - Move Zedboard Linux project from 2022.2 to 2023.2 ####

    2. Create PetaLinux project

    Create a brand new PetaLinux project using the 2023.2 toolchain.
    steve@Desktop:~/swuk_tutorial$ cd zedboard_linux/os
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os$ rm -rf petalinux
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os$ petalinux-create --type project --template zynq --name petalinux

    3. Add hardware platform

    Configure the PetaLinux project to use the exported hardware platform from the Zedboard Video TPG HDMI Vivado project.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os$ cd petalinux
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ petalinux-config --get-hw-description ~/Documents/swuk_tutorial/hardware/zedboard_video_tpg_hdmi_v1.0.xsa
    When the PetaLinux System Configuration menu appears select : Save ---> Ok ---> Exit ---> Exit

    4. Align PetaLinux

    Align the brand new PetaLinux (2023.2) project with the existing PetaLinux (2022.2) project.

    Add back in the (now absent) Applications & Apache configuration.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git restore project-spec/meta-user/recipes-apps
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git restore project-spec/meta-user/recipes-httpd/apache2/apache2_%.bbappend
    Check the GIT status.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git status -u
    On branch master
    Your branch is up-to-date with 'origin/master'.

    Changes not staged for commit:
      (use "git add/rm <file>..." to update what will be committed)
      (use "git restore <file>..." to discard changes in working directory)
       modified:   .gitignore
       modified:   .petalinux/metadata
       deleted:    config.project
       modified:   project-spec/configs/config
       modified:   project-spec/configs/rootfs_config
       modified:   project-spec/meta-user/conf/layer.conf
       modified:   project-spec/meta-user/conf/petalinuxbsp.conf
       modified:   project-spec/meta-user/conf/user-rootfsconfig
       modified:   project-spec/meta-user/recipes-bsp/device-tree/device-tree.bbappend
       deleted:    project-spec/meta-user/recipes-bsp/device-tree/files/pl-custom.dtsi
       modified:   project-spec/meta-user/recipes-bsp/device-tree/files/system-user.dtsi
       modified:   project-spec/meta-user/recipes-bsp/u-boot/files/bsp.cfg
       modified:   project-spec/meta-user/recipes-bsp/u-boot/files/platform-top.h
       modified:   project-spec/meta-user/recipes-bsp/u-boot/u-boot-xlnx_%.bbappend
       deleted:    project-spec/meta-user/recipes-bsp/uboot-device-tree/files/system-user.dtsi
       deleted:    project-spec/meta-user/recipes-bsp/uboot-device-tree/uboot-device-tree.bbappend
       deleted:    project-spec/meta-user/recipes-kernel/linux/linux-xlnx/user_2023-08-08-08-28-00.cfg
       modified:   project-spec/meta-user/recipes-kernel/linux/linux-xlnx_%.bbappend

    Untracked files:
      (use "git add <file>..." to include in what will be committed)
       project-spec/configs/.Xil/XSCT-2789947-Desktop/system.bda
       project-spec/configs/.Xil/XSCT-2790020-Desktop/system.bda
       project-spec/configs/.statistics
       project-spec/configs/configs/Kconfig
       project-spec/configs/configs/Kconfig.syshw
       project-spec/configs/flash_parts.txt
       project-spec/configs/plnx_syshw_data
       project-spec/configs/plnxtool.conf
       project-spec/configs/rootfsconfigs/Kconfig
       project-spec/configs/rootfsconfigs/Kconfig.part
       project-spec/configs/rootfsconfigs/Kconfig.user
       project-spec/configs/rootfsconfigs/user-rootfsconfig
       project-spec/configs/zynq-generic-7z020.conf
       project-spec/meta-user/meta-xilinx-tools/recipes-bsp/uboot-device-tree/files/system-user.dtsi
       project-spec/meta-user/meta-xilinx-tools/recipes-bsp/uboot-device-tree/uboot-device-tree.bbappend
       project-spec/meta-user/recipes-bsp/device-tree/device-tree-sdt.inc

    no changes added to commit (use "git add" and/or "git commit -a")
    Quite a few changes and movements. The files that were previously edited are as follows. These need to be carefully compared with their new counterparts.
    Examine the rootfs_config file.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git difftool project-spec/configs/rootfs_config
    The following table shows the file differences (sections of interest).

    HeadingAction changeOriginal 2022.2 rootfs_configNew 2023.2 rootfs_config
    haveged NoCONFIG_haveged=y# CONFIG_haveged is not set
    i2c-toolsYes CONFIG_i2c-tools=y
    # CONFIG_i2c-tools-dev is not set
    # CONFIG_i2c-tools-dbg is not set
    # CONFIG_i2c-tools-misc is not set
    # CONFIG_i2c-tools is not set
    # CONFIG_i2c-tools-dev is not set
    # CONFIG_i2c-tools-dbg is not set
    # CONFIG_i2c-tools-misc is not set
    nfs-utilsNo # CONFIG_nfs-utils is not set
    # CONFIG_nfs-utils-dev is not set
    # CONFIG_nfs-utils-client is not set
    # CONFIG_nfs-utils-stats is not set
    # CONFIG_nfs-utils-dbg is not set
    CONFIG_nfs-utils=y
    # CONFIG_nfs-utils-dev is not set
    # CONFIG_nfs-utils-client is not set
    # CONFIG_nfs-utils-stats is not set
    # CONFIG_nfs-utils-dbg is not set
    opensshNo # CONFIG_openssh is not set
    # CONFIG_openssh-misc is not set
    # CONFIG_openssh-dbg is not set
    # CONFIG_openssh-sshd is not set
    # CONFIG_openssh-keygen is not set
    # CONFIG_openssh-ssh is not set
    # CONFIG_openssh-dev is not set
    # CONFIG_openssh-sftp is not set
    CONFIG_openssh-sftp-server=y
    # CONFIG_openssh-scp is not set
    # CONFIG_openssh is not set
    # CONFIG_openssh-misc is not set
    # CONFIG_openssh-dbg is not set
    # CONFIG_openssh-sshd is not set
    # CONFIG_openssh-keygen is not set
    # CONFIG_openssh-ssh is not set
    # CONFIG_openssh-dev is not set
    # CONFIG_openssh-sftp is not set
    # CONFIG_openssh-sftp-server is not set
    # CONFIG_openssh-scp is not set
    libudevNo # CONFIG_libudev is not set
    CONFIG_udev-extraconf=y
    # CONFIG_linux-xlnx-udev-rules is not set
    # CONFIG_libudev is not set
    CONFIG_udev-extraconf=y
    CONFIG_linux-xlnx-udev-rules=y
    packagegroup-core-ssh-dropbearNo CONFIG_packagegroup-core-ssh-dropbear=y
    # CONFIG_packagegroup-core-ssh-dropbear-dbg is not set
    # CONFIG_packagegroup-core-ssh-dropbear-dev is not set
    # CONFIG_packagegroup-core-ssh-dropbear is not set
    # CONFIG_packagegroup-core-ssh-dropbear-dbg is not set
    # CONFIG_packagegroup-core-ssh-dropbear-dev is not set
    dosfstoolsNo # CONFIG_dosfstools is not set
    # CONFIG_dosfstools-dev is not set
    # CONFIG_dosfstools-dbg is not set
    CONFIG_dosfstools=y
    # CONFIG_dosfstools-dev is not set
    # CONFIG_dosfstools-dbg is not set
    Image FeaturesNo CONFIG_imagefeature-ssh-server-dropbear=y
    # CONFIG_imagefeature-ssh-server-openssh is not set
    CONFIG_imagefeature-hwcodecs=y
    # CONFIG_imagefeature-package-management is not set
    CONFIG_imagefeature-debug-tweaks=y

    # CONFIG_auto-login is not set
    # CONFIG_Init-manager-systemd is not set
    CONFIG_Init-manager-sysvinit=y
    # CONFIG_imagefeature-ssh-server-dropbear is not set
    CONFIG_imagefeature-ssh-server-openssh=y
    CONFIG_imagefeature-hwcodecs=y
    # CONFIG_imagefeature-package-management is not set
    # CONFIG_imagefeature-debug-tweaks is not set
    # CONFIG_imagefeature-empty-root-password is not set
    # CONFIG_imagefeature-serial-autologin-root is not set
    # CONFIG_Init-manager-systemd is not set
    CONFIG_Init-manager-sysvinit=y
    apps / user packagesYes CONFIG_adv7511-config=y
    CONFIG_axi-gpio-zed-test=y
    CONFIG_boot-extras=y
    # CONFIG_gpio-demo is not set
    CONFIG_led-runner=y
    CONFIG_peekpoke=y
    CONFIG_peekpokecgi=y
    CONFIG_website=y



    # CONFIG_gpio-demo is not set

    # CONFIG_peekpoke is not set


    PetaLinux RootFS SettingsNo CONFIG_ADD_EXTRA_USERS="petalinux:petalinux;"
    CONFIG_CREATE_NEW_GROUPS=""
    CONFIG_ADD_USERS_TO_GROUPS=""
    CONFIG_ADD_USERS_TO_SUDOERS=""
    CONFIG_ADD_EXTRA_USERS="root:root;petalinux::passwd-expire;"
    CONFIG_CREATE_NEW_GROUPS="aie;"
    CONFIG_ADD_USERS_TO_GROUPS="petalinux:audio,video,aie,input;"
    CONFIG_ADD_USERS_TO_SUDOERS="petalinux"


    For now just restore the 2 sections marked with Yes. Use Beyond Compare (or equivalent) to update the new file & save the changes.
    Examine the petalinuxbsp.conf file.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git difftool project-spec/meta-user/conf/petalinuxbsp.conf
    The following table shows the file differences.

    Action changeOriginal 2022.2 petalinuxbsp.confNew 2023.2 petalinuxbsp.conf
    Yes
    #
    # File .......... petalinuxbsp.conf
    # Author ........ Steve Haywood
    # Website ....... http://www.spacewire.co.uk
    # Project ....... Zedboard Linux (SpaceWire UK Tutorial)
    # Date .......... 28 Feb 2026
    # Version ....... 3.0
    # Description ...
    #   Updated to install the following :-
    # -- ntp ....... Network Time Protocol
    # -- ntpdate ... Set the date and time via NTP
    # -- ntpq ...... Standard NTP query program
    # -- sntp ...... Simple Network Time Protocol
    # -- nano ...... Text editor
    # Updated to install a LAMP style stack :-
    # -- Apache .... HTTP server
    # -- SQLite .... SQL database engine
    # -- PHP ....... Scripting language
    #

    #User Configuration

    #OE_TERMINAL = "tmux"

    IMAGE_INSTALL:append = " ntp ntpdate ntpq sntp nano"
    PACKAGECONFIG:append:pn-php = " apache2"
    IMAGE_INSTALL:append = " apache2 sqlite3 php-modphp"





















    #User Configuration

    #OE_TERMINAL = "tmux"







    Restore the entire file.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git restore project-spec/meta-user/conf/petalinuxbsp.conf

    Examine the user-rootfsconfig file.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git difftool project-spec/meta-user/conf/user-rootfsconfig
    The following table shows the file differences.

    Action changeOriginal 2022.2 fileNew 2023.2 file
    Yes
    #Note: Mention Each package in individual line
    #These packages will get added into rootfs menu entry

    CONFIG_gpio-demo
    CONFIG_peekpoke
    CONFIG_led-runner
    CONFIG_website
    CONFIG_peekpokecgi
    CONFIG_axi-gpio-zed-test
    CONFIG_adv7511-config
    CONFIG_boot-extras

    #Note: Mention Each package in individual line
    #These packages will get added into rootfs menu entry

    CONFIG_gpio-demo
    CONFIG_peekpoke









    File does not contain the entries for the user applications. Restore the entire file.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git restore project-spec/meta-user/conf/user-rootfsconfig

    Examine the system-user.dtsi file.

    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git difftool project-spec/meta-user/recipes-bsp/device-tree/files/system-user.dtsi
    The following table shows the file differences.

    Action changeOriginal 2022.2 fileNew 2023.2 file
    Yes
    /*
     * File .......... system-user.dtsi
     * Author ........ Steve Haywood
     * Website ....... http://www.spacewire.co.uk
     * Project ....... Zedboard Linux (SpaceWire UK Tutorial)
     * Date .......... 29 Oct 2022
     * Version ....... 2.0
     * History .......
     *   1.0 TEMPLATE
     * Description ...
     *   Added User Space I/O (UIO) for the AXI GPIO Zed module.
     */

    /include/ "system-conf.dtsi"

    / {
        chosen
        {
          bootargs = "uio_pdrv_genirq.of_id=generic-uio";
        };
    };

    &axi_gpio_zed_0
    {
      #interrupt-cells = <2>;
      interrupt-controller;
      interrupts = <0 29 1>;
      compatible = "generic-uio";
    };














    /include/ "system-conf.dtsi"

    / {




    };











    Template file. Obviously missing the entries previous added. Restore the entire file.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git restore project-spec/meta-user/recipes-bsp/device-tree/files/system-user.dtsi

    5. Bump version

    Change the version (or revision) number for this new development, this prevents ghost (post-release, same version) builds from appearing.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ cd ../../..
    steve@Desktop:~/swuk_tutorial$ sed -i 's/16.0/17.0/g' zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/project.txt
    Just for completeness :-

    project.txt

    Zedboard PetaLinux
    SpaceWire UK
    Steve Haywood
    17.0

    Direct download available here :-
    steve@Desktop:~/swuk_tutorial$ wget https://spacewire.co.uk/tutorial/shared/repos/0034/zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/project.txt -O zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/project.txt
    Check out the changes.
    steve@Desktop:~/swuk_tutorial$ git difftool zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/project.txt
    #### Part 3 - Build & package PetaLinux ####

    6. Build PetaLinux

    Attempt to build the new 2023.2 PetaLinux project.
    steve@Desktop:~/swuk_tutorial$ cd zedboard_linux/os/petalinux
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ swuk_petalinux-build

    7. Package PetaLinux

    Package PetaLinux to produce the boot image BOOT.BIN, this will include the first stage boot loader zynq_fsbl.elf, the programmable logic system.bit, the Linux boot loader u-boot.elf and the device tree blob system.dtb.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ petalinux-package --boot --force --fsbl images/linux/zynq_fsbl.elf --fpga images/linux/system.bit --uboot images/linux/u-boot.elf
    #### Part 4 - Hardware Deployment ####

    8. Copy files to SD-Card

    Upload the newly created PetaLinux Boot & OS files. Select 0.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ swuk_upload_boot 192.168.2.87

    Boot files @ /tftpboot :-

    0) - BOOT.BIN - boot.scr - image.ub

    Boot files @ ~/Documents/swuk_tutorial/petalinux :-

    1) v10.0 - BOOT.BIN - boot.scr - image.ub
    2) v11.0 - BOOT.BIN - boot.scr - image.ub
    3) v12.0 - BOOT.BIN - boot.scr - image.ub
    4) v13.0 - BOOT.BIN - boot.scr - image.ub
    5) v14.0 - BOOT.BIN - boot.scr - image.ub
    6) v15.0 - BOOT.BIN - boot.scr - image.ub
    7) v16.0 - BOOT.BIN - boot.scr - image.ub

    q) Quit

    Select boot files for upload or quit : 0

    Remote reboot (wait): 30 / 30s
    Remote reboot (ping): 4 / 30s
    Remote reboot (ssh): 10 / 30s

    Uploaded BOOT.BIN, boot.scr & image.ub to /media/sd-mmcblk0p1 @ 192.168.2.87.
    Permission denied, please try again.
    Files uploaded OK but no read back of the PetaLinux project.txt file!

    This most probably indicates that scp for the root account is disabled.
    #### Part 5 - Check everything is working as expected ####

    9. Check Secure Shell communication

    Check the Secure Shell connection to PetaLinux for both the root & petalinux users.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ scp root@192.168.2.87:/srv/www/project.txt /tmp
    root@192.168.2.87's password:
    Permission denied, please try again.

    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ ssh root@192.168.2.87
    root@192.168.2.87's password:
    Permission denied, please try again.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ scp petalinux@192.168.2.87:/srv/www/project.txt /tmp
    root@192.168.2.87's password:
    Permission denied, please try again.

    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ ssh petalinux@192.168.2.87
    root@192.168.2.87's password:
    Permission denied, please try again.
    Using the Debug console login to PetaLinux, set the petalinux password (use petalinux for simplicity) and try again.
    ::
    ::
    PetaLinux 2023.2+release-S10121051 petalinux ttyPS0

    petalinux login: petalinux
    You are required to change your password immediately (administrator enforced).
    New password:
    Retype new password:
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ scp petalinux@192.168.2.87:/srv/www/project.txt /tmp
    The authenticity of host '192.168.2.87 (192.168.2.87)' can't be established.
    ECDSA key fingerprint is SHA256:Q1pdfF25UKEEKa6RFlpwg8aN9FTzLrfdMBhqpss8VSg.
    Are you sure you want to continue connecting (yes/no/[fingerprint])? petalinux
    Please type 'yes', 'no' or the fingerprint: yes
    Warning: Permanently added '192.168.2.87' (ECDSA) to the list of known hosts.
    petalinux@192.168.2.87's password:
    project.txt          100%   65KB  14.7MB/s   00:00

    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ ssh petalinux@192.168.2.87
    petalinux@192.168.2.87's password:
    Last login: Wed Mar  4 17:00:41 2026
    petalinux:~$ exit
    logout
    Connection to 192.168.2.87 closed.
    All makes sense from a security point of view. Keeping the root account sandboxed is the very best approach.

    10. Check Userspace I/O

    Check to see if the Userspace I/O driver is still operational by running the previously created axi-gpio-zed-test application from within the Debug terminal.
    petalinux:~$ sudo axi-gpio-zed-test
    All being well the application should run and display the following :-
    Simple User Space device driver example with interrupts

    Device in use ... /dev/uio0
    Memory size ..... 65536 (obtained from /sys/class/uio/uio0/maps/map0/size)

    Use the buttons to control the LED's :-

    Centre - Reset LED's to 00111100
    Left   - Rotate LED's left
    Right  - Rotate LED's right
    Up     - Increase illuminated LED's
    Down   - Decrease illuminated LED's

    Press Ctrl-C to quit application
    Pressing a Push Button should perform the action stated and display the GPIO3 data register, for example :-
    Interrupt detected, button register = 0x00000001
    Interrupt detected, button register = 0x00000004
    All good!

    11. Check the Webserver

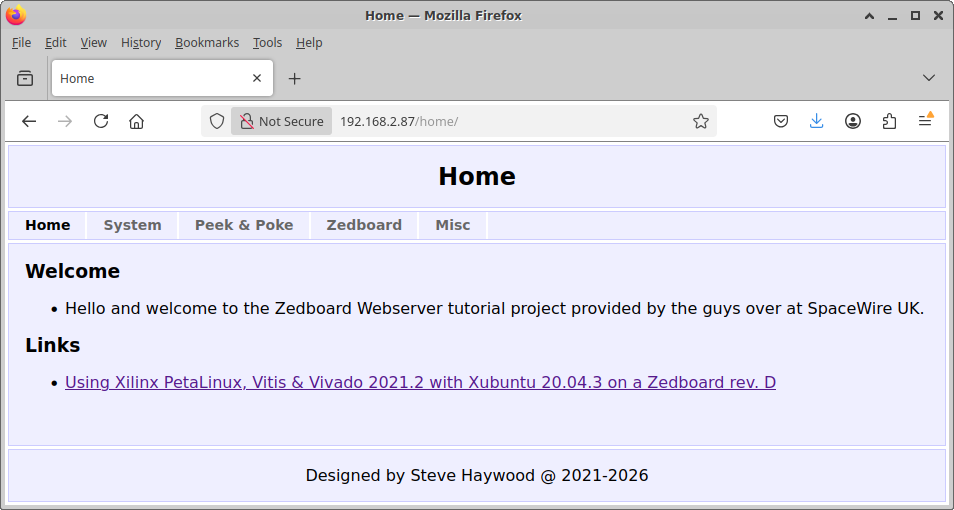

    Check to see if the webserver is operational by using a browser pointing at the Zedboard's IP address (192.168.2.87). Missing Image! All good! The Apache2 webserver is up & running and the PHP interpreter is working fine.

    Click on the System tab to see what's what. Missing Image! Fail. No Loadable Firmware.

    The lack of Loadable Firmware would indicate some sort of issue with the SD-Card (again!).

    Using the Debug terminal take a look at the last known location of the SD-Card.
    petalinux:~$ ls -la /run/media
    drwxr-xr-x    3 root     root            60 Jan  1  1970 .
    drwxr-xr-x    8 root     root           540 Mar  9  2018 ..
    drwxrwx---    5 root     disk          4096 Jan  1  1970 PETALINUX-mmcblk0p1

    petalinux:~$ ls -la /run/media/PETALINUX-mmcblk0p1
    ls: can't open '/run/media/PETALINUX-mmcblk0p1': Permission denied

    petalinux:~$ sudo su

    We trust you have received the usual lecture from the local System
    Administrator. It usually boils down to these three things:

        #1) Respect the privacy of others.
        #2) Think before you type.
        #3) With great power comes great responsibility.

    For security reasons, the password you type will not be visible.

    Password:

    petalinux:/home/petalinux# ls -la /run/media/PETALINUX-mmcblk0p1
    drwxrwx---    5 root     disk          4096 Jan  1  1970 .
    drwxr-xr-x    3 root     root            60 Jan  1  1970 ..
    -rwxrwx---    1 root     disk       5189144 Mar  4 14:03 BOOT.BIN
    -rwxrwx---    1 root     disk       5137548 Mar  4 13:54 BOOT.BIN.bak
    -rwxrwx---    1 root     disk          3473 Mar  4 14:03 boot.scr
    -rwxrwx---    1 root     disk          2777 Mar  4 13:54 boot.scr.bak
    drwxrwx---    2 root     disk          4096 Mar  3 13:02 database
    drwxrwx---    2 root     disk          4096 Mar  3 13:02 firmware
    -rwxrwx---    1 root     disk      32814844 Mar  4 14:03 image.ub
    -rwxrwx---    1 root     disk      27891172 Mar  4 13:54 image.ub.bak
    Three points of note :-
    1. The name of the mount is now prepended with the label of the SD-Card (this can be changed).
    2. The prepended name is suboptimal due to different people labelling their cards differently (makes the path of the mount inconsistent).
    3. Access to the mount is for root or a user belonging to the disk group.
    Take a look at the last known link to the SD-Card.
    petalinux:~$ ls -la /media
    drwxr-xr-x    2 root     root             0 Mar  9  2018 .
    drwxr-xr-x   18 root     root             0 Mar  9  2018 ..
    lrwxrwxrwx    1 root     root            20 Mar  9  2018 sd-mmcblk0p1 -> /run/media/mmcblk0p1
    One point of note :-
    1. The link now points to nowhere (the old PetaLinux 2022.2 location).
    To check the firmware load capability is still working OK change the symbolic link from the old location to the new location.
    petalinux:~$ petalinux:~$ sudo rm /media/sd-mmcblk0p1
    petalinux:~$ sudo ln -s /run/media/*mmcblk0p1 /media/sd-mmcblk0p1
    petalinux:~$ ls -la /media
    drwxr-xr-x    2 root     root             0 Mar  5 07:05 .
    drwxr-xr-x   18 root     root             0 Mar  9  2018 ..
    lrwxrwxrwx    1 root     root            30 Mar  5 07:05 sd-mmcblk0p1 -> /run/media/PETALINUX-mmcblk0p1
    Refresh the System tab to see if the Loadable Firmware has put in an appearance. Missing Image! All good! The contents of the firmware directory held on the SD-Card have been read successfully.

    Select zedboard_leds_switches_v5.0 from the Loadable Firmware table to see if the firmware is indeed loaded and the Firmware Information table is updated. Missing Image! Check the Debug console for the usual fpga_manager message.
    petalinux:~$ fpga_manager fpga0: writing zedboard_leds_switches_v5.0.bin to Xilinx Zynq FPGA Manager
    All good! The firmware loaded correctly and the Firmware Information table updated successfully.

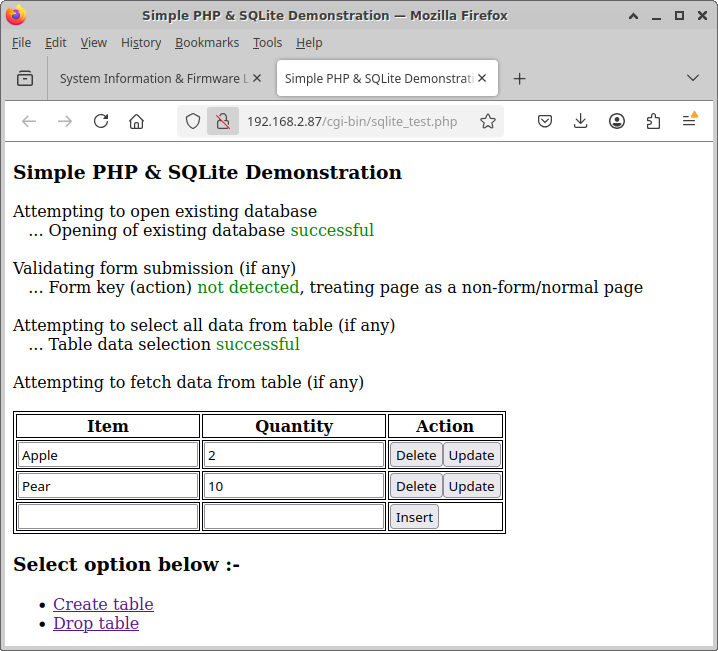

    Select SQLite Basic Test from the Misc menu to see if the SQLite service is working. Missing Image! All good! The SQLite service is up & running and the test.db database held in the database directory on the SD-Card has been read successfully.

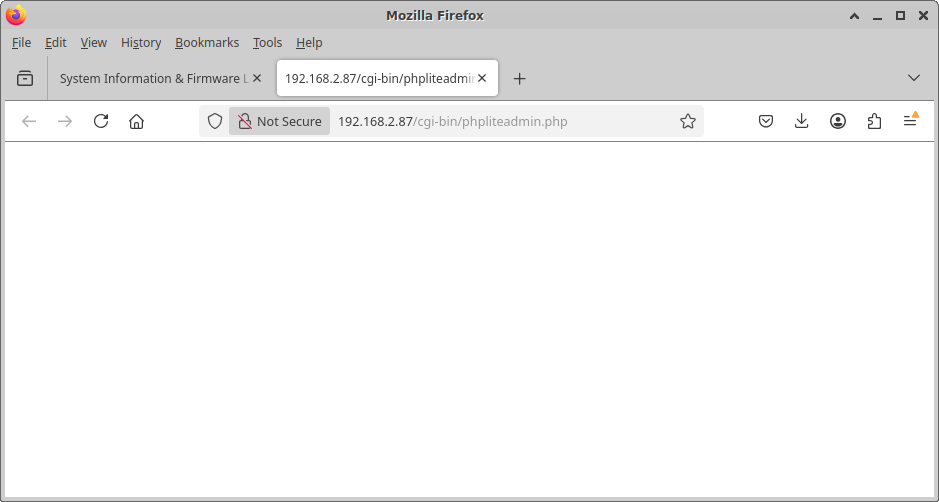

    Select PHP Lite Admin from the Misc menu to see if the phpLiteAdmin webpage is being served. Missing Image! Fail. No webpage displayed.

    Check the Apache2 error log for any clues has to what's gone wrong.
    petalinux:~$ cat /tmp/apache2_error_log
    ::
    ::
    [Fri Mar 06 06:24:25.768645 2026] [php:error] [pid 616:tid 2975831008] [client 192.168.2.16:45840] PHP Fatal error:  Uncaught Error: Class "MicroTimer" not found in /srv/www/cgi-bin/phpliteadmin.php:476\nStack trace:\n#0 {main}\n  thrown in /srv/www/cgi-bin/phpliteadmin.php on line 476, referer: http://192.168.2.87/system/
    Check for a later version of phpLiteAdmin.

    No joy, the latest stable version of phpLiteAdmin is 1.9.8.2, the same one as used way back in Part 18 - Add LAMP (Linux-Apache-MySQL-PHP) style stack to PetaLinux.

    It isn't obvious, but the latest stable version of phpLiteAdmin does not support PHP 8. The previous build of PetaLinux on 2022.2 used PHP 7, this build on 2023.2 uses PHP 8.

    Download the Current development version of phpLiteAdmin into ~/Downloads. Perform the following operations :-
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ cd project-spec/meta-user/recipes-apps/website/files/cgi-bin
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/cgi-bin$ unzip ~/Downloads/phpliteadmin-dev.zip
    Archive:  ~/Downloads/phpliteadmin-dev.zip
    replace phpliteadmin.php? [y]es, [n]o, [A]ll, [N]one, [r]ename: y
      inflating: phpliteadmin.php
      inflating: readme.md
      inflating: phpliteadmin.config.sample.php
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/cgi-bin$ mv phpliteadmin.config.sample.php phpliteadmin.config.php
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/cgi-bin$ chmod -x phpliteadmin.config.php
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/cgi-bin$ dos2unix phpliteadmin.*
    dos2unix: converting file phpliteadmin.config.php to Unix format...
    dos2unix: converting file phpliteadmin.php to Unix format...
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/cgi-bin$ sed -i 's/[[:blank:]]*$//' phpliteadmin.*
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/cgi-bin$ subl readme.md
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/cgi-bin$ rm readme.md
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/cgi-bin$ git difftool phpliteadmin.php
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/cgi-bin$ git difftool phpliteadmin.config.php
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/cgi-bin$ scp {phpliteadmin.php,phpliteadmin.config.php} petalinux@192.168.2.87:/home/petalinux
    petalinux@192.168.2.87's password:
    phpliteadmin.php                 100%  245KB  13.2MB/s   00:00
    phpliteadmin.config.php          100% 3265     3.3MB/s   00:00
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/cgi-bin$ cd -

    For completeness :-

    phpliteadmin.php

    <?php
    //
    //	Project: phpLiteAdmin (https://www.phpliteadmin.org/)
    //	Version: 1.9.9-dev
    //	Summary: PHP-based admin tool to manage SQLite2 and SQLite3 databases on the web
    //	Last updated: 2024-01-07
    //	Developers:
    //	   Dane Iracleous (daneiracleous@gmail.com)
    //	   Ian Aldrighetti (ian.aldrighetti@gmail.com)
    //	   George Flanagin & Digital Gaslight, Inc (george@digitalgaslight.com)
    //	   Christopher Kramer (crazy4chrissi@gmail.com, http://en.christosoft.de)
    //	   Ayman Teryaki (http://havalite.com)
    //	   Dreadnaut (dreadnaut@gmail.com, http://dreadnaut.altervista.org)
    //
    //
    //	Copyright (C) 2024, phpLiteAdmin
    //
    //	This program is free software: you can redistribute it and/or modify
    //	it under the terms of the GNU General Public License as published by
    //	the Free Software Foundation, either version 3 of the License, or
    //	(at your option) any later version.
    //
    //	This program is distributed in the hope that it will be useful,
    //	but WITHOUT ANY WARRANTY; without even the implied warranty of
    //	MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
    //	GNU General Public License for more details.
    //
    //	You should have received a copy of the GNU General Public License
    //	along with this program.  If not, see <https://www.gnu.org/licenses/>.
    //
    //	////////////////////////////////////////////////////////////////////////
    //
    //	Please report any bugs you may encounter to our issue tracker here:
    //		https://bitbucket.org/phpliteadmin/public/issues?status=new&status=open

    //
    // This is sample configuration file
    //
    // You can configure phpliteadmin in one of 2 ways:
    // 1. Rename phpliteadmin.config.sample.php to phpliteadmin.config.php and change parameters in there.
    //    You can set only your custom settings in phpliteadmin.config.php. All other settings will be set to defaults.
    // 2. Change parameters directly in main phpliteadmin.php file
    //
    // Please see https://bitbucket.org/phpliteadmin/public/wiki/Configuration for more details

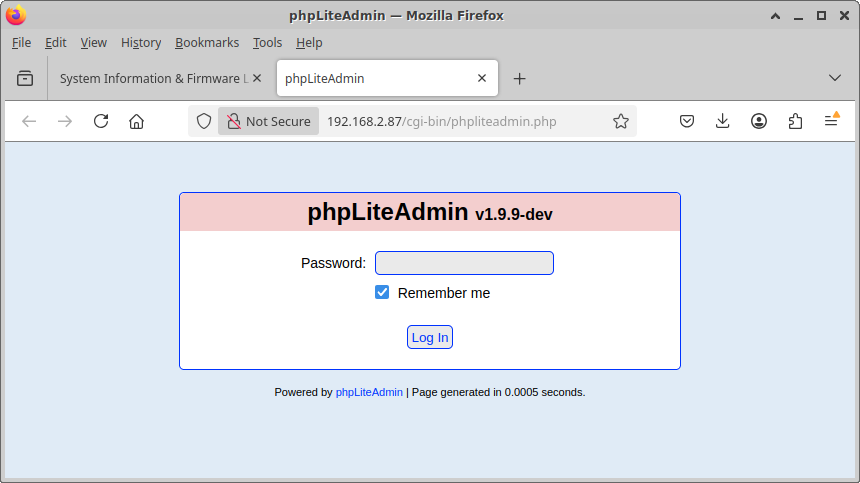

    //password to gain access (set an empty password to disable authentication completely)
    $password = 'admin';

    //directory relative to this file to search for databases (if false, manually list databases in the $databases variable)
    $directory = '.';

    //whether or not to scan the subdirectories of the above directory infinitely deep
    $subdirectories = false;

    //if the above $directory variable is set to false, you must specify the databases manually in an array as the next variable
    //if any of the databases do not exist as they are referenced by their path, they will be created automatically
    $databases = array(
    	array(
    		'path'=> 'database1.sqlite',
    		'name'=> 'Database 1'
    	),
    	array(
    		'path'=> 'database2.sqlite',
    		'name'=> 'Database 2'
    	),
    );


    /* ---- Interface settings ---- */

    // Theme! If you want to change theme, save the CSS file in same folder of phpliteadmin or in folder "themes"
    $theme = 'phpliteadmin.css';

    // the default language! If you want to change it, save the language file in same folder of phpliteadmin or in folder "languages"
    // More about localizations (downloads, how to translate etc.): https://bitbucket.org/phpliteadmin/public/wiki/Localization
    $language = 'en';

    // set default number of rows. You need to relog after changing the number
    $rowsNum = 30;

    // reduce string characters by a number bigger than 10
    $charsNum = 300;

    // maximum number of SQL queries to save in the history
    $maxSavedQueries = 10;

    /* ---- Custom functions ---- */

    //a list of custom functions that can be applied to columns in the databases
    //make sure to define every function below if it is not a core PHP function
    $custom_functions = array(
    	'md5', 'sha1', 'strtotime',
    	// add the names of your custom functions to this array
    	/* 'leet_text', */
    );

    // define your custom functions here
    /*
    function leet_text($value)
    {
      return strtr($value, 'eaAsSOl', '344zZ01');
    }
    */


    /* ---- Advanced options ---- */

    //changing the following variable allows multiple phpLiteAdmin installs to work under the same domain.
    $cookie_name = 'pla3412';

    //whether or not to put the app in debug mode where errors are outputted
    $debug = false;

    // the user is allowed to create databases with only these extensions
    $allowed_extensions = array('db','db3','sqlite','sqlite3');

    // BLOBs are displayed and edited as hex string
    $hexblobs = false;

    // English language-texts.
    // Read our wiki on how to translate: https://bitbucket.org/phpliteadmin/public/wiki/Localization
    $lang = array(
    	"direction" => "LTR",
    	"date_format" => 'g:ia \o\n F j, Y (T)',  // see http://php.net/manual/en/function.date.php for what the letters stand for
    	"ver" => "version",
    	"for" => "for",
    	"to" => "to",
    	"go" => "Go",
    	"yes" => "Yes",
    	"no" => "No",
    	"sql" => "SQL",
    	"csv" => "CSV",
    	"csv_tbl" => "Table that CSV pertains to",
    	"srch" => "Search",
    	"srch_again" => "Do Another Search",
    	"login" => "Log In",
    	"logout" => "Logout",
    	"view" => "View",              // here, the noun SQL view is meant, not the verb "to view"
    	"confirm" => "Confirm",
    	"cancel" => "Cancel",
    	"save_as" => "Save As",
    	"options" => "Options",
    	"no_opt" => "No options",
    	"help" => "Help",
    	"installed" => "installed",
    	"not_installed" => "not installed",
    	"done" => "done",
    	"insert" => "Insert",
    	"export" => "Export",
    	"import" => "Import",
    	"rename" => "Rename",
    	"empty" => "Empty",
    	"drop" => "Drop",
    	"tbl" => "Table",
    	"chart" => "Chart",
    	"err" => "ERROR",
    	"act" => "Action",
    	"rec" => "Records",
    	"col" => "Column",
    	"cols" => "Columns",
    	"rows" => "row(s)",
    	"edit" => "Edit",
    	"del" => "Delete",
    	"add" => "Add",
    	"backup" => "Backup database file",
    	"before" => "Before",
    	"after" => "After",
    	"passwd" => "Password",
    	"passwd_incorrect" => "Incorrect password.",
    	"chk_ext" => "Checking supported SQLite PHP extensions",
    	"autoincrement" => "Autoincrement",
    	"not_null" => "Not NULL",
    	"attention" => "Attention",
    	"none" => "None",
    	"as_defined" => "As defined",
    	"expression" => "Expression",
    	"download" => "Download",
    	"open_in_browser" => "Open in browser",

    	"sqlite_ext" => "SQLite extension",
    	"sqlite_ext_support" => "It appears that none of the supported SQLite library extensions are available in your installation of PHP. You may not use %s until you install at least one of them.",
    	"sqlite_v" => "SQLite version",
    	"sqlite_v_error" => "It appears that your database is of SQLite version %s but your installation of PHP does not contain the necessary extensions to handle this version. To fix the problem, either delete the database and allow %s to create it automatically or recreate it manually as SQLite version %s.",
    	"report_issue" => "The problem cannot be diagnosed properly. Please file an issue report at",
    	"sqlite_limit" => "Due to the limitations of SQLite, only the field name and data type can be modified.",

    	"php_v" => "PHP version",
    	"new_version" => "There is a new version!",

    	"db_dump" => "database dump",
    	"db_f" => "database file",
    	"db_ch" => "Change Database",
    	"db_event" => "Database Event",
    	"db_name" => "Database name",
    	"db_rename" => "Rename Database",
    	"db_renamed" => "Database '%s' has been renamed to",
    	"db_del" => "Delete Database",
    	"db_path" => "Path to database",
    	"db_size" => "Size of database",
    	"db_mod" => "Database last modified",
    	"db_create" => "Create New Database",
    	"db_vac" => "The database, '%s', has been VACUUMed.",
    	"db_not_writeable" => "The database, '%s', does not exist and cannot be created because the containing directory, '%s', is not writable. The application is unusable until you make it writable.",
    	"db_setup" => "There was a problem setting up your database, %s. An attempt will be made to find out what's going on so you can fix the problem more easily",
    	"db_exists" => "A database, other file or directory of the name '%s' already exists.",
    	"db_blank" => "The database name cannot be blank.",

    	"exported" => "Exported",
    	"struct" => "Structure",
    	"struct_for" => "structure for",
    	"on_tbl" => "on table",
    	"data_dump" => "Data dump for",
    	"backup_hint" => "Hint: To backup your database, the easiest way is to %s.",
    	"backup_hint_linktext" => "download the database-file",
    	"total_rows" => "a total of %s rows",
    	"total" => "Total",
    	"not_dir" => "The directory you specified to scan for databases does not exist or is not a directory.",
    	"bad_php_directive" => "It appears that the PHP directive, 'register_globals' is enabled. This is bad. You need to disable it before continuing.",
    	"page_gen" => "Page generated in %s seconds.",
    	"powered" => "Powered by",
    	"free_software" => "This is free software.",
    	"please_donate" => "Please donate.",
    	"remember" => "Remember me",
    	"no_db" => "Welcome to %s. It appears that you have selected to scan a directory for databases to manage. However, %s could not find any valid SQLite databases. You may use the form below to create your first database.",
    	"no_db2" => "The directory you specified does not contain any existing databases to manage, and the directory is not writable. This means you can't create any new databases using %s. Either make the directory writable or manually upload databases to the directory.",
    	"dir_not_executable" => "The directory you specified cannot be scanned for databases as %s has no execute permissions on it. On Linux, use 'chmod +x %s' to fix this.",
    	"filesystem_permission_denied" => "Permission denied. Check file system permissions.",

    	"create" => "Create",
    	"created" => "has been created",
    	"create_tbl" => "Create new table",
    	"create_tbl_db" => "Create new table on database",
    	"create_trigger" => "Creating new trigger on table",
    	"create_index" => "Creating new index on table",
    	"create_index1" => "Create Index",
    	"create_view" => "Create new view on database",

    	"trigger" => "Trigger",
    	"triggers" => "Triggers",
    	"trigger_name" => "Trigger name",
    	"trigger_act" => "Trigger Action",
    	"trigger_step" => "Trigger Steps (semicolon terminated)",
    	"when_exp" => "WHEN expression (type expression without 'WHEN')",
    	"index" => "Index",
    	"indexes" => "Indexes",
    	"index_name" => "Index name",
    	"name" => "Name",
    	"unique" => "Unique",
    	"seq_no" => "Seq. No.",
    	"emptied" => "has been emptied",
    	"dropped" => "has been dropped",
    	"renamed" => "has been renamed to",
    	"altered" => "has been altered successfully",
    	"inserted" => "inserted",
    	"deleted" => "deleted",
    	"affected" => "affected",
    	"blank_index" => "Index name must not be blank.",
    	"one_index" => "You must specify at least one index column.",
    	"docu" => "Documentation",
    	"license" => "License",
    	"proj_site" => "Project Site",
    	"bug_report" => "This may be a bug that needs to be reported at",
    	"return" => "Return",
    	"browse" => "Browse",
    	"fld" => "Field",
    	"fld_num" => "Number of Fields",
    	"fields" => "Fields",
    	"type" => "Type",
    	"operator" => "Operator",
    	"val" => "Value",
    	"update" => "Update",
    	"comments" => "Comments",

    	"specify_fields" => "You must specify the number of table fields.",
    	"specify_tbl" => "You must specify a table name.",
    	"specify_col" => "You must specify a column.",

    	"tbl_exists" => "Table of the same name already exists.",
    	"show" => "Show",
    	"show_rows" => "Showing %s row(s). ",
    	"showing" => "Showing",
    	"showing_rows" => "Showing rows",
    	"query_time" => "(Query took %s sec)",
    	"syntax_err" => "There is a problem with the syntax of your query (Query was not executed)",
    	"run_sql" => "Run SQL query/queries on database '%s'",
    	"recent_queries" => "Recent Queries",
    	"full_texts" => "Show full texts",
    	"no_full_texts" => "Shorten long texts",

    	"ques_table_empty" => "Are you sure you want to empty the table(s) '%s'?",
    	"ques_table_drop" => "Are you sure you want to drop the table(s) / view(s) '%s'?",
    	"ques_row_delete" => "Are you sure you want to delete row(s) %s from table '%s'?",
    	"ques_database_delete" => "Are you sure you want to delete the database '%s'?",
    	"ques_column_delete" => "Are you sure you want to delete column(s) %s from table '%s'?",
    	"ques_index_delete" => "Are you sure you want to delete index '%s'?",
    	"ques_trigger_delete" => "Are you sure you want to delete trigger '%s'?",
    	"ques_primarykey_add" => "Are you sure you want to add a primary key for the column(s) %s in table '%s'?",

    	"export_struct" => "Export with structure",
    	"export_data" => "Export with data",
    	"add_drop" => "Add DROP TABLE",
    	"add_transact" => "Add TRANSACTION",
    	"fld_terminated" => "Fields terminated by",
    	"fld_enclosed" => "Fields enclosed by",
    	"fld_escaped" => "Fields escaped by",
    	"fld_names" => "Field names in first row",
    	"rep_null" => "Replace NULL by",
    	"rem_crlf" => "Remove CRLF characters within fields",
    	"put_fld" => "Put field names in first row",
    	"null_represent" => "NULL represented by",
    	"import_suc" => "Import was successful.",
    	"import_into" => "Import into",
    	"import_f" => "File to import",
    	"max_file_size" => "Maximum file size",
    	"rename_tbl" => "Rename table '%s' to",

    	"rows_records" => "row(s) starting from record # ",
    	"rows_aff" => "row(s) affected. ",

    	"as_a" => "as a",
    	"readonly_tbl" => "'%s' is a view, which means it is a SELECT statement treated as a read-only table. You may not edit or insert records.",
    	"chk_all" => "Check All",
    	"unchk_all" => "Uncheck All",
    	"with_sel" => "With Selected",

    	"no_tbl" => "No table in database.",
    	"no_chart" => "If you can read this, it means the chart could not be generated. The data you are trying to view may not be appropriate for a chart.",
    	"no_rows" => "There are no rows in the table for the range you selected.",
    	"no_sel" => "You did not select anything.",

    	"chart_type" => "Chart Type",
    	"chart_bar" => "Bar Chart",
    	"chart_pie" => "Pie Chart",
    	"chart_line" => "Line Chart",
    	"lbl" => "Labels",
    	"empty_tbl" => "This table is empty.",
    	"click" => "Click here",
    	"insert_rows" => "to insert rows.",
    	"restart_insert" => "Restart insertion with ",
    	"ignore" => "Ignore",
    	"func" => "Function",
    	"new_insert" => "Insert As New Row",
    	"save_ch" => "Save Changes",
    	"def_val" => "Default Value",
    	"prim_key" => "Primary Key",
    	"tbl_end" => "field(s) at end of table",
    	"query_used_table" => "Query used to create this table",
    	"query_used_view" => "Query used to create this view",
    	"create_index2" => "Create an index on",
    	"create_trigger2" => "Create a new trigger",
    	"new_fld" => "Adding new field(s) to table '%s'",
    	"add_flds" => "Add Fields",
    	"edit_col" => "Editing column '%s'",
    	"vac" => "Vacuum",
    	"vac_desc" => "Large databases sometimes need to be VACUUMed to reduce their footprint on the server. Click the button below to VACUUM the database '%s'.",
    	"vac_on_empty"=>"Rebuild database file to recover unused space (Vacuum)",
    	"event" => "Event",
    	"each_row" => "For Each Row",
    	"define_index" => "Define index properties",
    	"dup_val" => "Duplicate values",
    	"allow" => "Allowed",
    	"not_allow" => "Not Allowed",
    	"asc" => "Ascending",
    	"desc" => "Descending",
    	"warn0" => "You have been warned.",

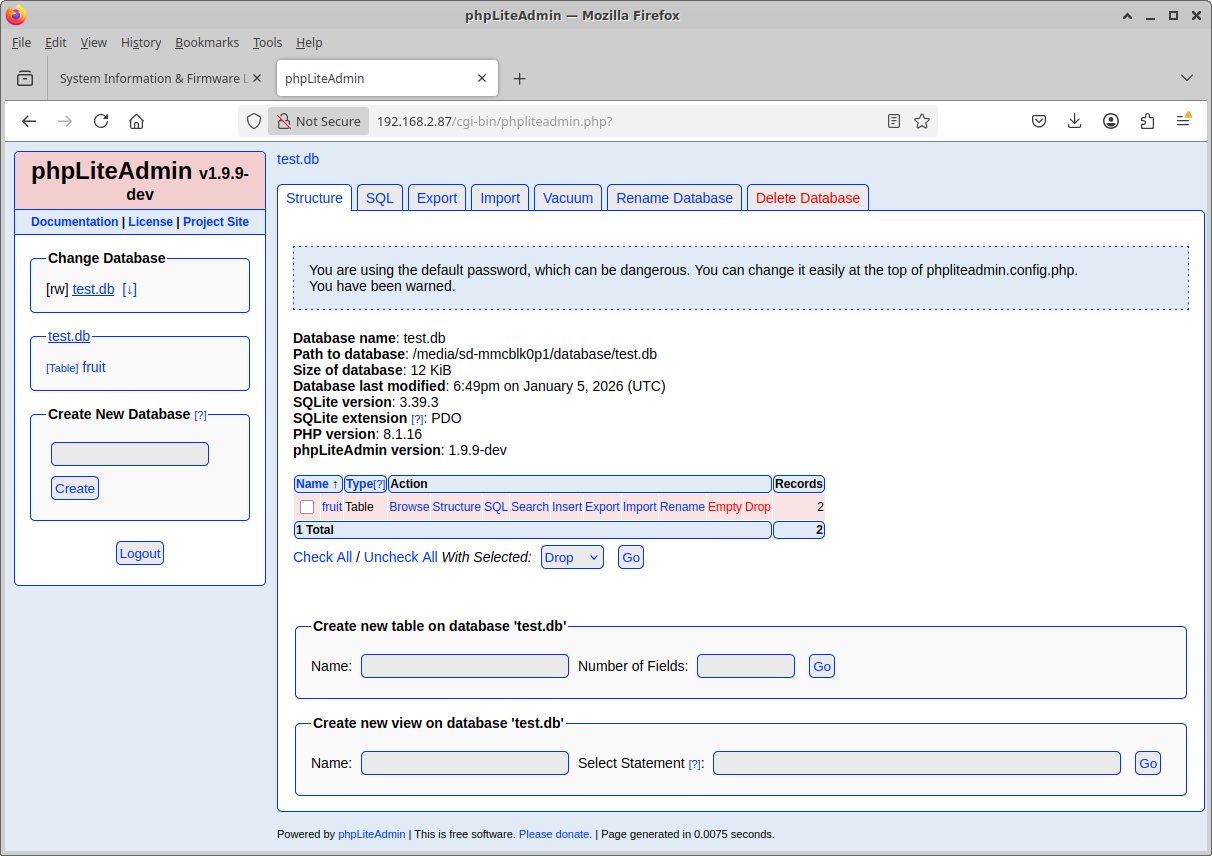

    	"warn_passwd" => "You are using the default password, which can be dangerous. You can change it easily at the top of %s.",
    	"warn_mbstring" =>"The mbstring extension is not installed or not enabled in your PHP. As long as you stick to ASCII characters, everything will work, but you may experience strange bugs with multibyte characters. Better install and enable mbstring!",
    	"counting_skipped" => "Counting of records has been skipped for some tables because your database is comparably big and some tables don't have primary keys assigned to them so counting might be slow. Add a primary key to these tables or %sforce counting%s.",
    	"sel_state" => "Select Statement",
    	"delimit" => "Delimiter",
    	"back_top" => "Back to Top",
    	"choose_f" => "Choose File",
    	"instead" => "Instead of",
    	"define_in_col" => "Define index column(s)",

    	"delete_only_managed" => "You can only delete databases managed by this tool!",
    	"rename_only_managed" => "You can only rename databases managed by this tool!",
    	"db_moved_outside" => "You either tried to move the database into a directory where it cannot be managed anylonger, or the check if you did this failed because of missing rights.",
    	"extension_not_allowed" => "The extension you provided is not within the list of allowed extensions. Please use one of the following extensions",
    	"add_allowed_extension" => "You can add extensions to this list by adding your extension to \$allowed_extensions in the configuration.",
    	"database_not_writable" => "The database-file is not writable, so its content cannot be changed in any way.",
    	"directory_not_writable" => "The database-file itself is writable, but to write into it, the containing directory needs to be writable as well. This is because SQLite puts temporary files in there for locking.",
    	"tbl_inexistent" => "Table %s does not exist",
    	"col_inexistent" => "Column %s does not exist",

    	// errors that can happen when ALTER TABLE fails. You don't necessarily have to translate these.
    	"alter_failed" => "Altering of Table %s failed",
    	"alter_tbl_name_not_replacable" => "could not replace the table name with the temporary one",
    	"alter_no_def" => "no ALTER definition",
    	"alter_parse_failed" =>"failed to parse ALTER definition",
    	"alter_action_not_recognized" => "ALTER action could not be recognized",
    	"alter_no_add_col" => "no column to add detected in ALTER statement",
    	"alter_pattern_mismatch"=>"Pattern did not match on your original CREATE TABLE statement",
    	"alter_col_not_recognized" => "could not recognize new or old column name",
    	"alter_unknown_operation" => "Unknown ALTER operation!",

    	/* Help documentation */
    	"help_doc" => "Help Documentation",
    	"help1" => "SQLite Library Extensions",
    	"help1_x" => "%s uses PHP library extensions that allow interaction with SQLite databases. Currently, %s supports PDO, SQLite3, and SQLiteDatabase. Both PDO and SQLite3 deal with version 3 of SQLite, while SQLiteDatabase deals with version 2. So, if your PHP installation includes more than one SQLite library extension, PDO and SQLite3 will take precedence to make use of the better technology. However, if you have existing databases that are of version 2 of SQLite, %s will be forced to use SQLiteDatabase for only those databases. Not all databases need to be of the same version. During the database creation, however, the most advanced extension will be used.",
    	"help2" => "Creating a New Database",
    	"help2_x" => "When you create a new database, the name you entered will be appended with the appropriate file extension (.db, .db3, .sqlite, etc.) if you do not include it yourself. The database will be created in the directory you specified as the \$directory variable.",
    	"help3" => "Tables vs. Views",
    	"help3_x" => "On the main database page, there is a list of tables and views. Since views are read-only, certain operations will be disabled. These disabled operations will be apparent by their omission in the location where they should appear on the row for a view. If you want to change the data for a view, you need to drop that view and create a new view with the appropriate SELECT statement that queries other existing tables. For more information, see <a href='http://en.wikipedia.org/wiki/View_(database)' target='_blank'>http://en.wikipedia.org/wiki/View_(database)</a>",
    	"help4" => "Writing a Select Statement for a New View",
    	"help4_x" => "When you create a new view, you must write an SQL SELECT statement that it will use as its data. A view is simply a read-only table that can be accessed and queried like a regular table, except it cannot be modified through insertion, column editing, or row editing. It is only used for conveniently fetching data.",
    	"help5" => "Export Structure to SQL File",
    	"help5_x" => "During the process for exporting to an SQL file, you may choose to include the queries that create the table and columns.",
    	"help6" => "Export Data to SQL File",
    	"help6_x" => "During the process for exporting to an SQL file, you may choose to include the queries that populate the table(s) with the current records of the table(s).",
    	"help7" => "Add Drop Table to Exported SQL File",
    	"help7_x" => "During the process for exporting to an SQL file, you may choose to include queries to DROP the existing tables before adding them so that problems do not occur when trying to create tables that already exist.",
    	"help8" => "Add Transaction to Exported SQL File",
    	"help8_x" => "During the process for exporting to an SQL file, you may choose to wrap the queries around a TRANSACTION so that if an error occurs at any time during the importation process using the exported file, the database can be reverted to its previous state, preventing partially updated data from populating the database.",
    	"help9" => "Add Comments to Exported SQL File",
    	"help9_x" => "During the process for exporting to an SQL file, you may choose to include comments that explain each step of the process so that a human can better understand what is happening.",
    	"help10" => "Partial Indexes",
    	"help10_x" => "Partial indexes are indexes over a subset of the rows of a table specified by a WHERE clause. Note this requires at least SQLite 3.8.0 and database files with partial indexes won't be readable or writable by older versions. See the <a href='https://www.sqlite.org/partialindex.html' target='_blank'>SQLite documentation.</a>",
    	"help11" => "Maximum size of file uploads",
    	"help11_x" => "The maximum size of file uploads is determined by three PHP settings: <em>upload_max_filesize</em>, <em>post_max_size</em> and <em>memory_limit</em>. The smallest of these three limits the maximum size for file uploads. To upload larger files, adjust these values in your <em>php.ini</em> file."

    );

    //	!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
    //	there is no reason for the average user to edit anything below this comment
    //	!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

    // Authorization class
    // Maintains user's logged-in state and security of application
    //

    class Authorization
    {
    	private $authorized;
    	private $login_failed;
    	private $system_password_encrypted;

    	public function __construct()
    	{
    		// first, make sure a CSRF token is generated
    		$this->generateToken();
    		// second, check for possible CSRF attacks. to protect logins, this is done before checking login
    		$this->checkToken();

    		// the salt and password encrypting is probably unnecessary protection but is done just
    		// for the sake of being very secure
    		if(!isset($_SESSION[COOKIENAME.'_salt']) && !isset($_COOKIE[COOKIENAME.'_salt']))
    		{
    			// create a random salt for this session if a cookie doesn't already exist for it
    			$_SESSION[COOKIENAME.'_salt'] = self::generateSalt(22);
    		}
    		else if(!isset($_SESSION[COOKIENAME.'_salt']) && isset($_COOKIE[COOKIENAME.'_salt']))
    		{
    			// session doesn't exist, but cookie does so grab it
    			$_SESSION[COOKIENAME.'_salt'] = $_COOKIE[COOKIENAME.'_salt'];
    		}

    		// salted and encrypted password used for checking
    		$this->system_password_encrypted = md5(SYSTEMPASSWORD."_".$_SESSION[COOKIENAME.'_salt']);

    		$this->authorized =
    			// no password
    			SYSTEMPASSWORD == ''
    			// correct password stored in session
    			|| isset($_SESSION[COOKIENAME.'password']) && hash_equals($_SESSION[COOKIENAME.'password'], $this->system_password_encrypted)
    			// correct password stored in cookie
    			|| isset($_COOKIE[COOKIENAME]) && isset($_COOKIE[COOKIENAME.'_salt']) && hash_equals(md5(SYSTEMPASSWORD."_".$_COOKIE[COOKIENAME.'_salt']), $_COOKIE[COOKIENAME]);
    	}

    	public function attemptGrant($password, $remember)
    	{
    		$hashed_password = crypt(SYSTEMPASSWORD, '$2a$07$'.self::generateSalt(22).'$');
    		if (hash_equals($hashed_password, crypt($password, $hashed_password))) {
    			if ($remember) {
    				// user wants to be remembered, so set a cookie
    				$expire = time()+60*60*24*30; //set expiration to 1 month from now
    				setcookie(COOKIENAME, $this->system_password_encrypted, $expire, null, null, null, true);
    				setcookie(COOKIENAME."_salt", $_SESSION[COOKIENAME.'_salt'], $expire, null, null, null, true);
    			} else {
    				// user does not want to be remembered, so destroy any potential cookies
    				setcookie(COOKIENAME, "", time()-86400, null, null, null, true);
    				setcookie(COOKIENAME."_salt", "", time()-86400, null, null, null, true);
    				unset($_COOKIE[COOKIENAME]);
    				unset($_COOKIE[COOKIENAME.'_salt']);
    			}

    			$_SESSION[COOKIENAME.'password'] = $this->system_password_encrypted;
    			$this->authorized = true;
    			return true;
    		}

    		$this->login_failed = true;
    		return false;
    	}

    	public function revoke()
    	{
    		//destroy everything - cookies and session vars
    		setcookie(COOKIENAME, "", time()-86400, null, null, null, true);
    		setcookie(COOKIENAME."_salt", "", time()-86400, null, null, null, true);
    		unset($_COOKIE[COOKIENAME]);
    		unset($_COOKIE[COOKIENAME.'_salt']);
    		session_unset();
    		session_destroy();
    		$this->authorized = false;
    		// start a new session and generate a new CSRF token for the login form
    		session_start();
    		$this->generateToken();
    	}

    	public function isAuthorized()
    	{
    		return $this->authorized;
    	}

    	public function isFailedLogin()
    	{
    		return $this->login_failed;
    	}

    	public function isPasswordDefault()
    	{
    		return SYSTEMPASSWORD == 'admin';
    	}

    	private static function generateSalt($saltSize)
    	{
    		$set = 'ABCDEFGHiJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789';
    		$setLast = strlen($set) - 1;
    		$salt = '';
    		while ($saltSize-- > 0) {
    			$salt .= $set[mt_rand(0, $setLast)];
    		}
    		return $salt;
    	}

    	private function generateToken()
    	{
    		// generate CSRF token
    		if (empty($_SESSION[COOKIENAME.'token']))
    		{
    			if (function_exists('random_bytes')) // introduced in PHP 7.0
    			{
    				$_SESSION[COOKIENAME.'token'] = bin2hex(random_bytes(32));
    			}
    			elseif (function_exists('openssl_random_pseudo_bytes')) // introduced in PHP 5.3.0
    			{
    				$_SESSION[COOKIENAME.'token'] = bin2hex(openssl_random_pseudo_bytes(32));
    			}
    			else
    			{
    				// For PHP 5.2.x - This case can be removed once we drop support for 5.2.x
    				$_SESSION[COOKIENAME.'token'] = bin2hex(mcrypt_create_iv(32, MCRYPT_DEV_URANDOM));
    			}
    		}
    	}

    	private function checkToken()
    	{
    		// checking CSRF token
    		if($_SERVER['REQUEST_METHOD'] === 'POST' || isset($_GET['download'])) // all POST forms need tokens! downloads are protected as well
    		{
    			if($_SERVER['REQUEST_METHOD'] === 'POST' && isset($_POST['token']))
    				$check_token=$_POST['token'];
    			elseif($_SERVER['REQUEST_METHOD'] === 'GET' && isset($_GET['token']))
    				$check_token=$_GET['token'];

    			if (!isset($check_token))
    			{
    				die("CSRF token missing");
    			}
    			elseif(!hash_equals($_SESSION[COOKIENAME.'token'], $check_token))
    			{
    				die("CSRF token is wrong - please try to login again");
    			}
    		}
    	}

    }
    // Database class
    // Generic database abstraction class to manage interaction with database without worrying about SQLite vs. PHP versions
    //
    class Database
    {
    	protected $db; //reference to the DB object
    	protected $type; //the extension for PHP that handles SQLite
    	protected $data;
    	protected $lastResult;
    	protected $alterError;
    	protected $debugOutput ='';

    	public function __construct($data)
    	{
    		global $lang, $params;
    		$this->data = $data;
    		try
    		{
    			if(!file_exists($this->data["path"]) && !is_writable(dirname($this->data["path"]))) //make sure the containing directory is writable if the database does not exist
    			{
    				echo "<div class='confirm' style='margin:20px;'>";
    				printf($lang['db_not_writeable'], htmlencode($this->data["path"]), htmlencode(dirname($this->data["path"])));
    				echo $params->getForm();
    				echo "<input type='submit' value='Log Out' name='".$lang['logout']."' class='btn'/>";
    				echo "</form>";
    				echo "</div><br/>";
    				exit();
    			}

    			$ver = $this->getVersion();

    			switch(true)
    			{
    				case ((!isset($data['type']) || $data['type']!=2) && (FORCETYPE=="PDO" || (FORCETYPE==false && class_exists("PDO") && in_array("sqlite", PDO::getAvailableDrivers()) && ($ver==-1 || $ver==3)))):
    					$this->db = new PDO("sqlite:".$this->data['path']);
    					if($this->db!=NULL)
    					{
    						$this->type = "PDO";
    						break;
    					}
    				case ((!isset($data['type']) || $data['type']!=2) && (FORCETYPE=="SQLite3" || (FORCETYPE==false && class_exists("SQLite3") && ($ver==-1 || $ver==3)))):
    					$this->db = new SQLite3($this->data['path']);
    					if($this->db!=NULL)
    					{
    						$this->type = "SQLite3";
    						break;
    					}
    				case (FORCETYPE=="SQLiteDatabase" || (FORCETYPE==false && class_exists("SQLiteDatabase") && ($ver==-1 || $ver==2))):
    					$this->db = new SQLiteDatabase($this->data['path']);
    					if($this->db!=NULL)
    					{
    						$this->type = "SQLiteDatabase";
    						break;
    					}
    				default:
    					$this->showError();
    					exit();
    			}
    			$this->query("PRAGMA foreign_keys = ON");
    		}
    		catch(Exception $e)
    		{
    			$this->showError();
    			exit();
    		}
    	}

    	public function registerUserFunction($ids)
    	{
    		// in case a single function id was passed
    		if (is_string($ids))
    			$ids = array($ids);

    		if ($this->type == 'PDO') {
    			foreach ($ids as $id) {
    				$this->db->sqliteCreateFunction($id, $id, -1);
    			}
    		} else { // type is Sqlite3 or SQLiteDatabase
    			foreach ($ids as $id) {
    				$this->db->createFunction($id, $id, -1);
    			}
    		}
    	}

    	public function getError($complete_msg = false)
    	{
    		global $lang, $debug;
    		$error = "unknown";

    		if($this->alterError!='')
    		{
    			$error = $this->alterError;
    			$this->alterError = "";
    		}
    		else if($this->type=="PDO")
    		{
    			$e = $this->db->errorInfo();
    			$error = $e[2];
    		}
    		else if($this->type=="SQLite3")
    		{
    			$error = $this->db->lastErrorMsg();
    		}
    		else
    		{
    			$error = sqlite_error_string($this->db->lastError());
    		}

    		if($complete_msg)
    		{
    			$error = $lang['err'].": ".htmlencode($error);
    			// do not suggest to report a bug when constraints fail
    			if(strpos($error, 'constraint failed')===false)
    				$error.="<br/>".$lang['bug_report'].' '.PROJECT_BUGTRACKER_LINK;
    		}

    		if($debug)
    			$error .= $this->getDebugOutput();

    		return $error;
    	}

    	function getDebugOutput()
    	{
    		return ($this->debugOutput != "" ? "<hr /><strong>DEBUG:</strong><br />".$this->debugOutput : $this->debugOutput);
    	}

    	public function showError()
    	{
    		global $lang;
    		$classPDO = class_exists("PDO");
    		$classSQLite3 = class_exists("SQLite3");
    		$classSQLiteDatabase = class_exists("SQLiteDatabase");
    		if($classPDO)	// PDO is there, check if the SQLite driver for PDO is missing
    			$PDOSqliteDriver = (in_array("sqlite", PDO::getAvailableDrivers() ));
    		else
    			$PDOSqliteDriver = false;
    		echo "<div class='confirm' style='margin:20px;'>";
    		printf($lang['db_setup'], $this->getPath());
    		echo ".<br/><br/><i>".$lang['chk_ext']."...<br/><br/>";
    		echo "<b>PDO</b>: ".($classPDO ? $lang['installed'] : $lang['not_installed'])."<br/>";
    		echo "<b>PDO SQLite Driver</b>: ".($PDOSqliteDriver ? $lang['installed'] : $lang['not_installed'])."<br/>";
    		echo "<b>SQLite3</b>: ".($classSQLite3 ? $lang['installed'] : $lang['not_installed'])."<br/>";
    		echo "<b>SQLiteDatabase</b>: ".($classSQLiteDatabase ? $lang['installed'] : $lang['not_installed'])."<br/>";
    		echo "<br/>...".$lang['done'].".</i><br/><br/>";
    		if(!$classPDO && !$classSQLite3 && !$classSQLiteDatabase)
    			printf($lang['sqlite_ext_support'], PROJECT);
    		else
    		{
    			if(!$PDOSqliteDriver && !$classSQLite3 && $this->getVersion()==3)
    				printf($lang['sqlite_v_error'], 3, PROJECT, 2);
    			else if(!$classSQLiteDatabase && $this->getVersion()==2)
    				printf($lang['sqlite_v_error'], 2, PROJECT, 3);
    			else
    			{
    				if(!file_exists($this->getPath()))
    				{
    					if(touch($this->getPath()))
    					{
    						echo $lang['report_issue'].' '.PROJECT_BUGTRACKER_LINK.'.';
    					}
    					else
    					{
    						echo "<strong>".$lang['filesystem_permission_denied']."</strong>";
    					}
    				}
    			}
    		}
    		echo "<p>See ".PROJECT_INSTALL_LINK." for help.</p>";

    		$this->print_db_list();

    		echo "</div>";
    	}

    	// print the list of databases
    	public function print_db_list()
    	{
    		global $databases, $lang, $params, $currentDB;
    		echo "<fieldset style='margin:15px;' class='databaseList'><legend><b>".$lang['db_ch']."</b></legend>";
    		if(sizeof($databases)<10) //if there aren't a lot of databases, just show them as a list of links instead of drop down menu
    		{
    			$i=0;
    			foreach($databases as $database)
    			{
    				$i++;
    				$name = $database['name'];
    				if(mb_strlen($name)>25)
    					$name = "...".mb_substr($name, mb_strlen($name)-22, 22);
    				echo '[' . ($database['readable'] ? 'r':' ' ) . ($database['writable'] && $database['writable_dir'] ? 'w':' ' ) . ']&nbsp;';

    				echo $params->getLink(array('database'=>$database['path'], 'table'=>null), htmlencode($name), ($database == $currentDB? 'active_db': '') );
    				echo "&nbsp;&nbsp;";
    				echo $params->getLink(array('download'=>$database['path'], 'table'=>null, 'token'=>$_SESSION[COOKIENAME.'token']), '[&darr;]', '', $lang['backup']);

    				if($i<sizeof($databases))
    					echo "<br/>";
    			}
    		}
    		else //there are a lot of databases - show a drop down menu
    		{
    			echo $params->getForm(array('table'=>null), 'get');
    			echo "<select name='database' onchange='this.form.submit()'>";
    			foreach($databases as $database)
    			{
    				$perms_string = htmlencode('[' . ($database['readable'] ? 'r':' ' ) . ($database['writable'] && $database['writable_dir'] ? 'w':' ' ) . '] ');
    				if($database == $currentDB)
    					echo "<option value='".htmlencode($database['path'])."' selected='selected'>".$perms_string.htmlencode($database['name'])."</option>";
    				else
    					echo "<option value='".htmlencode($database['path'])."'>".$perms_string.htmlencode($database['name'])."</option>";
    			}
    			echo "</select>";
    			echo "<noscript><input type='submit' value='".$lang['go']."' class='btn'></noscript>";
    			echo "</form>";
    		}
    		echo "</fieldset>";
    	}

    	public function __destruct()
    	{
    		if($this->db)
    			$this->close();
    	}

    	//get the exact PHP extension being used for SQLite
    	public function getType()
    	{
    		return $this->type;
    	}

    	// get the version of the SQLite library
    	public function getSQLiteVersion()
    	{
    		$queryVersion = $this->select("SELECT sqlite_version() AS sqlite_version");
    		return $queryVersion['sqlite_version'];
    	}

    	//get the name of the database
    	public function getName()
    	{
    		return $this->data["name"];
    	}

    	//get the filename of the database
    	public function getPath()
    	{
    		return $this->data["path"];
    	}

    	//is the db-file writable?
    	public function isWritable()
    	{
    		return $this->data["writable"];
    	}

    	//is the db-folder writable?
    	public function isDirWritable()
    	{
    		return $this->data["writable_dir"];
    	}

    	//get the version of the database
    	public function getVersion()
    	{
    		if(file_exists($this->data['path'])) //make sure file exists before getting its contents
    		{
    			$content = strtolower(file_get_contents($this->data['path'], NULL, NULL, 0, 40)); //get the first 40 characters of the database file
    			$p = strpos($content, "** this file contains an sqlite 2"); //this text is at the beginning of every SQLite2 database
    			if($p!==false) //the text is found - this is version 2
    				return 2;
    			else
    				return 3;
    		}
    		else //return -1 to indicate that it does not exist and needs to be created
    		{
    			return -1;
    		}
    	}

    	//get the size of the database (in KiB)
    	public function getSize()
    	{
    		return round(filesize($this->data["path"])*0.0009765625, 1);
    	}

    	//get the last modified time of database
    	public function getDate()
    	{
    		global $lang;
    		return date($lang['date_format'], filemtime($this->data['path']));
    	}

    	//get number of affected rows from last query
    	public function getAffectedRows()
    	{
    		if($this->type=="PDO")
    			if(!is_object($this->lastResult))
    				// in case it was an alter table statement, there is no lastResult object
    				return 0;
    			else
    				return $this->lastResult->rowCount();
    		else if($this->type=="SQLite3")
    			return $this->db->changes();
    		else if($this->type=="SQLiteDatabase")
    			return $this->db->changes();
    	}

    	public function getTypeOfTable($table)
    	{
    		$result = $this->select("SELECT `type` FROM `sqlite_master` WHERE `name`=" . $this->quote($table), 'assoc');
    		return $result['type'];
    	}

    	public function getTableInfo($table)
    	{
    		return $this->selectArray("PRAGMA table_info(".$this->quote_id($table).")");
    	}

    	// returns the list of tables (opt. incl. views) as
    	// array( Tablename => tableType ) with tableType being 'view' or 'table'
    	public function getTables($alsoViews=true, $alsoInternal=false, $orderBy='name', $orderDirection='ASC')
    	{
    		$query = "SELECT name, type FROM sqlite_master "
    			. "WHERE (type='table'".($alsoViews?" OR type='view'":"").") "
    			. "AND name!='' ".($alsoInternal? "":" AND name NOT LIKE 'sqlite_%' ")
    			. "ORDER BY ".$this->quote_id($orderBy)." ".$orderDirection;
    		$result = $this->selectArray($query);
    		$list = array();
    		for($i=0; $i<sizeof($result); $i++)
    		{
    			$list[$result[$i]['name']] = $result[$i]['type'];
    		}
    		return $list;
    	}

    	// returns an array of all tables and their columns as
    	// array( tablename => array(columName) )
    	public function getTableDefinitions()
    	{
    		$tables = $this->getTables(true, true);
    		$result = array();
    		foreach ($tables as $tableName => $tableType)
    		{
    			$tableInfo = $this->getTableInfo($tableName);
    			$columns = array();
    			foreach($tableInfo as $column)
    				$columns[] = $column['name'];
    			$result[$tableName] = $columns;
    		}
    		return $result;
    	}

    	public function close()
    	{
    		if($this->type=="PDO")
    			$this->db = NULL;
    		else if($this->type=="SQLite3")
    			$this->db->close();
    		else if($this->type=="SQLiteDatabase")
    			$this->db = NULL;
    	}

    	public function beginTransaction()
    	{
    		$this->query("BEGIN");
    	}

    	public function commitTransaction()
    	{
    		$this->query("COMMIT");
    	}

    	public function rollbackTransaction()
    	{
    		$this->query("ROLLBACK");
    	}

    	//generic query wrapper
    	//returns false on error and the query result on success
    	public function query($query, $ignoreAlterCase=false)
    	{
    		global $debug;
    		if(strtolower(substr(ltrim($query),0,5))=='alter' && $ignoreAlterCase==false) //this query is an ALTER query - call the necessary function
    		{
    			preg_match("/^\s*ALTER\s+TABLE\s+(".$this->sqlite_surroundings_preg("+",false,",' \"\[`").")\s+(.*)$/i",$query,$matches);
    			if(!isset($matches[1]) || !isset($matches[2]))
    			{
    				if($debug) echo "<span title='".htmlencode($query)."' onclick='this.innerHTML=\"".htmlencode(str_replace('"','\"',$query))."\"' style='cursor:pointer'>SQL?</span><br />";
    				return false;
    			}
    			$tablename = $this->sqliteUnquote($matches[1]);
    			$alterdefs = $matches[2];
    			if($debug) echo "ALTER TABLE QUERY=(".htmlencode($query)."), tablename=($tablename), alterdefs=($alterdefs)<br />";
    			$result = $this->alterTable($tablename, $alterdefs);
    		}
    		else //this query is normal - proceed as normal
    		{
    			$result = $this->db->query($query);
    			if($debug) echo "<span title='".htmlencode($query)."' onclick='this.innerHTML=\"".htmlencode(str_replace('"','\"',$query))."\"' style='cursor:pointer'>SQL?</span><br />";
    		}
    		if($result===false)
    			return false;
    		$this->lastResult = $result;
    		return $result;
    	}

    	//wrapper for an INSERT and returns the ID of the inserted row
    	public function insert($query)
    	{
    		$result = $this->query($query);
    		if($this->type=="PDO")
    			return $this->db->lastInsertId();
    		else if($this->type=="SQLite3")
    			return $this->db->lastInsertRowID();
    		else if($this->type=="SQLiteDatabase")
    			return $this->db->lastInsertRowid();
    	}

    	//returns an array for SELECT
    	public function select($query, $mode="both")
    	{
    		$result = $this->query($query);
    		if(!$result) //make sure the result is valid
    			return NULL;
    		if($this->type=="PDO")
    		{
    			if($mode=="assoc")
    				$mode = PDO::FETCH_ASSOC;
    			else if($mode=="num")
    				$mode = PDO::FETCH_NUM;
    			else
    				$mode = PDO::FETCH_BOTH;
    			$ret = $result->fetch($mode);
    			$result->closeCursor();
    			return $ret;
    		}
    		else if($this->type=="SQLite3")
    		{
    			if($mode=="assoc")
    				$mode = SQLITE3_ASSOC;
    			else if($mode=="num")
    				$mode = SQLITE3_NUM;
    			else
    				$mode = SQLITE3_BOTH;
    			$ret = $result->fetchArray($mode);
    			$result->finalize();
    			return $ret;
    		}
    		else if($this->type=="SQLiteDatabase")
    		{
    			if($mode=="assoc")
    				$mode = SQLITE_ASSOC;
    			else if($mode=="num")
    				$mode = SQLITE_NUM;
    			else
    				$mode = SQLITE_BOTH;
    			return $result->fetch($mode);
    		}
    	}

    	//returns an array of arrays after doing a SELECT
    	public function selectArray($query, $mode="both")
    	{
    		$result = $this->query($query);
    		//make sure the result is valid
    		if($result=== false || $result===NULL)
    			return NULL;		// error
    		if(!is_object($result)) // no rows returned
    			return array();
    		if($this->type=="PDO")
    		{
    			if($mode=="assoc")
    				$mode = PDO::FETCH_ASSOC;
    			else if($mode=="num")
    				$mode = PDO::FETCH_NUM;
    			else
    				$mode = PDO::FETCH_BOTH;
    			$ret = $result->fetchAll($mode);
    			$result->closeCursor();
    			return $ret;
    		}
    		else if($this->type=="SQLite3")
    		{
    			if($mode=="assoc")
    				$mode = SQLITE3_ASSOC;
    			else if($mode=="num")
    				$mode = SQLITE3_NUM;
    			else
    				$mode = SQLITE3_BOTH;
    			$arr = array();
    			$i = 0;
    			while($res = $result->fetchArray($mode))
    			{
    				$arr[$i] = $res;
    				$i++;
    			}
    			$result->finalize();
    			return $arr;
    		}
    		else if($this->type=="SQLiteDatabase")
    		{
    			if($mode=="assoc")
    				$mode = SQLITE_ASSOC;
    			else if($mode=="num")
    				$mode = SQLITE_NUM;
    			else
    				$mode = SQLITE_BOTH;
    			return $result->fetchAll($mode);
    		}
    	}

    	//returns an array of the next row in $result
    	public function fetch($result, $mode="both")
    	{
    		//make sure the result is valid
    		if($result=== false || $result===NULL)
    			return NULL;		// error
    		if(!is_object($result)) // no rows returned
    			return array();
    		if($this->type=="PDO")
    		{
    			if($mode=="assoc")
    				$mode = PDO::FETCH_ASSOC;
    			else if($mode=="num")
    				$mode = PDO::FETCH_NUM;
    			else
    				$mode = PDO::FETCH_BOTH;
    			return $result->fetch($mode);
    		}
    		else if($this->type=="SQLite3")
    		{
    			if($result->numColumns() === 0) {
    				return array();
    			}
    			if($mode=="assoc")
    				$mode = SQLITE3_ASSOC;
    			else if($mode=="num")
    				$mode = SQLITE3_NUM;
    			else
    				$mode = SQLITE3_BOTH;
    			return $result->fetchArray($mode);
    		}
    		else if($this->type=="SQLiteDatabase")
    		{
    			if($mode=="assoc")
    				$mode = SQLITE_ASSOC;
    			else if($mode=="num")
    				$mode = SQLITE_NUM;
    			else
    				$mode = SQLITE_BOTH;
    			return $result->fetch($mode);
    		}
    	}

    	public function getColumnName($result, $colNum)
    	{
    		//make sure the result is valid
    		if($result=== false || $result===NULL || !is_object($result))
    			return "";		// error or no rows returned
    		if($this->type=="PDO")
    		{
    			$meta = $result->getColumnMeta($colNum);
    			return $meta['name'];
    		}
    		else if($this->type=="SQLite3")
    		{
    			return $result->columnName($colNum);
    		}
    		else if($this->type=="SQLiteDatabase")
    		{
    			return $result->fieldName($colNum);
    		}
    	}


    	// SQlite supports multiple ways of surrounding names in quotes:
    	// single-quotes, double-quotes, backticks, square brackets.
    	// As sqlite does not keep this strict, we also need to be flexible here.
    	// This function generates a regex that matches any of the possibilities.
    	private function sqlite_surroundings_preg($name,$preg_quote=true,$notAllowedCharsIfNone="'\"",$notAllowedName=false)
    	{
    		if($name=="*" || $name=="+")
    		{
    			if($notAllowedName!==false && $preg_quote)
    				$notAllowedName = preg_quote($notAllowedName,"/");
    			// use possesive quantifiers to save memory
    			// (There is a bug in PCRE starting in 8.13 and fixed in PCRE 8.36
    			// why we can't use posesive quantifiers - See issue #310).
    			if(version_compare(strstr(constant('PCRE_VERSION'), ' ', true), '8.36', '>=') ||
    				version_compare(strstr(constant('PCRE_VERSION'), ' ', true), '8.12', '<='))
    				$posessive='+';
    			else
    				$posessive='';

    			$nameSingle   = ($notAllowedName!==false?"(?!".$notAllowedName."')":"")."(?:[^']$name+|'')$name".$posessive;
    			$nameDouble   = ($notAllowedName!==false?"(?!".$notAllowedName."\")":"")."(?:[^\"]$name+|\"\")$name".$posessive;
    			$nameBacktick = ($notAllowedName!==false?"(?!".$notAllowedName."`)":"")."(?:[^`]$name+|``)$name".$posessive;
    			$nameSquare   = ($notAllowedName!==false?"(?!".$notAllowedName."\])":"")."(?:[^\]]$name+|\]\])$name".$posessive;
    			$nameNo = ($notAllowedName!==false?"(?!".$notAllowedName."\s)":"")."[^".$notAllowedCharsIfNone."]$name";
    		}
    		else
    		{
    			if($preg_quote) $name = preg_quote($name,"/");

    			$nameSingle = str_replace("'","''",$name);
    			$nameDouble = str_replace('"','""',$name);
    			$nameBacktick = str_replace('`','``',$name);
    			$nameSquare = str_replace(']',']]',$name);
    			$nameNo = $name;
    		}

    		$preg =	"(?:'".$nameSingle."'|".   // single-quote surrounded or not in quotes (correct SQL for values/new names)
    				$nameNo."|".               // not surrounded (correct SQL if not containing reserved words, spaces or some special chars)
    				"\"".$nameDouble."\"|".    // double-quote surrounded (correct SQL for identifiers)
    				"`".$nameBacktick."`|".    // backtick surrounded (MySQL-Style)
    				"\[".$nameSquare."\])";    // square-bracket surrounded (MS Access/SQL server-Style)
    		return $preg;
    	}

    	private function sqliteUnquote($quotedName)
    	{
    		$firstChar = $quotedName[0];
    		$withoutFirstAndLastChar = substr($quotedName,1,-1);
    		switch($firstChar)
    		{
    			case "'":
    			case '"':
    			case '`':
    				$name = str_replace($firstChar.$firstChar,$firstChar,$withoutFirstAndLastChar);
    				break;
    			case '[':
    				$name = str_replace("]]","]",$withoutFirstAndLastChar);
    				break;
    			default:
    				$name = $quotedName;
    		}
    		return $name;
    	}

    	// Returns the last PREG error as a string, '' if no error occured
    	private function getPregError()
    	{
    		$error = preg_last_error();
    		switch ($error)
    		{
    			case PREG_NO_ERROR: return 'No error';
    			case PREG_INTERNAL_ERROR: return 'There is an internal error!';
    			case PREG_BACKTRACK_LIMIT_ERROR: return 'Backtrack limit was exhausted!';
    			case PREG_RECURSION_LIMIT_ERROR: return 'Recursion limit was exhausted!';
    			case PREG_BAD_UTF8_ERROR: return 'Bad UTF8 error!';
    			// PREG_BAD_UTF8_OFFSET_ERROR is introduced in PHP 5.3.0, which is not yet required by PLA, so we use its value 5 instead so long
    			case 5: return 'Bad UTF8 offset error!';
    			default: return 'Unknown Error';
    		}
    	}

    	// function that is called for an alter table statement in a query
    	// code borrowed with permission from http://code.jenseng.com/db/
    	// this has been completely debugged / rewritten by Christopher Kramer
    	public function alterTable($table, $alterdefs)
    	{
    		global $debug, $lang;
    		$this->alterError="";
    		$errormsg = sprintf($lang['alter_failed'],htmlencode($table)).' - ';
    		if($debug) $this->debugOutput .= "ALTER TABLE: table=($table), alterdefs=($alterdefs), PCRE version=(".PCRE_VERSION.")<hr /><br />";
    		if($alterdefs != '')
    		{
    			$recreateQueries = array();
    			$resultArr = $this->selectArray("SELECT sql,name,type FROM sqlite_master WHERE tbl_name = ".$this->quote($table));
    			if(sizeof($resultArr)<1)
    			{
    				$this->alterError = $errormsg . sprintf($lang['tbl_inexistent'], htmlencode($table));
    				if($debug) $this->debugOutput .= "ERROR: unknown table<hr /><br />";
    				return false;
    			}
    			for($i=0; $i<sizeof($resultArr); $i++)
    			{
    				$row = $resultArr[$i];
    				if($row['type'] != 'table' && $row['type'] != 'view')
    				{
    					if($row['sql']!='')
    					{
    						// store the CREATE statements of triggers and indexes to recreate them later
    						$recreateQueries[] = $row;
    						if($debug) $this->debugOutput .= "recreate=(".$row['sql'].";)<br />";
    					}
    				}
    				elseif($row['type']=='view')  // workaround to rename views
    				{
    					$origsql = $row['sql'];
    					$preg_remove_create_view = "/^\s*+CREATE\s++VIEW\s++".$this->sqlite_surroundings_preg($table)."\s*+(AS\s++SELECT\s++.*+)$/is";
    					$origsql_no_create = preg_replace($preg_remove_create_view, '$1', $origsql, 1);
    					if($debug) $this->debugOutput .= "origsql=($origsql)<br />preg_remove_create_table=($preg_remove_create_view)<br />";
    					preg_match("/RENAME\s++TO\s++(?:\"((?:[^\"]|\"\")+)\"|'((?:[^']|'')+)')/is", $alterdefs, $matches);
    					if(isset($matches[1]) && $matches[1]!='')
    						$newname = $matches[1];
    					elseif(isset($matches[2]) && $matches[2]!='')
    						$newname = $matches[2];
    					else
    					{
    						$this->alterError = $errormsg . ' could not detect new view name. It needs to be in single or double quotes.';
    						if($debug) $this->debugOutput .= "ERROR: could not detect new view name<hr />";
    						return false;
    					}
    					$dropoldSQL = 'DROP VIEW '.$this->quote_id($table);
    					$createnewSQL = 'CREATE VIEW '.$this->quote_id($newname).' '.$origsql_no_create;
    					$alter_transaction = 'BEGIN; ' . $dropoldSQL .'; '. $createnewSQL . '; ' . 'COMMIT;';
    					if($debug) $this->debugOutput .= $alter_transaction;
    					return $this->multiQuery($alter_transaction);
    				}
    				else
    				{
    					// ALTER the table
    					$tmpname = 't'.time();
    					$origsql = $row['sql'];
    					$preg_remove_create_table = "/^\s*+CREATE\s++TABLE\s++".$this->sqlite_surroundings_preg($table)."\s*+(\(.*+)$/is";
    					$origsql_no_create = preg_replace($preg_remove_create_table, '$1', $origsql, 1);
    					if($debug) $this->debugOutput .= "origsql=($origsql)<br />preg_remove_create_table=($preg_remove_create_table)<br />";
    					if($origsql_no_create == $origsql)
    					{
    						$this->alterError = $errormsg . $lang['alter_tbl_name_not_replacable'];
    						if($debug) $this->debugOutput .= "ERROR: could not get rid of CREATE TABLE<hr />";
    						return false;
    					}
    					$createtemptableSQL = "CREATE TABLE ".$this->quote($tmpname)." ".$origsql_no_create;
    					if($debug) $this->debugOutput .= "createtemptableSQL=($createtemptableSQL)<br />";
    					$createindexsql = array();
    					$preg_alter_part = "/(?:DROP(?! PRIMARY KEY)(?: COLUMN)?|ADD(?! PRIMARY KEY)(?: COLUMN)?|CHANGE(?: COLUMN)?|RENAME TO|ADD PRIMARY KEY|DROP PRIMARY KEY)" // the ALTER command
    						."(?:"
    							."\s+\(".$this->sqlite_surroundings_preg("+",false,"\"'\[`)")."+\)"	// stuff in brackets (in case of ADD PRIMARY KEY)
    						."|"																	// or
    							."\s+".$this->sqlite_surroundings_preg("+",false,",'\"\[`")			// column names and stuff like this
    						.")*/i";
    					if($debug)
    						$this->debugOutput .= "preg_alter_part=(".$preg_alter_part.")<br />";
    					preg_match_all($preg_alter_part,$alterdefs,$matches);
    					$defs = $matches[0];

    					$result_oldcols = $this->getTableInfo($table);
    					$newcols = array();
    					$coltypes = array();
    					$primarykey = array();
    					foreach($result_oldcols as $column_info)
    					{
    						$newcols[$column_info['name']] = $column_info['name'];
    						$coltypes[$column_info['name']] = $column_info['type'];
    						if($column_info['pk'])
    							$primarykey[] = $column_info['name'];
    					}
    					$newcolumns = '';
    					$oldcolumns = '';
    					reset($newcols);
    					foreach($newcols as $key => $val)
    					{
    						$newcolumns .= ($newcolumns?', ':'').$this->quote_id($val);
    						$oldcolumns .= ($oldcolumns?', ':'').$this->quote_id($key);
    					}
    					$copytotempsql = 'INSERT INTO '.$this->quote_id($tmpname).'('.$newcolumns.') SELECT '.$oldcolumns.' FROM '.$this->quote_id($table);
    					$dropoldsql = 'DROP TABLE '.$this->quote_id($table);
    					$createtesttableSQL = $createtemptableSQL;
    					if(count($defs)<1)
    					{
    						$this->alterError = $errormsg . $lang['alter_no_def'];
    						if($debug) $this->debugOutput .= "ERROR: defs&lt;1<hr /><br />";
    						return false;
    					}
    					foreach($defs as $def)
    					{
    						if($debug) $this->debugOutput .= "<hr />def=$def<br />";
    						$preg_parse_def =
    							"/^(DROP(?! PRIMARY KEY)(?: COLUMN)?|ADD(?! PRIMARY KEY)(?: COLUMN)?|CHANGE(?: COLUMN)?|RENAME TO|ADD PRIMARY KEY|DROP PRIMARY KEY)" // $matches[1]: command
    							."(?:"												// this is either
    								."(?:\s+\((.+)\)\s*$)"							// anything in brackets (for ADD PRIMARY KEY)
    																				// then $matches[2] is what there is in brackets
    							."|"												// OR:
    								."\s+(".$this->sqlite_surroundings_preg("+",false," \"'\[`").")"//  $matches[3]: (first) column name, possibly including quotes
    																				// (may be quoted in any type of quotes)
    																				// in case of RENAME TO, it is the new a table name
    								."("											// $matches[4]: anything after the column name
    									."(?:\s+(".$this->sqlite_surroundings_preg("+",false," \"'\[`")."))?"	// $matches[5] (optional): a second column name possibly including quotes
    																				//		(may be quoted in any type of quotes)
    									."\s*"
    									."((?:[A-Z]+\s*)+(?:\(\s*[+-]?\s*[0-9]+(?:\s*,\s*[+-]?\s*[0-9]+)?\s*\))?)?\s*"	// $matches[6] (optional): a type name
    									.".*".
    								")"
    								."?\s*$"
    							.")?\s*$/i"; // in case of DROP PRIMARY KEY, there is nothing after the command
    						if($debug) $this->debugOutput .= "preg_parse_def=$preg_parse_def<br />";
    						$parse_def = preg_match($preg_parse_def,$def,$matches);
    						if($parse_def===false)
    						{
    							$this->alterError = $errormsg . $lang['alter_parse_failed'];
    							if($debug) $this->debugOutput .= "ERROR: !parse_def<hr /><br />";
    							return false;
    						}
    						if(!isset($matches[1]))
    						{
    							$this->alterError = $errormsg . $lang['alter_action_not_recognized'];
    							if($debug) $this->debugOutput .= "ERROR: !isset(matches[1])<hr /><br />";
    							return false;
    						}
    						$action = str_replace(' column','',strtolower($matches[1]));
    						if($action == 'add primary key' && isset($matches[2]) && $matches[2]!='')
    							$column = $matches[2];
    						elseif($action == 'drop primary key')
    							$column = '';	// DROP PRIMARY KEY has no column definition
    						elseif(isset($matches[3]) && $matches[3]!='')
    							$column = $this->sqliteUnquote($matches[3]);
    						else
    							$column = '';

    						$column_escaped = str_replace("'","''",$column);

    						if($debug) $this->debugOutput .= "action=($action), column=($column), column_escaped=($column_escaped)<br />";

    						/* we build a regex that devides the CREATE TABLE statement parts:
    						  Part example                            Group  Explanation
    						  1. CREATE TABLE t... (                  $1
    						  2. 'col1' ..., 'col2' ..., 'colN' ...,  $3     (with col1-colN being columns that are not changed and listed before the col to change)
    						  3. 'colX' ...,                                 (with colX being the column to change/drop)
    						  4. 'colX+1' ..., ..., 'colK')           $5     (with colX+1-colK being columns after the column to change/drop)
    						*/
    						$preg_create_table = "\s*+(CREATE\s++TABLE\s++".preg_quote($this->quote($tmpname),"/")."\s*+\()";   // This is group $1 (keep unchanged)
    						$preg_column_definiton = "\s*+".$this->sqlite_surroundings_preg("+",true," '\"\[`,",$column)."(?:\s*+".$this->sqlite_surroundings_preg("*",false,"'\",`\[ ").")++";		// catches a complete column definition, even if it is
    														// 'column' TEXT NOT NULL DEFAULT 'we have a comma, here and a double ''quote!'
    														// this definition does NOT match columns with the column name $column
    						if($debug) $this->debugOutput .= "preg_column_definition=(".$preg_column_definiton.")<br />";
    						$preg_columns_before =  // columns before the one changed/dropped (keep)
    							"(?:".
    								"(".			// group $2. Keep this one unchanged!
    									"(?:".
    										"$preg_column_definiton,\s*+".		// column definition + comma
    									")*".								// there might be any number of such columns here
    									$preg_column_definiton.				// last column definition
    								")".			// end of group $2
    								",\s*+"			// the last comma of the last column before the column to change. Do not keep it!
    							.")?";    // there might be no columns before
    						if($debug) $this->debugOutput .= "preg_columns_before=(".$preg_columns_before.")<br />";
    						$preg_columns_after = "(,\s*(.+))?"; // the columns after the column to drop. This is group $3 (drop) or $4(change) (keep!)
    												// we could remove the comma using $6 instead of $5, but then we might have no comma at all.
    												// Keeping it leaves a problem if we drop the first column, so we fix that case in another regex.
    						$table_new = $table;

    						switch($action)
    						{
    							case 'add':
    								if($column=='')
    								{
    									$this->alterError = $errormsg . ' (add) - '. $lang['alter_no_add_col'];
    									return false;
    								}
    								$new_col_definition = "'$column_escaped' ".(isset($matches[4])?$matches[4]:'');
    								$preg_pattern_add = "/^".$preg_create_table.   // the CREATE TABLE statement ($1)
    									"((?:(?!,\s*(?:PRIMARY\s+KEY\s*\(|CONSTRAINT\s|UNIQUE\s*\(|CHECK\s*\(|FOREIGN\s+KEY\s*\()).)*)". // column definitions ($2)
    									"(.*)\\)\s*$/si"; // table-constraints like PRIMARY KEY(a,b) ($3) and the closing bracket
    								// append the column definiton in the CREATE TABLE statement
    								$newSQL = preg_replace($preg_pattern_add, '$1$2, '.strtr($new_col_definition, array('\\' => '\\\\', '$' => '\$')).' $3', $createtesttableSQL).')';
    								$preg_error = $this->getPregError();
    								if($debug)
    								{
    									$this->debugOutput .= $createtesttableSQL."<hr /><br />";
    									$this->debugOutput .= $newSQL."<hr /><br />";
    									$this->debugOutput .= $preg_pattern_add."<hr /><br />";
    								}
    								if($newSQL==$createtesttableSQL) // pattern did not match, so column adding did not succed
    									{
    									$this->alterError = $errormsg . ' (add) - '.$lang['alter_pattern_mismatch'].'. PREG ERROR: '.$preg_error;
    									return false;
    									}
    								$createtesttableSQL = $newSQL;
    								break;
    							case 'change':
    								if(!isset($matches[5]))
    								{
    									$this->alterError = $errormsg . ' (change) - '.$lang['alter_col_not_recognized'];
    									return false;
    								}
    								$new_col_name = $matches[5];
    								if(!isset($matches[6]))
    									$new_col_type = '';
    								else
    									$new_col_type = $matches[6];
    								$new_col_definition = "$new_col_name $new_col_type";
    								$preg_column_to_change = "\s*".$this->sqlite_surroundings_preg($column)."(?:\s+".preg_quote($coltypes[$column]).")?(\s+(?:".$this->sqlite_surroundings_preg("*",false,",'\"`\[").")+)?";
    												// replace this part (we want to change this column)
    												// group $3 contains the column constraints (keep!). the name & data type is replaced.
    								$preg_pattern_change = "/^".$preg_create_table.$preg_columns_before.$preg_column_to_change.$preg_columns_after."\s*\\)\s*$/s";

    								// replace the column definiton in the CREATE TABLE statement
    								$newSQL = preg_replace($preg_pattern_change, '$1$2,'.strtr($new_col_definition, array('\\' => '\\\\', '$' => '\$')).'$3$4)', $createtesttableSQL);
    								$preg_error = $this->getPregError();
    								// remove comma at the beginning if the first column is changed
    								// probably somebody is able to put this into the first regex (using lookahead probably).
    								$newSQL = preg_replace("/^\s*(CREATE\s+TABLE\s+".preg_quote($this->quote($tmpname),"/")."\s+\(),\s*/",'$1',$newSQL);
    								if($debug)
    								{
    									$this->debugOutput .= "new_col_name=(".$new_col_name."), new_col_type=(".$new_col_type."), preg_column_to_change=(".$preg_column_to_change.")<hr /><br />";
    									$this->debugOutput .= $createtesttableSQL."<hr /><br />";
    									$this->debugOutput .= $newSQL."<hr /><br />";

    									$this->debugOutput .= $preg_pattern_change."<hr /><br />";
    								}
    								if($newSQL==$createtesttableSQL || $newSQL=="") // pattern did not match, so column removal did not succed
    								{
    									$this->alterError = $errormsg . ' (change) - '.$lang['alter_pattern_mismatch'].'. PREG ERROR: '.$preg_error;
    									return false;
    								}
    								$createtesttableSQL = $newSQL;
    								$newcols[$column] = $this->sqliteUnquote($new_col_name);
    								break;
    							case 'drop':
    								$preg_column_to_drop = "\s*".$this->sqlite_surroundings_preg($column)."\s+(?:".$this->sqlite_surroundings_preg("*",false,",'\"\[`").")+";      // delete this part (we want to drop this column)
    								$preg_pattern_drop = "/^".$preg_create_table.$preg_columns_before.$preg_column_to_drop.$preg_columns_after."\s*\\)\s*$/s";

    								// remove the column out of the CREATE TABLE statement
    								$newSQL = preg_replace($preg_pattern_drop, '$1$2$3)', $createtesttableSQL);
    								$preg_error = $this->getPregError();
    								// remove comma at the beginning if the first column is removed
    								// probably somebody is able to put this into the first regex (using lookahead probably).
    								$newSQL = preg_replace("/^\s*(CREATE\s+TABLE\s+".preg_quote($this->quote($tmpname),"/")."\s+\(),\s*/",'$1',$newSQL);
    								if($debug)
    								{
    									$this->debugOutput .= $createtesttableSQL."<hr /><br />";
    									$this->debugOutput .= $newSQL."<hr /><br />";
    									$this->debugOutput .= $preg_pattern_drop."<hr /><br />";
    								}
    								if($newSQL==$createtesttableSQL || $newSQL=="") // pattern did not match, so column removal did not succed
    								{
    									$this->alterError = $errormsg . ' (drop) - '.$lang['alter_pattern_mismatch'].'. PREG ERROR: '.$preg_error;
    									return false;
    								}
    								$createtesttableSQL = $newSQL;
    								unset($newcols[$column]);
    								break;
    							case 'rename to':
    								// don't change column definition at all
    								$newSQL = $createtesttableSQL;
    								// only change the name of the table
    								$table_new = $column;
    								break;
    							case 'add primary key':
    								// we want to add a primary key for the column(s) stored in $column
    								$newSQL = preg_replace("/\)\s*$/", ", PRIMARY KEY (".$column.") )", $createtesttableSQL);
    								$createtesttableSQL = $newSQL;
    								break;
    							case 'drop primary key':
    								// we want to drop the primary key
    								if($debug) $this->debugOutput .= "DROP";
    								if(sizeof($primarykey)==1)
    								{
    									// if not compound primary key, might be a column constraint -> try removal
    									$column = $primarykey[0];
    									if($debug) $this->debugOutput .= "<br>Trying to drop column constraint for column $column <br>";
    									/*
    									TODO: This does not work yet:
    									CREATE TABLE 't12' ('t1' INTEGER CONSTRAINT "bla" NOT NULL CONSTRAINT 'pk' PRIMARY KEY ); ALTER TABLE "t12" DROP PRIMARY KEY
    									This does:                                  !   !
    									CREATE TABLE 't12' ('t1' INTEGER CONSTRAINT  bla  NOT NULL CONSTRAINT 'pk' PRIMARY KEY ); ALTER TABLE "t12" DROP PRIMARY KEY
    									*/
    									$preg_column_to_change = "(\s*".$this->sqlite_surroundings_preg($column).")". // column ($3)
    										"(?:".		// opt. type and column constraints
    											"(\s+(?:".$this->sqlite_surroundings_preg("(?:[^PC,'\"`\[]|P(?!RIMARY\s+KEY)|".
    											"C(?!ONSTRAINT\s+".$this->sqlite_surroundings_preg("+",false," ,'\"\[`")."\s+PRIMARY\s+KEY))",false,",'\"`\[").")*)". // column constraints before PRIMARY KEY ($3)
    												// primary key constraint (remove this!):
    												"(?:CONSTRAINT\s+".$this->sqlite_surroundings_preg("+",false," ,'\"\[`")."\s+)?".
    												"PRIMARY\s+KEY".
    												"(?:\s+(?:ASC|DESC))?".
    												"(?:\s+ON\s+CONFLICT\s+(?:ROLLBACK|ABORT|FAIL|IGNORE|REPLACE))?".
    												"(?:\s+AUTOINCREMENT)?".
    											"((?:".$this->sqlite_surroundings_preg("*",false,",'\"`\[").")*)". // column constraints after PRIMARY KEY ($4)
    										")";
    													// replace this part (we want to change this column)
    													// group $3 (column) $4  (constraints before) and $5 (constraints after) contain the part to keep
    									$preg_pattern_change = "/^".$preg_create_table.$preg_columns_before.$preg_column_to_change.$preg_columns_after."\s*\\)\s*$/si";

    									// replace the column definiton in the CREATE TABLE statement
    									$newSQL = preg_replace($preg_pattern_change, '$1$2,$3$4$5$6)', $createtesttableSQL);
    									// remove comma at the beginning if the first column is changed
    									// probably somebody is able to put this into the first regex (using lookahead probably).
    									$newSQL = preg_replace("/^\s*(CREATE\s+TABLE\s+".preg_quote($this->quote($tmpname),"/")."\s+\(),\s*/",'$1',$newSQL);
    									if($debug)
    									{
    										$this->debugOutput .= "preg_column_to_change=(".$preg_column_to_change.")<hr /><br />";
    										$this->debugOutput .= $createtesttableSQL."<hr /><br />";
    										$this->debugOutput .= $newSQL."<hr /><br />";

    										$this->debugOutput .= $preg_pattern_change."<hr /><br />";
    									}
    									if($newSQL!=$createtesttableSQL && $newSQL!="") // pattern did match, so PRIMARY KEY constraint removed :)
    									{
    										$createtesttableSQL = $newSQL;
    										if($debug) $this->debugOutput .= "<br>SUCCEEDED<br>";
    									}
    									else
    									{
    										if($debug) $this->debugOutput .= "NO LUCK";
    										// TODO: try removing table constraint
    										return false;
    									}
    									$createtesttableSQL = $newSQL;
    								} else
    									// TODO: Try removing table constraint
    									return false;

    								break;
    							default:
    								if($debug) $this->debugOutput .= 'ERROR: unknown alter operation!<hr /><br />';
    								$this->alterError = $errormsg . $lang['alter_unknown_operation'];
    								return false;
    						}
    					}
    					$droptempsql = 'DROP TABLE '.$this->quote_id($tmpname);

    					$createnewtableSQL = "CREATE TABLE ".$this->quote($table_new)." ".preg_replace("/^\s*CREATE\s+TABLE\s+'?".str_replace("'","''",preg_quote($tmpname,"/"))."'?\s+(.*)$/is", '$1', $createtesttableSQL, 1);

    					$newcolumns = '';
    					$oldcolumns = '';
    					reset($newcols);
    					foreach($newcols as $key => $val)
    					{
    						$newcolumns .= ($newcolumns?', ':'').$this->quote_id($val);
    						$oldcolumns .= ($oldcolumns?', ':'').$this->quote_id($key);
    					}
    					$copytonewsql = 'INSERT INTO '.$this->quote_id($table_new).'('.$newcolumns.') SELECT '.$oldcolumns.' FROM '.$this->quote_id($tmpname);
    				}
    			}
    			$alter_transaction  = 'BEGIN; ';
    			$alter_transaction .= $createtemptableSQL.'; ';  //create temp table
    			$alter_transaction .= $copytotempsql.'; ';       //copy to table
    			$alter_transaction .= $dropoldsql.'; ';          //drop old table
    			$alter_transaction .= $createnewtableSQL.'; ';   //recreate original table
    			$alter_transaction .= $copytonewsql.'; ';        //copy back to original table
    			$alter_transaction .= $droptempsql.'; ';         //drop temp table

    			$preg_index="/^\s*(CREATE\s+(?:UNIQUE\s+)?INDEX\s+(?:".$this->sqlite_surroundings_preg("+",false," '\"\[`")."\s*)*ON\s+)(".$this->sqlite_surroundings_preg($table).")(\s*\((?:".$this->sqlite_surroundings_preg("+",false," '\"\[`")."\s*)*\)\s*)\s*$/i";
    			foreach($recreateQueries as $recreate_query)
    			{
    				if($recreate_query['type']=='index')
    				{
    					// this is an index. We need to make sure the index is not on a column that we drop. If it is, we drop the index as well.
    					$indexInfos = $this->selectArray('PRAGMA index_info('.$this->quote_id($recreate_query['name']).')');
    					foreach($indexInfos as $indexInfo)
    					{
    						if(!isset($newcols[$indexInfo['name']]))
    						{
    							if($debug) $this->debugOutput .= 'Not recreating the following index: <hr /><br />'.htmlencode($recreate_query['sql']).'<hr /><br />';
    							// Index on a column that was dropped. Skip recreation.
    							continue 2;
    						}
    					}
    				}
    				// TODO: In case we renamed a column on which there is an index, we need to recreate the index with the column name adjusted.

    				// recreate triggers / indexes
    				if($table == $table_new)
    				{
    					// we had no RENAME TO, so we can recreate indexes/triggers just like the original ones
    					$alter_transaction .= $recreate_query['sql'].';';
    				} else
    				{
    					// we had a RENAME TO, so we need to exchange the table-name in the CREATE-SQL of triggers & indexes
    					switch ($recreate_query['type'])
    					{
    						case 'index':
    							$recreate_queryIndex = preg_replace($preg_index, '$1'.$this->quote_id(strtr($table_new, array('\\' => '\\\\', '$' => '\$'))).'$3 ', $recreate_query['sql']);
    							if($recreate_queryIndex!=$recreate_query['sql'] && $recreate_queryIndex != NULL)
    								$alter_transaction .= $recreate_queryIndex.';';
    							else
    							{
    								// the CREATE INDEX regex did not match. this normally should not happen
    								if($debug) $this->debugOutput .= 'ERROR: CREATE INDEX regex did not match!?<hr /><br />';
    								// just try to recreate the index originally (will fail most likely)
    								$alter_transaction .= $recreate_query['sql'].';';
    							}
    							break;

    						case 'trigger':
    							// TODO: IMPLEMENT
    							$alter_transaction .= $recreate_query['sql'].';';
    							break;
    						default:
    							if($debug) $this->debugOutput .= 'ERROR: Unknown type '.htmlencode($recreate_query['type']).'<hr /><br />';
    							$alter_transaction .= $recreate_query['sql'].';';
    					}
    				}
    			}
    			$alter_transaction .= 'COMMIT;';
    			if($debug) $this->debugOutput .= $alter_transaction;
    			return $this->multiQuery($alter_transaction);
    		}
    	}

    	//multiple query execution
    	//returns true on success, false otherwise. Use getError() to fetch the error.
    	public function multiQuery($query)
    	{
    		if($this->type=="PDO")
    			$success = $this->db->exec($query);
    		else if($this->type=="SQLite3")
    			$success = $this->db->exec($query);
    		else
    			$success = $this->db->queryExec($query, $error);
    		return $success;
    	}


    	// checks whether a table has a primary key
    	public function hasPrimaryKey($table)
    	{
    		$table_info = $this->getTableInfo($table);
    		foreach($table_info as $row_id => $row_data)
    		{
    			if($row_data['pk'])
    			{
    				return true;
    			}

    		}
    		return false;
    	}

    	// Returns an array of columns by which rows can be uniquely adressed.
    	// For tables with a rowid column, this is always array('rowid')
    	// for tables without rowid, this is an array of the primary key columns.
    	public function getPrimaryKey($table)
    	{
    		$primary_key = array();
    		// check if this table has a rowid
    		$getRowID = $this->select('SELECT ROWID FROM '.$this->quote_id($table).' LIMIT 0,1');
    		if(isset($getRowID[0]))
    			// it has, so we prefer addressing rows by rowid
    			return array('rowid');
    		else
    		{
    			// the table is without rowid, so use the primary key
    			$table_info = $this->getTableInfo($table);
    			if(is_array($table_info))
    			{
    				foreach($table_info as $row_id => $row_data)
    				{
    					if($row_data['pk'])
    						$primary_key[] = $row_data['name'];
    				}
    			}
    		}
    		return $primary_key;
    	}

    	// selects a row by a given key $pk, which is an array of values
    	// for the columns by which a row can be adressed (rowid or primary key)
    	public function wherePK($table, $pk)
    	{
    		$where = "";
    		$primary_key = $this->getPrimaryKey($table);
    		foreach($primary_key as $pk_index => $column)
    		{
    			if($where!="")
    				$where .= " AND ";
    			$where .= $this->quote_id($column) . ' = ';
    			if(is_int($pk[$pk_index]) || is_float($pk[$pk_index]))
    				$where .= $pk[$pk_index];
    			else
    				$where .= $this->quote($pk[$pk_index]);
    		}
    		return $where;
    	}

    	//get number of rows in table
    	public function numRows($table, $dontTakeLong = false)
    	{
    		// as Count(*) can be slow on huge tables without PK,
    		// if $dontTakeLong is set and the size is > 2MB only count() if there is a PK
    		if(!$dontTakeLong || $this->getSize() <= 2000 || $this->hasPrimaryKey($table))
    		{
    			$result = $this->select("SELECT Count(*) FROM ".$this->quote_id($table));
    			return $result[0];
    		} else
    		{
    			return '?';
    		}
    	}

    	//correctly escape a string to be injected into an SQL query
    	public function quote($value)
    	{
    		if($this->type=="PDO")
    		{
    			// PDO quote() escapes and adds quotes
    			return $this->db->quote($value);
    		}
    		else if($this->type=="SQLite3")
    		{
    			return "'".$this->db->escapeString($value)."'";
    		}
    		else
    		{
    			return "'".sqlite_escape_string($value)."'";
    		}
    	}

    	//correctly escape an identifier (column / table / trigger / index name) to be injected into an SQL query
    	public function quote_id($value)
    	{
    		// double-quotes need to be escaped by doubling them
    		$value = str_replace('"','""',$value);
    		return '"'.$value.'"';
    	}


    	//import sql
    	//returns true on success, error message otherwise
    	public function import_sql($query)
    	{
    		$import = $this->multiQuery($query);
    		if(!$import)
    			return $this->getError();
    		else
    			return true;
    	}

    	public function prepareQuery($query)
    	{
    		if($this->type=='PDO' || $this->type=='SQLite3')
    			return $this->db->prepare($query);
    		else
    		{
    			// here we are in trouble, SQLiteDatabase cannot prepare statements.
    			// we need to emulate prepare as best as we can
    			# todo: implement this
    			return null;
    		}
    	}

    	public function bindValue($handle, $parameter, $value, $type)
    	{
    		if($this->type=='SQLite3')
    		{
    			$types = array(
    				'bool'=>SQLITE3_INTEGER,
    				'int'=>SQLITE3_INTEGER,
    				'float'=>SQLITE3_FLOAT,
    				'text'=>SQLITE3_TEXT,
    				'blob'=>SQLITE3_BLOB,
    				'null'=>SQLITE3_NULL);
    			if(!isset($types[$type]))
    				$type = 'text';
    			// there is no SQLITE_BOOL, so check value and make sure it is 0/1
    			if($type=='bool')
    			{
    				if($value===1 || $value===true)
    					$value=1;
    				elseif($value===0 || $value===false)
    					$value=0;
    				else
    					return false;
    			}
    			return $handle->bindValue($parameter, $value, $types[$type]);
    		}
    		if($this->type=='PDO')
    		{
    			$types = array(
    				'bool'=>PDO::PARAM_BOOL,
    				'int'=>PDO::PARAM_INT,
    				'float'=>PDO::PARAM_STR,
    				'text'=>PDO::PARAM_STR,
    				'blob'=>PDO::PARAM_LOB,
    				'null'=>PDO::PARAM_NULL);
    			if(!isset($types[$type]))
    				$type = 'text';
    			// there is no PDO::PARAM_FLOAT, so we check it ourself
    			if($type=='float')
    			{
    				if(is_numeric($value))
    					$value = (float) $value;
    				else
    					return false;
    			}
    			return $handle->bindValue($parameter, $value, $types[$type]);
    		}
    		else
    			# todo: workaround
    			return false;

    	}

    	public function executePrepared($handle, $fetchResult=false)
    	{
    		if($this->type=='PDO')
    		{
    			$ok=$handle->execute();
    			if($fetchResult && $ok)
    			{
    				$res = $handle->fetchAll();
    				$handle->closeCursor();
    				return $res;
    			}
    			else
    			{
    				if($ok)
    					$handle->closeCursor();
    				return $ok;
    			}
    		}
    		elseif($this->type=='SQLite3')
    		{
    			$resultset=$handle->execute();
    			if($fetchResult && $resultset!==false)
    			{
    				$res = $resultset->fetchArray();
    				$resultset->finalize();
    				return $res;
    			}
    			else
    			{
    				if($resultset!==false)
    					$resultset->finalize();
    				if($resultset===false)
    					return false;
    				else
    					return true;
    			}
    		}
    		else
    		{
    			#todo.
    			return false;
    		}
    	}

    	//import csv
    	//returns true on success, error message otherwise
    	public function import_csv($filename, $table, $field_terminate, $field_enclosed, $field_escaped, $null, $fields_in_first_row)
    	{
    		@set_time_limit(-1);
    		$csv_handle = fopen($filename,'r');
    		$csv_insert = "BEGIN;\n";
    		$csv_number_of_rows = 0;
    		// PHP requires enclosure defined, but has no problem if it was not used
    		if($field_enclosed=="") $field_enclosed='"';
    		// PHP requires escaper defined
    		if($field_escaped=="") $field_escaped='\\';
    		// support tab delimiters
    		if($field_terminate=='\t') $field_terminate = "\t";
    		while($csv_handle!==false && !feof($csv_handle))
    		{
    			$csv_data = fgetcsv($csv_handle, 0, $field_terminate, $field_enclosed, $field_escaped);
    			if(is_array($csv_data) && ($csv_data[0] != NULL || count($csv_data)>1))
    			{
    				$csv_number_of_rows++;
    				if($csv_number_of_rows==1)
    				{
    					if($this->getTypeOfTable($table)!="table")
    					{
    						// First,Create a new table
    						$csv_insert .="CREATE TABLE ".$this->quote($table)." (";
    						$number_of_cols = count($csv_data);
    						foreach($csv_data as $csv_col => $csv_cell)
    						{
    							if($fields_in_first_row)
    								$csv_insert .= $this->quote($csv_cell);
    							else
    								$csv_insert.= $this->quote("col{$csv_col}");
    							if($csv_col < $number_of_cols-1)
    								$csv_insert .= ", ";
    						}
    						$csv_insert .=");";

    					} else {
    						$number_of_cols = count($this->getTableInfo($table));
    					}
    					if($fields_in_first_row)
    						continue;
    				}
    				$csv_insert .= "INSERT INTO ".$this->quote_id($table)." VALUES (";
    				for($csv_col = 0; $csv_col < $number_of_cols; $csv_col++)
    				{
    					if(isset($csv_data[$csv_col]))
    						$csv_cell = $csv_data[$csv_col];
    					else
    						$csv_cell = $null;
    					if($csv_cell == $null)
    						$csv_insert .= "NULL";
    					else
    						$csv_insert.= $this->quote($csv_cell);
    					if($csv_col < $number_of_cols-1)
    						$csv_insert .= ",";
    				}
    				$csv_insert .= ");\n";

    				if($csv_number_of_rows % 5000 == 0)
    				{
    					$csv_insert .= "COMMIT;\nBEGIN;\n";
    				}
    			}
    		}
    		if($csv_handle === false)
    			return "Error reading CSV file";
    		else
    		{
    			$csv_insert .= "COMMIT;";
    			fclose($csv_handle);
    			$import = $this->multiQuery($csv_insert);
    			if(!$import)
    				return $this->getError();
    			else
    				return true;
    		}
    	}

    	//export csv
    	public function export_csv($tables, $field_terminate, $field_enclosed, $field_escaped, $null, $crlf, $fields_in_first_row)
    	{
    		@set_time_limit(-1);
    		// we use \r\n if the _client_ OS is windows (as the exported file is downloaded to the client), \n otherwise
    		$crlf = (isset($_SERVER['HTTP_USER_AGENT']) && strpos($_SERVER['HTTP_USER_AGENT'], 'Win')!==false ? "\r\n" : "\n");

    		$query = "SELECT * FROM sqlite_master WHERE type='table' or type='view' ORDER BY type DESC";
    		$result = $this->selectArray($query);
    		for($i=0; $i<sizeof($result); $i++)
    		{
    			$valid = false;
    			for($j=0; $j<sizeof($tables); $j++)
    			{
    				if($result[$i]['tbl_name']==$tables[$j])
    					$valid = true;
    			}
    			if($valid)
    			{
    				$temp = $this->getTableInfo($result[$i]['tbl_name']);
    				$cols = array();
    				for($z=0; $z<sizeof($temp); $z++)
    					$cols[$z] = $temp[$z][1];
    				if($fields_in_first_row)
    				{
    					for($z=0; $z<sizeof($cols); $z++)
    					{
    						echo $field_enclosed.$cols[$z].$field_enclosed;
    						// do not terminate the last column!
    						if($z < sizeof($cols)-1)
    							echo $field_terminate;
    					}
    					echo $crlf;
    				}
    				$query = "SELECT * FROM ".$this->quote_id($result[$i]['tbl_name']);
    				$table_result = $this->query($query);
    				$firstRow=true;
    				while($row = $this->fetch($table_result, "assoc"))
    				{
    					if(!$firstRow)
    						echo $crlf;
    					else
    						$firstRow=false;

    					for($y=0; $y<sizeof($cols); $y++)
    					{
    						$cell = $row[$cols[$y]];
    						if($crlf)
    						{
    							$cell = str_replace("\n","", $cell);
    							$cell = str_replace("\r","", $cell);
    						}
    						$cell = str_replace($field_terminate,$field_escaped.$field_terminate,$cell);
    						$cell = str_replace($field_enclosed,$field_escaped.$field_enclosed,$cell);
    						// do not enclose NULLs
    						if($cell == NULL)
    							echo $null;
    						else
    							echo $field_enclosed.$cell.$field_enclosed;
    						// do not terminate the last column!
    						if($y < sizeof($cols)-1)
    							echo $field_terminate;
    					}
    				}
    				if($i<sizeof($result)-1)
    					echo $crlf;
    			}
    		}
    	}

    	//export sql
    	public function export_sql($tables, $drop, $structure, $data, $transaction, $comments, $echo=true)
    	{
    		global $lang;
    		@set_time_limit(-1);
    		// we use \r\n if the _client_ OS is windows (as the exported file is downloaded to the client), \n otherwise
    		$crlf = (isset($_SERVER['HTTP_USER_AGENT']) && strpos($_SERVER['HTTP_USER_AGENT'], 'Win')!==false ? "\r\n" : "\n");

    		if(!$echo)
    			ob_start();

    		if($comments)
    		{
    			echo "----".$crlf;
    			echo "-- ".PROJECT." ".$lang['db_dump']." (".PROJECT_URL.")".$crlf;
    			echo "-- ".PROJECT." ".$lang['ver'].": ".VERSION.$crlf;
    			echo "-- ".$lang['exported'].": ".date($lang['date_format']).$crlf;
    			echo "-- ".$lang['db_f'].": ".$this->getPath().$crlf;
    			echo "----".$crlf;
    		}
    		$query = "SELECT * FROM sqlite_master WHERE type='table' OR type='index' OR type='view' OR type='trigger' ORDER BY type='trigger', type='index', type='view', type='table'";
    		$result = $this->selectArray($query);

    		if($transaction)
    			echo "BEGIN TRANSACTION;".$crlf;

    		//iterate through each table
    		for($i=0; $i<sizeof($result); $i++)
    		{
    			$valid = false;
    			for($j=0; $j<sizeof($tables); $j++)
    			{
    				if($result[$i]['tbl_name']==$tables[$j])
    					$valid = true;
    			}
    			if($valid)
    			{
    				if($drop)
    				{
    					if($comments)
    					{
    						echo "\r\n----".$crlf;
    						echo "-- ".$lang['drop']." ".$result[$i]['type']." ".$lang['for']." ".$result[$i]['name'].$crlf;
    						echo "----".$crlf;
    					}
    					echo "DROP ".strtoupper($result[$i]['type'])." IF EXISTS ".$this->quote_id($result[$i]['name']).";".$crlf;
    				}
    				if($structure)
    				{
    					if($comments)
    					{
    						echo "\r\n----".$crlf;
    						if($result[$i]['type']=="table" || $result[$i]['type']=="view")
    							echo "-- ".ucfirst($result[$i]['type'])." ".$lang['struct_for']." ".$result[$i]['tbl_name'].$crlf;
    						else // index or trigger
    							echo "-- ".$lang['struct_for']." ".$result[$i]['type']." ".$result[$i]['name']." ".$lang['on_tbl']." ".$result[$i]['tbl_name'].$crlf;
    						echo "----".$crlf;
    					}
    					echo $result[$i]['sql'].";".$crlf;
    				}
    				if($data && $result[$i]['type']=="table")
    				{
    					$query = "SELECT * FROM ".$this->quote_id($result[$i]['tbl_name']);
    					$table_result = $this->query($query, "assoc");

    					if($comments)
    					{
    						$numRows = $this->numRows($result[$i]['tbl_name']);
    						echo "\r\n----".$crlf;
    						echo "-- ".$lang['data_dump']." ".$result[$i]['tbl_name'].", ".sprintf($lang['total_rows'], $numRows).$crlf;
    						echo "----".$crlf;
    					}
    					$temp = $this->getTableInfo($result[$i]['tbl_name']);
    					$cols = array();
    					$cols_quoted = array();
    					for($z=0; $z<sizeof($temp); $z++)
    					{
    						$cols[$z] = $temp[$z][1];
    						$cols_quoted[$z] = $this->quote_id($temp[$z][1]);
    					}
    					while($row = $this->fetch($table_result))
    					{
    						$vals = array();
    						for($y=0; $y<sizeof($cols); $y++)
    						{
    							if($row[$cols[$y]] === NULL)
    								$vals[$cols[$y]] = 'NULL';
    							else
    								$vals[$cols[$y]] = $this->quote($row[$cols[$y]]);
    						}
    						echo "INSERT INTO ".$this->quote_id($result[$i]['tbl_name'])." (".implode(",", $cols_quoted).") VALUES (".implode(",", $vals).");".$crlf;
    					}
    				}
    			}
    		}
    		if($transaction)
    			echo "COMMIT;".$crlf;

    		if(!$echo) {
    			$o = ob_get_contents();
    			ob_end_clean();
    			return $o;
    		}

    	}
    }
    class GetParameters
    {
    	private $_fields;

    	public function __construct(array $defaults = array())
    	{
    		$this->_fields = $defaults;
    	}

    	public function __set($key, $value)
    	{
    		$this->_fields[$key] = $value;
    	}

    	public function __isset($key)
    	{
    		return isset($this->_fields[$key]);
    	}

    	public function __unset($key)
    	{
    		unset($this->_fields[$key]);
    	}

    	public function __get($key)
    	{
    		return $this->_fields[$key];
    	}

    	public function getURL(array $assoc = array(), $html = true, $prefix='?')
    	{
    		$arg_sep = ($html?'&amp;':'&');
    		return $prefix . http_build_query(array_merge($this->_fields, $assoc), '', $arg_sep);
    	}

    	public function getLink(array $assoc = array(), $content = '[ link ]', $class = '', $title = '', $target='')
    	{
    		return '<a href="' . $this->getURL($assoc) . '"'
    			. ($class  != '' ? ' class="'  . $class .  '"' : '')
    			. ($title  != '' ? ' title="'  . $title .  '"' : '')
    			. ($target != '' ? ' target="' . $target . '"' : '')
    			. '>' . $content . '</a>';
    	}

    	public function getForm(array $assoc = array(), $method = 'post', $upload = false, $name = '', $csrf = true)
    	{
    		$hidden = '';
    		if($method == 'get')
    		{
    			$url = '';
    			foreach(array_merge($this->_fields, $assoc) as $key => $value)
    			{
    				if(!is_null($value))
    					$hidden .= '<input type="hidden" name="'.htmlencode($key).'" value="'.htmlencode($value).'" /> ';
    			}
    		}
    		else
    			$url = $this->getURL($assoc);

    		if($csrf && $method == 'post')
    			$hidden .= '<input type="hidden" name="token" value="'.$_SESSION[COOKIENAME.'token'].'" />';

    		return "<form action='". $url ."' method='" . $method . "'" .
    			($name!=''? " name='". $name ."'" : '') .
    			($upload? " enctype='multipart/form-data'" : '') . ">" .
    			$hidden;
    	}

    	public function redirect(array $assoc = array(), $message="")
    	{
    		if($message!="")
    		{
    			$_SESSION[COOKIENAME.'messages'][md5($message)] = $message;
    			$url = $this->getURL(array_merge($assoc, array('message'=>md5($message))), false);
    		}
    		else
    			$url = $this->getURL($assoc, false);

    		$protocol = (isset($_SERVER['HTTPS']) && $_SERVER['HTTPS'] != 'off' ? 'https' : 'http');

    		header("Location: ".$protocol."://".$_SERVER['HTTP_HOST'].$_SERVER['PHP_SELF'].$url, true, 302);
    		exit;
    	}
    }//	class MicroTimer (issue #146)
    //	wraps calls to microtime(), calculating the elapsed time and rounding output
    //
    class MicroTimer {

    	private $startTime, $stopTime;

    	// creates and starts a timer
    	function __construct()
    	{
    		$this->startTime = microtime(true);
    	}

    	// stops a timer
    	public function stop()
    	{
    		$this->stopTime = microtime(true);
    	}

    	// returns the number of seconds from the timer's creation, or elapsed
    	// between creation and call to ->stop()
    	public function elapsed()
    	{
    		if ($this->stopTime)
    			return round($this->stopTime - $this->startTime, 4);

    		return round(microtime(true) - $this->startTime, 4);
    	}

    	// called when using a MicroTimer object as a string
    	public function __toString()
    	{
    		return (string) $this->elapsed();
    	}

    }
    //	class Resources (issue #157)
    //	outputs secondary files, such as css and javascript
    //	data is stored gzipped (gzencode) and encoded (base64_encode)
    //
    class Resources {

    	// set this to the file containing getInternalResource;
    	// currently unused in split mode; set to __FILE__ for built PLA.
    	public static $embedding_file = __FILE__;

    	private static $_resources = array(
    		'css' => array(
    			'mime' => 'text/css',
    			'data' => 'resources/phpliteadmin.css',
    		),
    		'javascript' => array(
    			'mime' => 'text/javascript',
    			'data' => 'resources/phpliteadmin.js',
    		),
    		'favicon' => array(
    			'mime' => 'image/x-icon',
    			'data' => 'resources/favicon.ico',
    			'base64' => 'true',
    		),
    	);

    	// outputs the specified resource, if defined in this class.
    	// the main script should do no further output after calling this function.
    	public static function output($resource)
    	{
    		if (isset(self::$_resources[$resource])) {
    			$res =& self::$_resources[$resource];

    			if (function_exists('getInternalResource') && $data = getInternalResource($res['data'])) {
    				$filename = self::$embedding_file;
    			} else {
    				$filename = $res['data'];
    			}

    			// use last-modified time as etag; etag must be quoted
    			$etag = '"' . filemtime($filename) . '"';

    			// check headers for matching etag; if etag hasn't changed, use the cached version
    			if (isset($_SERVER['HTTP_IF_NONE_MATCH']) && $_SERVER['HTTP_IF_NONE_MATCH'] == $etag) {
    				header('HTTP/1.0 304 Not Modified');
    				return;
    			}

    			header('Etag: ' . $etag);

    			// cache file for at most 30 days
    			header('Cache-control: max-age=2592000');

    			// output resource
    			header('Content-type: ' . $res['mime']);

    			if (isset($data)) {
    				if (isset($res['base64'])) {
    					echo base64_decode($data);
    				} else {
    					echo $data;
    				}
    			} else {
    				readfile($filename);
    			}
    		}
    	}

    }

    if (version_compare(phpversion(), '5.2.4', '<')) {
    	die('Your PHP version is PHP '.phpversion().', which is too old. You need at least PHP 5.2.4.');
    }

    if(strpos(ini_get('variables_order'),'G') === false || strpos(ini_get('variables_order'),'P') === false ||
       strpos(ini_get('variables_order'),'C') === false || strpos(ini_get('variables_order'),'S') === false) {
    	die('The php configuration <em>variables_order</em> needs to include G, P, C and S. The current value is "'.ini_get('variables_order').'". Please check the php configuration (php.ini).');
    }

    //- Initialization

    // load optional configuration file
    $config_filename = './phpliteadmin.config.php';
    if (is_readable($config_filename))
    {
    	include_once $config_filename;
    }

    //constants 1
    define("PROJECT", "phpLiteAdmin");
    define("VERSION", "1.9.9-dev");
    define("FORCETYPE", false); //force the extension that will be used (set to false in almost all circumstances except debugging, possible values: false, "PDO", "SQLite3", "SQLiteDatabase")
    define("SYSTEMPASSWORD", $password); // Makes things easier.
    define('PROJECT_URL','https://www.phpliteadmin.org/');
    define('DONATE_URL','https://www.phpliteadmin.org/donate/');
    define('VERSION_CHECK_URL','https://www.phpliteadmin.org/current_version.php');
    define('PROJECT_BUGTRACKER_LINK','<a href="https://bitbucket.org/phpliteadmin/public/issues?status=new&status=open" target="_blank">https://bitbucket.org/phpliteadmin/public/issues?status=new&status=open</a>');
    define('PROJECT_INSTALL_LINK','<a href="https://bitbucket.org/phpliteadmin/public/wiki/Installation" target="_blank">https://bitbucket.org/phpliteadmin/public/wiki/Installation</a>');

    // up here, we don't output anything. debug output might appear here which is catched by ob and thrown later
    ob_start();

    // Resource output (css and javascript files)
    // we get out of the main code as soon as possible, without inizializing the session
    if (isset($_GET['resource']))
    {
    	Resources::output($_GET['resource']);
    	exit();
    }

    // don't mess with this - required for the login session
    ini_set('session.cookie_httponly', '1');
    if(!session_start())
    {
    	die("Could not start a new session. Check your php setup regarding sessions.");
    }

    // version-number added so after updating, old session-data is not used anylonger
    // cookies names cannot contain symbols, except underscores
    define("COOKIENAME", preg_replace('/[^a-zA-Z0-9_]/', '_', $cookie_name . '_' . VERSION) );

    $params = new GetParameters();

    if($debug==true)
    {
    	ini_set("display_errors", 1);
    	error_reporting(E_STRICT | E_ALL);
    } else
    {
    	@ini_set("display_errors", 0);
    }

    // start the timer to record page load time
    $pageTimer = new MicroTimer();

    // load language file
    if($language != 'en') {
     	$temp_lang=$lang;
    	if(is_file('languages/lang_'.$language.'.php'))
    		include('languages/lang_'.$language.'.php');
    	elseif(is_file('lang_'.$language.'.php'))
    		include('lang_'.$language.'.php');
    	$lang = array_merge($temp_lang, $lang);
    	unset($temp_lang);
    }

    // stripslashes if MAGIC QUOTES is turned on
    // This is only a workaround. Please better turn off magic quotes!
    // This code is from http://php.net/manual/en/security.magicquotes.disabling.php
    if (is_callable('get_magic_quotes_gpc') && get_magic_quotes_gpc()) {
    	$process = array(&$_GET, &$_POST, &$_COOKIE, &$_REQUEST);
    	foreach($process as $key => $val) {
    		foreach ($val as $k => $v) {
    			unset($process[$key][$k]);
    			if (is_array($v)) {
    				$process[$key][stripslashes($k)] = $v;
    				$process[] = &$process[$key][stripslashes($k)];
    			} else {
    				$process[$key][stripslashes($k)] = stripslashes($v);
    			}
    		}
    	}
    	unset($process);
    }


    //data types array
    $sqlite_datatypes = array("INTEGER", "REAL", "TEXT", "BLOB","NUMERIC","BOOLEAN","DATETIME");

    //available SQLite functions array (don't add anything here or there will be problems)
    $sqlite_functions = array("abs", "hex", "length", "lower", "ltrim", "random", "round", "rtrim", "trim", "typeof", "upper");

    //- Support functions

    // for php < 5.6.0
    if(!function_exists('hash_equals'))
    {
    	function hash_equals($str1, $str2)
    	{
    		if(strlen($str1) != strlen($str2))
    			return false;
    		else {
    			$res = $str1 ^ $str2;
    			$ret = 0;
    			for($i = strlen($res) - 1; $i >= 0; $i--)
    				$ret |= ord($res[$i]);
    			return !$ret;
    		}
    	}
    }

    // workaround if mbsting extension is missing. Sure this means no multibyte support.
    if(!function_exists('mb_strlen'))
    {
    	function mb_strlen($s)
    	{
    		return strlen($s);
    	}
    }
    if(!function_exists('mb_substr'))
    {
    	function mb_substr($s, $start, $length=null, $encoding=null)
    	{
    		return substr($s, $start, null === $length ? 2147483647 : $length);
    	}
    }
    // no other mbstring functions used so far

    //function that allows SQL delimiter to be ignored inside comments or strings
    function explode_sql($delimiter, $sql)
    {
    	$ign = array('"' => '"', "'" => "'", "/*" => "*/", "--" => "\n"); // Ignore sequences.
    	$out = array();
    	$last = 0;
    	$slen = strlen($sql);
    	$dlen = strlen($delimiter);
    	$i = 0;
    	while($i < $slen)
    	{
    		// Split on delimiter
    		if($slen - $i >= $dlen && substr($sql, $i, $dlen) == $delimiter)
    		{
    			array_push($out, substr($sql, $last, $i - $last));
    			$last = $i + $dlen;
    			$i += $dlen;
    			continue;
    		}
    		// Eat comments and string literals
    		foreach($ign as $start => $end)
    		{
    			$ilen = strlen($start);
    			if($slen - $i >= $ilen && substr($sql, $i, $ilen) == $start)
    			{
    				$i+=strlen($start);
    				$elen = strlen($end);
    				while($i < $slen)
    				{
    					if($slen - $i >= $elen && substr($sql, $i, $elen) == $end)
    					{
    						// SQL comment characters can be escaped by doubling the character. This recognizes and skips those.
    						if($start == $end && $slen - $i >= $elen*2 && substr($sql, $i, $elen*2) == $end.$end)
    						{
    							$i += $elen * 2;
    							continue;
    						}
    						else
    						{
    							$i += $elen;
    							continue 3;
    						}
    					}
    					$i++;
    				}
    				continue 2;
    			}
    		}
    		$i++;
    	}
    	if($last < $slen)
    		array_push($out, substr($sql, $last, $slen - $last));
    	return $out;
    }

    //function to scan entire directory tree and subdirectories
    function dir_tree($dir)
    {
    	$path = array();
    	$stack = array($dir);
    	while($stack)
    	{
    		$thisdir = array_pop($stack);
    		if($dircont = scandir($thisdir))
    		{
    			$i=0;
    			while(isset($dircont[$i]))
    			{
    				if($dircont[$i] !== '.' && $dircont[$i] !== '..')
    				{
    					$current_file = $thisdir.DIRECTORY_SEPARATOR.$dircont[$i];
    					if(is_file($current_file))
    					{
    						$path[] = $thisdir.DIRECTORY_SEPARATOR.$dircont[$i];
    					}
    					elseif (is_dir($current_file))
    					{
    						$path[] = $thisdir.DIRECTORY_SEPARATOR.$dircont[$i];
    						$stack[] = $current_file;
    					}
    				}
    				$i++;
    			}
    		}
    	}
    	return $path;
    }

    //the function echo the help [?] links to the documentation
    function helpLink($name)
    {
    	global $lang;
    	return "<a href='?help=1' onclick='openHelp(\"".$name."\"); return false;' class='helpq' title='".$lang['help'].": ".$name."' target='_blank'><span>[?]</span></a>";
    }

    // function to encode value into HTML just like htmlentities, but with adjusted default settings
    function htmlencode($value, $flags=ENT_QUOTES, $encoding ="UTF-8")
    {
    	return htmlentities($value, $flags, $encoding);
    }

    // reduce string chars
    function subString($str)
    {
    	global $charsNum, $params;
    	if($charsNum > 10 && (!isset($params->fulltexts) || !$params->fulltexts) && mb_strlen($str)>$charsNum)
    	{
    		$str = mb_substr($str, 0, $charsNum).'...';
    	}
    	return $str;
    }

    // marks searchwords and htmlencodes correctly
    function markSearchWords($input, $field, $search)
    {
    	$output = htmlencode($input);
    	if(isset($search['values'][$field]) && is_array($search['values'][$field]))
    	{
    		// build one regex that matches (all) search words
    		$regex = '/';
    		$vali=0;
    		foreach($search['values'][$field] as $searchValue)
    		{
    			if($search['operators'][$field] =='LIKE' || $search['operators'][$field] == 'LIKE%')
    				$regex .= '(?:'.($searchValue[0]=='%'?'':'^'); // does the searchvalue have to occur at the start?
    			$regex .= preg_quote(trim($searchValue,'%'),'/');  // the search value
    			if($search['operators'][$field] =='LIKE' || $search['operators'][$field] == 'LIKE%')
    				$regex .= (substr($searchValue,-1)=='%'?'':'$').')';  // does the searchvalue have to occur at the end?
    			if($vali++<count($search['values'][$field]))
    				$regex .= '|';    // there is another search value, so we add a |
    		}
    		$regex .= '/u';
    		// LIKE operator is not case sensitive, others are
    		if($search['operators'][$field] =='LIKE' || $search['operators'][$field] == 'LIKE%')
    			$regex.= 'i';

    		// split the string into parts that match and should be highlighted and parts in between
    		// $fldBetweenParts: the parts that don't match (might contain empty strings)
    		$fldBetweenParts = preg_split($regex, $input);
    		// $fldFoundParts[0]: the parts that match
    		preg_match_all($regex, $input, $fldFoundParts);

    		// stick the parts together
    		$output = '';
    		foreach($fldBetweenParts as $index => $betweenPart)
    		{
    			$output .= htmlencode($betweenPart); // part that does not match (might be empty)
    			if(isset($fldFoundParts[0][$index]))
    				$output .= '<u class="found">'.htmlencode($fldFoundParts[0][$index]).'</u>'; // the part that matched
    		}
    	}
    	return $output;
    }

    // checks the (new) name of a database file
    function checkDbName($name)
    {
    	global $allowed_extensions;
    	$info = pathinfo($name);
    	if(isset($info['extension']) && !in_array($info['extension'], $allowed_extensions))
    	{
    		return false;
    	} else
    	{
    		return (!is_file($name) && !is_dir($name));
    	}

    }

    // check whether a path is a db managed by this tool
    // requires that $databases is already filled!
    // returns the key of the db if managed, false otherwise.
    function isManagedDB($path)
    {
    	global $databases;
    	foreach($databases as $db_key => $database)
    	{
    		if($path === $database['path'])
    		{
    			// a db we manage. Thats okay.
    			// return the key.
    			return $db_key;
    		}
    	}
    	// not a db we manage!
    	return false;
    }

    // from a typename of a colun, get the type of the column's affinty
    // see https://www.sqlite.org/datatype3.html section 2.1 for rules
    function get_type_affinity($type)
    {
    	if (preg_match("/INT/i", $type))
    		return "INTEGER";
    	else if (preg_match("/(?:CHAR|CLOB|TEXT)/i", $type))
    		return "TEXT";
    	else if (preg_match("/BLOB/i", $type) || $type=="")
    		return "NONE";
    	else if (preg_match("/(?:REAL|FLOA|DOUB)/i", $type))
    		return "REAL";
    	else
    		return "NUMERIC";
    }


    // Returns a file size limit in bytes based on the PHP upload_max_filesize
    // post_max_size and memory_limit. Returns -1 in case of no limit.
    function fileUploadMaxSize()
    {
    	$max1 = parseSize(ini_get('post_max_size'));
    	$max2 = parseSize(ini_get('upload_max_filesize'));
    	$max3 = parseSize(ini_get('memory_limit'));
    	if($max1>0 && ($max1<=$max2 || $max2==0) && ($max1<=$max3 || $max3==-1))
    		return $max1;
    	elseif($max2>0 && ($max2<=$max1 || $max1==0) && ($max2<=$max3 || $max3==-1))
    		return $max2;
    	elseif($max3>-1 && ($max3<=$max1 || $max1==0) && ($max3<=$max2 || $max2==0))
    		return $max3;
    	else
    		return -1; // no limit
    }

    // Parses given size string like "12M" into number of bytes
    // based on https://api.drupal.org/api/drupal/core%21lib%21Drupal%21Component%21Utility%21Bytes.php/function/Bytes%3A%3AtoInt/8.2.x
    function parseSize($size)
    {
    	// Remove the non-unit characters from the size.
    	$unit = preg_replace('/[^bkmgtpezy]/i', '', $size);
    	// Remove the non-numeric characters from the size.
    	$size = preg_replace('/[^0-9\.]/', '', $size);
    	if ($unit)
    	{
    		// Find the position of the unit in the ordered string which is the power
    		// of magnitude to multiply a kilobyte by.
    		return round($size * pow(1024, stripos('bkmgtpezy', $unit[0])));
    	}
    	else {
    		return round($size);
    	}
    }


    //- Check user authentication, login and logout
    $auth = new Authorization(); //create authorization object

    // check if user has attempted to log out
    if (isset($_GET['logout']))
    	$auth->revoke();
    // check if user has attempted to log in
    else if (isset($_POST['login']) && isset($_POST['password']))
    {
    	$attempt = $auth->attemptGrant($_POST['password'], isset($_POST['remember']));
    	$params->redirect( $attempt ? array():array('failed'=>'1') );
    }

    //- Actions on database files and bulk data
    if ($auth->isAuthorized())
    {

    	//- Create a new database
    	if(isset($_POST['new_dbname']))
    	{
    		if($_POST['new_dbname']=='')
    			$params->redirect(array('table'=>null), $lang['err'].': '.$lang['db_blank']);
    		else
    		{
    			$str = preg_replace('@[^\w\-.]@u','', $_POST['new_dbname']);
    			$dbname = $str;
    			$dbpath = $str;
    			if(checkDbName($dbname))
    			{
    				$tdata = array();
    				$tdata['name'] = $dbname;
    				$tdata['path'] = $directory.DIRECTORY_SEPARATOR.$dbpath;
    				if(isset($_POST['new_dbtype']))
    					$tdata['type'] = $_POST['new_dbtype'];
    				else
    					$tdata['type'] = 3;
    				$td = new Database($tdata);
    				$td->query("VACUUM");
    			} else
    			{
    				if(is_file($dbname) || is_dir($dbname))
    					$params->redirect(array('view'=>'structure'),$lang['err'].': '.sprintf($lang['db_exists'], htmlencode($dbname)));
    				else
    					$params->redirect(array('view'=>'structure'),$lang['extension_not_allowed'].': '.implode(', ', array_map('htmlencode', $allowed_extensions)).'<br />'.$lang['add_allowed_extension']);
    			}
    		}
    	}

    	//- Scan a directory for databases
    	if($directory!==false)
    	{
    		if($directory[strlen($directory)-1]==DIRECTORY_SEPARATOR) //if user has a trailing slash in the directory, remove it
    			$directory = substr($directory, 0, strlen($directory)-1);

    		if(is_dir($directory)) //make sure the directory is valid
    		{
    			if($subdirectories===true)
    				$arr = dir_tree($directory);
    			else
    				$arr = scandir($directory);
    			$databases = array();
    			$j = 0;
    			for($i=0; $i<sizeof($arr); $i++) //iterate through all the files in the databases
    			{
    				if($subdirectories===false)
    					$arr[$i] = $directory.DIRECTORY_SEPARATOR.$arr[$i];

    				if(@!is_file($arr[$i])) continue;
    				$con = file_get_contents($arr[$i], NULL, NULL, 0, 60);
    				if(strpos($con, "** This file contains an SQLite 2.1 database **", 0)!==false || strpos($con, "SQLite format 3", 0)!==false)
    				{
    					$databases[$j]['path'] = $arr[$i];
    					if($subdirectories===false)
    						$databases[$j]['name'] = basename($arr[$i]);
    					else
    						$databases[$j]['name'] = $arr[$i];
    					$databases[$j]['writable'] = is_writable($databases[$j]['path']);
    					$databases[$j]['writable_dir'] = is_writable(dirname($databases[$j]['path']));
    					$databases[$j]['readable'] = is_readable($databases[$j]['path']);
    					$j++;
    				}
    			}
    			// 22 August 2011: gkf fixed bug #50.
    			sort($databases);
    			if(isset($tdata))
    			{
    				foreach($databases as $db_id => $database)
    				{
    					if($database['path'] === $tdata['path'])
    					{
    						$currentDB = $database;
    						$params->database = $database['path'];
    						break;
    					}
    				}
    			}
    		}
    		else //the directory is not valid - display error and exit
    		{
    			echo "<div class='confirm' style='margin:20px;'>".$lang['not_dir']."</div>";
    			exit();
    		}
    	}
    	else
    	{
    		for($i=0; $i<sizeof($databases); $i++)
    		{
    			if(!file_exists($databases[$i]['path']))
    			{
    				// the file does not exist and will be created when clicked, if permissions allow to
    				$databases[$i]['writable'] = is_writable(dirname($databases[$i]['path']));
    				$databases[$i]['writable_dir'] = is_writable(dirname($databases[$i]['path']));
    				$databases[$i]['readable'] = is_writable(dirname($databases[$i]['path']));
    			}
    			else
    			{
    				$databases[$i]['writable'] = is_writable($databases[$i]['path']);
    				$databases[$i]['writable_dir'] = is_writable(dirname($databases[$i]['path']));
    				$databases[$i]['readable'] = is_readable($databases[$i]['path']);
    			}
    		}
    		sort($databases);
    	}
    	// we now have the $databases array set. Check whether selected DB is a managed Db (is in this array)
    	if(!isset($currentDB) && (isset($_GET['database']) || isset($_POST['database']) ) )
    	{
    		$selected_db = ( isset($_POST['database']) ? $_POST['database'] : $_GET['database'] );
    		$db_key = isManagedDB($selected_db);
    		if($db_key!==false) {
    			$currentDB = $databases[$db_key];
    			$params->database = $databases[$db_key]['path'];
    		}
    	}

    	//- Delete an existing database
    	if(isset($_GET['database_delete']))
    	{
    		$dbpath = $_POST['database_delete'];
    		// check whether $dbpath really is a db we manage
    		$checkDB = isManagedDB($dbpath);
    		if($checkDB !== false)
    		{
    			unlink($dbpath);
    			unset($params->database);
    			unset($currentDB);
    			unset($databases[$checkDB]);
    		} else die($lang['err'].': '.$lang['delete_only_managed']);
    	}

    	//- Rename an existing database
    	if(isset($_GET['database_rename']))
    	{
    		$oldpath = $_POST['oldname'];
    		$newpath = $_POST['newname'];
    		$oldpath_parts = pathinfo($oldpath);
    		$newpath_parts = pathinfo($newpath);
    		// only rename?
    		$newpath = $oldpath_parts['dirname'].DIRECTORY_SEPARATOR.basename($_POST['newname']);
    		if($newpath != $_POST['newname'] && $subdirectories)
    		{
    			// it seems that the file should not only be renamed but additionally moved.
    			// we need to make sure it stays within $directory...
    			$new_realpath = realpath($newpath_parts['dirname']).DIRECTORY_SEPARATOR;
    			$directory_realpath = realpath($directory).DIRECTORY_SEPARATOR;
    			if(strpos($new_realpath, $directory_realpath)===0)
    			{
    				// its okay, the new directory is within $directory
    				$newpath =  $_POST['newname'];
    			}
    			else $params->redirect(array('view'=>'rename'), $lang['err'].': '.$lang['db_moved_outside']);
    		}

    		if(checkDbName($newpath))
    		{
    			$checkDB = isManagedDB($oldpath);
    			if($checkDB !==false )
    			{
    				rename($oldpath, $newpath);
    				$databases[$checkDB]['path'] = $newpath;
    				$databases[$checkDB]['name'] = basename($newpath);
    				$currentDB = $databases[$checkDB];
    				$params->database = $databases[$checkDB]['path'];
    				$params->redirect(array('view'=>'rename'), sprintf($lang['db_renamed'], htmlencode($oldpath))." '".htmlencode($newpath)."'.");
    			}
    			else $params->redirect(array('view'=>'rename'), $lang['err'].': '.$lang['rename_only_managed']);
    		}
    		else
    		{
    			if(is_file($newpath) || is_dir($newpath))
    				$params->redirect(array('view'=>'rename'), $lang['err'].": " . sprintf($lang['db_exists'], htmlencode($newpath)));
    			else
    				$params->redirect(array('view'=>'rename'), $lang['err'].": " . $lang['extension_not_allowed'].': '.implode(', ', array_map('htmlencode', $allowed_extensions)).'<br />'.$lang['add_allowed_extension']);
    		}
    	}


    	//- Export (download a dump) an existing database
    	if(isset($_POST['export']))
    	{
    		ob_end_clean();
    		$export_filename = str_replace(array("\r", "\n"), '',$_POST['filename']); // against http header injection (php < 5.1.2 only)
    		if($_POST['export_type']=="sql")
    		{
    			header('Content-Type: text/sql');
    			header('Content-Disposition: attachment; filename="'.$export_filename.'.'.$_POST['export_type'].'";');
    			if(isset($_POST['tables']))
    				$tables = $_POST['tables'];
    			else
    			{
    				$tables = array();
    				$tables[0] = $_POST['single_table'];
    			}
    			$drop = isset($_POST['drop']);
    			$structure = isset($_POST['structure']);
    			$data = isset($_POST['data']);
    			$transaction = isset($_POST['transaction']);
    			$comments = isset($_POST['comments']);
    			$db = new Database($currentDB);
    			$db->export_sql($tables, $drop, $structure, $data, $transaction, $comments);
    		}
    		else if($_POST['export_type']=="csv")
    		{
    			header("Content-type: application/csv");
    			header('Content-Disposition: attachment; filename="'.$export_filename.'.'.$_POST['export_type'].'";');
    			header("Pragma: no-cache");
    			header("Expires: 0");
    			if(isset($_POST['tables']))
    				$tables = $_POST['tables'];
    			else
    			{
    				$tables = array();
    				$tables[0] = $_POST['single_table'];
    			}
    			$field_terminate = $_POST['export_csv_fieldsterminated'];
    			$field_enclosed = $_POST['export_csv_fieldsenclosed'];
    			$field_escaped = $_POST['export_csv_fieldsescaped'];
    			$null = $_POST['export_csv_replacenull'];
    			$crlf = isset($_POST['export_csv_crlf']);
    			$fields_in_first_row = isset($_POST['export_csv_fieldnames']);
    			$db = new Database($currentDB);
    			$db->export_csv($tables, $field_terminate, $field_enclosed, $field_escaped, $null, $crlf, $fields_in_first_row);
    		}
    		exit();
    	}

    	//- Import a file into an existing database
    	if(isset($_POST['import']))
    	{
    		$db = new Database($currentDB);
    		$db->registerUserFunction($custom_functions);
    		if($_POST['import_type']=="sql")
    		{
    			$data = file_get_contents($_FILES["file"]["tmp_name"]);
    			$importSuccess = $db->import_sql($data);
    		}
    		else
    		{
    			$field_terminate = $_POST['import_csv_fieldsterminated'];
    			$field_enclosed = $_POST['import_csv_fieldsenclosed'];
    			$field_escaped = $_POST['import_csv_fieldsescaped'];
    			$null = $_POST['import_csv_replacenull'];
    			$fields_in_first_row = isset($_POST['import_csv_fieldnames']);
    			if(isset($_POST['single_table']) && $_POST['single_table']!='')
    				$table = $_POST['single_table'];
    			else
    			{
    				$table = basename($_FILES["file"]["name"],".csv");
    				$i="";
    				while($db->getTypeOfTable($table.$i)!="")
    				{
    					if($i=="")
    						$i=2;
    					else
    						$i++;
    				}
    				$table = $table.$i;
    			}
    			$importSuccess = $db->import_csv($_FILES["file"]["tmp_name"], $table, $field_terminate, $field_enclosed, $field_escaped, $null, $fields_in_first_row);
    		}
    	}
    	//- Download (backup) a database file (as SQLite file, not as dump)
    	if(isset($_GET['download']) && isManagedDB($_GET['download'])!==false)
    	{
    		ob_end_clean();
    		header("Content-type: application/octet-stream");
    		header('Content-Disposition: attachment; filename="'.basename($_GET['download']).'";');
    		header("Pragma: no-cache");
    		header("Expires: 0");
    		readfile($_GET['download']);
    		exit;
    	}

    	//- Select database (from session or first available)
    	if(!isset($currentDB) && count($databases)>0)
    	{
    		//set the current database to the first existing one in the array (default)
    		$currentDB = reset($databases);
    		$params->database = $currentDB['path'];
    	}

    	if(isset($currentDB))
    	{
    		//- Open database (creates a Database object)
    		$db = new Database($currentDB); //create the Database object
    		$db->registerUserFunction($custom_functions);
    	}

    	// collect parameters early, just once
    	$target_table = isset($_GET['table']) ? $_GET['table'] : null;
    	// are we working on a view? let's check once here
    	$target_table_type = !is_null($target_table) ? $db->getTypeOfTable($target_table) : null;
    	if(is_null($target_table_type) && !is_null($target_table))
    		$params->redirect(array('table'=>null), $lang['err'].': '.sprintf($lang['tbl_inexistent'], htmlencode($target_table)));
    	$params->table = $target_table;

    	// initialize / change fulltexts and numrows parameter
    	if(isset($_GET['fulltexts']))
    		$params->fulltexts = ($_GET['fulltexts'] ? 1 : 0);
    	else
    		$params->fulltexts = 0;

    	if(isset($_GET['numRows']) && intval($_GET['numRows'])>0)
    		$params->numRows = intval($_GET['numRows']);
    	else
    		$params->numRows = $rowsNum;

    	//- Switch on $_GET['action'] for operations without output
    	if(isset($_GET['action']) && isset($_GET['confirm']))
    	{
    		switch($_GET['action'])
    		{
    		//- Table actions

    			//- Create table (=table_create)
    			case "table_create":
    				$num = intval($_POST['rows']);
    				$name = $_POST['tablename'];
    				$primary_keys = array();
    				for($i=0; $i<$num; $i++)
    				{
    					if($_POST[$i.'_field']!="" && isset($_POST[$i.'_primarykey']))
    					{
    						$primary_keys[] = $_POST[$i.'_field'];
    					}
    				}
    				$query = "CREATE TABLE ".$db->quote($name)." (";
    				for($i=0; $i<$num; $i++)
    				{
    					if($_POST[$i.'_field']!="")
    					{
    						$query .= $db->quote($_POST[$i.'_field'])." ";
    						$query .= $_POST[$i.'_type']." ";
    						if(isset($_POST[$i.'_primarykey']))
    						{
    							if(count($primary_keys)==1)
    							{
    								$query .= "PRIMARY KEY ";
    								if(isset($_POST[$i.'_autoincrement']) && $db->getType() != "SQLiteDatabase")
    									$query .=  "AUTOINCREMENT ";
    							}
    							$query .= "NOT NULL ";
    						}
    						if(!isset($_POST[$i.'_primarykey']) && isset($_POST[$i.'_notnull']))
    							$query .= "NOT NULL ";
    						if($_POST[$i.'_defaultoption']!='defined' && $_POST[$i.'_defaultoption']!='none' && $_POST[$i.'_defaultoption']!='expr')
    							$query .= "DEFAULT ".$_POST[$i.'_defaultoption']." ";
    						elseif($_POST[$i.'_defaultoption']=='expr')
    							$query .= "DEFAULT (".$_POST[$i.'_defaultvalue'].") ";
    						elseif(isset($_POST[$i.'_defaultvalue']) && $_POST[$i.'_defaultoption']=='defined')
    						{
    							$typeAffinity = get_type_affinity($_POST[$i.'_type']);
    							if(($typeAffinity=="INTEGER" || $typeAffinity=="REAL" || $typeAffinity=="NUMERIC") && is_numeric($_POST[$i.'_defaultvalue']))
    								$query .= "DEFAULT ".$_POST[$i.'_defaultvalue']."  ";
    							else
    								$query .= "DEFAULT ".$db->quote($_POST[$i.'_defaultvalue'])." ";
    						}
    						$query = substr($query, 0, -1);
    						$query .= ", ";
    					}
    				}
    				if (count($primary_keys)>1)
    				{
    					$compound_key = "";
    					foreach ($primary_keys as $primary_key)
    					{
    						$compound_key .= ($compound_key=="" ? "" : ", ") . $db->quote($primary_key);
    					}
    					$query .= "PRIMARY KEY (".$compound_key."), ";
    				}
    				$query = substr($query, 0, -2);
    				$query .= ")";
    				$result = $db->query($query);
    				if($result === false)
    					$completed = $db->getError(true);
    				else
    					$completed = $lang['tbl']." '".htmlencode($_POST['tablename'])."' ".$lang['created'].".<br/><span style='font-size:11px;'>".htmlencode($query)."</span>";
    				$params->redirect(($result===false ? array() : array('action'=>'column_view', 'table'=>$name) ), $completed);
    				break;

    			//- Empty table (=table_empty)
    			case "table_empty":
    				if(isset($_GET['pk']))
    					$tables = json_decode($_GET['pk']);
    				else
    					$tables=array($_GET['table']);
    				$query1 = "BEGIN; ";
    				foreach($tables as $table)
    				{
    					if($db->getTypeOfTable($table)=='table')
    						$query1 .= "DELETE FROM ".$db->quote_id($table)."; ";
    				}
    				$query1 .= "COMMIT; ";
    				$result1=$db->multiQuery($query1);
    				if($result1 === false)
    					$completed = $db->getError(true);
    				if(isset($_POST['vacuum']) && $_POST['vacuum'])
    				{
    					$query2 = "VACUUM;";
    					$result2 = $db->query($query2);
    				}
    				else
    					$query2 = "";
    				if($result1 !== false)
    					$completed = $lang['tbl']." '".htmlencode(implode(', ',$tables))."' ".$lang['emptied'].".<br/><span style='font-size:11px;'>".htmlencode($query1)."<br />".htmlencode($query2)."</span>";
    				if(count($tables)==1)
    					$action = array('action'=>'row_view');
    				else
    					$action = array();
    				$params->redirect(($result1===false ? array() : $action ), $completed);
    				break;

    			//- Create view (=view_create)
    			case "view_create":
    				$query = "CREATE VIEW ".$db->quote($_POST['viewname'])." AS ".$_POST['select'];
    				$result = $db->query($query);
    				if($result === false)
    					$completed = $db->getError(true);
    				else
    					$completed = $lang['view']." '".htmlencode($_POST['viewname'])."' ".$lang['created'].".<br/><span style='font-size:11px;'>".htmlencode($query)."</span>";
    				$params->redirect(($result===false ? array() : array('action'=>'column_view', 'table'=>$_POST['viewname']) ), $completed);
    				break;

    			//- Drop table (or view) (=table_drop)
    			case "table_drop":
    				if(isset($_GET['pk']))
    					$tables = json_decode($_GET['pk']);
    				else
    					$tables=array($_GET['table']);
    				$query1 = "BEGIN; ";
    				foreach($tables as $table)
    				{
    					if($db->getTypeOfTable($table)=='table')
    						$query1 .= "DROP TABLE ".$db->quote_id($table)."; ";
    					else
    						$query1 .= "DROP VIEW ".$db->quote_id($table)."; ";
    				}
    				$query1 .= "COMMIT; ";
    				$result1=$db->multiQuery($query1);
    				if($result1 === false)
    					$completed = $db->getError(true);
    				if(isset($_POST['vacuum']) && $_POST['vacuum'])
    				{
    					$query2 = "VACUUM;";
    					$result2 = $db->query($query2);
    				}
    				else
    					$query2 = "";
    				if($result1 !== false)
    				{
    					$target_table = null;
    					$completed = $lang['tbl'].' / '.$lang['view']." '".htmlencode(implode(', ',$tables))."' ".$lang['dropped'].".<br/><span style='font-size:11px;'>".htmlencode($query1)."<br />".htmlencode($query2)."</span>";;
    				}
    				$params->redirect(array('table'=>null), $completed);
    				break;

    			//- Rename table (=table_rename)
    			case "table_rename":
    				$query = "ALTER TABLE ".$db->quote_id($_GET['table'])." RENAME TO ".$db->quote($_POST['newname']);
    				$type = $db->getTypeOfTable($_GET['table']);
    				if($db->getVersion()==3 && $type=='table' // SQLite 3 can rename tables, not views
    					// In SQL(ite) table names are case-insensitve, so changing is not supported by SQLite.
    					// But table names are stored and displayed case sensitive, so we use the workaround for case sensitive renaming.
    					&& !($_GET['table'] !== $_POST['newname'] && strtolower($_GET['table']) === strtolower($_POST['newname']))
    					)
    					$result = $db->query($query, true);
    				else
    					// Workaround can rename tables of sqlite2 and views of both sqlite versions. Can also do case sensitive renames.
    					$result = $db->query($query, false);
    				if($result === false)
    					$completed = $db->getError(true);
    				else
    				{
    					$completed = $lang['tbl']." '".htmlencode($_GET['table'])."' ".$lang['renamed']." '".htmlencode($_POST['newname'])."'.<br/><span style='font-size:11px;'>".htmlencode($query)."</span>";
    					$target_table = $_POST['newname'];
    				}
    				$params->redirect(array('action'=>'row_view', 'table'=>$_POST['newname']), $completed);
    				break;

    			//- Search table (=table_search)
    			case "table_search":
    				$searchValues = array();
    				$searchOperators = array();

    				$tableInfo = $db->getTableInfo($target_table);
    				$j = 0;
    				$whereExpr = array();
    				for($i=0; $i<sizeof($tableInfo); $i++)
    				{
    					$field = $tableInfo[$i][1];
    					$operator = $_POST['field_'.$i.'_operator'];
    					$searchOperators[$field] = $operator;
    					$value = $_POST['field_'.$i.'_value'];
    					if($value!="" || $operator=="!= ''" || $operator=="= ''" || $operator == 'IS NULL' || $operator == 'IS NOT NULL')
    					{
    						if($operator=="= ''" || $operator=="!= ''" || $operator == 'IS NULL' || $operator == 'IS NOT NULL')
    							$whereExpr[$j] = $db->quote_id($field)." ".$operator;
    						else{
    							if($operator == "LIKE%"){
    								$operator = "LIKE";
    								if(!preg_match('/(^%)|(%$)/', $value)) $value = '%'.$value.'%';
    								$searchValues[$field] = array($value);
    								$valueQuoted = $db->quote($value);
    							}
    							elseif($operator == 'IN' || $operator == 'NOT IN')
    							{
    								$value = trim($value, '() ');
    								$values = explode(',',$value);
    								$values = array_map('trim', $values, array_fill(0,count($values),' \'"'));
    								if($operator == 'IN')
    									$searchValues[$field] = $values;
    								$values = array_map(array($db, 'quote'), $values);
    								$valueQuoted = '(' .implode(', ', $values) . ')';
    							}
    							else
    							{
    								$searchValues[$field] = array($value);
    								$valueQuoted = $db->quote($value);
    							}
    							$whereExpr[$j] = $db->quote_id($field)." ".$operator." ".$valueQuoted;
    						}
    						$j++;
    					}
    				}
    				$searchWhere = '';
    				if(sizeof($whereExpr)>0)
    				{
    					$searchWhere .= " WHERE ".$whereExpr[0];
    					for($i=1; $i<sizeof($whereExpr); $i++)
    					{
    						$searchWhere .= " AND ".$whereExpr[$i];
    					}
    				}
    				$searchID = md5($searchWhere);
    				$_SESSION[COOKIENAME.'search'][$searchID] = array(
    					'where' => $searchWhere,
    					'values' => $searchValues,
    					'operators' => $searchOperators
    					);
    				$params->redirect(array('action'=>'table_search','search'=>$searchID));
    			break;

    		//- Row actions

    			//- Create row (=row_create)
    			case "row_create":
    				$completed = "";
    				$num = $_POST['newRows'];
    				$z = 0;
    				$error = false;

    				$tableInfo = $db->getTableInfo($target_table);

    				for($i=0; $i<$num; $i++)
    				{
    					if(!isset($_POST[$i.":ignore"]))
    					{
    						$query_cols = "";
    						$query_vals = "";
    						$all_default = true;
    						for($j=0; $j<sizeof($tableInfo); $j++)
    						{
    							$null = isset($_POST[$j."_null"][$i]);
    							$type = strtoupper($tableInfo[$j]['type']);
    							$typeAffinity = get_type_affinity($type);
    							if(!$null && isset($_POST[$i.":".$j]))
    								$value = $_POST[$i.":".$j];
    							else
    								$value = "";
    							if(preg_match('/^BLOB/', $type) && !$hexblobs)
    							{
    								if($_FILES[$i.":".$j]["error"] == UPLOAD_ERR_OK && is_file($_FILES[$i.":".$j]["tmp_name"]))
    									$blobFiles[$j] = $_FILES[$i.":".$j]["tmp_name"];
    								else
    									$blobFiles[$j] = null;
    							}
    							elseif($value===$tableInfo[$j]['dflt_value'])
    							{
    								// if the value is the default value, skip it
    								continue;
    							}
    							$all_default = false;
    							$query_cols .= $db->quote_id($tableInfo[$j]['name']).",";

    							$function = $_POST["function_".$j][$i];
    							if($function!="")
    								$query_vals .= $function."(";
    							if(preg_match('/^BLOB/', $type) && !$hexblobs)
    								$query_vals .= ':blobval'.$j;
    							elseif(preg_match('/^BLOB/', $type) &&  $hexblobs)
    								$query_vals .= 'X'.$db->quote($value);
    							elseif(($typeAffinity=="TEXT" || $typeAffinity=="NONE") && !$null)
    								$query_vals .= $db->quote($value);
    							elseif(($typeAffinity=="INTEGER" || $typeAffinity=="REAL"|| $typeAffinity=="NUMERIC") && $value=="")
    								$query_vals .= "NULL";
    							elseif($null)
    								$query_vals .= "NULL";
    							else
    								$query_vals .= $db->quote($value);
    							if($function!="")
    								$query_vals .= ")";
    							$query_vals .= ",";
    						}
    						$query = "INSERT INTO ".$db->quote_id($target_table);
    						if(!$all_default)
    						{
    							$query_cols = substr($query_cols, 0, strlen($query_cols)-1);
    							$query_vals = substr($query_vals, 0, strlen($query_vals)-1);

    							$query.=" (". $query_cols . ") VALUES (". $query_vals. ")";
    						} else {
    							$query .= " DEFAULT VALUES";
    						}
    						if(isset($blobFiles))
    						{
    							// blob files need to be done using a prepared statement because the query size would be too large
    							$handle = $db->prepareQuery($query);
    							foreach($blobFiles as $j=>$filename)
    								$db->bindValue($handle, ':blobval'.$j, file_get_contents($filename), 'blob');

    							$result1 = $db->executePrepared($handle, false);
    						}
    						else
    							$result1 = $db->query($query);
    						if($result1===false)
    							$error = true;
    						$completed .= "<span style='font-size:11px;'>".htmlencode($query)."</span><br/>";
    						$z++;
    					}
    				}
    				if($error)
    					$completed = $db->getError(true) . $completed;
    				else
    					$completed = $z." ".$lang['rows']." ".$lang['inserted'].".<br/><br/>".$completed;
    				$params->redirect(array('action'=>'row_view'), $completed);
    				break;

    			//- Delete row (=row_delete)
    			case "row_delete":
    				$pks = json_decode($_GET['pk']);

    				$query = "DELETE FROM ".$db->quote_id($target_table)." WHERE (".$db->wherePK($target_table,json_decode($pks[0])).")";
    				for($i=1; $i<sizeof($pks); $i++)
    				{
    					$query .= " OR (".$db->wherePK($target_table,json_decode($pks[$i])).")";
    				}
    				$result = $db->query($query);
    				if($result === false)
    					$completed = $db->getError(true);
    				else
    					$completed = sizeof($pks)." ".$lang['rows']." ".$lang['deleted'].".<br/><span style='font-size:11px;'>".htmlencode($query)."</span>";
    				$params->redirect(array('action'=>'row_view'), $completed);
    				break;

    			//- Edit row (=row_edit)
    			case "row_edit":
    				$pks = json_decode($_GET['pk']);
    				$z = 0;

    				$tableInfo = $db->getTableInfo($target_table);

    				if(isset($_POST['new_row']))
    					$completed = "";
    				else
    					$completed = sizeof($pks)." ".$lang['rows']." ".$lang['affected'].".<br/><br/>";

    				for($i=0; $i<sizeof($pks); $i++)
    				{
    					if(isset($_POST['new_row']))
    					{
    						$query_cols = "";
    						$query_vals = "";
    						$all_default = true;
    						for($j=0; $j<sizeof($tableInfo); $j++)
    						{
    							$null = isset($_POST[$j."_null"][$i]);
    							$type = strtoupper($tableInfo[$j]['type']);
    							$typeAffinity = get_type_affinity($type);
    							if(!$null)
    							{
    								if(preg_match('/^BLOB/', $type) && !$hexblobs)
    								{
    									if(isset($_POST["row_".$i."_field_".$j."_blob_use"]) && $_POST["row_".$i."_field_".$j."_blob_use"]=='old')
    									{
    										$select = 'SELECT '.$db->quote_id($tableInfo[$j]['name']).' AS \'blob\' FROM '.$db->quote_id($target_table).' WHERE '.$db->wherePK($target_table, json_decode($pks[$i]));
    										$bl = $db->select($select);
    										$blobFiles[$j] = $bl['blob'];
    										unset($bl);
    									}
    									else
    									{
    										if($_FILES[$i.":".$j]["error"] == UPLOAD_ERR_OK && is_file($_FILES[$i.":".$j]["tmp_name"]))
    											$blobFiles[$j] = file_get_contents($_FILES[$i.":".$j]["tmp_name"]);
    										else
    											$blobFiles[$j] = null;
    									}
    								}
    								else
    									$value = $_POST[$j][$i];
    							}
    							else
    								$value = "";
    							if(!preg_match('/^BLOB/', $type) && $value===$tableInfo[$j]['dflt_value'])
    							{
    								// if the value is the default value, skip it
    								continue;
    							}
    							$all_default = false;
    							$query_cols .= $db->quote_id($tableInfo[$j]['name']).",";

    							$function = $_POST["function_".$j][$i];
    							if($function!="")
    								$query_vals .= $function."(";
    							if(preg_match('/^BLOB/', $type) && !$hexblobs)
    								$query_vals .= ':blobval'.$j;
    							elseif(preg_match('/^BLOB/', $type) && $hexblobs)
    								$query_vals .= 'X'.$db->quote($value);
    							elseif(($typeAffinity=="TEXT" || $typeAffinity=="NONE") && !$null)
    								$query_vals .= $db->quote($value);
    							elseif(($typeAffinity=="INTEGER" || $typeAffinity=="REAL"|| $typeAffinity=="NUMERIC") && $value=="")
    								$query_vals .= "NULL";
    							elseif($null)
    								$query_vals .= "NULL";
    							else
    								$query_vals .= $db->quote($value);
    							if($function!="")
    								$query_vals .= ")";
    							$query_vals .= ",";
    						}
    						$query = "INSERT INTO ".$db->quote_id($target_table);
    						if(!$all_default)
    						{
    							$query_cols = substr($query_cols, 0, strlen($query_cols)-1);
    							$query_vals = substr($query_vals, 0, strlen($query_vals)-1);

    							$query.=" (". $query_cols . ") VALUES (". $query_vals. ")";
    						} else {
    							$query .= " DEFAULT VALUES";
    						}

    						if(isset($blobFiles))
    						{
    							// blob files need to be done using a prepared statement because the query size would be too large
    							$handle = $db->prepareQuery($query);
    							foreach($blobFiles as $j=>$blobval)
    								$db->bindValue($handle, ':blobval'.$j, $blobval, 'blob');

    							$result1 = $db->executePrepared($handle, false);
    						}
    						else
    							$result1 = $db->query($query);
    						if($result1===false)
    							$error = true;
    						$z++;
    					}
    					else
    					{
    						$query = "UPDATE ".$db->quote_id($target_table)." SET ";
    						for($j=0; $j<sizeof($tableInfo); $j++)
    						{
    							$type = strtoupper($tableInfo[$j]['type']);
    							$function = $_POST["function_".$j][$i];
    							$null = isset($_POST[$j."_null"][$i]);
    							// if the old BLOB value is chosen to be kept, just skip this column
    							if(!$null && preg_match('/^BLOB/', $type) && isset($_POST["row_".$i."_field_".$j."_blob_use"]) && $_POST["row_".$i."_field_".$j."_blob_use"]=='old')
    								continue;
    							if(!$null && preg_match('/^BLOB/', $type) && !$hexblobs)
    							{
    								if($_FILES[$i.":".$j]["error"] == UPLOAD_ERR_OK && is_file($_FILES[$i.":".$j]["tmp_name"]))
    									$blobFiles[$j] = $_FILES[$i.":".$j]["tmp_name"];
    								else
    									$blobFiles[$j] = null;
    							}

    							$query .= $db->quote_id($tableInfo[$j]['name'])."=";
    							if($function!="")
    								$query .= $function."(";
    							if($null)
    								$query .= "NULL";
    							else
    							{
    								if(preg_match('/^BLOB/', $type) && !$hexblobs)
    									$query .= ':blobval'.$j;
    								elseif(preg_match('/^BLOB/', $type) && $hexblobs)
    									$query .= 'X'.$db->quote($_POST[$j][$i]);
    								else
    									$query .= $db->quote($_POST[$j][$i]);
    							}
    							if($function!="")
    								$query .= ")";
    							$query .= ", ";
    						}
    						$query = substr($query, 0, -2);
    						$query .= " WHERE ".$db->wherePK($target_table, json_decode($pks[$i]));
    						if(isset($blobFiles))
    						{
    							// blob files need to be done using a prepared statement because the query size would be too large
    							$handle = $db->prepareQuery($query);
    							foreach($blobFiles as $j=>$filename)
    								$db->bindValue($handle, ':blobval'.$j, file_get_contents($filename), 'blob');

    							$result1 = $db->executePrepared($handle, false);
    						}
    						else
    							$result1 = $db->query($query);
    						if($result1===false)
    						{
    							$error = true;
    						}
    					}
    					$completed .= "<span style='font-size:11px;'>".htmlencode($query)."</span><br/>";
    				}
    				if($error)
    					$completed = $db->getError(true) . $completed;
    				elseif(isset($_POST['new_row']))
    					$completed = $z." ".$lang['rows']." ".$lang['inserted'].".<br/><br/>".$completed;
    				$params->redirect(array('action'=>'row_view'), $completed);
    				break;


    			case "row_get_blob":
    				$blobVal = $db->select("SELECT ".$db->quote_id($_GET['column'])." AS 'blob' FROM ".$db->quote_id($target_table)." WHERE ".$db->wherePK($target_table, json_decode($_GET['pk'])));
    				$filename = 'download';
    				if(function_exists('getimagesizefromstring'))     // introduced in PHP 5.4.0
    					$imagesize = getimagesizefromstring($blobVal['blob']);
    				if(isset($imagesize) && $imagesize!==false && isset($imagesize['mime']))
    					$mimetype = $imagesize['mime'];
    				elseif(class_exists('finfo'))  // included since php 5.3.0, but might be disabled on Windows
    				{
    					$finfo    = new finfo(FILEINFO_MIME);
    					$mimetype = $finfo->buffer($blobVal['blob']);
    				}
    				else
    					$mimetype = "application/octet-stream";

    				if(isset($imagesize) && $imagesize!==false && isset($imagesize[2]))
    					$extension = image_type_to_extension($imagesize[2]);
    				else
    					$extension = '.blob';
    				ob_end_clean();
    				header('Content-Length: '.strlen($blobVal['blob']));
    				header("Content-type: ".$mimetype);
    				if(isset($_GET['download_blob']) && $_GET['download_blob'])
    					header('Content-Disposition: attachment; filename="'.$filename.$extension.'";');
    				header("Pragma: no-cache");
    				header("Expires: 0");
    				echo $blobVal['blob'];
    				exit;
    				break;


    		//- Column actions

    			//- Create column (=column_create)
    			case "column_create":
    				$num = intval($_POST['rows']);
    				for($i=0; $i<$num; $i++)
    				{
    					if($_POST[$i.'_field']!="")
    					{
    						$query = "ALTER TABLE ".$db->quote_id($target_table)." ADD ".$db->quote($_POST[$i.'_field'])." ";
    						$query .= $_POST[$i.'_type']." ";
    						if(isset($_POST[$i.'_primarykey']))
    							$query .= "PRIMARY KEY ";
    						if(isset($_POST[$i.'_notnull']))
    							$query .= "NOT NULL ";
    						if($_POST[$i.'_defaultoption']!='defined' && $_POST[$i.'_defaultoption']!='none' && $_POST[$i.'_defaultoption']!='expr')
    							$query .= "DEFAULT ".$_POST[$i.'_defaultoption']." ";
    						elseif($_POST[$i.'_defaultoption']=='expr')
    							$query .= "DEFAULT (".$_POST[$i.'_defaultvalue'].") ";
    						elseif(isset($_POST[$i.'_defaultvalue']) && $_POST[$i.'_defaultoption']=='defined')
    						{
    							$typeAffinity = get_type_affinity($_POST[$i.'_type']);
    							if(($typeAffinity=="INTEGER" || $typeAffinity=="REAL" || $typeAffinity=="NUMERIC") && is_numeric($_POST[$i.'_defaultvalue']))
    								$query .= "DEFAULT ".$_POST[$i.'_defaultvalue']."  ";
    							else
    								$query .= "DEFAULT ".$db->quote($_POST[$i.'_defaultvalue'])." ";
    						}
    						if($db->getVersion()==3 &&
    							($_POST[$i.'_defaultoption']=='defined' || $_POST[$i.'_defaultoption']=='none' || $_POST[$i.'_defaultoption']=='NULL')
    							// Sqlite3 cannot add columns with default values that are not constant
    							&& !isset($_POST[$i.'_primarykey'])
    							// sqlite3 cannot add primary key columns
    							&& (!isset($_POST[$i.'_notnull']) || $_POST[$i.'_defaultoption']!='none')
    							// SQLite3 cannot add NOT NULL columns without DEFAULT even if the table is empty
    							)
    							// use SQLITE3 ALTER TABLE ADD COLUMN
    							$result = $db->query($query, true);
    						else
    							// use ALTER TABLE workaround
    							$result = $db->query($query, false);
    						if($result===false)
    							$error = true;
    					}
    				}
    				if($error)
    					$completed = $db->getError(true);
    				else
    					$completed = $lang['tbl']." '".htmlencode($target_table)."' ".$lang['altered'].".";
    				$params->redirect(array('action'=>'column_view'), $completed);
    				break;

    			//- Delete column (=column_delete)
    			case "column_delete":
    				$pks = explode(":", $_GET['pk']);
    				$query = "ALTER TABLE ".$db->quote_id($target_table).' DROP '.$db->quote_id($pks[0]);
    				for($i=1; $i<sizeof($pks); $i++)
    				{
    					$query .= ", DROP ".$db->quote_id($pks[$i]);
    				}
    				$result = $db->query($query);
    				if($result === false)
    					$completed = $db->getError(true);
    				else
    					$completed = $lang['tbl']." '".htmlencode($target_table)."' ".$lang['altered'].".";
    				$params->redirect(array('action'=>'column_view'), $completed);
    				break;

    			//- Add a primary key (=primarykey_add)
    			case "primarykey_add":
    				$pks = explode(":", $_GET['pk']);
    				$query = "ALTER TABLE ".$db->quote_id($target_table).' ADD PRIMARY KEY ('.$db->quote_id($pks[0]);
    				for($i=1; $i<sizeof($pks); $i++)
    				{
    					$query .= ", ".$db->quote_id($pks[$i]);
    				}
    				$query .= ")";
    				$result = $db->query($query);
    				if($result === false)
    					$completed = $db->getError(true);
    				else
    					$completed = $lang['tbl']." '".htmlencode($target_table)."' ".$lang['altered'].".";
    				$params->redirect(array('action'=>'column_view'), $completed);
    				break;

    			//- Edit column (=column_edit)
    			case "column_edit":
    				$query = "ALTER TABLE ".$db->quote_id($target_table).' CHANGE '.$db->quote_id($_POST['oldvalue'])." ".$db->quote($_POST['0_field'])." ".$_POST['0_type'];
    				$result = $db->query($query);
    				if($result === false)
    					$completed = $db->getError(true);
    				else
    					$completed = $lang['tbl']." '".htmlencode($target_table)."' ".$lang['altered'].".";
    				$params->redirect(array('action'=>'column_view'), $completed);
    				break;

    			//- Delete trigger (=trigger_delete)
    			case "trigger_delete":
    				$query = "DROP TRIGGER ".$db->quote_id($_GET['pk']);
    				$result = $db->query($query);
    				if($result === false)
    					$completed = $db->getError(true);
    				else
    					$completed = $lang['trigger']." '".htmlencode($_GET['pk'])."' ".$lang['deleted'].".<br/><span style='font-size:11px;'>".htmlencode($query)."</span>";
    				$params->redirect(array('action'=>'column_view'), $completed);
    				break;

    			//- Delete index (=index_delete)
    			case "index_delete":
    				$query = "DROP INDEX ".$db->quote_id($_GET['pk']);
    				$result = $db->query($query);
    				if($result === false)
    					$completed = $db->getError(true);
    				else
    					$completed = $lang['index']." '".htmlencode($_GET['pk'])."' ".$lang['deleted'].".<br/><span style='font-size:11px;'>".htmlencode($query)."</span>";
    				$params->redirect(array('action'=>'column_view'), $completed);
    				break;

    			//- Create trigger (=trigger_create)
    			case "trigger_create":
    				$str = "CREATE TRIGGER ".$db->quote($_POST['trigger_name']);
    				if($_POST['beforeafter']!="")
    					$str .= " ".$_POST['beforeafter'];
    				$str .= " ".$_POST['event']." ON ".$db->quote_id($target_table);
    				if(isset($_POST['foreachrow']))
    					$str .= " FOR EACH ROW";
    				if($_POST['whenexpression']!="")
    					$str .= " WHEN ".$_POST['whenexpression'];
    				$str .= " BEGIN";
    				$str .= " ".$_POST['triggersteps'];
    				$str .= " END";
    				$query = $str;
    				$result = $db->query($query);
    				if($result === false)
    					$completed = $db->getError(true);
    				else
    					$completed = $lang['trigger']." ".$lang['created'].".<br/><span style='font-size:11px;'>".htmlencode($query)."</span>";
    				$params->redirect(array('action'=>'column_view'), $completed);
    				break;

    			//- Create index (=index_create)
    			case "index_create":
    				$num = $_POST['num'];
    				if($_POST['name']=="")
    				{
    					$completed = $lang['blank_index'];
    				}
    				else if($_POST['0_field']=="")
    				{
    					$completed = $lang['one_index'];
    				}
    				else
    				{
    					$str = "CREATE ";
    					if($_POST['duplicate']=="no")
    						$str .= "UNIQUE ";
    					$str .= "INDEX ".$db->quote($_POST['name'])." ON ".$db->quote_id($target_table)." (";
    					$str .= $db->quote_id($_POST['0_field']).$_POST['0_order'];
    					for($i=1; $i<$num; $i++)
    					{
    						if($_POST[$i.'_field']!="")
    							$str .= ", ".$db->quote_id($_POST[$i.'_field']).$_POST[$i.'_order'];
    					}
    					$str .= ")";
    					if(isset($_POST['where']) && $_POST['where']!='')
    						$str.=" WHERE ".$_POST['where'];
    					$query = $str;
    					$result = $db->query($query);
    					if($result === false)
    						$completed = $db->getError(true);
    					else
    						$completed = $lang['index']." ".$lang['created'].".<br/><span style='font-size:11px;'>".htmlencode($query)."</span>";
    				}
    				$params->redirect(array('action'=>'column_view'), $completed);
    				break;
    		}
    	}
    }

    // if not in debug mode, destroy all output until here
    if($debug)
    	$bufferedOutput = ob_get_contents();
    ob_end_clean();

    //- HTML: output starts here
    header('Content-Type: text/html; charset=utf-8');
    ?>
    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
    <html xmlns="http://www.w3.org/1999/xhtml" xml:lang="<?php echo $language; ?>" lang="<?php echo $language; ?>">
    <head>
    <!-- Copyright <?php echo date("Y").' '.PROJECT.' ('.PROJECT_URL.')'; ?> -->
    <meta http-equiv='Content-Type' content='text/html; charset=UTF-8' />
    <link rel="shortcut icon" href="?resource=favicon" />
    <title><?php echo PROJECT ?></title>

    <?php
    //- HTML: css/theme include
    if(isset($_GET['theme'])) $theme = basename($_GET['theme']);

    // allow themes to be dropped in subfolder "themes"
    if(is_file('themes/'.$theme)) $theme = 'themes/'.$theme;

    if (file_exists($theme))
    	// an external stylesheet exists - import it
    	echo "<link href='{$theme}' rel='stylesheet' type='text/css' />", PHP_EOL;
    else
    	// only use the default stylesheet if an external one does not exist
    	echo "<link href='?resource=css' rel='stylesheet' type='text/css' />", PHP_EOL;

    // HTML: output help text, then exit
    if(isset($_GET['help']))
    {
    	//help section array
    	$help = array($lang['help1'] => sprintf($lang['help1_x'], PROJECT, PROJECT, PROJECT));
    	for($i=2; isset($lang['help'.$i]); $i++)
    		$help[$lang['help'.$i]]=$lang['help'.$i.'_x'];
    	?>
    	</head>
    	<body style="direction:<?php echo $lang['direction']; ?>;">
    	<div id='help_container'>
    	<?php
    	echo "<div class='help_list'>";
    	echo "<span style='font-size:18px;'>".PROJECT." v".VERSION." ".$lang['help_doc']."</span><br/><br/>";
    	foreach((array)$help as $key => $val)
    	{
    		echo "<a href='#".$key."'>".$key."</a><br/>";
    	}
    	echo "</div>";
    	echo "<br/><br/>";
    	foreach((array)$help as $key => $val)
    	{
    		echo "<div class='help_outer'>";
    		echo "<a class='headd' name='".$key."'>".$key."</a>";
    		echo "<div class='help_inner'>";
    		echo $val;
    		echo "</div>";
    		echo "<a class='help_top' href='#top'>".$lang['back_top']."</a>";
    		echo "</div>";
    	}
    	?>
    	</div>
    	</body>
    	</html>
    	<?php
    	exit();
    }

    if($auth->isAuthorized())
    {
    	//- Javascript include
    	?>
    	<!-- JavaScript Support -->
    	<script type='text/javascript' src='?resource=javascript'></script>
    	<script type="text/javascript">
    	var fileUploadMaxSize = <?php echo fileUploadMaxSize(); ?>;
    	var fileUploadMaxSizeErrorMsg = '<?php echo $lang['err'].': \n'.$lang['max_file_size']; ?>';
    	</script>
    	<!-- SQL code editor with Syntax Highlighting etc. -->
    	<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/codemirror/5.24.2/codemirror.min.css">
    	<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/codemirror/5.24.2/addon/hint/show-hint.min.css">
    	<script src="https://cdnjs.cloudflare.com/ajax/libs/codemirror/5.24.2/codemirror.min.js"></script>
    	<!-- Codemirror 5.24.2 does not yet include the SQLite support that we wrote, so we fetch changed files from rawgit for the time being-->
    	<script src="https://cdn.rawgit.com/codemirror/CodeMirror/c4387d6073b15ccf0f32773eb71a54f3b694f2f0/mode/sql/sql.js"></script>
    	<script src="https://cdnjs.cloudflare.com/ajax/libs/codemirror/5.24.2/addon/hint/show-hint.min.js"></script>
    	<script src="https://cdn.rawgit.com/codemirror/CodeMirror/65c70cf5d18ac3a0c1a3fe717d90a81ff823aa9f/addon/hint/sql-hint.js"></script>
    <?php
    }
    ?>
    </head>
    <body style="direction:<?php echo $lang['direction']; ?>;">
    <?php
    // if in debug mode, ouput all output that has been generated above now
    if($debug)
    	echo $bufferedOutput;

    if(ini_get("register_globals") == "on" || ini_get("register_globals")=="1") //check whether register_globals is turned on - if it is, we need to not continue
    {
    	echo "<div class='confirm' style='margin:20px;'>".$lang['bad_php_directive']."</div>";
    	echo "</body></html>";
    	exit();
    }

    //- HTML: login screen if not authorized, exit
    if(!$auth->isAuthorized())
    {
    	echo "<div id='loginBox'>";
    	echo "<h1><span id='logo'>".PROJECT."</span> <span id='version'>v".VERSION."</span></h1>";
    	echo "<div style='padding:15px; text-align:center;'>";
    	if (isset($_GET['failed']))
    		echo "<span class='warning'>".$lang['passwd_incorrect']."</span><br/><br/>";
    	echo $params->getForm();
    	echo $lang['passwd'].": <input type='password' name='password' autofocus='autofocus'/><br/>";
    	echo "<label><input type='checkbox' name='remember' value='yes' checked='checked'/> ".$lang['remember']."</label><br/><br/>";
    	echo "<input type='submit' value='".$lang['login']."' class='btn'/>";
    	echo "<input type='hidden' name='login' value='true' />";
    	echo "</form>";
    	echo "</div>";
    	echo "</div>";
    	echo "<br/>";
    	echo "<div style='text-align:center;'>";
    	echo "<span style='font-size:11px;'>".$lang['powered']." <a href='".PROJECT_URL."' target='_blank' style='font-size:11px;'>".PROJECT."</a> | ";
    	printf($lang['page_gen'], $pageTimer);
    	echo "</span></div>";
    	echo "</body></html>";
    	exit();
    }

    //- User is authorized, display the main application

    if(count($databases)==0) // the database array is empty, offer to create a new database
    {
    	//- HTML: form to create a new database, exit
    	if($directory!==false && is_writable($directory) && (is_executable($directory) || DIRECTORY_SEPARATOR === '\\'))
    	{
    		echo "<div class='confirm' style='margin:20px;'>";
    		printf($lang['no_db'], PROJECT, PROJECT);
    		echo "</div>";
    		//if the user has performed some action, show the resulting message
    		if(isset($_GET['message']) && isset($_SESSION[COOKIENAME.'messages'][$_GET['message']]))
    		{
    			echo "<div class='confirm' style='margin:10px 20px;'>";
    			echo $_SESSION[COOKIENAME.'messages'][$_GET['message']];
    			echo "</div><br />";
    			unset($_SESSION[COOKIENAME.'messages'][$_GET['message']]);
    		}
    		echo "<fieldset style='margin:15px;'><legend><b>".$lang['db_create']."</b></legend>";
    		echo $params->getForm(array('table'=>null), 'post', false, 'create_database');
    		echo "<input type='text' name='new_dbname' style='width:150px;'/> ";
    		if(class_exists('SQLiteDatabase') && (class_exists('SQLite3') || class_exists('PDO')))
    		{
    			echo "<select name='new_dbtype' class='newDbType'>";
    			echo "<option value='3'>SQLite 3</option>";
    			echo "<option value='2'>SQLite 2</option>";
    			echo "</select>";
    		}
    		echo "<input type='submit' value='".$lang['create']."' class='btn'/>";
    		echo "</form>";
    		echo "</fieldset>";
    	}
    	elseif($directory!==false && !is_executable($directory) && DIRECTORY_SEPARATOR === '/')
    	{
    		echo "<div class='confirm' style='margin:20px;'>";
    		echo $lang['err'].": ".sprintf($lang['dir_not_executable'], PROJECT, $directory);
    		echo "</div><br/>";
    	}
    	else
    	{
    		echo "<div class='confirm' style='margin:20px;'>";
    		echo $lang['err'].": ".sprintf($lang['no_db2'], PROJECT);
    		echo "</div><br/>";
    	}
    	exit();
    }

    //- HTML: sidebar
    echo '<table class="body_tbl" width="100%" border="0" cellspacing="0" cellpadding="0"><tr><td valign="top" class="left_td" style="width:100px; padding:9px 2px 9px 9px;">';
    echo "<div id='leftNav'>";
    echo "<h1><a href='".$params->getURL()."'>";
    echo "<span id='logo'>".PROJECT."</span> <span id='version'>v".VERSION."</span>";
    echo "</a></h1>";
    echo "<div id='headerlinks'>";
    echo "<a href='javascript:void' onclick='openHelp(\"top\");'>".$lang['docu']."</a> | ";
    echo "<a href='https://www.gnu.org/licenses/gpl.html' target='_blank'>".$lang['license']."</a> | ";
    echo "<a href='".PROJECT_URL."' target='_blank'>".$lang['proj_site']."</a>";
    echo "</div>";

    //- HTML: database list
    $db->print_db_list();
    echo "<fieldset style='margin:15px;'><legend>";
    echo "<a href='".$params->getURL(array('table'=>null))."'";
    if (!$target_table)
    	echo " class='active_table'";
    $name = $currentDB['name'];
    if(strlen($name)>25)
    	$name = "...".substr($name, strlen($name)-22, 22);
    echo ">".htmlencode($name)."</a>";
    echo "</legend>";

    //- HTML: table list
    $tables = $db->getTables(true, false);
    foreach($tables as $tableName => $tableType)
    {
    	echo "<span class='sidebar_table'>";
    	echo $params->getLink(array('action'=>'column_view', 'table'=>$tableName), "[".$lang[$tableType=='table'?'tbl':'view']."]");
    	echo "</span> ";
    	echo $params->getLink(array('action'=>'row_view', 'table'=>$tableName), htmlencode($tableName),
    		($target_table == $tableName ? 'active_table' : '') );
    	echo "<br/>";
    }
    if(count($tables)==0)
    	echo $lang['no_tbl'];
    echo "</fieldset>";

    //- HTML: form to create a new database
    if($directory!==false && is_writable($directory))
    {
    	echo "<fieldset style='margin:15px;'><legend><b>".$lang['db_create']."</b> ".helpLink($lang['help2'])."</legend>";
    	echo $params->getForm(array('table'=>null), 'post', false, 'create_database');
    	echo "<input type='text' name='new_dbname' style='width:150px;'/>";
    	if(class_exists('SQLiteDatabase') && (class_exists('SQLite3') || class_exists('PDO')))
    	{
    		echo "<select name='new_dbtype' class='newDbType'>";
    		echo "<option value='3'>SQLite 3</option>";
    		echo "<option value='2'>SQLite 2</option>";
    		echo "</select>";
    	}
    	echo "<input type='submit' value='".$lang['create']."' class='btn'/>";
    	echo "</form>";
    	echo "</fieldset>";
    }

    echo "<div style='text-align:center;'>";
    echo $params->getForm(array(),'get');
    echo "<input type='submit' value='".$lang['logout']."' name='logout' class='btn'/>";
    echo "</form>";
    echo "</div>";
    echo "</div>";
    echo '</td><td valign="top" id="main_column" class="right_td" style="padding:9px 2px 9px 9px;">';

    //- HTML: breadcrumb navigation
    echo $params->getLink(array('table'=>null), htmlencode($currentDB['name']));
    if ($target_table)
    	echo " &rarr; ".$params->getLink(array('action'=>'row_view'), htmlencode($target_table));
    echo "<br/><br/>";

    //- Show the various tab views for a table
    if($target_table)
    {
    	//- HTML: tabs
    	echo $params->getLink(array('action'=>'row_view'), $lang['browse'],
    		(in_array($_GET['action'], array('row_view', 'row_editordelete') ) ? 'tab_pressed' : 'tab'));

    	echo $params->getLink(array('action'=>'column_view'), $lang['struct'],
    		(in_array($_GET['action'], array('column_view', 'column_edit', 'column_confirm', 'primarykey_add', 'column_create', 'index_create', 'index_delete', 'trigger_create', 'trigger_delete') ) ? 'tab_pressed' : 'tab'));

    	echo $params->getLink(array('action'=>'table_sql'), $lang['sql'],
    		($_GET['action']=="table_sql" ? 'tab_pressed' : 'tab'));

    	echo $params->getLink(array(
    		'action' => 'table_search',
    		'oldSearch' => (isset($_GET['search'])?$_GET['search']:null)
    		), $lang['srch'], ($_GET['action']=="table_search" ? 'tab_pressed' : 'tab'));

    	if($target_table_type == 'table' && $db->isWritable() && $db->isDirWritable())
    		echo $params->getLink(array('action'=>'row_create'), $lang['insert'],
    			($_GET['action']=="row_create" ? 'tab_pressed' : 'tab'));

    	echo $params->getLink(array('action'=>'table_export'), $lang['export'],
    		($_GET['action']=="table_export" ? 'tab_pressed' : 'tab'));

    	if($target_table_type == 'table' && $db->isWritable() && $db->isDirWritable())
    		echo $params->getLink(array('action'=>'table_import'), $lang['import'],
    			($_GET['action']=="table_import" ? 'tab_pressed' : 'tab'));

    	if($db->isWritable() && $db->isDirWritable())
    		echo $params->getLink(array('action'=>'table_rename'), $lang['rename'],
    			($_GET['action']=="table_rename" ? 'tab_pressed' : 'tab'));

    	if($target_table_type == 'table' && $db->isWritable() && $db->isDirWritable())
    	{
    		echo $params->getLink(array('action'=>'table_confirm','action2'=>'table_empty'), $lang['empty'],
    			(isset($_GET['action2']) && $_GET['action2']=="table_empty" ? 'tab_pressed empty' : 'tab empty'));

    		echo $params->getLink(array('action'=>'table_confirm','action2'=>'table_drop'), $lang['drop'],
    			(isset($_GET['action2']) && $_GET['action2']=="table_drop" ? 'tab_pressed drop' : 'tab drop'));
    	} elseif($db->isWritable() && $db->isDirWritable()) {
    		echo $params->getLink(array('action'=>'table_confirm','action2'=>'table_drop'), $lang['drop'],
    			(isset($_GET['action2']) && $_GET['action2']=="table_drop" ? 'tab_pressed drop' : 'tab drop'));
    	}
    }
    else
    //- Show the various tab views for a database
    {
    	$view = isset($_GET['view']) ? $_GET['view'] : 'structure';

    	echo $params->getLink(array('view'=>'structure'), $lang['struct'], ($view=="structure" ? 'tab_pressed': 'tab')  );

    	echo $params->getLink(array('view'=>'sql'), $lang['sql'], ($view=="sql" ? 'tab_pressed': 'tab')  );

    	echo $params->getLink(array('view'=>'export'), $lang['export'], ($view=="export" ? 'tab_pressed': 'tab')  );

    	if($db->isWritable() && $db->isDirWritable())
    		echo $params->getLink(array('view'=>'import'), $lang['import'], ($view=="import" ? 'tab_pressed': 'tab')  );

    	if($db->isWritable() && $db->isDirWritable())
    		echo $params->getLink(array('view'=>'vacuum'), $lang['vac'], ($view=="vacuum" ? 'tab_pressed': 'tab')  );

    	if($directory!==false && is_writable($directory))
    	{

    		echo $params->getLink(array('view'=>'rename'), $lang['db_rename'], ($view=="rename" ? 'tab_pressed': 'tab')  );

    		echo $params->getLink(array('view'=>'delete'), "<span>".$lang['db_del']."</span>", ($view=="delete" ? 'tab_pressed delete_db': 'tab delete_db')  );
    	}
    }

    echo "<div style='clear:both;'></div>";
    echo "<div id='main'>";

    //- HTML: confirmation panel
    //if the user has performed some action, show the resulting message
    if(isset($_GET['message']) && isset($_SESSION[COOKIENAME.'messages'][$_GET['message']]))
    {
    	echo "<div class='confirm'>";
    	echo $_SESSION[COOKIENAME.'messages'][$_GET['message']];
    	echo "</div><br />";
    	unset($_SESSION[COOKIENAME.'messages'][$_GET['message']]);
    }


    //- Switch on $_GET['action'] for operations with output
    if(isset($_GET['action']) && !isset($_GET['confirm']))
    {
    	switch($_GET['action'])
    	{
    	//- Table actions

    		//- Confirm table action (=table_confirm)
    		case "table_confirm":
    			if(isset($_GET['check']))
    				$pks = $_GET['check'];
    			elseif(isset($_GET['table']))
    				$pks = array($_GET['table']);
    			else $pks = array();

    			if(sizeof($pks)==0) //nothing was selected so show an error
    			{
    				echo "<div class='confirm'>";
    				echo $lang['err'].": ".$lang['no_sel'];
    				echo "</div>";
    				echo "<br/><br/>";
    				echo $params->getLink(array(), $lang['return']);
    			}
    			else
    			{
    				echo $params->getForm(array('action'=>$_GET['action2'], 'confirm'=>'1', 'pk'=>json_encode($pks)));
    				echo "<div class='confirm'>";
    				printf($lang['ques_'.$_GET['action2']], htmlencode(implode(', ',$pks)), htmlencode($target_table));
    				echo "<br/><br/>";
    				echo "<input type='checkbox' name='vacuum' checked='checked'/> ".$lang['vac_on_empty']."<br/><br/>";
    				echo "<input type='submit' value='".$lang['confirm']."' class='btn'/> ";
    				if(count($pks)==1)
    					$action = array('action'=>'row_view');
    				else
    					$action = array('table'=>null);
    				echo $params->getLink($action, $lang['cancel']);
    				echo "</div>";
    			}
    			break;

    		//- Create table (=table_create)
    		case "table_create":
    			$query = "SELECT name FROM sqlite_master WHERE type='table' AND name=".$db->quote($_GET['tablename']);
    			$results = $db->selectArray($query);
    			if(sizeof($results)>0)
    				$exists = true;
    			else
    				$exists = false;
    			echo "<h2>".$lang['create_tbl'].": '".htmlencode($_GET['tablename'])."'</h2>";
    			if($_GET['tablefields']=="" || intval($_GET['tablefields'])<=0)
    				echo $lang['specify_fields'];
    			else if($_GET['tablename']=="")
    				echo $lang['specify_tbl'];
    			else if($exists)
    				echo $lang['tbl_exists'];
    			else
    			{
    				$num = intval($_GET['tablefields']);
    				$name = $_GET['tablename'];
    				echo $params->getForm(array('action'=>'table_create', 'confirm'=>'1'));
    				echo "<input type='hidden' name='tablename' value='".htmlencode($name)."'/>";
    				echo "<input type='hidden' name='rows' value='".$num."'/>";
    				echo "<table border='0' cellpadding='2' cellspacing='1' class='viewTable'>";
    				echo "<tr>";
    				$headings = array($lang['fld'], $lang['type'], $lang['prim_key']);
    				if($db->getType() != "SQLiteDatabase") $headings[] = $lang['autoincrement'];
    				$headings[] = $lang['not_null'];
    				$headings[] = $lang['def_val'];
    				for($k=0; $k<count($headings); $k++)
    					echo "<td class='tdheader'>" . $headings[$k] . "</td>";
    				echo "</tr>";

    				for($i=0; $i<$num; $i++)
    				{
    					$tdWithClass = "<td class='td" . ($i%2 ? "1" : "2") . "'>";
    					echo "<tr>";
    					echo $tdWithClass;
    					echo "<input type='text' name='".$i."_field' style='width:200px;'/>";
    					echo "</td>";
    					echo $tdWithClass;
    					echo "<select name='".$i."_type' id='i".$i."_type' onchange='toggleAutoincrement(".$i.");'>";
    					foreach ($sqlite_datatypes as $t) {
    						echo "<option value='".htmlencode($t)."'>".htmlencode($t)."</option>";
    					}
    					echo "</select>";
    					echo "</td>";
    					echo $tdWithClass;
    					echo "<label><input type='checkbox' name='".$i."_primarykey' id='i".$i."_primarykey' onclick='toggleNull(".$i."); toggleAutoincrement(".$i.");'/> ".$lang['yes']."</label>";
    					echo "</td>";
    					if($db->getType() != "SQLiteDatabase")
    					{
    						echo $tdWithClass;
    						echo "<label><input type='checkbox' name='".$i."_autoincrement' id='i".$i."_autoincrement'/> ".$lang['yes']."</label>";
    						echo "</td>";
    					}
    					echo $tdWithClass;
    					echo "<label><input type='checkbox' name='".$i."_notnull' id='i".$i."_notnull'/> ".$lang['yes']."</label>";
    					echo "</td>";
    					echo $tdWithClass;
    					echo "<select name='".$i."_defaultoption' id='i".$i."_defaultoption' onchange=\"if(this.value!='defined' && this.value!='expr') document.getElementById('i".$i."_defaultvalue').value='';\">";
    					echo "<option value='none'>".$lang['none']."</option><option value='defined'>".$lang['as_defined'].":</option><option>NULL</option><option>CURRENT_TIME</option><option>CURRENT_DATE</option><option>CURRENT_TIMESTAMP</option><option value='expr'>".$lang['expression'].":</option>";
    					echo "</select>";
    					echo "<input type='text' name='".$i."_defaultvalue' id='i".$i."_defaultvalue' style='width:100px;' onchange=\"if(document.getElementById('i".$i."_defaultoption').value!='expr') document.getElementById('i".$i."_defaultoption').value='defined';\"/>";
    					echo "</td>";
    					echo "</tr>";
    				}
    				echo "<tr>";
    				echo "<td class='tdheader' style='text-align:right;' colspan='6'>";
    				echo "<input type='submit' value='".$lang['create']."' class='btn'/> ";
    				echo $params->getLink(array(), $lang['cancel']);
    				echo "</td>";
    				echo "</tr>";
    				echo "</table>";
    				echo "</form>";
    				if($db->getType() != "SQLiteDatabase") echo "<script type='text/javascript'>window.onload=initAutoincrement;</script>";
    			}
    			break;

    		//- Perform SQL query on table (=table_sql)
    		case "table_sql":
    			if(isset($_POST['query']) && $_POST['query']!="")
    			{
    				$delimiter = $_POST['delimiter'];
    				$queryStr = $_POST['queryval'];
    				//save the queries in history if necessary
    				if($maxSavedQueries!=0 && $maxSavedQueries!=false)
    				{
    					if(!isset($_SESSION[COOKIENAME.'query_history']))
    						$_SESSION[COOKIENAME.'query_history'] = array();
    					$_SESSION[COOKIENAME.'query_history'][md5(strtolower($queryStr))] = $queryStr;
    					if(sizeof($_SESSION[COOKIENAME.'query_history']) > $maxSavedQueries)
    						array_shift($_SESSION[COOKIENAME.'query_history']);
    				}
    				$query = explode_sql($delimiter, $queryStr); //explode the query string into individual queries based on the delimiter

    				for($i=0; $i<sizeof($query); $i++) //iterate through the queries exploded by the delimiter
    				{
    					if(str_replace(" ", "", str_replace("\n", "", str_replace("\r", "", $query[$i])))!="") //make sure this query is not an empty string
    					{
    						$queryTimer = new MicroTimer();
    						$table_result = $db->query($query[$i]);

    						echo "<div class='confirm'>";
    						echo "<b>".htmlencode($query[$i])."</b>";
    						if($table_result === NULL || $table_result === false)
    						{
    							echo "<br /><b>".$lang['err'].": ".htmlencode($db->getError())."</b></div>";
    						}
    						echo "</div><br/>";
    						if($row = $db->fetch($table_result, 'num'))
    						{
    							for($j=0; $j<sizeof($row);$j++)
    								$headers[$j] = $db->getColumnName($table_result,$j);
    							echo "<table border='0' cellpadding='2' cellspacing='1' class='viewTable'>";
    							echo "<tr>";
    							for($j=0; $j<sizeof($headers); $j++)
    							{
    								echo "<td class='tdheader'>";
    								echo htmlencode($headers[$j]);
    								echo "</td>";
    							}
    							echo "</tr>";
    							$rowCount = 0;
    							for(; $rowCount==0 || $row = $db->fetch($table_result, 'num'); $rowCount++)
    							{
    								$tdWithClass = "<td class='td".($rowCount%2 ? "1" : "2")."'>";
    								echo "<tr>";
    								for($z=0; $z<sizeof($headers); $z++)
    								{
    									echo $tdWithClass;
    									if($row[$z]==="")
    										echo "&nbsp;";
    									elseif($row[$z]===NULL)
    										echo "<i class='null'>NULL</i>";
    									else
    										echo htmlencode(subString($row[$z]));
    									echo "</td>";
    								}
    								echo "</tr>";
    							}
    							$queryTimer->stop();
    							echo "</table><br/><br/>";


    							if($table_result !== NULL && $table_result !== false)
    							{
    								echo "<div class='confirm' style='margin-bottom: 2em'>";
    								if($rowCount>0 || $db->getAffectedRows()==0)
    								{
    									printf($lang['show_rows'], $rowCount);
    								}
    								if($db->getAffectedRows()>0 || $rowCount==0)
    								{
    									echo $db->getAffectedRows()." ".$lang['rows_aff']." ";
    								}
    								printf($lang['query_time'], $queryTimer);
    								echo "</div>";
    							}


    						}
    					}
    				}
    			}
    			else
    			{
    				$delimiter = ";";
    				$queryStr = "SELECT * FROM ".$db->quote_id($target_table)." WHERE 1";
    			}

    			echo "<fieldset>";
    			echo "<legend><b>".sprintf($lang['run_sql'],htmlencode($db->getName()))."</b></legend>";
    			echo $params->getForm(array('action'=>'table_sql'));
    			if(isset($_SESSION[COOKIENAME.'query_history']) && sizeof($_SESSION[COOKIENAME.'query_history'])>0)
    			{
    				echo "<b>".$lang['recent_queries']."</b><ul>";
    				foreach($_SESSION[COOKIENAME.'query_history'] as $key => $value)
    					echo "<li><a onclick='sqleditorSetValue(this.textContent); return false;' href='#'>".htmlencode($value)."</a></li>";
    				echo "</ul><br/><br/>";
    			}
    			echo "<div style='float:left; width:70%;'>";
    			echo "<textarea style='width:97%; height:300px;' name='queryval' id='queryval' cols='50' rows='8'>".htmlencode($queryStr)."</textarea>";
    			echo "<script>sqleditor(document.getElementById('queryval'),".json_encode($db->getTableDefinitions()).",'".htmlencode($target_table)."');</script>";
    			echo "</div>";
    			echo "<div style='float:left; width:28%; padding-left:10px;'>";
    			echo $lang['fields']."<br/>";
    			echo "<select multiple='multiple' style='width:100%;' id='fieldcontainer'>";
    			$tableInfo = $db->getTableInfo($target_table);
    			for($i=0; $i<sizeof($tableInfo); $i++)
    			{
    				echo "<option value='".htmlencode($tableInfo[$i][1])."'>".htmlencode($tableInfo[$i][1])."</option>";
    			}
    			echo "</select>";
    			echo "<input type='button' value='&lt;&lt;' onclick='moveFields();' class='btn'/>";
    			echo "</div>";
    			echo "<div style='clear:both;'></div>";
    			echo $lang['delimit']." <input type='text' name='delimiter' value='".htmlencode($delimiter)."' style='width:50px;'/> ";
    			echo "<input type='submit' name='query' value='".$lang['go']."' class='btn'/>";
    			echo "</form>";
    			echo "</fieldset>";
    			break;

    		//- Export table (=table_export)
    		case "table_export":
    			echo $params->getForm();
    			echo "<fieldset style='float:left; width:260px; margin-right:20px;'><legend><b>".$lang['export']."</b></legend>";
    			echo "<input type='hidden' value='".htmlencode($target_table)."' name='single_table'/>";
    			echo "<label><input type='radio' name='export_type' checked='checked' value='sql' onclick='toggleExports(\"sql\");'/> ".$lang['sql']."</label>";
    			echo "<br/><label><input type='radio' name='export_type' value='csv' onclick='toggleExports(\"csv\");'/> ".$lang['csv']."</label>";
    			echo "</fieldset>";

    			echo "<fieldset style='float:left; max-width:350px;' id='exportoptions_sql'><legend><b>".$lang['options']."</b></legend>";
    			echo "<label><input type='checkbox' checked='checked' name='structure'/> ".$lang['export_struct']."</label> ".helpLink($lang['help5'])."<br/>";
    			echo "<label><input type='checkbox' checked='checked' name='data'/> ".$lang['export_data']."</label> ".helpLink($lang['help6'])."<br/>";
    			echo "<label><input type='checkbox' name='drop'/> ".$lang['add_drop']."</label> ".helpLink($lang['help7'])."<br/>";
    			echo "<label><input type='checkbox' checked='checked' name='transaction'/> ".$lang['add_transact']."</label> ".helpLink($lang['help8'])."<br/>";
    			echo "<label><input type='checkbox' checked='checked' name='comments'/> ".$lang['comments']."</label> ".helpLink($lang['help9'])."<br/>";
    			echo "</fieldset>";

    			echo "<fieldset style='float:left; max-width:350px; display:none;' id='exportoptions_csv'><legend><b>".$lang['options']."</b></legend>";
    			echo "<div style='float:left;'>".$lang['fld_terminated']."</div>";
    			echo "<input type='text' value=';' name='export_csv_fieldsterminated' style='float:right;'/>";
    			echo "<div style='clear:both;'></div>";
    			echo "<div style='float:left;'>".$lang['fld_enclosed']."</div>";
    			echo "<input type='text' value='\"' name='export_csv_fieldsenclosed' style='float:right;'/>";
    			echo "<div style='clear:both;'></div>";
    			echo "<div style='float:left;'>".$lang['fld_escaped']."</div>";
    			echo "<input type='text' value='\' name='export_csv_fieldsescaped' style='float:right;'/>";
    			echo "<div style='clear:both;'></div>";
    			echo "<div style='float:left;'>".$lang['rep_null']."</div>";
    			echo "<input type='text' value='NULL' name='export_csv_replacenull' style='float:right;'/>";
    			echo "<div style='clear:both;'></div>";
    			echo "<label><input type='checkbox' name='export_csv_crlf'/> ".$lang['rem_crlf']."</label><br/>";
    			echo "<label><input type='checkbox' checked='checked' name='export_csv_fieldnames'/> ".$lang['put_fld']."</label>";
    			echo "</fieldset>";

    			echo "<div style='clear:both;'></div>";
    			echo "<br/><br/>";
    			echo "<fieldset><legend><b>".$lang['save_as']."</b></legend>";
    			$file = pathinfo($db->getPath());
    			$name = $file['filename'];
    			echo "<input type='text' name='filename' value='".htmlencode($name)."_".htmlencode($target_table)."_".date("Y-m-d").".dump' style='width:400px;'/> <input type='submit' name='export' value='".$lang['export']."' class='btn'/>";
    			echo "</fieldset>";
    			echo "</form>";
    			echo "<div class='confirm' style='margin-top: 2em'>".sprintf($lang['backup_hint'],
    				$params->getLink(array('download' => $currentDB['path'], 'token' => $_SESSION[COOKIENAME.'token']), $lang["backup_hint_linktext"], '', $lang['backup']))."</div>";
    			break;

    		//- Import table (=table_import)
    		case "table_import":
    			if(isset($_POST['import']))
    			{
    				echo "<div class='confirm'>";
    				if($importSuccess===true)
    					echo $lang['import_suc'];
    				else
    					echo $lang['err'].': '.htmlencode($importSuccess);
    				echo "</div><br/>";
    			}
    			echo $params->getForm(array('action' => 'table_import'), 'post', true);
    			echo "<fieldset style='float:left; width:260px; margin-right:20px;'><legend><b>".$lang['import_into']." ".htmlencode($target_table)."</b></legend>";
    			echo "<label><input type='radio' name='import_type' checked='checked' value='sql' onclick='toggleImports(\"sql\");'/> ".$lang['sql']."</label>";
    			echo "<br/><label><input type='radio' name='import_type' value='csv' onclick='toggleImports(\"csv\");'/> ".$lang['csv']."</label>";
    			echo "</fieldset>";

    			echo "<fieldset style='float:left; max-width:350px;' id='importoptions_sql'><legend><b>".$lang['options']."</b></legend>";
    			echo $lang['no_opt'];
    			echo "</fieldset>";

    			echo "<fieldset style='float:left; max-width:350px; display:none;' id='importoptions_csv'><legend><b>".$lang['options']."</b></legend>";
    			echo "<input type='hidden' value='".htmlencode($target_table)."' name='single_table'/>";
    			echo "<div style='float:left;'>".$lang['fld_terminated']."</div>";
    			echo "<input type='text' value=';' name='import_csv_fieldsterminated' style='float:right;'/>";
    			echo "<div style='clear:both;'>";
    			echo "<div style='float:left;'>".$lang['fld_enclosed']."</div>";
    			echo "<input type='text' value='\"' name='import_csv_fieldsenclosed' style='float:right;'/>";
    			echo "<div style='clear:both;'>";
    			echo "<div style='float:left;'>".$lang['fld_escaped']."</div>";
    			echo "<input type='text' value='\' name='import_csv_fieldsescaped' style='float:right;'/>";
    			echo "<div style='clear:both;'>";
    			echo "<div style='float:left;'>".$lang['rep_null']."</div>";
    			echo "<input type='text' value='NULL' name='import_csv_replacenull' style='float:right;'/>";
    			echo "<div style='clear:both;'>";
    			echo "<label><input type='checkbox' checked='checked' name='import_csv_fieldnames'/> ".$lang['fld_names']."</label>";
    			echo "</fieldset>";

    			echo "<div style='clear:both;'></div>";
    			echo "<br/><br/>";

    			echo "<fieldset><legend><b>".$lang['import_f']."</b></legend>";
    			echo "<em>".$lang['max_file_size'].": ".number_format(fileUploadMaxSize()/1024/1024)." MiB</em> ".helpLink($lang['help11'])."<br />";
    			echo "<input type='file' value='".$lang['choose_f']."' name='file' style='background-color:transparent; border-style:none; margin:0; padding:0' onchange='checkFileSize(this)'/>";
    			echo "<input type='submit' value='".$lang['import']."' name='import' class='btn'/>";
    			echo "</fieldset>";
    			break;

    		//- Rename table (=table_rename)
    		case "table_rename":
    			echo $params->getForm(array('action'=>'table_rename', 'confirm'=>'1'));
    			printf($lang['rename_tbl'], htmlencode($target_table));
    			echo " <input type='text' name='newname' value='".htmlencode($target_table)."' style='width:200px;'/> <input type='submit' value='".$lang['rename']."' name='rename' class='btn'/>";
    			echo "</form>";
    			break;

    		//- Search table (=table_search)
    		case "table_search":
    			if(!isset($_GET['search']))
    			{
    				$tableInfo = $db->getTableInfo($target_table);

    				echo $params->getForm(array('action'=>'table_search', 'confirm'=>'1'));

    				echo "<table border='0' cellpadding='2' cellspacing='1' class='viewTable'>";
    				echo "<tr>";
    				echo "<td class='tdheader'>".$lang['fld']."</td>";
    				echo "<td class='tdheader'>".$lang['type']."</td>";
    				echo "<td class='tdheader'>".$lang['operator']."</td>";
    				echo "<td class='tdheader'>".$lang['val']."</td>";
    				echo "</tr>";

    				for($i=0; $i<sizeof($tableInfo); $i++)
    				{
    					$field = $tableInfo[$i][1];
    					$type = $tableInfo[$i]['type'];
    					$typeAffinity = get_type_affinity($type);
    					$tdWithClass = "<td class='td".($i%2 ? "1" : "2")."'>";
    					$tdWithClassLeft = "<td class='td".($i%2 ? "1" : "2")."' style='text-align:left;'>";
    					if(isset($_GET['oldSearch']) && isset($_SESSION[COOKIENAME.'search'][$_GET['oldSearch']]['values'][$field]))
    						$value = implode($_SESSION[COOKIENAME.'search'][$_GET['oldSearch']]['values'][$field], ",");
    					else
    						$value = '';
    					if(isset($_GET['oldSearch']) && isset($_SESSION[COOKIENAME.'search'][$_GET['oldSearch']]['operators'][$field]))
    						$operator = $_SESSION[COOKIENAME.'search'][$_GET['oldSearch']]['operators'][$field];
    					elseif($typeAffinity=="TEXT" || $typeAffinity=="NONE")
    						$operator = 'LIKE';
    					else
    						$operator = '=';

    					echo "<tr>";
    					echo $tdWithClassLeft;
    					echo htmlencode($field);
    					echo "</td>";
    					echo $tdWithClassLeft;
    					echo htmlencode($type);
    					echo "</td>";
    					echo $tdWithClassLeft;
    					echo "<select name='field_".$i."_operator' onchange='checkLike(\"field_".$i."_value\", this.options[this.selectedIndex].value); '>";

    					$operators = array('=', '>', '>=', '<', '<=', "= ''", "!= ''", '!=', 'LIKE', 'LIKE%','NOT LIKE', 'IN', 'NOT IN', 'IS NULL', 'IS NOT NULL');
    					$operatorsDisplay = array('LIKE%' => 'LIKE %...%', 'IN'=>'IN (..., ...)', 'NOT IN'=>'NOT IN (..., ...)');
    					$operatorsNumbersOnly = array('>', '>=', '<', '<=');
    					$operatorsTextOnly = array("= ''", "!= ''");
    					foreach($operators as $op)
    					{
    						if($typeAffinity!="INTEGER" && $typeAffinity!="REAL" && $typeAffinity!="NUMERIC" && in_array($op, $operatorsNumbersOnly))
    							continue;
    						if($typeAffinity!="TEXT" && $typeAffinity!="NONE" && in_array($op, $operatorsTextOnly))
    							continue;
    						$display = (isset($operatorsDisplay[$op]) ? $operatorsDisplay[$op] : $op);
    						echo "<option value='".htmlencode($op)."'".($operator==$op?" selected='selected'":'').">".htmlencode($display)."</option>";
    					}
    					echo "</select>";
    					echo "</td>";
    					echo $tdWithClassLeft;
    					if($typeAffinity=="INTEGER" || $typeAffinity=="REAL" || $typeAffinity=="NUMERIC")
    						echo "<input type='text' id='field_".$i."_value' name='field_".$i."_value' value='".htmlencode($value)."'/>";
    					else
    						echo "<textarea id='field_".$i."_value' name='field_".$i."_value' rows='1' cols='60'>".htmlencode($value)."</textarea>";
    					echo "</td>";
    					echo "</tr>";
    				}
    				echo "<tr>";
    				echo "<td class='tdheader' style='text-align:right;' colspan='4'>";
    				echo "<input type='submit' value='".$lang['srch']."' class='btn'/>";
    				echo "</td>";
    				echo "</tr>";
    				echo "</table>";
    				echo "</form>";

    				break;
    			}
    			elseif(isset($_SESSION[COOKIENAME.'search'][$_GET['search']]))
    			{
    				$params->search = $_GET['search'];
    				$search = $_SESSION[COOKIENAME.'search'][$_GET['search']];
    				// NOTICE: we do not break here!! we just do the same now like row_view-action does
    			}

    	//- Row actions

    		//- View row (=row_view)
    		case "row_view":
    			if(!isset($_GET['startRow']))
    				$_GET['startRow'] = 0;

    			if(isset($_SESSION[COOKIENAME.'currentTable']) && $_SESSION[COOKIENAME.'currentTable']!=$target_table)
    			{
    				unset($_SESSION[COOKIENAME.'sortRows']);
    				unset($_SESSION[COOKIENAME.'orderRows']);
    			}
    			if(isset($_GET['viewtype']))
    			{
    				$_SESSION[COOKIENAME.'viewtype'] = $_GET['viewtype'];
    			}

    			//- Query execution
    			if(!isset($_GET['sort']))
    				$_GET['sort'] = NULL;
    			if(!isset($_GET['order']))
    				$_GET['order'] = NULL;

    			$numRows = $params->numRows;
    			$startRow = $_GET['startRow'];
    			if(isset($_GET['sort']))
    			{
    				$_SESSION[COOKIENAME.'sortRows'] = $_GET['sort'];
    				$_SESSION[COOKIENAME.'currentTable'] = $target_table;
    			}
    			if(isset($_GET['order']))
    			{
    				$_SESSION[COOKIENAME.'orderRows'] = $_GET['order'];
    				$_SESSION[COOKIENAME.'currentTable'] = $target_table;
    			}
    			$query = "SELECT * ";
    			// select the primary key column(s) last (ROWID if there is no PK).
    			// this will be used to identify rows, e.g. when editing/deleting rows
    			$primary_key = $db->getPrimaryKey($target_table);
    			foreach($primary_key as $pk)
    			{
    				$query.= ', '.$db->quote_id($pk);
    				$query.= ', typeof('.$db->quote_id($pk).')';
    			}
    			$query .= " FROM ".$db->quote_id($target_table);
    			$queryDisp = "SELECT * FROM ".$db->quote_id($target_table);
    			$queryCount = "SELECT COUNT(*) AS count FROM ".$db->quote_id($target_table);
    			$queryAdd = "";
    			if(isset($search) && isset($search['where']))
    			{
    				$queryAdd = $search['where'];
    				$queryCount .= $search['where'];
    			}
    			if(isset($_SESSION[COOKIENAME.'sortRows']))
    				$queryAdd .= " ORDER BY ".$db->quote_id($_SESSION[COOKIENAME.'sortRows']);
    			if(isset($_SESSION[COOKIENAME.'orderRows']))
    				$queryAdd .= " ".$_SESSION[COOKIENAME.'orderRows'];
    			$queryAdd .= " LIMIT ".$startRow.", ".$numRows;
    			$query .= $queryAdd;
    			$queryDisp .= $queryAdd;

    			$resultRows = $db->select($queryCount);
    			$totalRows = $resultRows['count'];
    			$shownRows = min($resultRows['count']-$startRow, $numRows);

    			//- HTML: pagination buttons
    			$lastPage = intval($totalRows / $params->numRows);
    			$remainder = intval($totalRows % $params->numRows);
    			if($remainder==0)
    				$remainder = $params->numRows;

    			echo "<div style=''>";
    			//previous button
    			if($_GET['startRow']>0)
    			{
    				echo "<div style='float:left;'>";
    				echo $params->getForm(array('action'=>$_GET['action']),'get');
    				echo "<input type='hidden' name='startRow' value='0'/>";
    				echo "<input type='submit' value='&larr;&larr;' class='btn'/> ";
    				echo "</form>";
    				echo "</div>";
    				echo "<div style='float:left; overflow:hidden; margin-right:20px;'>";
    				echo $params->getForm(array('action'=>$_GET['action']),'get');
    				echo "<input type='hidden' name='startRow' value='".max(0,intval($_GET['startRow']-$params->numRows))."'/>";
    				echo "<input type='submit' value='&larr;' class='btn'/> ";
    				echo "</form>";
    				echo "</div>";
    			}

    			//show certain number buttons
    			echo "<div style='float:left;'>";
    			echo $params->getForm(array('action'=>$_GET['action'], 'numRows'=>null),'get');
    			echo "<input type='submit' value='".$lang['show']." : ' name='show' class='btn'/> ";
    			echo "<input type='text' name='numRows' style='width:50px;' value='".$params->numRows."'/> ";
    			echo $lang['rows_records'];

    			if(intval($_GET['startRow']+$params->numRows) < $totalRows)
    				echo "<input type='text' name='startRow' style='width:90px;' value='".intval($_GET['startRow']+$params->numRows)."'/>";
    			else
    				echo "<input type='text' name='startRow' style='width:90px;' value='0'/> ";
    			echo $lang['as_a'];
    			echo " <select name='viewtype'>";
    			if(!isset($_SESSION[COOKIENAME.'viewtype']) || $_SESSION[COOKIENAME.'viewtype']=="table")
    			{
    				echo "<option value='table' selected='selected'>".$lang['tbl']."</option>";
    				echo "<option value='chart'>".$lang['chart']."</option>";
    			}
    			else
    			{
    				echo "<option value='table'>".$lang['tbl']."</option>";
    				echo "<option value='chart' selected='selected'>".$lang['chart']."</option>";
    			}
    			echo "</select>";
    			echo "</form>";
    			echo "</div>";

    			//next button
    			if(intval($_GET['startRow']+$params->numRows)<$totalRows)
    			{
    				echo "<div style='float:left; margin-left:20px; '>";
    				echo $params->getForm(array('action'=>$_GET['action']),'get');
    				echo "<input type='hidden' name='startRow' value='".intval($_GET['startRow']+$params->numRows)."'/>";
    				echo "<input type='submit' value='&rarr;' class='btn'/> ";
    				echo "</form>";
    				echo "</div>";
    				echo "<div style='float:left; '>";
    				echo $params->getForm(array('action'=>$_GET['action']),'get');
    				echo "<input type='hidden' name='startRow' value='".intval($totalRows-$remainder)."'/>";
    				echo "<input type='submit' value='&rarr;&rarr;' class='btn'/> ";
    				echo "</form>";
    				echo "</div>";
    			}
    			echo "<div style='clear:both;'></div>";
    			echo "</div>";


    			//- Show results
    			if($shownRows>0)
    			{
    				$queryTimer = new MicroTimer();
    				$table_result = $db->query($query);
    				$queryTimer->stop();


    				echo "<br/><div class='confirm'>";
    				echo "<b>".$lang['showing_rows']." ".$startRow." - ".($startRow + $shownRows-1).", ".$lang['total'].": ".$totalRows." ";
    				printf($lang['query_time'], $queryTimer);
    				echo "</b><br/>";
    				echo "<span style='font-size:11px;'>".htmlencode($queryDisp)."</span>";
    				echo "</div><br/>";

    				if($target_table_type == 'view')
    				{
    					echo sprintf($lang['readonly_tbl'], htmlencode($target_table))." <a href='https://en.wikipedia.org/wiki/View_(SQL)' target='_blank'>https://en.wikipedia.org/wiki/View_(SQL)</a>";
    					echo "<br/><br/>";
    				}

    				$tableInfo = $db->getTableInfo($target_table);
    				$pkFirstCol = sizeof($tableInfo)+1;
    				//- Table view
    				if(!isset($_SESSION[COOKIENAME.'viewtype']) || $_SESSION[COOKIENAME.'viewtype']=="table")
    				{
    					echo $params->getForm(array('action'=>'row_editordelete'), 'post', false, 'checkForm');
    					echo "<table border='0' cellpadding='2' cellspacing='1' class='viewTable'>";
    					echo "<tr>";
    					echo "<td colspan='3' class='tdheader' style='text-align:center'>";
    					echo "<a href='".$params->getURL(array('action'=>$_GET['action'], 'fulltexts'=>($params->fulltexts?0:1) ))."' title='".$lang[($params->fulltexts?'no_full_texts':'full_texts')]."'>";
    					echo "<b>&".($params->fulltexts?'r':'l')."arr;</b>&nbsp;T&nbsp;<b>&".($params->fulltexts?'l':'r')."arr;</b></a>";
    					echo "</td>";

    					for($i=0; $i<sizeof($tableInfo); $i++)
    					{
    						echo "<td class='tdheader'>";
    						if(isset($_SESSION[COOKIENAME.'sortRows']))
    							$orderTag = ($_SESSION[COOKIENAME.'sortRows']==$tableInfo[$i]['name'] && $_SESSION[COOKIENAME.'orderRows']=="ASC") ? "DESC" : "ASC";
    						else
    							$orderTag = "ASC";
    						echo $params->getLink(array('action'=>$_GET['action'], 'sort'=>$tableInfo[$i]['name'], 'order'=>$orderTag ), htmlencode($tableInfo[$i]['name']));
    						if(isset($_SESSION[COOKIENAME.'sortRows']) && $_SESSION[COOKIENAME.'sortRows']==$tableInfo[$i]['name'])
    							echo (($_SESSION[COOKIENAME.'orderRows']=="ASC") ? " <b>&uarr;</b>" : " <b>&darr;</b>");
    						echo "</td>";
    					}
    					echo "</tr>";

    					for($i=0; $row = $db->fetch($table_result, 'num'); $i++)
    					{
    						// -g-> $pk will always be the last columns in each row of the array because we are doing "SELECT *, PK_1, typeof(PK_1), PK2, typeof(PK_2), ... FROM ..."
    						$pk_arr = array();
    						for($col = $pkFirstCol; array_key_exists($col, $row); $col=$col+2)
    						{
    							// in $col we have the type and in $col-1 the value
    							if($row[$col]=='integer' || $row[$col]=='real')
    								// json encode as int or float, not string
    								$pk_arr[] = $row[$col-1]+0;
    							else
    								// encode as json string
    								$pk_arr[] = $row[$col-1];
    						}
    						$pk = json_encode($pk_arr);
    						$tdWithClass = "<td class='td".($i%2 ? "1" : "2")."'>";
    						$tdWithClassLeft = "<td class='td".($i%2 ? "1" : "2")."' style='text-align:left;'>";
    						echo "<tr>";
    						if($target_table_type == 'table' && $db->isWritable() && $db->isDirWritable())
    						{
    							echo $tdWithClass;
    							echo "<input type='checkbox' name='check[]' value='".htmlencode($pk)."' id='check_".htmlencode($i)."'/>";
    							echo "</td>";
    							echo $tdWithClass;
    							// -g-> Here, we need to put the PK in as the link for both the edit and delete.
    							echo $params->getLink(array('action'=>'row_editordelete', 'pk'=>$pk, 'type'=>'edit'),"<span>".$lang['edit']."</span>",'edit', $lang['edit']);
    							echo "</td>";
    							echo $tdWithClass;
    							echo $params->getLink(array('action'=>'row_editordelete', 'pk'=>$pk, 'type'=>'delete'),"<span>".$lang['del']."</span>",'delete', $lang['del']);
    							echo "</td>";
    						} else {
    							echo "<td class='td".($i%2 ? "1" : "2")."' colspan='3'></td>";
    						}
    						for($j=0; $j<sizeof($tableInfo); $j++)
    						{
    							$typeAffinity = get_type_affinity($tableInfo[$j]['type']);
    							if($typeAffinity=="INTEGER" || $typeAffinity=="REAL" || $typeAffinity=="NUMERIC")
    								echo $tdWithClass;
    							else
    								echo $tdWithClassLeft;
    							if($row[$j]==="")
    								echo "&nbsp;";
    							elseif($row[$j]===NULL)
    								echo "<i class='null'>NULL</i>";
    							elseif(preg_match('/^BLOB/i', $tableInfo[$j]['type']) && !$hexblobs)
    							{
    								echo "<div style='float:left; text-align: left; padding-right:2em'>";
    								echo $params->getLink(array('action'=>'row_get_blob', 'confirm'=>1, 'pk'=>$pk, 'column'=>$tableInfo[$j]['name'], 'download_blob'=>1),$lang["download"]).' | ';
    								echo $params->getLink(array('action'=>'row_get_blob', 'confirm'=>1, 'pk'=>$pk, 'column'=>$tableInfo[$j]['name'], 'download_blob'=>0),$lang["open_in_browser"],'','','_blank');
    								echo "</div><div style='float:right; text-align: right'>";
    								echo 'Size: '.number_format(strlen($row[$j])).' Bytes';
    								echo "</div>";
    							}
    							elseif(preg_match('/^BLOB/i', $tableInfo[$j]['type']) && $hexblobs)
    							{
    								echo htmlencode(subString(bin2hex($row[$j])));
    							}
    							elseif(isset($search))
    								echo markSearchWords(subString($row[$j]),$tableInfo[$j]['name'], $search);
    							else
    								echo htmlencode(subString($row[$j]));
    							echo "</td>";
    						}
    						echo "</tr>";
    					}
    					echo "</table>";
    					if($target_table_type == 'table' && $db->isWritable() && $db->isDirWritable())
    					{
    						echo "<a onclick='checkAll()'>".$lang['chk_all']."</a> / <a onclick='uncheckAll()'>".$lang['unchk_all']."</a> <i>".$lang['with_sel'].":</i> ";
    						echo "<select name='type'>";
    						echo "<option value='edit'>".$lang['edit']."</option>";
    						echo "<option value='delete'>".$lang['del']."</option>";
    						echo "</select> ";
    						echo "<input type='submit' value='".$lang['go']."' name='massGo' class='btn'/>";
    					}
    					echo "</form>";
    				}
    				else
    				//- Chart view
    				{
    					if(!isset($_SESSION[COOKIENAME.$target_table.'chartlabels']))
    					{
    						// No label-column set. Try to pick a text-column as label-column.
    						for($i=0; $i<sizeof($tableInfo); $i++)
    						{
    							if(get_type_affinity($tableInfo[$i]['type'])=='TEXT')
    							{
    								$_SESSION[COOKIENAME.$target_table.'chartlabels'] = $i;
    								break;
    							}
    						}
    					}
    					if(!isset($_SESSION[COOKIENAME.$target_table.'chartlabels']))
    						// no text column found, use the first column
    						$_SESSION[COOKIENAME.$target_table.'chartlabels'] = 0;

    					if(!isset($_SESSION[COOKIENAME.$target_table.'chartvalues']))
    					{
    						// No value-column set. Pick the first numeric column if possible.
    						// If not possible, pick the first column that is not the label-column.

    						$potential_value_column = null;
    						for($i=0; $i<sizeof($tableInfo); $i++)
    						{
    							if($potential_value_column===null && $i != $_SESSION[COOKIENAME.$target_table.'chartlabels'])
    								// the first column (of any type) that is not the label-column
    								$potential_value_column = $i;
    							// check if the col is numeric
    							$typeAffinity = get_type_affinity($tableInfo[$i]['type']);
    							if($typeAffinity=='INTEGER' || $typeAffinity=='REAL' || $typeAffinity=='NUMERIC')
    							{
    								// this is defined as a numeric column, so prefer this as a value column over $potential_value_column
    								$_SESSION[COOKIENAME.$target_table.'chartvalues'] = $i;
    								break;
    							}
    						}
    						if(!isset($_SESSION[COOKIENAME.$target_table.'chartvalues']))
    						{
    							// we did not find a numeric column
    							if($potential_value_column!==null)
    								// use the $potential_value_column, i.e. the second column which is not the label-column
    								$_SESSION[COOKIENAME.$target_table.'chartvalues'] = $potential_value_column;
    							else
    								// it's hopeless, there is only 1 column
    								$_SESSION[COOKIENAME.$target_table.'chartvalues'] = 0;
    						}
    					}

    					if(!isset($_SESSION[COOKIENAME.'charttype']))
    						$_SESSION[COOKIENAME.'charttype'] = 'bar';

    					if(isset($_POST['chartsettings']))
    					{
    						$_SESSION[COOKIENAME.'charttype'] = $_POST['charttype'];
    						$_SESSION[COOKIENAME.$target_table.'chartlabels'] = $_POST['chartlabels'];
    						$_SESSION[COOKIENAME.$target_table.'chartvalues'] = $_POST['chartvalues'];
    					}
    					//- Chart javascript code
    					?>
    					<script type='text/javascript' src='https://www.google.com/jsapi'></script>
    					<script type='text/javascript'>
    					google.load('visualization', '1.0', {'packages':['corechart']});
    					google.setOnLoadCallback(drawChart);
    					function drawChart()
    					{
    						var data = new google.visualization.DataTable();
    						data.addColumn('string', '<?php echo $tableInfo[$_SESSION[COOKIENAME.$target_table.'chartlabels']]['name']; ?>');
    						data.addColumn('number', '<?php echo $tableInfo[$_SESSION[COOKIENAME.$target_table.'chartvalues']]['name']; ?>');
    						data.addRows([
    						<?php
    						for($i=0; $row = $db->fetch($table_result); $i++)
    						{
    							$label = str_replace("'", "", htmlencode($row[$_SESSION[COOKIENAME.$target_table.'chartlabels']]));
    							$value = htmlencode($row[$_SESSION[COOKIENAME.$target_table.'chartvalues']]);

    							if($value==NULL || $value=="")
    								$value = 0;

    							echo "['".$label."', ".$value."]";
    							if($i<$totalRows-1)
    								echo ",";
    						}
    						$height = ($totalRows+1) * 30;
    						if($height>1000)
    							$height = 1000;
    						else if($height<300)
    							$height = 300;
    						if($_SESSION[COOKIENAME.'charttype']=="pie")
    							$height = 800;
    						?>
    						]);
    						var chartWidth = document.getElementById("main_column").offsetWidth - document.getElementById("chartsettingsbox").offsetWidth - 100;
    						if(chartWidth>1000)
    							chartWidth = 1000;

    						var options =
    						{
    							'width':chartWidth,
    							'height':<?php echo $height; ?>,
    							'title':'<?php echo $tableInfo[$_SESSION[COOKIENAME.$target_table.'chartlabels']]['name']." vs ".$tableInfo[$_SESSION[COOKIENAME.$target_table.'chartvalues']]['name']; ?>'
    						};
    						<?php
    						if($_SESSION[COOKIENAME.'charttype']=="bar")
    							echo "var chart = new google.visualization.BarChart(document.getElementById('chart_div'));";
    						else if($_SESSION[COOKIENAME.'charttype']=="pie")
    							echo "var chart = new google.visualization.PieChart(document.getElementById('chart_div'));";
    						else
    							echo "var chart = new google.visualization.LineChart(document.getElementById('chart_div'));";
    						?>
    						chart.draw(data, options);
    					}
    					</script>
    					<div id="chart_div" style="float:left;"><?php echo $lang['no_chart']; ?></div>
    					<?php
    					echo "<fieldset style='float:right; text-align:center;' id='chartsettingsbox'><legend><b>Chart Settings</b></legend>";
    					echo $params->getForm(array('action'=>$_GET['action']));
    					echo $lang['chart_type'].": <select name='charttype'>";
    					echo "<option value='bar'";
    					if($_SESSION[COOKIENAME.'charttype']=="bar")
    						echo " selected='selected'";
    					echo ">".$lang['chart_bar']."</option>";
    					echo "<option value='pie'";
    					if($_SESSION[COOKIENAME.'charttype']=="pie")
    						echo " selected='selected'";
    					echo ">".$lang['chart_pie']."</option>";
    					echo "<option value='line'";
    					if($_SESSION[COOKIENAME.'charttype']=="line")
    						echo " selected='selected'";
    					echo ">".$lang['chart_line']."</option>";
    					echo "</select>";
    					echo "<br/><br/>";
    					echo $lang['lbl'].": <select name='chartlabels'>";
    					for($i=0; $i<sizeof($tableInfo); $i++)
    					{
    						if(isset($_SESSION[COOKIENAME.$target_table.'chartlabels']) && $_SESSION[COOKIENAME.$target_table.'chartlabels']==$i)
    							echo "<option value='".$i."' selected='selected'>".htmlencode($tableInfo[$i]['name'])."</option>";
    						else
    							echo "<option value='".$i."'>".htmlencode($tableInfo[$i]['name'])."</option>";
    					}
    					echo "</select>";
    					echo "<br/><br/>";
    					echo $lang['val'].": <select name='chartvalues'>";
    					for($i=0; $i<sizeof($tableInfo); $i++)
    					{
    						if(isset($_SESSION[COOKIENAME.$target_table.'chartvalues']) && $_SESSION[COOKIENAME.$target_table.'chartvalues']==$i)
    							echo "<option value='".$i."' selected='selected'>".htmlencode($tableInfo[$i]['name'])."</option>";
    						else
    							echo "<option value='".$i."'>".htmlencode($tableInfo[$i]['name'])."</option>";
    					}
    					echo "</select>";
    					echo "<br/><br/>";
    					echo "<input type='submit' name='chartsettings' value='".$lang['update']."' class='btn'/>";
    					echo "</form>";
    					echo "</fieldset>";
    					echo "<div style='clear:both;'></div>";
    					//end chart view
    				}
    			}
    			else //no rows - do nothing
    			{
    				echo "<br/><div class='confirm'>";
    				if(isset($search) || $totalRows>0)
    					echo $lang['no_rows']."<br/><br/>";
    				elseif($target_table_type == 'table')
    					echo $lang['empty_tbl']." ".$params->getLink(array('action'=>'row_create'), $lang['click']) ." ".$lang['insert_rows'].'<br/><br/>';
    				echo "<span style='font-size:11px;'>".htmlencode($queryDisp)."</span>";
    				echo "</div><br/>";
    			}

    			if(isset($search))
    				echo "<br/><br/>".$params->getLink(array('action'=>'table_search','search'=>null,'oldSearch' => (isset($_GET['search'])?$_GET['search']:null)), $lang['srch_again']);

    			break;

    		//- Create new row (=row_create)
    		case "row_create":
    			echo $params->getForm(array('action'=>'row_create'), 'get');
    			echo $lang['restart_insert'];
    			echo " <select name='newRows'>";
    			for($i=1; $i<=40; $i++)
    			{
    				if(isset($_GET['newRows']) && $_GET['newRows']==$i)
    					echo "<option value='".$i."' selected='selected'>".$i."</option>";
    				else
    					echo "<option value='".$i."'>".$i."</option>";
    			}
    			echo "</select> ";
    			echo $lang['rows'];
    			echo " <input type='submit' value='".$lang['go']."' class='btn'/>";
    			echo "</form>";
    			echo "<br/>";
    			echo $params->getForm(array('action'=>'row_create','confirm'=>'1'), 'post', true);
    			$tableInfo = $db->getTableInfo($target_table);
    			if(isset($_GET['newRows']))
    				$num = $_GET['newRows'];
    			else
    				$num = 1;
    			echo "<input type='hidden' name='newRows' value='".$num."'/>";
    			for($j=0; $j<$num; $j++)
    			{
    				if($j>0)
    					echo "<label><input type='checkbox' value='ignore' name='".$j.":ignore' id='row_".$j."_ignore' checked='checked'/> ".$lang['ignore']."</label><br/>";
    				echo "<table border='0' cellpadding='2' cellspacing='1' class='viewTable'>";
    				echo "<tr>";
    				echo "<td class='tdheader'>".$lang['fld']."</td>";
    				echo "<td class='tdheader'>".$lang['type']."</td>";
    				echo "<td class='tdheader'>".$lang['func']."</td>";
    				echo "<td class='tdheader'>Null</td>";
    				echo "<td class='tdheader'>".$lang['val']."</td>";
    				echo "</tr>";

    				for($i=0; $i<sizeof($tableInfo); $i++)
    				{
    					$field = $tableInfo[$i]['name'];
    					$type = strtoupper($tableInfo[$i]['type']);
    					$typeAffinity = get_type_affinity($type);
    					if($tableInfo[$i]['dflt_value'] === "NULL")
    						$value = NULL;
    					elseif(preg_match('/^BLOB/', $type) && $hexblobs)
    						$value = htmlencode(bin2hex(trim(trim($tableInfo[$i]['dflt_value']), "'")));
    					else
    						$value = htmlencode(trim(trim($tableInfo[$i]['dflt_value']), "'"));
    					$tdWithClassLeft = "<td class='td".($i%2 ? "1" : "2")."' style='text-align:left;'>";
    					echo "<tr>";
    					echo $tdWithClassLeft;
    					echo htmlencode($field);
    					echo "</td>";
    					echo $tdWithClassLeft;
    					echo htmlencode($type);
    					echo "</td>";
    					echo $tdWithClassLeft;
    					echo "<select name='function_".$i."[]' onchange='notNull(\"row_".$j."_field_".$i."_null\");'>";
    					echo "<option value=''>&nbsp;</option>";
    					foreach (array_merge($sqlite_functions, $custom_functions) as $f) {
    						echo "<option value='".htmlencode($f)."'>".htmlencode($f)."</option>";
    					}
    					echo "</select>";
    					echo "</td>";
    					echo $tdWithClassLeft;
    					if($tableInfo[$i]['notnull']==0)
    					{
    						if($value===NULL)
    							echo "<input type='checkbox' name='".$i."_null[]' id='row_".$j."_field_".$i."_null' checked='checked' onclick='disableText(this, \"row_".$j."_field_".$i."_value\");'/>";
    						else
    							echo "<input type='checkbox' name='".$i."_null[]' id='row_".$j."_field_".$i."_null' onclick='disableText(this, \"row_".$j."_field_".$i."_value\");'/>";
    					}
    					echo "</td>";
    					echo $tdWithClassLeft;

    					if($typeAffinity=="INTEGER" || $typeAffinity=="REAL" || $typeAffinity=="NUMERIC")
    						echo "<input type='text' id='row_".$j."_field_".$i."_value' name='".$j.":".$i."' value='".$value."' onblur='changeIgnore(this, \"row_".$j."_ignore\");' onclick='notNull(\"row_".$j."_field_".$i."_null\");'/>";
    					elseif(preg_match('/^BLOB/', $type) && !$hexblobs)
    						echo "<input type='file' id='row_".$j."_field_".$i."_value' name='".$j.":".$i."' onblur='changeIgnore(this, \"row_".$j."_ignore\");' onclick='notNull(\"row_".$j."_field_".$i."_null\");'/>";
    					else
    						echo "<textarea id='row_".$j."_field_".$i."_value' name='".$j.":".$i."' rows='5' cols='60' onclick='notNull(\"row_".$j."_field_".$i."_null\");' onblur='changeIgnore(this, \"row_".$j."_ignore\");'>".$value."</textarea>";
    					echo "</td>";
    					echo "</tr>";
    				}
    				echo "<tr>";
    				echo "<td class='tdheader' style='text-align:right;' colspan='5'>";
    				echo "<input type='submit' value='".$lang['insert']."' class='btn'/>";
    				echo "</td>";
    				echo "</tr>";
    				echo "</table><br/>";
    			}
    			echo "</form>";
    			break;

    		//- Edit or delete row (=row_editordelete)
    		case "row_editordelete":
    			if(isset($_POST['check']))
    				$pks = $_POST['check'];
    			else if(isset($_GET['pk']))
    				$pks = array($_GET['pk']);
    			else $pks[0] = "";
    			$str = implode(', ', $pks);
    			if($str=="") //nothing was selected so show an error
    			{
    				echo "<div class='confirm'>";
    				echo $lang['err'].": ".$lang['no_sel'];
    				echo "</div>";
    				echo "<br/><br/>".$params->getLink(array('action'=>'row_view'),$lang['return']);
    			}
    			else
    			{
    				if((isset($_POST['type']) && $_POST['type']=="edit") || (isset($_GET['type']) && $_GET['type']=="edit")) //edit
    				{
    					echo $params->getForm(array('action'=>'row_edit', 'confirm'=>'1', 'pk'=>json_encode($pks)),'post',true);
    					$tableInfo = $db->getTableInfo($target_table);
    					$primary_key = $db->getPrimaryKey($target_table);

    					for($j=0; $j<sizeof($pks); $j++)
    					{
    						$query = "SELECT * FROM ".$db->quote_id($target_table)." WHERE " . $db->wherePK($target_table, json_decode($pks[$j]));
    						$result1 = $db->select($query, 'num');

    						echo "<table border='0' cellpadding='2' cellspacing='1' class='viewTable'>";
    						echo "<tr>";
    						echo "<td class='tdheader'>".$lang['fld']."</td>";
    						echo "<td class='tdheader'>".$lang['type']."</td>";
    						echo "<td class='tdheader'>".$lang['func']."</td>";
    						echo "<td class='tdheader'>Null</td>";
    						echo "<td class='tdheader'>".$lang['val']."</td>";
    						echo "</tr>";

    						for($i=0; $i<sizeof($tableInfo); $i++)
    						{
    							$field = $tableInfo[$i]['name'];
    							$type = strtoupper($tableInfo[$i]['type']);
    							$typeAffinity = get_type_affinity($type);
    							$value = $result1[$i];
    							if(preg_match('/^BLOB/', $type) && $hexblobs)
    								$value = bin2hex($value);
    							$tdWithClassLeft = "<td class='td".($i%2 ? "1" : "2")."' style='text-align:left;'>";
    							echo "<tr>";
    							echo $tdWithClassLeft;
    							echo htmlencode($field);
    							echo "</td>";
    							echo $tdWithClassLeft;
    							echo htmlencode($type);
    							echo "</td>";
    							echo $tdWithClassLeft;
    							echo "<select name='function_".$i."[]' onchange='notNull(\"row_".$j."_field_".$i."_null\");'>";
    							echo "<option value=''></option>";
    							foreach (array_merge($sqlite_functions, $custom_functions) as $f) {
    								echo "<option value='".htmlencode($f)."'>".htmlencode($f)."</option>";
    							}
    							echo "</select>";
    							echo "</td>";
    							echo $tdWithClassLeft;
    							if($tableInfo[$i]['notnull']==0)
    							{
    								if($value===NULL)
    									echo "<input type='checkbox' name='".$i."_null[]' id='row_".$j."_field_".$i."_null' checked='checked' onclick='disableText(this, \"row_".$j."_field_".$i."_value\");'/>";
    								else
    									echo "<input type='checkbox' name='".$i."_null[]' id='row_".$j."_field_".$i."_null' onclick='disableText(this, \"row_".$j."_field_".$i."_value\");'/>";
    							}
    							echo "</td>";
    							echo $tdWithClassLeft;
    							if($typeAffinity=="INTEGER" || $typeAffinity=="REAL" || $typeAffinity=="NUMERIC")
    								echo "<input type='text' id='row_".$j."_field_".$i."_value' name='".$i."[]' value='".htmlencode($value)."' onblur='changeIgnore(this, \"".$j."\", \"row_".$j."_field_".$i."_null\")' />";
    							elseif(preg_match('/^BLOB/', $type) && !$hexblobs)
    							{
    								if($value!==NULL)
    								{
    									echo "<input type='radio' name='row_".$j."_field_".$i."_blob_use' value='old' checked='checked'>";
    									echo $params->getLink(array('action'=>'row_get_blob', 'confirm'=>1, 'pk'=>$pks[$j], 'column'=>$field, 'download_blob'=>1),$lang["download"]).' | ';
    									echo $params->getLink(array('action'=>'row_get_blob', 'confirm'=>1, 'pk'=>$pks[$j], 'column'=>$field, 'download_blob'=>0),$lang["open_in_browser"],'','','_blank').'<br/>';
    									echo "<input type='radio' name='row_".$j."_field_".$i."_blob_use' value='new' id='row_".$j."_field_".$i."_blob_new'>";
    								}
    								echo "<input type='file' id='row_".$j."_field_".$i."_value' name='".$j.":".$i."'
    									onblur='changeIgnore(this, \"row_".$j."_ignore\");'
    									onchange='document.getElementById(\"row_".$j."_field_".$i."_blob_new\").checked=true;'
    									onclick='notNull(\"row_".$j."_field_".$i."_null\");'
    									".($value===NULL?" disabled='disabled'":"")."/>";
    							}
    							else
    								echo "<textarea id='row_".$j."_field_".$i."_value' name='".$i."[]' rows='1' cols='60' class='".htmlencode($field)."_textarea' onblur='changeIgnore(this, \"".$j."\", \"row_".$j."_field_".$i."_null\")'>".htmlencode($value)."</textarea>";
    							echo "</td>";
    							echo "</tr>";
    						}
    						echo "<tr>";
    						echo "<td class='tdheader' style='text-align:right;' colspan='5'>";
    						// Note: the 'Save changes' button must be first in the code so it is the one used when submitting the form with the Enter key (issue #215)
    						echo "<input type='submit' value='".$lang['save_ch']."' class='btn'/> ";
    						echo "<input type='submit' name='new_row' value='".$lang['new_insert']."' class='btn'/> ";
    						echo $params->getLink(array('action'=>'row_view'), $lang['cancel']);
    						echo "</td>";
    						echo "</tr>";
    						echo "</table>";
    						echo "<br/>";
    					}
    					echo "</form>";
    				}
    				else //delete
    				{
    					echo $params->getForm(array('action'=>'row_delete', 'confirm'=>'1', 'pk'=>json_encode($pks)));
    					echo "<div class='confirm'>";
    					printf($lang['ques_row_delete'], htmlencode($str), htmlencode($target_table));
    					echo "<br/><br/>";
    					echo "<input type='submit' value='".$lang['confirm']."' class='btn'/> ";
    					echo $params->getLink(array('action'=>'row_view'), $lang['cancel']);
    					echo "</div>";
    				}
    			}
    			break;

    	//- Column actions

    		//- View table structure (=column_view)
    		case "column_view":
    			$tableInfo = $db->getTableInfo($target_table);

    			echo $params->getForm(array('action'=>'column_confirm'), 'get', false, 'checkForm');
    			echo "<table border='0' cellpadding='2' cellspacing='1' class='viewTable'>";
    			echo "<tr>";
    			if($target_table_type == 'table' && $db->isWritable() && $db->isDirWritable())
    				echo "<td colspan='3'></td>";
    			echo "<td class='tdheader'>".$lang['col']." #</td>";
    			echo "<td class='tdheader'>".$lang['fld']."</td>";
    			echo "<td class='tdheader'>".$lang['type']."</td>";
    			echo "<td class='tdheader'>".$lang['not_null']."</td>";
    			echo "<td class='tdheader'>".$lang['def_val']."</td>";
    			echo "<td class='tdheader'>".$lang['prim_key']."</td>";
    			echo "</tr>";

    			$noPrimaryKey = true;

    			for($i=0; $i<sizeof($tableInfo); $i++)
    			{
    				$colVal = $tableInfo[$i][0];
    				$fieldVal = $tableInfo[$i][1];
    				$typeVal = $tableInfo[$i]['type'];
    				$notnullVal = $tableInfo[$i][3];
    				$defaultVal = $tableInfo[$i][4];
    				$primarykeyVal = $tableInfo[$i][5];

    				if(intval($notnullVal)!=0)
    					$notnullVal = $lang['yes'];
    				else
    					$notnullVal = $lang['no'];
    				if(intval($primarykeyVal)!=0)
    				{
    					$primarykeyVal = $lang['yes'];
    					$noPrimaryKey = false;
    				}
    				else
    					$primarykeyVal = $lang['no'];

    				$tdWithClass = "<td class='td".($i%2 ? "1" : "2")."'>";
    				$tdWithClassLeft = "<td class='td".($i%2 ? "1" : "2")."' style='text-align:left;'>";
    				echo "<tr>";
    				if($target_table_type == 'table' && $db->isWritable() && $db->isDirWritable())
    				{
    					echo $tdWithClass;
    					echo "<input type='checkbox' name='check[]' value='".htmlencode($fieldVal)."' id='check_".$i."'/>";
    					echo "</td>";
    					echo $tdWithClass;
    					echo $params->getLink(array('action'=>'column_edit', 'pk'=>$fieldVal),"<span>".$lang['edit']."</span>",'edit', $lang['edit']);
    					echo "</td>";
    					echo $tdWithClass;
    					echo $params->getLink(array('action'=>'column_confirm', 'action2'=>'column_delete', 'pk'=>$fieldVal),"<span>".$lang['del']."</span>",'delete', $lang['del']);
    					echo "</td>";
    				}
    				echo $tdWithClass;
    				echo htmlencode($colVal);
    				echo "</td>";
    				echo $tdWithClassLeft;
    				echo htmlencode($fieldVal);
    				echo "</td>";
    				echo $tdWithClassLeft;
    				echo htmlencode($typeVal);
    				echo "</td>";
    				echo $tdWithClassLeft;
    				echo htmlencode($notnullVal);
    				echo "</td>";
    				echo $tdWithClassLeft;
    				if($defaultVal===NULL)
    					echo "<i class='null'>".$lang['none']."</i>";
    				elseif($defaultVal==="NULL")
    					echo "<i class='null'>NULL</i>";
    				else
    					echo htmlencode($defaultVal);
    				echo "</td>";
    				echo $tdWithClassLeft;
    				echo htmlencode($primarykeyVal);
    				echo "</td>";
    				echo "</tr>";
    			}

    			echo "</table>";
    			if($target_table_type == 'table' && $db->isWritable() && $db->isDirWritable())
    			{
    				echo "<a onclick='checkAll()'>".$lang['chk_all']."</a> / <a onclick='uncheckAll()'>".$lang['unchk_all']."</a> <i>".$lang['with_sel'].":</i> ";
    				echo "<select name='action2'>";
    				//echo "<option value='edit'>".$lang['edit']."</option>";
    				echo "<option value='column_delete'>".$lang['del']."</option>";
    				if($noPrimaryKey)
    					echo "<option value='primarykey_add'>".$lang['prim_key']."</option>";
    				echo "</select> ";
    				echo "<input type='submit' value='".$lang['go']."' name='massGo' class='btn'/>";
    			}
    			echo "</form>";
    			if($target_table_type == 'table' && $db->isWritable() && $db->isDirWritable())
    			{
    				echo "<br/>";
    				echo $params->getForm(array('action'=>'column_create'), 'get');
    				echo $lang['add']." <input type='text' name='tablefields' style='width:30px;' value='1'/> ".$lang['tbl_end']." <input type='submit' value='".$lang['go']."' name='addfields' class='btn'/>";
    				echo "</form>";
    			}

    			echo "<br/>";
    			echo "<br/>";
    			echo "<div class='confirm'>";
    			echo "<b>".$lang['query_used_'.$target_table_type]."</b><br/>";
    			echo "<span style='font-size:11px;'>";
    			echo nl2br(htmlencode($db->export_sql(array($target_table),false,true,false,false,false,false)));
    			echo "</span>";
    			echo "</div>";
    			echo "<br/>";
    			if($target_table_type != 'view')
    			{
    				echo "<br/><hr/><br/>";
    				$query = "PRAGMA index_list(".$db->quote_id($target_table).")";
    				$result = $db->selectArray($query);
    				if(sizeof($result)>0)
    				{
    					echo "<h2>".$lang['indexes'].":</h2>";
    					echo "<table border='0' cellpadding='2' cellspacing='1' class='viewTable'>";
    					echo "<tr>";
    					echo "<td colspan='1'>";
    					echo "</td>";
    					echo "<td class='tdheader'>".$lang['name']."</td>";
    					echo "<td class='tdheader'>".$lang['unique']."</td>";
    					echo "<td class='tdheader'>".$lang['seq_no']."</td>";
    					echo "<td class='tdheader'>".$lang['col']." #</td>";
    					echo "<td class='tdheader'>".$lang['fld']."</td>";
    					echo "</tr>";
    					for($i=0; $i<sizeof($result); $i++)
    					{
    						if($result[$i]['unique']==0)
    							$unique = $lang['no'];
    						else
    							$unique = $lang['yes'];

    						$query = "PRAGMA index_info(".$db->quote_id($result[$i]['name']).")";
    						$info = $db->selectArray($query);
    						$span = sizeof($info);

    						$tdWithClass = "<td class='td".($i%2 ? "1" : "2")."'>";
    						$tdWithClassLeft = "<td class='td".($i%2 ? "1" : "2")."' style='text-align:left;'>";
    						$tdWithClassSpan = "<td class='td".($i%2 ? "1" : "2")."' rowspan='".$span."'>";
    						$tdWithClassLeftSpan = "<td class='td".($i%2 ? "1" : "2")."' style='text-align:left;' rowspan='".$span."'>";
    						echo "<tr>";
    						echo $tdWithClassSpan;
    						echo $params->getLink(array('action'=>'index_delete', 'pk'=>$result[$i]['name']), "<span>".$lang['del']."</span>", 'delete', $lang['del']);
    						echo "</td>";
    						echo $tdWithClassLeftSpan;
    						echo $result[$i]['name'];
    						echo "</td>";
    						echo $tdWithClassLeftSpan;
    						echo $unique;
    						echo "</td>";
    						for($j=0; $j<$span; $j++)
    						{
    							if($j!=0)
    								echo "<tr>";
    							echo $tdWithClassLeft;
    							echo htmlencode($info[$j]['seqno']);
    							echo "</td>";
    							echo $tdWithClassLeft;
    							echo htmlencode($info[$j]['cid']);
    							echo "</td>";
    							echo $tdWithClassLeft;
    							echo htmlencode($info[$j]['name']);
    							echo "</td>";
    							echo "</tr>";
    						}
    					}
    					echo "</table><br/><br/>";
    				}

    				$query = "SELECT * FROM sqlite_master WHERE type='trigger' AND tbl_name=".$db->quote($target_table)." ORDER BY name";
    				$result = $db->selectArray($query);
    				//print_r($result);
    				if(sizeof($result)>0)
    				{
    					echo "<h2>".$lang['triggers'].":</h2>";
    					echo "<table border='0' cellpadding='2' cellspacing='1' class='viewTable'>";
    					echo "<tr>";
    					echo "<td colspan='1'>";
    					echo "</td>";
    					echo "<td class='tdheader'>".$lang['name']."</td>";
    					echo "<td class='tdheader'>".$lang['sql']."</td>";
    					echo "</tr>";
    					for($i=0; $i<sizeof($result); $i++)
    					{
    						$tdWithClass = "<td class='td".($i%2 ? "1" : "2")."'>";
    						echo "<tr>";
    						echo $tdWithClass;
    						echo $params->getLink(array('action'=>'trigger_delete', 'pk'=>$result[$i]['name']), "<span>".$lang['del']."</span>", 'delete', $lang['del']);
    						echo "</td>";
    						echo $tdWithClass;
    						echo htmlencode($result[$i]['name']);
    						echo "</td>";
    						echo $tdWithClass;
    						echo htmlencode($result[$i]['sql']);
    						echo "</td>";
    					}
    					echo "</table><br/><br/>";
    				}

    				if($db->isWritable() && $db->isDirWritable())
    				{
    					echo $params->getForm(array('action'=>'index_create'),'get');
    					echo "<br/><div class='tdheader'>";
    					echo $lang['create_index2']." <input type='text' name='numcolumns' style='width:30px;' value='1'/> ".$lang['cols']." <input type='submit' value='".$lang['go']."' name='addindex' class='btn'/>";
    					echo "</div>";
    					echo "</form>";

    					echo $params->getForm(array('action'=>'trigger_create'),'get');
    					echo "<br/><div class='tdheader'>";
    					echo $lang['create_trigger2']." <input type='submit' value='".$lang['go']."' name='addindex' class='btn'/>";
    					echo "</div>";
    					echo "</form>";
    				}
    			}
    			break;

    		//- Create column (=column_create)
    		case "column_create":
    			echo "<h2>".sprintf($lang['new_fld'],htmlencode($_GET['table']))."</h2>";
    			if($_GET['tablefields']=="" || intval($_GET['tablefields'])<=0)
    				echo $lang['specify_fields'];
    			else if($_GET['table']=="")
    				echo $lang['specify_tbl'];
    			else
    			{
    				$num = intval($_GET['tablefields']);
    				$name = $_GET['table'];
    				echo $params->getForm(array('action'=>'column_create', 'confirm'=>'1'));
    				echo "<input type='hidden' name='rows' value='".$num."'/>";
    				echo "<table border='0' cellpadding='2' cellspacing='1' class='viewTable'>";
    				echo "<tr>";
    				$headings = array($lang["fld"], $lang["type"], $lang["prim_key"]);
    				if($db->getType() != "SQLiteDatabase") $headings[] = $lang["autoincrement"];
    				$headings[] = $lang["not_null"];
    				$headings[] = $lang["def_val"];

    				for($k=0; $k<count($headings); $k++)
    					echo "<td class='tdheader'>" . $headings[$k] . "</td>";
    				echo "</tr>";

    				for($i=0; $i<$num; $i++)
    				{
    					$tdWithClass = "<td class='td" . ($i%2 ? "1" : "2") . "'>";
    					echo "<tr>";
    					echo $tdWithClass;
    					echo "<input type='text' name='".$i."_field' style='width:200px;'/>";
    					echo "</td>";
    					echo $tdWithClass;
    					echo "<select name='".$i."_type' id='i".$i."_type' onchange='toggleAutoincrement(".$i.");'>";
    					foreach ($sqlite_datatypes as $t) {
    						echo "<option value='".htmlencode($t)."'>".htmlencode($t)."</option>";
    					}
    					echo "</select>";
    					echo "</td>";
    					echo $tdWithClass;
    					echo "<label><input type='checkbox' name='".$i."_primarykey'/> ".$lang['yes']."</label>";
    					echo "</td>";
    					if($db->getType() != "SQLiteDatabase")
    					{
    						echo $tdWithClass;
    						echo "<label><input type='checkbox' name='".$i."_autoincrement' id='i".$i."_autoincrement'/> ".$lang['yes']."</label>";
    						echo "</td>";
    					}
    					echo $tdWithClass;
    					echo "<label><input type='checkbox' name='".$i."_notnull'/> ".$lang['yes']."</label>";
    					echo "</td>";
    					echo $tdWithClass;
    					echo "<select name='".$i."_defaultoption' id='i".$i."_defaultoption' onchange=\"if(this.value!='defined' && this.value!='expr') document.getElementById('i".$i."_defaultvalue').value='';\">";
    					echo "<option value='none'>".$lang['none']."</option><option value='defined'>".$lang['as_defined'].":</option><option>NULL</option><option>CURRENT_TIME</option><option>CURRENT_DATE</option><option>CURRENT_TIMESTAMP</option><option value='expr'>".$lang['expression'].":</option>";
    					echo "</select>";
    					echo "<input type='text' name='".$i."_defaultvalue' id='i".$i."_defaultvalue' style='width:100px;' onchange=\"if(document.getElementById('i".$i."_defaultoption').value!='expr') document.getElementById('i".$i."_defaultoption').value='defined';\"/>";
    					echo "</td>";
    					echo "</tr>";
    				}
    				echo "<tr>";
    				echo "<td class='tdheader' style='text-align:right;' colspan='6'>";
    				echo "<input type='submit' value='".$lang['add_flds']."' class='btn'/> ";
    				echo $params->getLink(array('action'=>'column_view'), $lang['cancel']);
    				echo "</td>";
    				echo "</tr>";
    				echo "</table>";
    				echo "</form>";
    			}
    			break;

    		//- Confirm column action (=column_confirm)
    		case "column_confirm":
    			if(isset($_GET['check']))
    				$pks = $_GET['check'];
    			elseif(isset($_GET['pk']))
    				$pks = array($_GET['pk']);
    			else $pks = array();

    			if(sizeof($pks)==0) //nothing was selected so show an error
    			{
    				echo "<div class='confirm'>";
    				echo $lang['err'].": ".$lang['no_sel'];
    				echo "</div>";
    				echo "<br/><br/>";
    				echo $params->getLink(array('action'=>'column_view'), $lang['return']);
    			}
    			else
    			{
    				$str = $pks[0];
    				$pkVal = $pks[0];
    				for($i=1; $i<sizeof($pks); $i++)
    				{
    					$str .= ", ".$pks[$i];
    					$pkVal .= ":".$pks[$i];
    				}
    				echo $params->getForm(array('action'=>$_GET['action2'], 'confirm'=>'1', 'pk'=>$pkVal));
    				echo "<div class='confirm'>";
    				printf($lang['ques_'.$_GET['action2']], htmlencode($str), htmlencode($target_table));
    				echo "<br/><br/>";
    				echo "<input type='submit' value='".$lang['confirm']."' class='btn'/> ";
    				echo $params->getLink(array('action'=>'column_view'), $lang['cancel']);
    				echo "</div>";
    			}
    			break;

    		//- Edit column (=column_edit)
    		case "column_edit":
    			echo "<h2>".sprintf($lang['edit_col'], htmlencode($_GET['pk']))." ".$lang['on_tbl']." '".htmlencode($target_table)."'</h2>";
    			echo $lang['sqlite_limit']."<br/><br/>";
    			if(!isset($_GET['pk']))
    				echo $lang['specify_col'];
    			else if (!$target_table)
    				echo $lang['specify_tbl'];
    			else
    			{
    				$tableInfo = $db->getTableInfo($target_table);

    				for($i=0; $i<sizeof($tableInfo); $i++)
    				{
    					if($tableInfo[$i][1]==$_GET['pk'])
    					{
    						$colVal = $tableInfo[$i][0];
    						$fieldVal = $tableInfo[$i][1];
    						$typeVal = $tableInfo[$i]['type'];
    						$notnullVal = $tableInfo[$i][3];
    						$defaultVal = $tableInfo[$i][4];
    						$primarykeyVal = $tableInfo[$i][5];
    						break;
    					}
    				}

    				if(!isset($fieldVal))
    				{
    					echo "<div class='confirm'>".$lang['err'].": ".sprintf($lang['col_inexistent'], htmlencode($_GET['pk']))."</div>";
    				}
    				else
    				{
    					$name = $target_table;
    					echo $params->getForm(array('action'=>'column_edit', 'confirm'=>'1'));
    					echo "<input type='hidden' name='oldvalue' value='".htmlencode($_GET['pk'])."'/>";
    					echo "<table border='0' cellpadding='2' cellspacing='1' class='viewTable'>";
    					echo "<tr>";
    					//$headings = array("Field", "Type", "Primary Key", "Autoincrement", "Not NULL", "Default Value");
    					$headings = array($lang["fld"], $lang["type"]);
    					for($k=0; $k<count($headings); $k++)
    						echo "<td class='tdheader'>".$headings[$k]."</td>";
    					echo "</tr>";

    					$i = 0;
    					$tdWithClass = "<td class='td" . ($i%2 ? "1" : "2") . "'>";
    					echo "<tr>";
    					echo $tdWithClass;
    					echo "<input type='text' name='".$i."_field' style='width:200px;' value='".htmlencode($fieldVal)."'/>";
    					echo "</td>";
    					echo $tdWithClass;
    					echo "<select name='".$i."_type' id='i".$i."_type' onchange='toggleAutoincrement(".$i.");'>";
    					if(!in_array($typeVal, $sqlite_datatypes))
    						echo "<option value='".htmlencode($typeVal)."' selected='selected'>".htmlencode($typeVal)."</option>";
    					foreach ($sqlite_datatypes as $t) {
    						if($t==$typeVal)
    							echo "<option value='".htmlencode($t)."' selected='selected'>".htmlencode($t)."</option>";
    						else
    							echo "<option value='".htmlencode($t)."'>".htmlencode($t)."</option>";
    					}
    					echo "</select>";
    					echo "</td>";
    					/*
    					echo $tdWithClass;
    					if($primarykeyVal)
    						echo "<input type='checkbox' name='".$i."_primarykey' checked='checked'/> Yes";
    					else
    						echo "<input type='checkbox' name='".$i."_primarykey'/> Yes";
    					echo "</td>";
    					echo $tdWithClass;
    					if(1==2)
    						echo "<input type='checkbox' name='".$i."_autoincrement' id='".$i."_autoincrement' checked='checked'/> Yes";
    					else
    						echo "<input type='checkbox' name='".$i."_autoincrement' id='".$i."_autoincrement'/> Yes";
    					echo "</td>";
    					echo $tdWithClass;
    					if($notnullVal)
    						echo "<input type='checkbox' name='".$i."_notnull' checked='checked'/> Yes";
    					else
    						echo "<input type='checkbox' name='".$i."_notnull'/> Yes";
    					echo "</td>";
    					echo $tdWithClass;
    					echo "<input type='text' name='".$i."_defaultvalue' value='".$defaultVal."' style='width:100px;'/>";
    					echo "</td>";
    					*/
    					echo "</tr>";

    					echo "<tr>";
    					echo "<td class='tdheader' style='text-align:right;' colspan='6'>";
    					echo "<input type='submit' value='".$lang['save_ch']."' class='btn'/> ";
    					echo $params->getLink(array('action'=>'column_view'), $lang['cancel']);
    					echo "</td>";
    					echo "</tr>";
    					echo "</table>";
    					echo "</form>";
    				}
    			}
    			break;

    		//- Delete index (=index_delete)
    		case "index_delete":
    			echo $params->getForm(array('action'=>'index_delete', 'pk'=>$_GET['pk'], 'confirm'=>'1'));
    			echo "<div class='confirm'>";
    			echo sprintf($lang['ques_index_delete'], htmlencode($_GET['pk']))."<br/><br/>";
    			echo "<input type='submit' value='".$lang['confirm']."' class='btn'/> ";
    			echo $params->getLink(array('action'=>'column_view'), $lang['cancel']);
    			echo "</div>";
    			echo "</form>";
    			break;

    		//- Delete trigger (=trigger_delete)
    		case "trigger_delete":
    			echo $params->getForm(array('action'=>'trigger_delete', 'pk'=>$_GET['pk'], 'confirm'=>'1'));
    			echo "<div class='confirm'>";
    			echo sprintf($lang['ques_trigger_delete'], htmlencode($_GET['pk']))."<br/><br/>";
    			echo "<input type='submit' value='".$lang['confirm']."' class='btn'/> ";
    			echo $params->getLink(array('action'=>'column_view'), $lang['cancel']);
    			echo "</div>";
    			echo "</form>";
    			break;

    		//- Create trigger (=trigger_create)
    		case "trigger_create":
    			echo "<h2>".$lang['create_trigger']." '".htmlencode($_GET['table'])."'</h2>";
    			if($_GET['table']=="")
    				echo $lang['specify_tbl'];
    			else
    			{
    				echo $params->getForm(array('action'=>'trigger_create', 'confirm'=>'1'));
    				echo $lang['trigger_name'].": <input type='text' name='trigger_name'/><br/><br/>";
    				echo "<fieldset><legend>".$lang['db_event']."</legend>";
    				echo $lang['before']."/".$lang['after'].": ";
    				echo "<select name='beforeafter'>";
    				echo "<option value=''></option>";
    				echo "<option value='BEFORE'>".$lang['before']."</option>";
    				echo "<option value='AFTER'>".$lang['after']."</option>";
    				echo "<option value='INSTEAD OF'>".$lang['instead']."</option>";
    				echo "</select>";
    				echo "<br/><br/>";
    				echo $lang['event'].": ";
    				echo "<select name='event'>";
    				echo "<option value='DELETE'>".$lang['del']."</option>";
    				echo "<option value='INSERT'>".$lang['insert']."</option>";
    				echo "<option value='UPDATE'>".$lang['update']."</option>";
    				echo "</select>";
    				echo "</fieldset><br/><br/>";
    				echo "<fieldset><legend>".$lang['trigger_act']."</legend>";
    				echo "<label><input type='checkbox' name='foreachrow'/> ".$lang['each_row']."</label><br/><br/>";
    				echo $lang['when_exp'].":<br/>";
    				echo "<textarea name='whenexpression' style='width:500px; height:100px;' rows='8' cols='50'></textarea>";
    				echo "<br/><br/>";
    				echo $lang['trigger_step'].":<br/>";
    				echo "<textarea name='triggersteps' style='width:500px; height:100px;' rows='8' cols='50'></textarea>";
    				echo "</fieldset><br/><br/>";
    				echo "<input type='submit' value='".$lang['create_trigger2']."' class='btn'/> ";
    				echo $params->getLink(array('action'=>'column_view'), $lang['cancel']);
    				echo "</form>";
    			}
    			break;

    		//- Create index (=index_create)
    		case "index_create":
    			echo "<h2>".$lang['create_index']." '".htmlencode($_GET['table'])."'</h2>";
    			if($_GET['numcolumns']=="" || intval($_GET['numcolumns'])<=0)
    				echo $lang['specify_fields'];
    			else if($_GET['table']=="")
    				echo $lang['specify_tbl'];
    			else
    			{
    				echo $params->getForm(array('action'=>'index_create', 'confirm'=>'1'));
    				$num = intval($_GET['numcolumns']);
    				$tableInfo = $db->getTableInfo($_GET['table']);
    				echo "<fieldset><legend>".$lang['define_index']."</legend>";
    				echo "<label for='index_name'>".$lang['index_name'].":</label> <input type='text' name='name' id='index_name'/><br/>";
    				echo "<label for='index_duplicate'>".$lang['dup_val'].":</label>";
    				echo "<select name='duplicate' id='index_duplicate'>";
    				echo "<option value='yes'>".$lang['allow']."</option>";
    				echo "<option value='no'>".$lang['not_allow']."</option>";
    				echo "</select><br/>";
    				if(version_compare($db->getSQLiteVersion(),'3.8.0')>=0)
    					echo "<label for='index_where'>WHERE:</label> <input type='text' name='where' id='index_where'/> ".helpLink($lang['help10']);
    				echo "</fieldset>";
    				echo "<br/>";
    				echo "<fieldset><legend>".$lang['define_in_col']."</legend>";
    				for($i=0; $i<$num; $i++)
    				{
    					echo "<select name='".$i."_field'>";
    					echo "<option value=''>--".$lang['ignore']."--</option>";
    					for($j=0; $j<sizeof($tableInfo); $j++)
    						echo "<option value='".htmlencode($tableInfo[$j][1])."'>".htmlencode($tableInfo[$j][1])."</option>";
    					echo "</select> ";
    					echo "<select name='".$i."_order'>";
    					echo "<option value=''></option>";
    					echo "<option value=' ASC'>".$lang['asc']."</option>";
    					echo "<option value=' DESC'>".$lang['desc']."</option>";
    					echo "</select><br/>";
    				}
    				echo "</fieldset>";
    				echo "<br/><br/>";
    				echo "<input type='hidden' name='num' value='".$num."'/>";
    				echo "<input type='submit' value='".$lang['create_index1']."' class='btn'/> ";
    				echo $params->getLink(array('action'=>'column_view'), $lang['cancel']);
    				echo "</form>";
    			}
    			break;
    	}
    	echo "</div>";
    }

    //- HMTL: views for databases
    if(!$target_table && !isset($_GET['confirm']) && (!isset($_GET['action']) || (isset($_GET['action']) && $_GET['action']!="table_create" && $_GET['action']!="table_confirm"))) //the absence of these fields means we are viewing the database homepage
    {
      //- Switch on $view (actually a series of if-else)

    	if($view=="structure")
    	{
    		//- Database structure, shows all the tables (=structure)

    		if($db->isWritable() && !$db->isDirWritable())
    		{
    			echo "<div class='confirm' style='margin:10px 0'>";
    			echo $lang['attention'].': '.$lang['directory_not_writable'];
    			echo "</div><br/>";
    		}
    		elseif(!$db->isWritable())
    		{
    			echo "<div class='confirm' style='margin:10px 0;'>";
    			echo $lang['attention'].': '.$lang['database_not_writable'];
    			echo "</div><br/>";
    		}

    		if ($auth->isPasswordDefault())
    		{
    			echo "<div class='confirm' style='margin:20px 0px;'>";
    			echo sprintf($lang['warn_passwd'],(is_readable('phpliteadmin.config.php')?'phpliteadmin.config.php':basename(__FILE__)))."<br />".$lang['warn0'];
    			echo "</div>";
    		}

    		if (!extension_loaded('mbstring'))
    		{
    			echo "<div class='confirm' style='margin:20px 0px;'>";
    			echo $lang['warn_mbstring'];
    			echo "</div>";
    		}
    		echo "<b>".$lang['db_name']."</b>: ".htmlencode($db->getName())."<br/>";
    		echo "<b>".$lang['db_path']."</b>: ".htmlencode($db->getPath())."<br/>";
    		echo "<b>".$lang['db_size']."</b>: ".number_format($db->getSize())." KiB<br/>";
    		echo "<b>".$lang['db_mod']."</b>: ".$db->getDate()."<br/>";
    		echo "<b>".$lang['sqlite_v']."</b>: ".$db->getSQLiteVersion()."<br/>";
    		echo "<b>".$lang['sqlite_ext']."</b> ".helpLink($lang['help1']).": ".$db->getType()."<br/>";
    		echo "<b>".$lang['php_v']."</b>: ".phpversion()."<br/>";
    		echo "<b>".PROJECT." ".$lang["ver"]."</b>: ".VERSION;
    		echo " <a href='".PROJECT_URL."' target='_blank' id='oldVersion' style='display: none;' class='warning'>".$lang['new_version']."</a><br/><br/>";
    		echo "<script type='text/javascript'>checkVersion('".VERSION."','".VERSION_CHECK_URL."');</script>";

    		if(isset($_GET['sort']) && ($_GET['sort']=='type' || $_GET['sort']=='name'))
    			$_SESSION[COOKIENAME.'sortTables'] = $_GET['sort'];
    		if(isset($_GET['order']) && ($_GET['order']=='ASC' || $_GET['order']=='DESC'))
    			$_SESSION[COOKIENAME.'orderTables'] = $_GET['order'];

    		if(!isset($_SESSION[COOKIENAME.'sortTables']))
    			$_SESSION[COOKIENAME.'sortTables'] = 'name';

    		if(!isset($_SESSION[COOKIENAME.'orderTables']))
    			$_SESSION[COOKIENAME.'orderTables'] = 'ASC';

    		$tables = $db->getTables(true, false, $_SESSION[COOKIENAME.'sortTables'], $_SESSION[COOKIENAME.'orderTables']);

    		if(sizeof($tables)==0)
    			echo $lang['no_tbl']."<br/><br/>";
    		else
    		{
    			echo $params->getForm(array('action'=>'table_confirm',), 'get', false, 'checkForm');
    			echo "<table border='0' cellpadding='2' cellspacing='1' class='viewTable'>";
    			echo "<tr>";

    			echo "<td class='tdheader' colspan='2'>";
    			if(isset($_SESSION[COOKIENAME.'sortTables']))
    				$orderTag = ($_SESSION[COOKIENAME.'sortTables']=="name" && $_SESSION[COOKIENAME.'orderTables']=="ASC") ? "DESC" : "ASC";
    			else
    				$orderTag = "ASC";
    			echo $params->getLink(array('sort'=>'name', 'order'=>$orderTag), $lang['name']);
    			if(isset($_SESSION[COOKIENAME.'sortTables']) && $_SESSION[COOKIENAME.'sortTables']=="name")
    				echo (($_SESSION[COOKIENAME.'orderTables']=="ASC") ? " <b>&uarr;</b>" : " <b>&darr;</b>");
    			echo "</td>";

    			echo "<td class='tdheader'>";
    			if(isset($_SESSION[COOKIENAME.'sortTables']))
    				$orderTag = ($_SESSION[COOKIENAME.'sortTables']=="type" && $_SESSION[COOKIENAME.'orderTables']=="ASC") ? "DESC" : "ASC";
    			else
    				$orderTag = "ASC";
    			echo $params->getLink(array('sort'=>'type', 'order'=>$orderTag), $lang['type']);
    			echo helpLink($lang['help3']);
    			if(isset($_SESSION[COOKIENAME.'sortTables']) && $_SESSION[COOKIENAME.'sortTables']=="type")
    				echo (($_SESSION[COOKIENAME.'orderTables']=="ASC") ? " <b>&uarr;</b>" : " <b>&darr;</b>");
    			echo "</td>";

    			echo "<td class='tdheader' colspan='10'>".$lang['act']."</td>";
    			echo "<td class='tdheader'>".$lang['rec']."</td>";
    			echo "</tr>";

    			$totalRecords = 0;
    			$skippedTables = false;
    			$tableId = 0;
    			foreach($tables as $tableName => $tableType)
    			{
    				$records = $db->numRows($tableName, (!isset($_GET['forceCount'])));
    				if($records == '?')
    				{
    					$skippedTables = true;
    					$records = $params->getLink(array('forceCount'=>'1'), '?');
    				}
    				else
    					$totalRecords += $records;
    				$tdWithClass = "<td class='td".($i%2 ? "1" : "2")."'>";
    				$tdWithClassLeft = "<td class='td".($i%2 ? "1" : "2")."' style='text-align:left;'>";

    				echo "<tr>";
    				echo $tdWithClass;
    				echo "<input type='checkbox' name='check[]' value='".htmlencode($tableName)."' id='check_".htmlencode($tableId)."'/>";
    				echo "</td>";
    				echo $tdWithClassLeft;
    				echo $params->getLink(array('table'=>$tableName, 'action'=>'row_view'), htmlencode($tableName));
    				echo "</td>";
    				echo $tdWithClassLeft;
    				echo ($tableType=="table"? $lang['tbl'] : $lang['view']);
    				echo "</td>";
    				echo $tdWithClass;
    				echo $params->getLink(array('table'=>$tableName, 'action'=>'row_view'), $lang['browse']);
    				echo "</td>";
    				echo $tdWithClass;
    				echo $params->getLink(array('table'=>$tableName, 'action'=>'column_view'), $lang['struct']);
    				echo "</td>";
    				echo $tdWithClass;
    				echo $params->getLink(array('table'=>$tableName, 'action'=>'table_sql'), $lang['sql']);
    				echo "</td>";
    				echo $tdWithClass;
    				echo $params->getLink(array('table'=>$tableName, 'action'=>'table_search'), $lang['srch']);
    				echo "</td>";
    				echo $tdWithClass;
    				if($tableType=="table" && $db->isWritable() && $db->isDirWritable())
    					echo $params->getLink(array('table'=>$tableName, 'action'=>'row_create'), $lang['insert']);
    				else
    					echo $lang['insert'];
    				echo "</td>";
    				echo $tdWithClass;
    				echo $params->getLink(array('table'=>$tableName, 'action'=>'table_export'), $lang['export']);
    				echo "</td>";
    				echo $tdWithClass;
    				if($tableType=="table" && $db->isWritable() && $db->isDirWritable())
    					echo $params->getLink(array('table'=>$tableName, 'action'=>'table_import'), $lang['import']);
    				else
    					echo $lang['import'];
    				echo "</td>";
    				echo $tdWithClass;
    				if($db->isWritable() && $db->isDirWritable())
    					echo $params->getLink(array('table'=>$tableName, 'action'=>'table_rename'), $lang['rename']);
    				else
    					echo $lang['rename'];
    				echo "</td>";
    				echo $tdWithClass;
    				if($tableType=="table" && $db->isWritable() && $db->isDirWritable())
    					echo $params->getLink(array('table'=>$tableName, 'action'=>'table_confirm', 'action2'=>'table_empty'), $lang['empty'], 'empty');
    				else
    					echo $lang['empty'];
    				echo "</td>";
    				echo $tdWithClass;
    				if($db->isWritable() && $db->isDirWritable())
    					echo $params->getLink(array('table'=>$tableName,'action'=>'table_confirm', 'action2'=>'table_drop'), $lang['drop'], 'drop');
    				else
    					echo $lang['drop'];
    				echo "</td>";
    				echo $tdWithClass;
    				echo $records;
    				echo "</td>";
    				echo "</tr>";
    				$tableId++;
    			}
    			echo "<tr>";
    			echo "<td class='tdheader' colspan='13'>".sizeof($tables)." ".$lang['total']."</td>";
    			echo "<td class='tdheader' colspan='1' style='text-align:right;'>".$totalRecords.($skippedTables?" ".$params->getLink(array('forceCount'=>'1'),'+ ?'):"")."</td>";
    			echo "</tr>";
    			echo "</table>";
    			echo "<a onclick='checkAll()'>".$lang['chk_all']."</a> / <a onclick='uncheckAll()'>".$lang['unchk_all']."</a> <i>".$lang['with_sel'].":</i> ";
    			echo "<select name='action2'>";
    			if($db->isWritable() && $db->isDirWritable()) {
    				echo "<option value='table_drop'>".$lang['drop']."</option>";
    				echo "<option value='table_empty'>".$lang['empty']."</option>";
    			}
    //			echo "<option value='table_export'>".$lang['export']."</option>";
    			echo "</select> ";
    			echo "<input type='submit' value='".$lang['go']."' name='massGo' class='btn'/>";
    			echo "</form>";
    			echo "<br/>";
    			if($skippedTables)
    				echo "<div class='confirm' style='margin-bottom:20px;'>".sprintf($lang["counting_skipped"],"<a href='".$params->getURL(array('forceCount'=>'1'))."'>","</a>")."</div>";
    		}
    		if($db->isWritable() && $db->isDirWritable())
    		{
    			echo "<fieldset style='margin-top:2em'>";
    			echo "<legend><b>".$lang['create_tbl_db']." '".htmlencode($db->getName())."'</b></legend>";
    			echo $params->getForm(array('action'=>'table_create'), 'get');
    			echo $lang['name'].": <input type='text' name='tablename' style='width:200px;'/> ";
    			echo $lang['fld_num'].": <input type='text' name='tablefields' style='width:90px;'/> ";
    			echo "<input type='submit' name='createtable' value='".$lang['go']."' class='btn'/>";
    			echo "</form>";
    			echo "</fieldset>";
    			echo "<br/>";
    			echo "<fieldset>";
    			echo "<legend><b>".$lang['create_view']." '".htmlencode($db->getName())."'</b></legend>";
    			echo $params->getForm(array('action'=>'view_create', 'confirm'=>'1'));
    			echo $lang['name'].": <input type='text' name='viewname' style='width:200px;'/> ";
    			echo $lang['sel_state']." ".helpLink($lang['help4']).": <input type='text' name='select' style='width:400px;'/> ";
    			echo "<input type='submit' name='createtable' value='".$lang['go']."' class='btn'/>";
    			echo "</form>";
    			echo "</fieldset>";
    		}
    	}
    	else if($view=="sql")
    	{
    		//- Database SQL editor (=sql)
    		if(isset($_POST['query']) && $_POST['query']!="")
    		{
    			$delimiter = $_POST['delimiter'];
    			$queryStr = $_POST['queryval'];
    			//save the queries in history if necessary
    			if($maxSavedQueries!=0 && $maxSavedQueries!=false)
    			{
    				if(!isset($_SESSION[COOKIENAME.'query_history']))
    					$_SESSION[COOKIENAME.'query_history'] = array();
    				$_SESSION[COOKIENAME.'query_history'][md5(strtolower($queryStr))] = $queryStr;
    				if(sizeof($_SESSION[COOKIENAME.'query_history']) > $maxSavedQueries)
    					array_shift($_SESSION[COOKIENAME.'query_history']);
    			}
    			$query = explode_sql($delimiter, $queryStr); //explode the query string into individual queries based on the delimiter

    			for($i=0; $i<sizeof($query); $i++) //iterate through the queries exploded by the delimiter
    			{
    				if(str_replace(" ", "", str_replace("\n", "", str_replace("\r", "", $query[$i])))!="") //make sure this query is not an empty string
    				{
    					$queryTimer = new MicroTimer();
    					$table_result = $db->query($query[$i]);

    					echo "<div class='confirm'>";
    					echo "<b>".htmlencode($query[$i])."</b>";
    					if($table_result === NULL || $table_result === false)
    					{
    						echo "<br /><b>".$lang['err'].": ".htmlencode($db->getError())."</b></div>";
    					}
    					echo "</div><br/>";
    					if($row = $db->fetch($table_result, 'num'))
    					{
    						for($j=0; $j<sizeof($row);$j++)
    							$headers[$j] = $db->getColumnName($table_result,$j);
    						echo "<table border='0' cellpadding='2' cellspacing='1' class='viewTable'>";
    						echo "<tr>";
    						for($j=0; $j<sizeof($headers); $j++)
    						{
    							echo "<td class='tdheader'>";
    							echo htmlencode($headers[$j]);
    							echo "</td>";
    						}
    						echo "</tr>";
    						$rowCount = 0;
    						for(; $rowCount==0 || $row = $db->fetch($table_result, 'num'); $rowCount++)
    						{
    							$tdWithClass = "<td class='td".($rowCount%2 ? "1" : "2")."'>";
    							echo "<tr>";
    							for($z=0; $z<sizeof($headers); $z++)
    							{
    								echo $tdWithClass;
    								if($row[$z]==="")
    									echo "&nbsp;";
    								elseif($row[$z]===NULL)
    									echo "<i class='null'>NULL</i>";
    								else
    									echo htmlencode(subString($row[$z]));
    								echo "</td>";
    							}
    							echo "</tr>";
    						}
    						$queryTimer->stop();
    						echo "</table><br/><br/>";


    						if($table_result !== NULL && $table_result !== false)
    						{
    							echo "<div class='confirm' style='margin-bottom: 2em'>";
    							if($rowCount>0 || $db->getAffectedRows()==0)
    							{
    								printf($lang['show_rows'], $rowCount);
    							}
    							if($db->getAffectedRows()>0 || $rowCount==0)
    							{
    								echo $db->getAffectedRows()." ".$lang['rows_aff']." ";
    							}
    							printf($lang['query_time'], $queryTimer);
    							echo "</div>";
    						}


    					}
    				}
    			}
    		}
    		else
    		{
    			$delimiter = ";";
    			$queryStr = "";
    		}

    		echo "<fieldset>";
    		echo "<legend><b>".sprintf($lang['run_sql'],htmlencode($db->getName()))."</b></legend>";
    		echo $params->getForm(array('view'=>'sql'));
    		if(isset($_SESSION[COOKIENAME.'query_history']) && sizeof($_SESSION[COOKIENAME.'query_history'])>0)
    		{
    			echo "<b>".$lang['recent_queries']."</b><ul>";
    			foreach($_SESSION[COOKIENAME.'query_history'] as $key => $value)
    			{
    				echo "<li><a onclick='sqleditorSetValue(this.textContent); return false;' href='#'>".htmlencode($value)."</a></li>";
    			}
    			echo "</ul><br/><br/>";
    		}
    		echo "<textarea style='width:100%; height:300px;' name='queryval' id='queryval' cols='50' rows='8'>".htmlencode($queryStr)."</textarea>";
    		echo "<script>sqleditor(document.getElementById('queryval'),".json_encode($db->getTableDefinitions()).", null);</script>";
    		echo $lang['delimit']." <input type='text' name='delimiter' value='".htmlencode($delimiter)."' style='width:50px;'/> ";
    		echo "<input type='submit' name='query' value='".$lang['go']."' class='btn'/>";
    		echo "</form>";
    		echo "</fieldset>";
    	}
    	else if($view=="vacuum")
    	{
    		//- Vacuum database confirmation (=vacuum)
    		if(isset($_POST['vacuum']))
    		{
    			$query = "VACUUM";
    			$db->query($query);
    			echo "<div class='confirm'>";
    			printf($lang['db_vac'], htmlencode($db->getName()));
    			echo "</div><br/>";
    		}
    		echo $params->getForm(array('view'=>'vacuum'));
    		printf($lang['vac_desc'],htmlencode($db->getName()));
    		echo "<br/><br/>";
    		echo "<input type='submit' value='".$lang['vac']."' name='vacuum' class='btn'/>";
    		echo "</form>";
    	}
    	else if($view=="export")
    	{
    		//- Export view (=export)
    		echo $params->getForm(array('view'=>'export'));
    		echo "<fieldset style='float:left; width:260px; margin-right:20px;'><legend><b>".$lang['export']."</b></legend>";
    		echo "<select multiple='multiple' size='10' style='width:240px;' name='tables[]'>";
    		$tables = $db->getTables(true, false);
    		foreach($tables as $tableName => $tableType)
    		{
    			echo "<option value='".htmlencode($tableName)."' selected='selected'>".htmlencode($tableName)."</option>";
    		}
    		echo "</select>";
    		echo "<br/><br/>";
    		echo "<label><input type='radio' name='export_type' checked='checked' value='sql' onclick='toggleExports(\"sql\");'/> ".$lang['sql']."</label>";
    		echo "<br/><label><input type='radio' name='export_type' value='csv' onclick='toggleExports(\"csv\");'/> ".$lang['csv']."</label>";
    		echo "</fieldset>";

    		echo "<fieldset style='float:left; max-width:350px;' id='exportoptions_sql'><legend><b>".$lang['options']."</b></legend>";
    		echo "<label><input type='checkbox' checked='checked' name='structure'/> ".$lang['export_struct']."</label> ".helpLink($lang['help5'])."<br/>";
    		echo "<label><input type='checkbox' checked='checked' name='data'/> ".$lang['export_data']."</label> ".helpLink($lang['help6'])."<br/>";
    		echo "<label><input type='checkbox' name='drop'/> ".$lang['add_drop']."</label> ".helpLink($lang['help7'])."<br/>";
    		echo "<label><input type='checkbox' checked='checked' name='transaction'/> ".$lang['add_transact']."</label> ".helpLink($lang['help8'])."<br/>";
    		echo "<label><input type='checkbox' checked='checked' name='comments'/> ".$lang['comments']."</label> ".helpLink($lang['help9'])."<br/>";
    		echo "</fieldset>";

    		echo "<fieldset style='float:left; max-width:350px; display:none;' id='exportoptions_csv'><legend><b>".$lang['options']."</b></legend>";
    		echo "<div style='float:left;'>".$lang['fld_terminated']."</div>";
    		echo "<input type='text' value=';' name='export_csv_fieldsterminated' style='float:right;'/>";
    		echo "<div style='clear:both;'>";
    		echo "<div style='float:left;'>".$lang['fld_enclosed']."</div>";
    		echo "<input type='text' value='\"' name='export_csv_fieldsenclosed' style='float:right;'/>";
    		echo "<div style='clear:both;'>";
    		echo "<div style='float:left;'>".$lang['fld_escaped']."</div>";
    		echo "<input type='text' value='\' name='export_csv_fieldsescaped' style='float:right;'/>";
    		echo "<div style='clear:both;'>";
    		echo "<div style='float:left;'>".$lang['rep_null']."</div>";
    		echo "<input type='text' value='NULL' name='export_csv_replacenull' style='float:right;'/>";
    		echo "<div style='clear:both;'>";
    		echo "<label><input type='checkbox' name='export_csv_crlf'/> ".$lang['rem_crlf']."</label><br/>";
    		echo "<label><input type='checkbox' checked='checked' name='export_csv_fieldnames'/> ".$lang['put_fld']."</label>";
    		echo "</fieldset>";

    		echo "<div style='clear:both;'></div>";
    		echo "<br/><br/>";
    		echo "<fieldset><legend><b>".$lang['save_as']."</b></legend>";
    		$file = pathinfo($db->getPath());
    		$name = $file['filename'];
    		echo "<input type='text' name='filename' value='".htmlencode($name)."_".date("Y-m-d").".dump' style='width:400px;'/> <input type='submit' name='export' value='".$lang['export']."' class='btn'/>";
    		echo "</fieldset>";
    		echo "</form>";
    		echo "<div class='confirm' style='margin-top: 2em'>".sprintf($lang['backup_hint'],
    			$params->getLink(array('download'=>$currentDB['path'], 'token'=>$_SESSION[COOKIENAME.'token']), $lang["backup_hint_linktext"], '', $lang['backup'])
    			)."</div>";
    	}
    	else if($view=="import")
    	{
    		//- Import view (=import)
    		if(isset($_POST['import']))
    		{
    			echo "<div class='confirm'>";
    			if($importSuccess===true)
    				echo $lang['import_suc'];
    			else
    				echo $importSuccess;
    			echo "</div><br/>";
    		}

    		echo $params->getForm(array('view'=>'import'), 'post', true);
    		echo "<fieldset style='float:left; width:260px; margin-right:20px;'><legend><b>".$lang['import']."</b></legend>";
    		echo "<label><input type='radio' name='import_type' checked='checked' value='sql' onclick='toggleImports(\"sql\");'/> ".$lang['sql']."</label>";
    		echo "<br/><label><input type='radio' name='import_type' value='csv' onclick='toggleImports(\"csv\");'/> ".$lang['csv']."</label>";
    		echo "</fieldset>";

    		echo "<fieldset style='float:left; max-width:350px;' id='importoptions_sql'><legend><b>".$lang['options']."</b></legend>";
    		echo $lang['no_opt'];
    		echo "</fieldset>";

    		echo "<fieldset style='float:left; max-width:350px; display:none;' id='importoptions_csv'><legend><b>".$lang['options']."</b></legend>";
    		echo "<div style='float:left;'>".$lang['csv_tbl']."</div>";
    		echo "<select name='single_table' style='float:right;'>";
    		$tables = $db->getTables(true, false);
    		echo "<option value=''>(".$lang['create_tbl'].")</option>";
    		foreach($tables as  $tableName => $tableType)
    		{
    			echo "<option value='".htmlencode($tableName)."'>".htmlencode($tableName)."</option>";
    		}
    		echo "</select>";
    		echo "<div style='clear:both;'>";
    		echo "<div style='float:left;'>".$lang['fld_terminated']."</div>";
    		echo "<input type='text' value=';' name='import_csv_fieldsterminated' style='float:right;'/>";
    		echo "<div style='clear:both;'>";
    		echo "<div style='float:left;'>".$lang['fld_enclosed']."</div>";
    		echo "<input type='text' value='\"' name='import_csv_fieldsenclosed' style='float:right;'/>";
    		echo "<div style='clear:both;'>";
    		echo "<div style='float:left;'>".$lang['fld_escaped']."</div>";
    		echo "<input type='text' value='\' name='import_csv_fieldsescaped' style='float:right;'/>";
    		echo "<div style='clear:both;'>";
    		echo "<div style='float:left;'>".$lang['null_represent']."</div>";
    		echo "<input type='text' value='NULL' name='import_csv_replacenull' style='float:right;'/>";
    		echo "<div style='clear:both;'>";
    		echo "<label><input type='checkbox' checked='checked' name='import_csv_fieldnames'/> ".$lang['fld_names']."</label>";
    		echo "</fieldset>";

    		echo "<div style='clear:both;'></div>";
    		echo "<br/><br/>";

    		echo "<fieldset><legend><b>".$lang['import_f']."</b></legend>";
    		echo "<em>".$lang['max_file_size'].": ".number_format(fileUploadMaxSize()/1024/1024)." MiB</em> ".helpLink($lang['help11'])."<br />";
    		echo "<input type='file' value='".$lang['choose_f']."' name='file' style='background-color:transparent; border-style:none; margin:0; padding:0' onchange='checkFileSize(this)'/>";
    		echo "<input type='submit' value='".$lang['import']."' name='import' class='btn'/>";
    		echo "</fieldset>";
    	}
    	else if($view=="rename")
    	{
    		//- Rename database confirmation (=rename)
    		echo $params->getForm(array('view'=>'rename', 'database_rename'=>'1'));
    		echo "<input type='hidden' name='oldname' value='".htmlencode($db->getPath())."'/>";
    		echo $lang['db_rename']." '".htmlencode($db->getPath())."' ".$lang['to']." <input type='text' name='newname' style='width:200px;' value='".htmlencode($db->getPath())."'/> <input type='submit' value='".$lang['rename']."' name='rename' class='btn'/>";
    		echo "</form>";
    	}
    	else if($view=="delete")
    	{
    		//- Delete database confirmation (=delete)
    		echo $params->getForm(array('database_delete'=>'1'));
    		echo "<div class='confirm'>";
    		echo sprintf($lang['ques_database_delete'],htmlencode($db->getPath()))."<br/><br/>";
    		echo "<input name='database_delete' value='".htmlencode($db->getPath())."' type='hidden'/>";
    		echo "<input type='submit' value='".$lang['confirm']."' class='btn'/> ";
    		echo $params->getLink(array(), $lang['cancel']);
    		echo "</div>";
    		echo "</form>";
    	}

    	echo "</div>";
    }
    echo "</div>";

    //- HTML: page footer
    echo "<br/>";
    echo "<span style='font-size:11px;'>".$lang['powered']." <a href='".PROJECT_URL."' target='_blank' style='font-size:11px;'>".PROJECT."</a> | ";
    echo $lang['free_software']." <a href='".DONATE_URL."' target='_blank' style='font-size:11px;'>".$lang['please_donate']."</a> | ";
    printf($lang['page_gen'], $pageTimer);
    echo "</span>";
    echo "</td></tr></table>";
    $db->close(); //close the database
    echo "</body>";
    echo "</html>";

    //- End of main code


    // returns data from internal resources, available in single-file mode
    function getInternalResource($res) {
    	$resources = array('resources/phpliteadmin.css'=>array(0=>0,1=>4059,),'resources/phpliteadmin.js'=>array(0=>4059,1=>4454,),'resources/favicon.ico'=>array(0=>8513,1=>1448,),);

    	if (isset($resources[$res]) && $f = fopen(__FILE__, 'r')) {
    		fseek($f, __COMPILER_HALT_OFFSET__ + $resources[$res][0]);
    		$data = fread($f, $resources[$res][1]);
    		fclose($f);
    		return $data;
    	}
    	return false;
    }

    // resources embedded below, do not edit!
    __halt_compiler() ?>body{margin:0px;padding:0px;font-family:Arial,Helvetica,sans-serif;font-size:14px;color:#000;background-color:#e0ebf6;overflow:auto}.body_tbl td{padding:9px 2px 9px 9px}.left_td{width:100px}a{color:#03F;text-decoration:none;cursor:pointer}a:hover{color:#06F}hr{height:1px;border:0;color:#bbb;background-color:#bbb;width:100%}h1{margin:0px;padding:5px;font-size:24px;background-color:#f3cece;text-align:center;color:#000;border-top-left-radius:5px;border-top-right-radius:5px;-moz-border-radius-topleft:5px;-moz-border-radius-topright:5px}#headerlinks{text-align:center;margin-bottom:10px;padding:5px 15px;border-color:#03F;border-width:1px;border-style:solid;border-left-style:none;border-right-style:none;font-size:12px;background-color:#e0ebf6;font-weight:bold}h1 #version{color:#000;font-size:16px}h1 #logo{color:#000}h2{margin:0px;padding:0px;font-size:14px;margin-bottom:20px}input,select,textarea,.CodeMirror{font-family:Arial,Helvetica,sans-serif;background-color:#eaeaea;color:#03F;border-color:#03F;border-style:solid;border-width:1px;margin:5px;border-radius:5px;-moz-border-radius:5px;padding:3px}input.btn{cursor:pointer}input.btn:hover{background-color:#ccc}fieldset label{min-width:200px;display:block;float:left}fieldset{padding:15px;border-color:#03F;border-width:1px;border-style:solid;border-radius:5px;-moz-border-radius:5px;background-color:#f9f9f9}#container{padding:10px}#leftNav{min-width:250px;padding:0px;border-color:#03F;border-width:1px;border-style:solid;background-color:#FFF;padding-bottom:15px;border-radius:5px;-moz-border-radius:5px}.databaseList select{max-width:200px}.viewTable tr td{padding:1px}#loginBox{width:500px;margin-left:auto;margin-right:auto;margin-top:50px;border-color:#03F;border-width:1px;border-style:solid;background-color:#FFF;border-radius:5px;-moz-border-radius:5px}#main{border-color:#03F;border-width:1px;border-style:solid;padding:15px;background-color:#FFF;border-bottom-left-radius:5px;border-bottom-right-radius:5px;border-top-right-radius:5px;-moz-border-radius-bottomleft:5px;-moz-border-radius-bottomright:5px;-moz-border-radius-topright:5px}.td1{background-color:#f9e3e3;text-align:right;font-size:12px;padding-left:10px;padding-right:10px}.td2{background-color:#f3cece;text-align:right;font-size:12px;padding-left:10px;padding-right:10px}.tdheader{border-color:#03F;border-width:1px;border-style:solid;font-weight:bold;font-size:12px;padding-left:10px;padding-right:10px;background-color:#e0ebf6;border-radius:5px;-moz-border-radius:5px}.confirm{border-color:#03F;border-width:1px;border-style:dashed;padding:15px;background-color:#e0ebf6}.tab{display:block;padding:5px;padding-right:8px;padding-left:8px;border-color:#03F;border-width:1px;border-style:solid;margin-right:5px;float:left;border-bottom-style:none;position:relative;top:1px;padding-bottom:4px;background-color:#eaeaea;border-top-left-radius:5px;border-top-right-radius:5px;-moz-border-radius-topleft:5px;-moz-border-radius-topright:5px}.tab_pressed{display:block;padding:5px;padding-right:8px;padding-left:8px;border-color:#03F;border-width:1px;border-style:solid;margin-right:5px;float:left;border-bottom-style:none;position:relative;top:1px;background-color:#FFF;cursor:default;border-top-left-radius:5px;border-top-right-radius:5px;-moz-border-radius-topleft:5px;-moz-border-radius-topright:5px}.helpq{font-size:11px;font-weight:normal}#help_container{padding:0px;font-size:12px;margin-left:auto;margin-right:auto;background-color:#fff}.help_outer{background-color:#FFF;padding:0px;height:300px;position:relative}.help_list{padding:10px;height:auto}.headd{font-size:14px;font-weight:bold;display:block;padding:10px;background-color:#e0ebf6;border-color:#03F;border-width:1px;border-style:solid;border-left-style:none;border-right-style:none}.help_inner{padding:10px}.help_top{display:block;position:absolute;right:10px;bottom:10px}.warning,.delete,.empty,.drop,.delete_db{color:red}.sidebar_table{font-size:11px}.active_table,.active_db{text-decoration:underline}.null{color:#888}.found{background:#FF0;text-decoration:none}function initAutoincrement(){var i=0;while(document.getElementById('i'+i+'_autoincrement')!=undefined){document.getElementById('i'+i+'_autoincrement').disabled=true;i++;}}
    function toggleAutoincrement(i){var type=document.getElementById('i'+i+'_type');var primarykey=document.getElementById('i'+i+'_primarykey');var autoincrement=document.getElementById('i'+i+'_autoincrement');if(!autoincrement)return false;if(type.value=='INTEGER'&&primarykey.checked)
    autoincrement.disabled=false;else{autoincrement.disabled=true;autoincrement.checked=false;}}
    function toggleNull(i){var pk=document.getElementById('i'+i+'_primarykey');var notnull=document.getElementById('i'+i+'_notnull');if(pk.checked){notnull.disabled=true;notnull.checked=true;}
    else{notnull.disabled=false;}}
    function checkAll(){var i=0;while(document.getElementById('check_'+i)!=undefined){document.getElementById('check_'+i).checked=true;i++;}}
    function uncheckAll(){var i=0;while(document.getElementById('check_'+i)!=undefined){document.getElementById('check_'+i).checked=false;i++;}}
    function changeIgnore(area,e,u){if(area.value!=""){if(document.getElementById(e)!=undefined)
    document.getElementById(e).checked=false;if(document.getElementById(u)!=undefined)
    document.getElementById(u).checked=false;}}
    function moveFields(){var fields=document.getElementById("fieldcontainer");var selected=[];for(var i=0;i<fields.options.length;i++)
    if(fields.options[i].selected)
    selected.push(fields.options[i].value);for(var i=0;i<selected.length;i++){var val='"'+selected[i].replace(/"/g,'""')+'"';if(i<selected.length-1)
    val+=', ';sqleditorInsertValue(val);}}
    function notNull(checker){document.getElementById(checker).checked=false;}
    function disableText(checker,textie){if(checker.checked){document.getElementById(textie).value="";document.getElementById(textie).disabled=true;}
    else{document.getElementById(textie).disabled=false;}}
    function toggleExports(val){document.getElementById("exportoptions_sql").style.display="none";document.getElementById("exportoptions_csv").style.display="none";document.getElementById("exportoptions_"+val).style.display="block";}
    function toggleImports(val){document.getElementById("importoptions_sql").style.display="none";document.getElementById("importoptions_csv").style.display="none";document.getElementById("importoptions_"+val).style.display="block";}
    function openHelp(section){PopupCenter('?help=1#'+section,"Help Section");}
    var helpsec=false;function PopupCenter(pageURL,title){helpsec=window.open(pageURL,title,"toolbar=0,scrollbars=1,location=0,statusbar=0,menubar=0,resizable=0,width=400,height=300");}
    function checkLike(srchField,selOpt){if(selOpt=="LIKE%"){var textArea=document.getElementById(srchField);textArea.value="%"+textArea.value+"%";}}
    function createCORSRequest(method,url){var xhr=new XMLHttpRequest();if("withCredentials"in xhr){xhr.open(method,url,true);}
    else if(typeof XDomainRequest!="undefined"){xhr=new XDomainRequest();xhr.open(method,url);}
    else{xhr=null;}
    return xhr;}
    function checkVersion(installed,url){var xhr=createCORSRequest('GET',url);if(!xhr)
    return false;xhr.onload=function(){if(xhr.responseText.split("\n").indexOf(installed)==-1){document.getElementById('oldVersion').style.display='inline';}};xhr.send();}
    var codeEditor;function sqleditor(textarea,tableDefinitions,tableDefault){codeEditor=CodeMirror.fromTextArea(textarea,{lineNumbers:true,matchBrackets:true,indentUnit:4,lineWrapping:true,mode:"text/x-sqlite",extraKeys:{"Ctrl-Space":"autocomplete"},hint:CodeMirror.hint.sql,hintOptions:{completeSingle:false,completeOnSingleClick:true,defaultTable:tableDefault,tables:tableDefinitions}});codeEditor.on("inputRead",codemirrorAutocompleteOnInputRead);}
    function sqleditorSetValue(text){codeEditor.doc.setValue(text);}
    function sqleditorInsertValue(text){codeEditor.doc.replaceRange(text,codeEditor.doc.getCursor("from"),codeEditor.doc.getCursor("to"));}
    function codemirrorAutocompleteOnInputRead(instance){if(instance.state.completionActive){return;}
    var cur=instance.getCursor();var token=instance.getTokenAt(cur);var string='';if(token.string.match(/^[.`"\w@]\w*$/)){string=token.string;}
    if(string.length>0){CodeMirror.commands.autocomplete(instance);}}
    function checkFileSize(input){if(input.files&&input.files.length==1){if(input.files[0].size>fileUploadMaxSize){alert(fileUploadMaxSizeErrorMsg+": "+(fileUploadMaxSize/1024/1024)+" MiB");return false;}}
    return true;}AAABAAEAEBAAAAEAIAAoBAAAFgAAACgAAAAQAAAAIAAAAAEAIAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAADwoKZQAAABMAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAABEMDJMAAAAdAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAASDg7BAAAASAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAETDw9CCQkJ1QUFBb4AAABjAAAAAQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAADgsLVgAAAO8YExP/AAAA7QAAALEAAAARAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAABQNDUsAAADJGBMT/xgTE/8AAAD/AAAAuAAAAA8AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAZERE8DQoKwhgTE/8QDQ2sGBMT/xgTE/8AAAA/AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAwICHkAAAD/EQwMzQAAAMIAAAD/AAAA7gAAAGEAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAOCwtWAAAA8RgTE/8IBQW1AAAA/wAAAP8AAADlAAAAHQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA0KCsEAAAD/EQ8PzAAAAMkAAAD/AAAA/wAAAHoAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAABDAAAA/xgTE/8TDw/FAAAA8gAAAP8AAADqAAAAJgAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAgAAALUAAAD/GBMT/wAAALkAAAD/AAAA/wAAAIkAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAfAAAA4wAAAP8GBgbFAAAA2QAAAP8AAADGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAF4AAAD5AAAA/RgTE/8AAAD/AAAA0AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAQQAAAOIAAAD/AAAA/wAAAHYAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAjAAAArgAAAG4AAAAAAAAAAAAAAAAAAAAA
    Direct download available here :-
    steve@Desktop:~/swuk_tutorial$ wget https://spacewire.co.uk/tutorial/shared/repos/0034/zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/cgi-bin/phpliteadmin.php.txt -O zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/cgi-bin/phpliteadmin.php

    phpliteadmin.config.php

    <?php
    //
    // File .......... phpliteadmin.config.php
    // Author ........ Steve Haywood
    // Website ....... http://www.spacewire.co.uk
    // Project ....... Zedboard Linux (SpaceWire UK Tutorial)
    // Date .......... 05 Mar 2026
    // Version ....... 3.0
    // History .......
    //   0.0 TEMPLATE
    // Description ...
    //   PHPLite configuration with the database location changed to be a directory on the
    // Zedboard SD-Card.
    //
    ?>

    <?php
    //
    // This is sample configuration file
    //
    // You can configure phpliteadmin in one of 2 ways:
    // 1. Rename phpliteadmin.config.sample.php to phpliteadmin.config.php and change parameters in there.
    //    You can set only your custom settings in phpliteadmin.config.php. All other settings will be set to defaults.
    // 2. Change parameters directly in main phpliteadmin.php file
    //
    // Please see https://bitbucket.org/phpliteadmin/public/wiki/Configuration for more details

    //password to gain access (set an empty password to disable authentication completely)
    $password = 'admin';

    //directory relative to this file to search for databases (if false, manually list databases in the $databases variable)
    $directory = '/media/sd-mmcblk0p1/database';

    //whether or not to scan the subdirectories of the above directory infinitely deep
    $subdirectories = false;

    //if the above $directory variable is set to false, you must specify the databases manually in an array as the next variable
    //if any of the databases do not exist as they are referenced by their path, they will be created automatically
    $databases = array(
    	array(
    		'path'=> 'database1.sqlite',
    		'name'=> 'Database 1'
    	),
    	array(
    		'path'=> 'database2.sqlite',
    		'name'=> 'Database 2'
    	),
    );


    /* ---- Interface settings ---- */

    // Theme! If you want to change theme, save the CSS file in same folder of phpliteadmin or in folder "themes"
    $theme = 'phpliteadmin.css';

    // the default language! If you want to change it, save the language file in same folder of phpliteadmin or in folder "languages"
    // More about localizations (downloads, how to translate etc.): https://bitbucket.org/phpliteadmin/public/wiki/Localization
    $language = 'en';

    // set default number of rows. You need to relog after changing the number
    $rowsNum = 30;

    // reduce string characters by a number bigger than 10
    $charsNum = 300;

    // maximum number of SQL queries to save in the history
    $maxSavedQueries = 10;

    /* ---- Custom functions ---- */

    //a list of custom functions that can be applied to columns in the databases
    //make sure to define every function below if it is not a core PHP function
    $custom_functions = array(
    	'md5', 'sha1', 'strtotime',
    	// add the names of your custom functions to this array
    	/* 'leet_text', */
    );

    // define your custom functions here
    /*
    function leet_text($value)
    {
      return strtr($value, 'eaAsSOl', '344zZ01');
    }
    */


    /* ---- Advanced options ---- */

    //changing the following variable allows multiple phpLiteAdmin installs to work under the same domain.
    $cookie_name = 'pla3412';

    //whether or not to put the app in debug mode where errors are outputted
    $debug = false;

    // the user is allowed to create databases with only these extensions
    $allowed_extensions = array('db','db3','sqlite','sqlite3');

    // BLOBs are displayed and edited as hex string
    $hexblobs = false;

    Direct download available here :-
    steve@Desktop:~/swuk_tutorial$ wget https://spacewire.co.uk/tutorial/shared/repos/0034/zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/cgi-bin/phpliteadmin.config.php.txt -O zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/cgi-bin/phpliteadmin.config.php

    Replace the two phpadminlite files in /srv/www/cgi with the newly uploaded ones.
    petalinux:~$ sudo cp ~/phpliteadmin.* /srv/www/cgi-bin
    Password:
    Again, select SQLite Basic Test from the Misc menu or refresh the page if still open. Missing Image! Looking good! Login with the default password admin. Missing Image! All good! The phpLiteAdmin webpage is being served and shows the test.db database held in the database directory on the SD-Card.

    12. Notes about the SD-Card label

    The Loadable Firmware table from the previous section failed because the symbolic link from /media/sd-mmcblk0p1 pointed to the non-existent /run/media/mmcblk0p1 destination. The SD-Card mount location in PetaLinux 2022.2 is /run/media/mmcblk0p1 whereas in PetaLinux 2023.2 it is /run/media/[SD-CARD-LABEL]-mmcblk0p1. Should there have been no label on the SD-Card the link would have been correct and the Loadable Firmware table would have worked from the get-go.

    If having a consistent location is desirable then having no label is probably the best option.

    Many ways to go about removing/renaming the SD-Card's label on a Desktop PC, one is shown below. Obviously replace the X!
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ lsblk
    NAME                   MAJ:MIN RM  SIZE RO TYPE  MOUNTPOINT
    ::
    ::
    sdX                      8:32   1  1.9G  0 disk
    └─sdX1                   8:33   1  1.9G  0 part  /media/steve/PETALINUX
    ::
    ::
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ sudo umount /dev/sdX1
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ sudo fatlabel /dev/sdX1 ""
    By removing the SD-CARD's label the mount will become /run/media/mmcblk0p1, just like it was in 2022.2.
    #### Part 6 - Setup for root & petalinux accounts ####

    13. Where to go from here

    Given this project is basically a fresh build using the default settings for a PetaLinux 2023.2 project and not the settings inherited from the original PetaLinux 2021.2 project, we find ourselves with some new decisions to make.

    There are basically two options :-
    1. Keep using the root account freely and openly. This seems to be what PetaLinux 2021.2 started out with given its default project settings.
    2. Restrict the root account and instead use a normal user account. This seems to be what PetaLinux 2023.2 is pushing for given its default project settings.
    Thus far the root account has essentially been used for everything, even access into the root account via Secure Shell was freely allowed. With this build we see that Secure Shell for the root account is turned off, access to the SD-Card mount is not available for the petalinux user account and the petalinux user account does not have an initial password.

    Let's examine what settings need to be changed to achieve certain things (done as separates).

    Setting 1: Enable ssh & scp for the root account.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ petalinux-config -c rootfs
    Select: Image Features ---> [*] debug-tweaks
    Then: Save ---> Ok ---> Exit ---> Exit ---> Exit

    Setting 2: Assign an initial password (petalinux) for the petalinux user account.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ petalinux-config -c rootfs
    Select: PetaLinux RootFS Settings ---> Add Extra Users
    Change: root:root;petalinux::passwd-expire;
    To: root:root;petalinux:petalinux;
    Then: Ok ---> Save ---> Ok ---> Exit ---> Exit ---> Exit

    Setting 3: Add the petalinux user to the disk group (allows access to the SD-Card mount!)
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ petalinux-config -c rootfs
    Select: PetaLinux RootFS Settings ---> Add Users to Groups
    Change: petalinux:audio,video,aie,input;
    To: petalinux:audio,video,aie,input,disk;
    Then: Ok ---> Save ---> Ok ---> Exit ---> Exit ---> Exit

    The main concern at this point are the two upload scripts (swuk_upload_bin & swuk_upload_boot). Without Setting 1 these scripts won't work with this build. With Setting 2 & 3 and modified scripts to use the petalinux user account instead of the root account these scripts won't work with the previous builds.

    Entirely upto the reader to select what suits best... To carry on as-was use Setting 1 and worry not about the petalinux user account. To try something new with the petalinux user account use only Setting 2 & 3.

    This tutorial will use Setting 2 & 3 only and see what shakes out... The two upload scripts will be modified to allow user credentials to be entered at the command line (default: root).
    #### Part 7 - Enhance the upload scripts ####

    14. Enhance the upload binary script

    Edit the swuk_upload_bin script to allow user credentials to be input from the command line. Also improve the error reporting from the script.
    steve@Desktop:~/swuk_tutorial$ subl common/fw/src/script/swuk_upload_bin

    swuk_upload_bin

    #!/bin/bash

    #
    # File .......... swuk_upload_bin
    # Author ........ Steve Haywood
    # Website ....... http://www.spacewire.co.uk
    # Project ....... Common (SpaceWire UK Tutorial)
    # Date .......... 05 Mar 2026
    # Version ....... 2.0
    # Description ...
    #   Create a binary file from a bitstream file & upload it.
    #

    # Strict
    #set -euo pipefail


    ################################################################################
    # Main function.
    # Arguments ...... ${@}
    # Return ......... None
    # Exit code ...... Status (0=success, 1=failure)
    # Shared (In) .... None
    # Shared (Out) ... None
    main()
    {
      # Declare terminal colour constants
      local -r  c_red='\033[0;31m'
      local -r  c_green='\033[0;32m'
      local -r  c_normal='\033[0m'

      # Declare argument constants
      local -r  c_opthelp="--help"  # Str: Help option name
      local -Ar c_options=(         # ARR: Options & associated help information
        [${c_opthelp}]="Display this help and exit."
      )
      local -ar c_optorder=(        # Arr: Help options display order
        ${c_opthelp}
      )
      local -ar argv=(${@})         # Arr: Get argument values (space-separated) into array

      # Declare constants
      local -r  c_ipre='^(0*(1?[0-9]{1,2}|2([0-4][0-9]|5[0-5]))\.){3}0*(1?[0-9]{1,2}|2([0-4][0-9]|5[0-5]))$'
                                                           # Str: IP validation regular expression
      local -r  c_pwd=$(pwd)                               # Str: Current direcory
      local -r  c_base=$(basename ${c_pwd})                # Str: Project name
      local -r  c_local="fw/vivado/${c_base}.runs/impl_1"  # Str: Location of project Bitstream
      local -r  c_archive="${swuk_user}/firmware"          # Str: Location of user Bitstreams
      local -r  c_remote="/media/sd-mmcblk0p1/firmware"    # Str: Firmware location

      # Declare variables
      local     arg              # Str: Current argument from argv array
      local     option           # Str: Current option from c_optorder array
      local     ip=""            # Str: IP Address (x.x.x.x)
      local -i  selcnt=0         # Int: Selection count
      local -A  table            # ARR: Selection table
      local     sel              # Str: User selection input
      local     fpath            # Str: Bitstream location (path & filename)
      local     fname            # Str: Bitstream filename (excluding extension)
      local     username="root"  # Str: PetaLinux username
      local     password="root"  # Str: PetaLinux password

      # Display help information
      if [[ " ${argv[*]} " =~ " ${c_opthelp} " ]]; then
        echo "Usage: $(basename ${0}) IP-ADDRESS... [OPTION]..."
        echo "Upload the binary part of a bitstream to the remote system located at IP-ADDRESS."
        echo
        for option in ${c_optorder[@]}
        do
          echo "      ${option} $(printf ' %.0s' {1..12} | head -c $((12-${#option}))) ${c_options[${option}]}"
        done
        echo
        exit 0
      fi

      # Get & check the arguments
      for arg in ${argv[@]}; do
        if [[ ${arg:0:2} == "--" ]]; then  # Option
          [[ ! -v c_options[${arg}] ]] &&
            echo "Option (${arg}) is not recognised!" >&2 &&
            exit 1
        elif [[ -z ${ip} ]]; then  # IP address
          ip=${arg}
        else
          echo "Unexpected argument (${arg}) found!" >&2
          exit 1
        fi
      done

      # Further check the arguments
      [[ -z ${ip} ]] &&
        echo "No IP address specified!" >&2 &&
        exit 1

      # Check the IP ADDRESS
      [[ ! ${ip} =~ ${c_ipre} ]] &&
        echo "The IP address (${ip}) is incorrectly specified!" >&2 &&
        exit 1

      # Check directory at local location
      echo -e "\nBitstream files @ ${c_local} :-\n"
      if [ -d "${c_local}" ]; then
        # Get file at local location
        file="${c_base}.bit"
        if [ -f "${c_local}/${file}" ]; then
          # Add local file to selection list
          table[${selcnt}]="${c_local}/${file}"
          # Display file details
          echo -e "${selcnt}) - ${c_green}${file}${c_normal}"
          # Increase selection count
          selcnt=$((selcnt+1))
        else
          echo -e "${c_red}Bitstream file does not exist in directory!${c_normal}"
        fi
      else
        echo -e "${c_red}Directory does not exist!${c_normal}"
      fi

      # Check directory at archive location
      echo -e "\nBitstream files @ ${c_archive} :-\n"
      if [ -d "${c_archive}" ]; then
        # Get list of files at archive location
        readarray -t files < <(find "${c_archive}" -mindepth 1 -maxdepth 1 -type f -name "*.bit" -printf '%P\n')
        # Sort list of files
        files=($(IFS=$'\n'; echo "${files[*]}" | sort))
        # Iterate through list of files
        for file in "${files[@]}"; do
          # Add archive file to selection list
          table[${selcnt}]="${c_archive}/${file}"
          # Display file details
          echo -e "${selcnt}) - ${c_green}${file}${c_normal}"
          # Increase selection count
          selcnt=$((selcnt+1))
        done
      else
        echo -e "${c_red}Directory does not exist!${c_normal}"
      fi

      # Obtain user input, if good attempt upload
      echo -e "\nq) Quit\n"
      echo -n "Select file for upload or quit"
      while true; do
        read -p " : " sel
        if [[ ("${sel}" == "q") || ("${sel}" == "Q") ]]; then
          echo "Quitting without selection!"
          exit 0
        elif ! [[ "${sel}" =~ ^[0-9]+$ ]] ; then
          # User input is not a number
          echo -n "Selection is not a number, try again"
        elif [ ${sel} -lt 0 ] || [ ${sel} -ge ${selcnt} ]; then
          # User input is out of range
          echo -n "Selection is out of range, try again"
        else
          break
        fi
      done

      # Extract filename from full path
      fpath=${table[${sel}]}
      fname=$(basename -- "${fpath}")
      fname="${fname%.*}"

      # Get user credentials
      echo
      echo "Enter user credentials for ${ip} :-"
      read -e -p "Username: " -i "${username}" username
      password=${username}  # Have a guess at the password
      read -e -p "Password: " -i "${password}" password

      # Establish SSH connection
      swuk_ssh ${ip} > /dev/null 2>&1
      [ ${?} -ne 0 ] && echo "Failed to setup ssh!" >&2 && exit 1

      # Extract binary from bitstream
      cp "${fpath}" /tmp/bitstream.bit > /dev/null 2>&1
      [ ${?} -ne 0 ] && echo "Failed to copy bitstream file!" >&2 && exit 1
      echo -e "all:\n{\n  /tmp/bitstream.bit\n}" > /tmp/bitstream.bif
      bootgen -arch zynq -image /tmp/bitstream.bif -process_bitstream bin -w > /dev/null 2>&1
      [ ${?} -ne 0 ] && echo "Failed to generate binary file from bitstream file!" >&2 && exit 1

      # Upload binary to
      sshpass -p ${password} scp /tmp/bitstream.bit.bin ${username}@${ip}:${c_remote}/${fname}.bin > /dev/null 2>&1
      [ ${?} -ne 0 ] && echo "Failed to upload binary file!" >&2 && exit 1
      rm /tmp/{bitstream.bit,bitstream.bif,bitstream.bit.bin} > /dev/null 2>&1

      # Success message
      echo -e "\nUploaded ${fname}.bin to ${c_remote} @ ${ip}."
    }


    ################################################################################
    # Opening gambit.
    # Arguments ...... ${@}
    # Return ......... None
    # Exit code ...... Status (0=success, 1=failure)
    # Shared (In) .... None
    # Shared (Out) ... None
    main ${@}
    exit 0

    Direct download available here :-
    steve@Desktop:~/swuk_tutorial$ wget https://spacewire.co.uk/tutorial/shared/repos/0034/common/fw/src/script/swuk_upload_bin -O common/fw/src/script/swuk_upload_bin
    Make the script executable.
    steve@Desktop:~/swuk_tutorial$ chmod +x common/fw/src/script/swuk_upload_bin

    15. Enhance the upload BOOT files script

    Edit the swuk_upload_boot script to allow user credentials to be input from the command line. Also improve the error reporting from the script.
    steve@Desktop:~/swuk_tutorial$ subl common/fw/src/script/swuk_upload_boot

    swuk_upload_boot

    #!/bin/bash

    #
    # File .......... swuk_upload_boot
    # Author ........ Steve Haywood
    # Website ....... http://www.spacewire.co.uk
    # Project ....... Common (SpaceWire UK Tutorial)
    # Date .......... 05 Mar 2026
    # Version ....... 2.0
    # Description ...
    #   Upload boot files (BOOT.BIN, boot.src & image.ub) to a remote system.
    # Process involves backing up the boot files on the remote system, uploading the
    # new ones and rebooting the system.
    #

    # Strict
    #set -euo pipefail


    ################################################################################
    # Check existence of boot files
    # Arguments ...... $1 ... Str: Files directory
    # Return ......... None
    # Exit code ...... None
    # Shared (In) .... c_bfiles
    # Shared (Out) ... None
    check_boot_files () {
      # Declare variables
      local -r dir=${1}  # Str: Files directory
      local    bfile     # Str: Current file from the directory

      # Iterate through files
      for bfile in "${c_bfiles[@]}"
      do
        echo -n " - "
        [ -f ${dir}/${bfile} ] && echo -en "${c_green}" || echo -en "${c_red}";
        echo -en "${bfile}${c_normal}"
      done
      echo
    }


    ################################################################################
    # Main function.
    # Arguments ...... ${@}
    # Return ......... None
    # Exit code ...... Status (0=success, 1=failure)
    # Shared (In) .... None
    # Shared (Out) ... None
    main()
    {
      # Declare terminal colour constants
      local -r  c_red='\033[0;31m'
      local -r  c_green='\033[0;32m'
      local -r  c_normal='\033[0m'

      # Declare argument constants
      local -r  c_opthelp="--help"  # Str: Help option name
      local -Ar c_options=(         # ARR: Options & associated help information
        [${c_opthelp}]="Display this help and exit."
      )
      local -ar c_optorder=(        # Arr: Help options display order
        ${c_opthelp}
      )
      local -ar argv=(${@})         # Arr: Get argument values (space-separated) into array

      local -r  hosts="${HOME}/.ssh/known_hosts"             # Str: Known hosts file
      local -r  c_ipre='^(0*(1?[0-9]{1,2}|2([0-4][0-9]|5[0-5]))\.){3}0*(1?[0-9]{1,2}|2([0-4][0-9]|5[0-5]))$'
                                                             # Str: IP validation regular expression
      local -r  c_local="/tftpboot"                          # Str: Location of most recent OS files
      local -r  c_archive="${swuk_user}/petalinux"           # Str: Location of user OS files
      local -r  c_remote="/media/sd-mmcblk0p1"               # Str: Remote SD-Card location
      local -r  c_bfiles=("BOOT.BIN" "boot.scr" "image.ub")  # Str: Boot files
      local -ri c_timedout=30                                # Int: Timeout limit (wait, ping, ssh)

      # Declare variables
      local     arg                      # Str: Current argument from argv array
      local     option                   # Str: Current option from c_optorder array
      local     ip=""                    # Str: IP Address (x.x.x.x)
      local -i  selcnt=0                 # Int: Selection count
      local -A  table                    # ARR: Selection table
      local -a  dirs                     # Arr: List of archive directories
      local     dir                      # Str: Current archive directory
      local     sel                      # Str: User selection input
      local     fpath                    # Str: Boot files location (path)
      local     bfile                    # Str: Boot file from array
      local -i  timeout                  # Int: Timeout for reboot (wait, ping, ssh)
      local     username="root"          # Str: PetaLinux username
      local     password="root"          # Str: PetaLinux password
      local     sudo="sudo"              # Str: Requires sudo for reboot

      # Display help information
      if [[ " ${argv[*]} " =~ " ${c_opthelp} " ]]; then
        echo "Usage: $(basename ${0}) IP-ADDRESS... [OPTION]..."
        echo "Upload the boot files ${c_bfiles[0]}, ${c_bfiles[1]} & ${c_bfiles[2]} to the remote system located at IP-ADDRESS."
        echo
        for option in ${c_optorder[@]}
        do
          echo "      ${option} $(printf ' %.0s' {1..12} | head -c $((12-${#option}))) ${c_options[${option}]}"
        done
        echo
        exit 0
      fi

      # Get & check the arguments
      for arg in ${argv[@]}; do
        if [[ ${arg:0:2} == "--" ]]; then  # Option
          [[ ! -v c_options[${arg}] ]] &&
            echo "Option (${arg}) is not recognised!" >&2 &&
            exit 1
        elif [[ -z ${ip} ]]; then  # IP address
          ip=${arg}
        else
          echo "Unexpected argument (${arg}) found!" >&2
          exit 1
        fi
      done

      # Further check the arguments
      [[ -z ${ip} ]] &&
        echo "No IP address specified!" >&2 &&
        exit 1

      # Check the IP ADDRESS
      [[ ! ${ip} =~ ${c_ipre} ]] &&
        echo "The IP address (${ip}) is incorrectly specified!" >&2 &&
        exit 1

      # Check directory at local location
      echo -e "\nBoot files @ ${c_local} :-\n"
      if [ -d "${c_local}" ]; then
        # Add local to selection list
        table[${selcnt}]=${c_local}
        # Check existence of boot files
        echo -n "${selcnt})"
        check_boot_files ${c_local}
        # Increase selection count
        selcnt=$((selcnt+1))
      else
        echo "Directory does not exist!"
      fi

      # Check directory at archive location
      echo -e "\nBoot files @ ${c_archive} :-\n"
      if [ -d "${c_archive}" ]; then
        # Get list of directories at archive location
        readarray -t dirs < <(find "${c_archive}" -mindepth 1 -maxdepth 1 -type d -printf '%P\n')
        # Check existence of subdirectories
        if [ ${#dirs[@]} -ne 0 ]; then
          # Sort list of directories
          dirs=($(IFS=$'\n'; echo "${dirs[*]}" | sort))
          # List what directories are present
          for dir in "${dirs[@]}"; do
            # Add archive subdirectory to selection list
            table[${selcnt}]="${c_archive}/${dir}"
            # Check existence of boot files
            echo -n "${selcnt}) ${dir}"
            check_boot_files "${c_archive}/${dir}"
            # Increase selection count
            selcnt=$((selcnt+1))
          done
        else
          echo "Directory does not contain any subdirectories!"
        fi
      else
        echo "Directory does not exist!"
      fi

      # Obtain user input, if good attempt upload
      echo -e "\nq) Quit\n"
      echo -n "Select boot files for upload or quit"
      while true; do
        read -p " : " sel
        if [[ ("${sel}" == "q") || ("${sel}" == "Q") ]]; then
          echo "Quitting without selection!"
          exit 0
        elif ! [[ "${sel}" =~ ^[0-9]+$ ]] ; then
          # User input is not a number
          echo -n "Selection is not a number, try again"
        elif [ ${sel} -lt 0 ] || [ ${sel} -ge ${selcnt} ]; then
          # User input is out of range
          echo -n "Selection is out of range, try again"
        else
          break
        fi
      done

      # Get path from table
      fpath=${table[${sel}]}

      # Iterate through list of boot files to check for existence
      for bfile in "${c_bfiles[@]}"; do
        [ ! -f ${fpath}/${bfile} ] &&
          echo -e "Boot file ($bfile) not found!" >&2 &&
          exit 1
      done

      # Get user credentials
      echo
      echo "Enter user credentials for ${ip} :-"
      read -e -p "Username: " -i "${username}" username
      password=${username}  # Have a guess at the password
      read -e -p "Password: " -i "${password}" password

      # Establish SSH connection
      swuk_ssh ${ip} > /dev/null 2>&1
      [ ${?} -ne 0 ] && echo "Failed to setup ssh!" >&2 && exit 1
      # Backup boot files
      sshpass -p ${password} ssh -t ${username}@${ip} "cd ${c_remote}; for file in ${c_bfiles[0]} ${c_bfiles[1]} ${c_bfiles[2]}; do cp \$file \$file.bak; done" > /dev/null 2>&1
      [ ${?} -ne 0 ] && echo "Failed to backup BOOT files!" >&2 && exit 1

      # Upload new boot files
      sshpass -p ${password} scp ${fpath}/{${c_bfiles[0]},${c_bfiles[1]},${c_bfiles[2]}} ${username}@${ip}:${c_remote} > /dev/null 2>&1
      [ ${?} -ne 0 ] && echo "Failed to upload BOOT files!" >&2 && exit 1

      # Reboot system
      [[ ${username} == "root" ]] && sudo=""
      sshpass -p ${password} ssh -t ${username}@${ip} "${sudo} /sbin/reboot" 2> /dev/null
      [ ${?} -ne 0 ] && echo "Failed to reboot PetaLinux!" >&2 && exit 1

      # Allow time for system to reboot
      echo
      tput civis
      for ((timeout=0; timeout<=${c_timedout}; timeout++)); do
        echo -ne "Remote reboot (wait): $timeout\033[0K / ${c_timedout}s\r"
        sleep 1
      done
      tput cnorm
      echo

      tput civis
      # Check IP-ADDRESS is present on LAN
      for ((timeout=0; timeout<=${c_timedout}; timeout++)); do
        echo -ne "Remote reboot (ping): $timeout\033[0K / ${c_timedout}s\r"
        swuk_ssh ${ip} > /dev/null 2>&1
        case ${?} in
          0)  # All done (early). Ping & SSH established
            break
          ;;
          3)  # Ping fail (Ping already waited 1s)
            :
          ;;
          2)  # Ping OK but no SSH just yet
            break
          ;;
          1)  # Ping & SSH established but issues with host file
            echo "Failed to access known hosts file ${hosts}!" >&2
            exit 1
          ;;
          *)
            :
          ;;
        esac
      done
      tput cnorm
      echo

      [[ ${timeout} -gt ${c_timedout} ]] &&
        echo "Timed out, check connection!" >&2 &&
        exit 1

      tput civis
      # Get SSH public key from the IP-ADDRESS
      for ((timeout=0; timeout<=${c_timedout}; timeout++)); do
        echo -ne "Remote reboot (ssh): $timeout\033[0K / ${c_timedout}s\r"
        swuk_ssh ${ip} > /dev/null 2>&1
        case ${?} in
          0)  # All done. Ping & SSH established
            break
          ;;
          3)  # Ping fail (Ping already waited 1s)
            :
          ;;
          2)  # Ping OK but no SSH just yet
            sleep 1
          ;;
          1)  # Ping & SSH established but issues with host file
            echo "Failed to access known hosts file ${hosts}!" >&2
            exit 1
          ;;
          *)
            :
          ;;
        esac
      done
      tput cnorm
      echo

      [[ ${timeout} -gt ${c_timedout} ]] &&
        echo "Timed out, check connection!" >&2 &&
        exit 1

      # Success message
      echo -e "\nUploaded ${c_bfiles[0]}, ${c_bfiles[1]} & ${c_bfiles[2]} to ${c_remote} @ ${ip}."

      # Display remote details
      sshpass -p ${password} scp ${username}@${ip}:/srv/www/project.txt /tmp > /dev/null 2>&1
      [ ${?} -ne 0 ] && echo "Failed to obtain remote system credentials (/srv/www/project.txt)!" >&2 && exit 1
      echo -e "\nRemote system credentials :-"
      cat /tmp/project.txt
    }


    ################################################################################
    # Opening gambit.
    # Arguments ...... ${@}
    # Return ......... None
    # Exit code ...... Status (0=success, 1=failure)
    # Shared (In) .... None
    # Shared (Out) ... None
    main ${@}
    exit 0

    Direct download available here :-
    steve@Desktop:~/swuk_tutorial$ wget https://spacewire.co.uk/tutorial/shared/repos/0034/common/fw/src/script/swuk_upload_boot -O common/fw/src/script/swuk_upload_boot
    Make the script executable.
    steve@Desktop:~/swuk_tutorial$ chmod +x common/fw/src/script/swuk_upload_boot
    #### Part 8 - Make the changes permanent ####

    16. Update attributes for the petalinux account

    Make the following changes to the petalinux user account :-
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ petalinux-config -c rootfs
    Select: PetaLinux RootFS Settings ---> Add Extra Users
    Change: root:root;petalinux::passwd-expire;
    To: root:root;petalinux:petalinux;
    Then: Ok

    Select: Add Users to Groups
    Change: petalinux:audio,video,aie,input;
    To: petalinux:audio,video,aie,input,disk;
    Then: Ok ---> Save ---> Ok ---> Exit ---> Exit ---> Exit

    17. Update the auto-start application

    Edit the boot-extras application to make it more robust.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ cd ../../..
    Edit the create link command to add in a wildcard on the destination point. By doing this the /media/sd-mmcblk0p1 start point will map to both /run/media/mmcblk0p1 & /run/media/[SD-CARD LABEL]-mmcblk0p1.

    Also bump the Version & Date.
    steve@Desktop:~/swuk_tutorial$ subl zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/boot-extras/files/boot-extras

    boot-extras

    #!/bin/sh

    #
    # File .......... boot-extras
    # Author ........ Steve Haywood
    # Website ....... http://www.spacewire.co.uk
    # Project ....... Zedboard Linux (SpaceWire UK Tutorial)
    # Date .......... 05 Mar 2026
    # Version ....... 2.0
    # Description ...
    #   Script to perform boot time operations. Added enhancement to the link
    # command.
    #

    ln -s /run/media/*mmcblk0p1 /media/sd-mmcblk0p1

    Direct download available here :-
    steve@Desktop:~/swuk_tutorial$ wget https://spacewire.co.uk/tutorial/shared/repos/0034/zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/boot-extras/files/boot-extras -O zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/boot-extras/files/boot-extras
    Check out the changes.
    steve@Desktop:~/swuk_tutorial$ git difftool zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/boot-extras/files/boot-extras
    #### Part 9 - Revision Control ####

    18. Commit new & updated files

    Check GIT status to make sure all is well and there are no spurious elements.
    steve@Desktop:~/swuk_tutorial$ git status -u
    On branch master
    Your branch is up-to-date with 'origin/master'.

    Changes not staged for commit:
      (use "git add/rm <file>..." to update what will be committed)
      (use "git restore <file>..." to discard changes in working directory)
       modified:   common/fw/src/script/swuk_upload_bin
       modified:   common/fw/src/script/swuk_upload_boot
       modified:   zedboard_linux/os/petalinux/.gitignore
       modified:   zedboard_linux/os/petalinux/.petalinux/metadata
       deleted:    zedboard_linux/os/petalinux/config.project
       modified:   zedboard_linux/os/petalinux/project-spec/configs/config
       modified:   zedboard_linux/os/petalinux/project-spec/configs/rootfs_config
       modified:   zedboard_linux/os/petalinux/project-spec/meta-user/conf/layer.conf
       modified:   zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/boot-extras/files/boot-extras
       modified:   zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/cgi-bin/phpliteadmin.config.php
       modified:   zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/cgi-bin/phpliteadmin.php
       modified:   zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/project.txt
       modified:   zedboard_linux/os/petalinux/project-spec/meta-user/recipes-bsp/device-tree/device-tree.bbappend
       deleted:    zedboard_linux/os/petalinux/project-spec/meta-user/recipes-bsp/device-tree/files/pl-custom.dtsi
       modified:   zedboard_linux/os/petalinux/project-spec/meta-user/recipes-bsp/u-boot/files/bsp.cfg
       modified:   zedboard_linux/os/petalinux/project-spec/meta-user/recipes-bsp/u-boot/files/platform-top.h
       modified:   zedboard_linux/os/petalinux/project-spec/meta-user/recipes-bsp/u-boot/u-boot-xlnx_%.bbappend
       deleted:    zedboard_linux/os/petalinux/project-spec/meta-user/recipes-bsp/uboot-device-tree/files/system-user.dtsi
       deleted:    zedboard_linux/os/petalinux/project-spec/meta-user/recipes-bsp/uboot-device-tree/uboot-device-tree.bbappend
       deleted:    zedboard_linux/os/petalinux/project-spec/meta-user/recipes-kernel/linux/linux-xlnx/user_2023-08-08-08-28-00.cfg
       modified:   zedboard_linux/os/petalinux/project-spec/meta-user/recipes-kernel/linux/linux-xlnx_%.bbappend

    Untracked files:
      (use "git add <file>..." to include in what will be committed)
       zedboard_linux/os/petalinux/project-spec/configs/.Xil/XSCT-1230561-Desktop/system.bda
       zedboard_linux/os/petalinux/project-spec/configs/.Xil/XSCT-1230670-Desktop/system.bda
       zedboard_linux/os/petalinux/project-spec/configs/.statistics
       zedboard_linux/os/petalinux/project-spec/configs/configs/Kconfig
       zedboard_linux/os/petalinux/project-spec/configs/configs/Kconfig.syshw
       zedboard_linux/os/petalinux/project-spec/configs/flash_parts.txt
       zedboard_linux/os/petalinux/project-spec/configs/gen-machineconf.log.old
       zedboard_linux/os/petalinux/project-spec/configs/plnx_syshw_data
       zedboard_linux/os/petalinux/project-spec/configs/plnxtool.conf
       zedboard_linux/os/petalinux/project-spec/configs/rootfsconfigs/Kconfig
       zedboard_linux/os/petalinux/project-spec/configs/rootfsconfigs/Kconfig.part
       zedboard_linux/os/petalinux/project-spec/configs/rootfsconfigs/Kconfig.user
       zedboard_linux/os/petalinux/project-spec/configs/rootfsconfigs/user-rootfsconfig
       zedboard_linux/os/petalinux/project-spec/configs/zynq-generic-7z020.conf
       zedboard_linux/os/petalinux/project-spec/meta-user/meta-xilinx-tools/recipes-bsp/uboot-device-tree/files/system-user.dtsi
       zedboard_linux/os/petalinux/project-spec/meta-user/meta-xilinx-tools/recipes-bsp/uboot-device-tree/uboot-device-tree.bbappend
       zedboard_linux/os/petalinux/project-spec/meta-user/recipes-bsp/device-tree/device-tree-sdt.inc

    no changes added to commit (use "git add" and/or "git commit -a")
    Almost looks good! The Xilinx tools have spewed up yet again, hence remove the rubbish directory.
    steve@Desktop:~/swuk_tutorial$ rm -rf zedboard_linux/os/petalinux/project-spec/configs/.Xil
    Commit the updates, create an annotated tag and push the commit & tag up to the remote repository.
    steve@Desktop:~/swuk_tutorial$ git add -A
    steve@Desktop:~/swuk_tutorial$ git commit -a -m "Basic Zedboard design consisting of a ZYNQ7 Processing System controlling a pair of cascading Test Pattern Generators that output video via HDMI (PetaLinux 2023.2)."
    steve@Desktop:~/swuk_tutorial$ git push
    steve@Desktop:~/swuk_tutorial$ git tag -a my_zedboard_linux_v17.0 -m "ZYNQ & Cascading TPG's with HDMI output (PetaLinux 2023.2)"
    steve@Desktop:~/swuk_tutorial$ git push origin my_zedboard_linux_v17.0

    19. Create production release

    Create a potential production release for the PetaLinux (v17.0) project using pure repository source. .

    (optional) Clear out all the superfluous files from the project area (non-tracked files).
    steve@Desktop:~/swuk_tutorial$ cd zedboard_linux/os/petalinux
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git clean -fdx
    (optional) Clear out the transfer area.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ rm -rf /tftpboot/*
    Double check GIT status.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git status
    On branch master
    Your branch is up-to-date with 'origin/master'.

    nothing to commit, working tree clean
    Build/rebuild PetaLinux.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ swuk_petalinux-build
    Note: A fresh build of PetaLinux takes a long time to complete and can be prone to failure due to internet downloads. If the build process fails, firstly check the GIT status & difftool for any noddy file changes, restore these file changes and then execute the build command again until it finally completes. Example below :-
    ::
    ::
    ERROR: Failed to build project. Check the ~/swuk_tutorial/zedboard_linux/os/petalinux/build/build.log file for more details...
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git status -u
    On branch my_master
    Your branch is up-to-date with 'origin/my_master'.

    Changes not staged for commit:
      (use "git add <file>..." to update what will be committed)
      (use "git restore <file>..." to discard changes in working directory)
       modified:   .petalinux/metadata
       modified:   project-spec/configs/config

    no changes added to commit (use "git add" and/or "git commit -a")
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git difftool
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git restore .petalinux/metadata project-spec/configs/config
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ swuk_petalinux-build
    ::
    ::
    INFO: Successfully copied built images to tftp dir: /tftpboot
    [INFO] Successfully built project
    Package PetaLinux to produce the boot image BOOT.BIN, this will include the first stage boot loader zynq_fsbl.elf, the programmable logic system.bit, the Linux boot loader u-boot.elf and the device tree blob system.dtb.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ petalinux-package --boot --force --fsbl images/linux/zynq_fsbl.elf --fpga images/linux/system.bit --uboot images/linux/u-boot.elf
    Archive the generated files for safe keeping. These files are not held in the repository as they can be recreated from source.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ mkdir -p ~/Documents/swuk_tutorial/petalinux/v17.0
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ cp /tftpboot/{BOOT.BIN,boot.scr,image.ub} ~/Documents/swuk_tutorial/petalinux/v17.0
    #### Part 10 - Hardware Deployment ####

    20. Copy files to SD Card

    Upload the newly created PetaLinux Boot & OS files. Select 0 or 8.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ swuk_upload_boot 192.168.2.87

    Boot files @ /tftpboot :-

    0) - BOOT.BIN - boot.scr - image.ub

    Boot files @ ~/Documents/swuk_tutorial/petalinux :-

    1) v10.0 - BOOT.BIN - boot.scr - image.ub
    2) v11.0 - BOOT.BIN - boot.scr - image.ub
    3) v12.0 - BOOT.BIN - boot.scr - image.ub
    4) v13.0 - BOOT.BIN - boot.scr - image.ub
    5) v14.0 - BOOT.BIN - boot.scr - image.ub
    6) v15.0 - BOOT.BIN - boot.scr - image.ub
    7) v16.0 - BOOT.BIN - boot.scr - image.ub
    8) v17.0 - BOOT.BIN - boot.scr - image.ub

    q) Quit

    Select boot files for upload or quit : 8

    Enter user credentials for 192.168.2.87 :-
    Username: root
    Password: root

    Broadcast message from root@petalinux (pts/0) (Sat Mar  7 04:34:59 2026):

    The system is going down for reboot NOW!

    Remote reboot (wait): 30 / 30s
    Remote reboot (ping): 4 / 30s
    Remote reboot (ssh): 10 / 30s

    Uploaded BOOT.BIN, boot.scr & image.ub to /media/sd-mmcblk0p1 @ 192.168.2.87.

    Remote system credentials :-
    Zedboard PetaLinux
    SpaceWire UK
    Steve Haywood
    17.0
    06-Mar-2026 - 15:56:12
    bd92889b525b65af61fd0df4470ca6a0a99fa3c7
    Looks good!
    #### Part 11 - Check everything is working as expected ####

    21. OS boot & Firmware load

    Access the webserver running on the Zedboard using a browser pointing at the Zedboard's IP address (192.168.2.87).

    Select System from the menu bar (refresh page if already open).

    The Operating System Information table should show Zedboard PetaLinux description along with a version of 17.0.

    The Firmware Information table should show Zedboard Video TPG HDMI description along with a version of 1.0.

    The Loadable Firmware table should be populated.

    There should be no unsavoury comments after the version numbers! Missing Image! The Timestamp & Hash shown from GIT (1st entry) should marry up perfectly with the displayed Operating System Information. All being well the 5th GIT entry should marry up perfectly with the displayed Firmware Information.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git log -5
    commit bd92889b525b65af61fd0df4470ca6a0a99fa3c7 (HEAD -> master, tag: zedboard_linux_v17.0, origin/master, origin/HEAD)
    Author: Steve Haywood <steve@spacewire.co.uk>
    Date:   Fri Mar 6 15:56:12 2026 +0000

        Basic Zedboard design consisting of a ZYNQ7 Processing System controlling a pair of cascading Test Pattern Generators that output video via HDMI (PetaLinux 2023.2).

    commit 7266500384515a69536dff984a4685900ddf53a2 (tag: zedboard_linux_v16.0)
    Author: Steve Haywood <steve@spacewire.co.uk>
    Date:   Thu Mar 5 17:25:49 2026 +0000

        Basic Zedboard design consisting of a ZYNQ7 Processing System controlling a pair of cascading Test Pattern Generators that output video via HDMI (PetaLinux 2022.2).

    commit 6cb6af817b21f8de6d8edafb9e32595e63dab8df (tag: zedboard_bram_id_v1.0)
    Author: Steve Haywood <steve@spacewire.co.uk>
    Date:   Thu Feb 19 09:37:08 2026 +0000

        Basic Zedboard design consisting of a ZYNQ7 Processing System talking to an AXI4 Block RAM that provides product identification information.

    commit 457a58024d01d397f85e69d95983d7a98a38a1d0 (tag: zedboard_linux_v15.0)
    Author: Steve Haywood <steve@spacewire.co.uk>
    Date:   Mon Dec 22 19:46:13 2025 +0000

        Added ADV7511 configuration auto-start application. This version of PetaLinux includes the XSA from zedboard_video_tpg_hdmi v1.0.

    commit f8b1355c0c8a3afaf8cdf33bbb066363be4409d6 (tag: zedboard_video_tpg_hdmi_v1.0)
    Author: Steve Haywood <steve@spacewire.co.uk>
    Date:   Mon Dec 22 12:22:34 2025 +0000

        Basic Zedboard design consisting of a ZYNQ7 Processing System controlling a pair of cascading Test Pattern Generators that output video via HDMI.
    Looks good!

    22. Upload BOOT files script

    The new Zedboard PetaLinux v17.0 (already uploaded) should only allow its firmware & BOOT files to be overwritten by using the petalinux credentials. Attempting to uploading the firmware & BOOT files using the root credentials should not work. Versions less than 17.0 should work in reverse.

    Lets recap what's what before formulating a test strategy.

    Zedboard PetaLinux versionSD-Card locationUpload permission
    15.0/media/sd-mmcblk0p1root
    16.0/run/media/mmcblk0p1root
    17.0/run/media/[SD-CARD LABEL]-mmcblk0p1petalinux


    Attempt to upload Firmware & BOOT files from v17.0 using root credentials (should not work).
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ swuk_upload_bin 192.168.2.87

    Bitstream files @ fw/vivado/petalinux.runs/impl_1 :-

    Directory does not exist!

    Bitstream files @ ~/Documents/swuk_tutorial/firmware :-

    0) - zedboard_bram_id_v1.0.bit
    1) - zedboard_hello_world_v1.0.bit
    2) - zedboard_leds_buttons_v1.0.bit
    3) - zedboard_leds_switches_v1.0.bit
    4) - zedboard_leds_switches_v2.0.bit
    5) - zedboard_leds_switches_v3.0.bit
    6) - zedboard_leds_switches_v4.0.bit
    7) - zedboard_leds_switches_v5.0.bit
    8) - zedboard_video_tpg_hdmi_v1.0.bit
    9) - zedboard_video_tpg_vga_v1.0.bit

    q) Quit

    Select file for upload or quit : 0

    Enter user credentials for 192.168.2.87 :-
    Username: root
    Password: root
    Failed to upload binary file!
    As expected! Secure Shell (ssh) for root is disabled.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ swuk_upload_boot 192.168.2.87

    Boot files @ /tftpboot :-

    0) - BOOT.BIN - boot.scr - image.ub

    Boot files @ ~/Documents/swuk_tutorial/petalinux :-

    1) v10.0 - BOOT.BIN - boot.scr - image.ub
    2) v11.0 - BOOT.BIN - boot.scr - image.ub
    3) v12.0 - BOOT.BIN - boot.scr - image.ub
    4) v13.0 - BOOT.BIN - boot.scr - image.ub
    5) v14.0 - BOOT.BIN - boot.scr - image.ub
    6) v15.0 - BOOT.BIN - boot.scr - image.ub
    7) v16.0 - BOOT.BIN - boot.scr - image.ub
    8) v17.0 - BOOT.BIN - boot.scr - image.ub

    q) Quit

    Select boot files for upload or quit : 7

    Enter user credentials for 192.168.2.87 :-
    Username: root
    Password: root
    Failed to backup BOOT files!
    As expected! Secure Shell (ssh) for root is disabled.

    Attempt to upload Firmware & BOOT files from v17.0 using petalinux credentials (should work).
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ swuk_upload_bin 192.168.2.87

    Bitstream files @ fw/vivado/petalinux.runs/impl_1 :-

    Directory does not exist!

    Bitstream files @ ~/Documents/swuk_tutorial/firmware :-

    0) - zedboard_bram_id_v1.0.bit
    1) - zedboard_hello_world_v1.0.bit
    2) - zedboard_leds_buttons_v1.0.bit
    3) - zedboard_leds_switches_v1.0.bit
    4) - zedboard_leds_switches_v2.0.bit
    5) - zedboard_leds_switches_v3.0.bit
    6) - zedboard_leds_switches_v4.0.bit
    7) - zedboard_leds_switches_v5.0.bit
    8) - zedboard_video_tpg_hdmi_v1.0.bit
    9) - zedboard_video_tpg_vga_v1.0.bit

    q) Quit

    Select file for upload or quit : 0

    Enter user credentials for 192.168.2.87 :-
    Username: petalinux
    Password: petalinux

    Uploaded zedboard_bram_id_v1.0.bin to /media/sd-mmcblk0p1/firmware @ 192.168.2.87.
    As expected! Secure Shell (ssh) for petalinux is enabled & petalinux has access rights to the SD-Card.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ swuk_upload_boot 192.168.2.87

    Boot files @ /tftpboot :-

    0) - BOOT.BIN - boot.scr - image.ub

    Boot files @ ~/Documents/swuk_tutorial/petalinux :-

    1) v10.0 - BOOT.BIN - boot.scr - image.ub
    2) v11.0 - BOOT.BIN - boot.scr - image.ub
    3) v12.0 - BOOT.BIN - boot.scr - image.ub
    4) v13.0 - BOOT.BIN - boot.scr - image.ub
    5) v14.0 - BOOT.BIN - boot.scr - image.ub
    6) v15.0 - BOOT.BIN - boot.scr - image.ub
    7) v16.0 - BOOT.BIN - boot.scr - image.ub
    8) v17.0 - BOOT.BIN - boot.scr - image.ub

    q) Quit

    Select boot files for upload or quit : 7

    Enter user credentials for 192.168.2.87 :-
    Username: petalinux
    Password: petalinux

    We trust you have received the usual lecture from the local System
    Administrator. It usually boils down to these three things:

        #1) Respect the privacy of others.
        #2) Think before you type.
        #3) With great power comes great responsibility.

    For security reasons, the password you type will not be visible.

    Password:

    Broadcast message from root@petalinux (pts/0) (Sat Mar  7 05:49:29 2026):

    The system is going down for reboot NOW!

    Remote reboot (wait): 30 / 30s
    Remote reboot (ping): 4 / 30s
    Remote reboot (ssh): 19 / 30s

    Uploaded BOOT.BIN, boot.scr & image.ub to /media/sd-mmcblk0p1 @ 192.168.2.87.

    Remote system credentials :-
    Zedboard PetaLinux
    SpaceWire UK
    Steve Haywood
    16.0
    09-Mar-2026 - 05:00:51
    a09289d2670bfdc9240b1cc09e95849d3339a89b
    As expected! The ssh for petalinux succeeded on v17.0, PetaLinux then booted into v16.0, subsequently ssh for petalinux succeeded on v16.0.

    All good! We are now running Zedboard PetaLinux v16.0.

    Attempt to upload Firmware & BOOT files from v16.0 using petalinux credentials (should not work).
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ swuk_upload_bin 192.168.2.87

    Bitstream files @ fw/vivado/petalinux.runs/impl_1 :-

    Directory does not exist!

    Bitstream files @ ~/Documents/swuk_tutorial/firmware :-

    0) - zedboard_bram_id_v1.0.bit
    1) - zedboard_hello_world_v1.0.bit
    2) - zedboard_leds_buttons_v1.0.bit
    3) - zedboard_leds_switches_v1.0.bit
    4) - zedboard_leds_switches_v2.0.bit
    5) - zedboard_leds_switches_v3.0.bit
    6) - zedboard_leds_switches_v4.0.bit
    7) - zedboard_leds_switches_v5.0.bit
    8) - zedboard_video_tpg_hdmi_v1.0.bit
    9) - zedboard_video_tpg_vga_v1.0.bit

    q) Quit

    Select file for upload or quit : 0

    Enter user credentials for 192.168.2.87 :-
    Username: petalinux
    Password: petalinux
    Failed to upload binary file!
    As expected! The ssh for petalinux succeeded but petalinux does not have any access rights to the SD-Card.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ swuk_upload_boot 192.168.2.87

    Boot files @ /tftpboot :-

    0) - BOOT.BIN - boot.scr - image.ub

    Boot files @ ~/Documents/swuk_tutorial/petalinux :-

    1) v10.0 - BOOT.BIN - boot.scr - image.ub
    2) v11.0 - BOOT.BIN - boot.scr - image.ub
    3) v12.0 - BOOT.BIN - boot.scr - image.ub
    4) v13.0 - BOOT.BIN - boot.scr - image.ub
    5) v14.0 - BOOT.BIN - boot.scr - image.ub
    6) v15.0 - BOOT.BIN - boot.scr - image.ub
    7) v16.0 - BOOT.BIN - boot.scr - image.ub
    8) v17.0 - BOOT.BIN - boot.scr - image.ub

    q) Quit

    Select boot files for upload or quit : 8

    Enter user credentials for 192.168.2.87 :-
    Username: petalinux
    Password: petalinux
    Failed to backup BOOT files!
    As expected! The ssh for petalinux succeeded but petalinux does not have any access rights to the SD-Card.

    Attempt to upload Firmware & BOOT files from v16.0 using root credentials (should work).
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ swuk_upload_bin 192.168.2.87

    Bitstream files @ fw/vivado/petalinux.runs/impl_1 :-

    Directory does not exist!

    Bitstream files @ ~/Documents/swuk_tutorial/firmware :-

    0) - zedboard_bram_id_v1.0.bit
    1) - zedboard_hello_world_v1.0.bit
    2) - zedboard_leds_buttons_v1.0.bit
    3) - zedboard_leds_switches_v1.0.bit
    4) - zedboard_leds_switches_v2.0.bit
    5) - zedboard_leds_switches_v3.0.bit
    6) - zedboard_leds_switches_v4.0.bit
    7) - zedboard_leds_switches_v5.0.bit
    8) - zedboard_video_tpg_hdmi_v1.0.bit
    9) - zedboard_video_tpg_vga_v1.0.bit

    q) Quit

    Select file for upload or quit : 0

    Enter user credentials for 192.168.2.87 :-
    Username: root
    Password: root

    Uploaded zedboard_bram_id_v1.0.bin to /media/sd-mmcblk0p1/firmware @ 192.168.2.87.
    As expected! Secure Shell (ssh) for root is enabled & root has access rights to the SD-Card.
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ swuk_upload_boot 192.168.2.87

    Boot files @ /tftpboot :-

    0) - BOOT.BIN - boot.scr - image.ub

    Boot files @ ~/Documents/swuk_tutorial/petalinux :-

    1) v10.0 - BOOT.BIN - boot.scr - image.ub
    2) v11.0 - BOOT.BIN - boot.scr - image.ub
    3) v12.0 - BOOT.BIN - boot.scr - image.ub
    4) v13.0 - BOOT.BIN - boot.scr - image.ub
    5) v14.0 - BOOT.BIN - boot.scr - image.ub
    6) v15.0 - BOOT.BIN - boot.scr - image.ub
    7) v16.0 - BOOT.BIN - boot.scr - image.ub
    8) v17.0 - BOOT.BIN - boot.scr - image.ub

    q) Quit

    Select boot files for upload or quit : 8

    Enter user credentials for 192.168.2.87 :-
    Username: root
    Password: root

    Broadcast message from root@petalinux (pts/0) (Sat Mar  7 06:15:20 2026):

    The system is going down for reboot NOW!

    Remote reboot (wait): 30 / 30s
    Remote reboot (ping): 3 / 30s
    Remote reboot (ssh): 15 / 30s

    Uploaded BOOT.BIN, boot.scr & image.ub to /media/sd-mmcblk0p1 @ 192.168.2.87.
    Failed to obtain remote system credentials (/srv/www/project.txt)!
    As expected! The ssh for root succeeded on v16.0, PetaLinux then booted into v17.0, subsequently scp for root failed on v17.0 (expected).

    All good! We are now running Zedboard PetaLinux v17.0.

    For completeness, the failed scp using petalinux instead or root :-
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ swuk_ssh 192.168.2.87
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ sshpass -p petalinux scp petalinux@192.168.2.87:/srv/www/project.txt /tmp
    steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ cat /tmp/project.txt
    Zedboard PetaLinux
    SpaceWire UK
    Steve Haywood
    17.0
    06-Mar-2026 - 15:56:12
    bd92889b525b65af61fd0df4470ca6a0a99fa3c7
    #### Part 12 - Final resulting build file(s) ####

    23. Resulting BOOT files

    The resulting BOOT files from the above build can be obtained from here: v17.0 (2023.2).
