Part 16 - Enhance build system to generate repeatable bitstreams & add ID to PetaLinux (23 October 2022)

Introduction

This tutorial details the steps required to adapt the build system and project identification strings in such a way that identical bitstreams can be produced from a like-for-like checkout from GIT. The self-incrementing version/revision will be replaced with manual user editing to allow for better control of the version number. The build timestamp will be replaced with the GIT timestamp of the last GIT commit. The hash of the last GIT commit will be added to the list of strings to identify the exact set of source used to produce the bitstream. The build system will query GIT to obtain the information required to ensure the produced bitstream is from a fully committed & pushed set of source. Project identification will also be added to PetaLinux to make it consistent with the Firmware Identification.

Aims

The aims of this tutorial are as follows :-

1. Setup environment

Setup Xilinx design environment for the 2021.2 toolset.

steve@Desktop:~$ xilinx
Xilinx tools available tools at /opt/Xilinx :-
1) 2021.2 - Vivado - SDK - Vitis - PetaLinux
0) Exit
Please select tools required or exit : 1

Tools are as follows :-
vivado @ /opt/Xilinx/Vivado/2021.2/bin/vivado
vitis @ /opt/Xilinx/Vitis/2021.2/bin/vitis
petalinux-build @ /opt/Xilinx/PetaLinux/2021.2/tool/tools/common/petalinux/bin/petalinux-build

2. Change present working directory

Change the present working directory to be the project directory.

steve@Desktop:~$ cd ~/projects/zedboard_leds_switches

3. Launch Vivado & open project

Launch Vivado quietly from a Terminal.

steve@Desktop:~/projects/zedboard_leds_switches$ vivado -nojournal -nolog -notrace fw/vivado/project.xpr &

4. Add GIT hash entry to AXI Identification module

Update axi_identication.v to add the new GIT hash entry (id_hash) to the list of identification strings. Increase the id_version width from 16 to 32 characters. Do a little housekeeping on the source code as well.

steve@Desktop:~/projects/zedboard_leds_switches$ subl fw/src/design/axi_identification.v

axi_identification.v

//
// File .......... axi_identification.v
// Author ........ Steve Haywood
// Version ....... 1.1
// Date .......... 2 October 2022
// Standard ...... IEEE 1364-2001
// Description ...
// AXI4-Lite controlled register bank written in basic Verilog. The register
// bank contains the following fixed length identification and timestamp
// strings.
//
// Description ................ 128 Characters - 32 Registers - 0x000 - 0x07F
// Company .................... 64 Characters - 16 Registers - 0x080 - 0x0BF
// Author ..................... 64 Characters - 16 Registers - 0x0C0 - 0x0FF
// Version .................... 32 Characters - 8 Registers - 0x100 - 0x11F
// Timestamp .................. 32 Characters - 8 Registers - 0x120 - 0x13F
// Hash ....................... 64 Characters - 16 Registers - 0x140 - 0x17F
// Unused ..................... 144 Characters - 36 Registers - 0x180 - 0x20F
// --- --- -------------
// 528 132 - 0x000 - 0x20F
//
`timescale 1 ns / 1 ps
module axi_identification #
(
// Parameters (AXI4-Lite)
localparam c_addr_w = 9, // P:Address Bus Width (bits)
localparam c_data_w = 32, // P:Data Bus Width (bits)
// Parameters (ID Strings)
localparam c_id_description_w = 128, // P:Description Width (chars)
localparam c_id_company_w = 64, // P:Company Width (chars)
localparam c_id_author_w = 64, // P:Author Width (chars)
localparam c_id_version_w = 32, // P:Version Width (chars)
localparam c_id_timestamp_w = 32, // P:Timestamp Width (chars)
localparam c_id_hash_w = 64 // P:Hash Width (chars)
)
(
// Clock & Reset
input wire aclk, // I:Clock
input wire aresetn, // I:Reset
// Identification Strings
input wire [8*c_id_description_w-1 :0] id_description, // I:Description
input wire [8*c_id_company_w-1 : 0] id_company, // I:Company
input wire [8*c_id_author_w-1 : 0] id_author, // I:Author
input wire [8*c_id_version_w-1 : 0] id_version, // I:Version
input wire [8*c_id_timestamp_w-1 : 0] id_timestamp, // I:Timestamp
input wire [8*c_id_hash_w-1 : 0] id_hash, // I:Hash
// AXI4-Lite - Write Address Channel
input wire [c_addr_w-1 : 0] s_axi_awaddr, // I:Write Address
input wire [2 : 0] s_axi_awprot, // I:Write Protection Type
input wire s_axi_awvalid, // I:Write Address Valid
output reg s_axi_awready, // O:Write Address Ready
// AXI4-Lite - Write Data Channel
input wire [c_data_w-1 : 0] s_axi_wdata, // I:Write Data
input wire [(c_data_w/8)-1 : 0] s_axi_wstrb, // I:Write Strobes
input wire s_axi_wvalid, // I:Write Valid
output reg s_axi_wready, // O:Write Ready
// AXI4-Lite - Write Response Channel
output reg [1 : 0] s_axi_bresp, // O:Write Response
output reg s_axi_bvalid, // O:Write Response Valid
input wire s_axi_bready, // I:Write Response Ready
// AXI4-Lite - Read Address Channel
input wire [c_addr_w-1 : 0] s_axi_araddr, // I:Read Address
input wire [2 : 0] s_axi_arprot, // I:Read Protection Type
input wire s_axi_arvalid, // I:Read Address Valid
output reg s_axi_arready, // O:Read Address Ready
// AXI4-Lite - Read Data Channel
output reg [c_data_w-1 : 0] s_axi_rdata, // O:Read Data
output reg [1 : 0] s_axi_rresp, // O:Read Response
output reg s_axi_rvalid, // O:Read Valid
input wire s_axi_rready // I:Read Ready
);
// Constants
localparam no_regs = 2**(c_addr_w - $clog2(c_data_w / 8));
localparam id_description_lo = 0;
localparam id_description_hi = id_description_lo + (c_id_description_w / 4) - 1;
localparam id_company_lo = 1 + id_description_hi;
localparam id_company_hi = id_company_lo + (c_id_company_w / 4) - 1;
localparam id_author_lo = 1 + id_company_hi;
localparam id_author_hi = id_author_lo + (c_id_author_w / 4) -1;
localparam id_version_lo = 1 + id_author_hi;
localparam id_version_hi = id_version_lo + (c_id_version_w / 4) - 1;
localparam id_timestamp_lo = 1 + id_version_hi;
localparam id_timestamp_hi = id_timestamp_lo + (c_id_timestamp_w / 4) - 1;
localparam id_hash_lo = 1 + id_timestamp_hi;
localparam id_hash_hi = id_hash_lo + (c_id_hash_w / 4) - 1;
// Signals
reg aw_en;
reg [c_addr_w-$clog2(c_data_w / 8) - 1 : 0] axi_awaddr;
reg [c_addr_w-$clog2(c_data_w / 8) - 1 : 0] axi_araddr;
reg [c_data_w-1 : 0] registers_wr [no_regs - 1 : 0];
wire [c_data_w-1 : 0] registers_rd [no_regs - 1 : 0];
// Write Address Ready
always @(posedge aclk)
if (!aresetn) begin
s_axi_awready <= 1'b0;
aw_en <= 1'b1;
end else if (s_axi_awvalid && !s_axi_awready && s_axi_wvalid && aw_en) begin
s_axi_awready <= 1'b1;
aw_en <= 1'b0;
end else if (s_axi_bvalid && s_axi_bready) begin
s_axi_awready <= 1'b0;
aw_en <= 1'b1;
end else
s_axi_awready <= 1'b0;
// Write Address Latch
always @(posedge aclk)
if (!aresetn)
axi_awaddr <= {c_addr_w{1'b0}};
else if (s_axi_awvalid && !s_axi_awready && s_axi_wvalid && aw_en)
axi_awaddr <= s_axi_awaddr[c_addr_w - 1 : $clog2(c_data_w/8)];
// Write Data Ready
always @(posedge aclk)
if (!aresetn)
s_axi_wready <= 1'b0;
else if (s_axi_awvalid && s_axi_wvalid && !s_axi_wready && aw_en)
s_axi_wready <= 1'b1;
else
s_axi_wready <= 1'b0;
// Write Data
integer i;
always @(posedge aclk)
if (!aresetn)
for (i = 0; i <= no_regs - 1; i = i + 1)
registers_wr[i] <= {c_data_w{1'b0}};
else if (s_axi_awvalid && s_axi_awready && s_axi_wvalid && s_axi_wready)
for (i = 0; i <= c_data_w/8 - 1; i = i + 1)
if (s_axi_wstrb[i])
registers_wr[axi_awaddr][i*8 +: 8] <= s_axi_wdata[i*8 +: 8]; // Byte-Wise Write
// Write Response
always @(posedge aclk)
if (!aresetn) begin
s_axi_bvalid <= 1'b0;
s_axi_bresp <= 2'b00;
end else if (s_axi_awvalid && s_axi_awready && s_axi_wvalid && s_axi_wready && !s_axi_bvalid) begin
s_axi_bvalid <= 1'b1;
s_axi_bresp <= 2'b00;
end else if (s_axi_bvalid && s_axi_bready)
s_axi_bvalid <= 1'b0;
// Read Address Ready
always @(posedge aclk)
if (!aresetn)
s_axi_arready <= 1'b0;
else if (s_axi_arvalid && !s_axi_arready)
s_axi_arready <= 1'b1;
else
s_axi_arready <= 1'b0;
// Read Address Latch
always @(posedge aclk)
if (!aresetn)
axi_araddr <= {c_addr_w{1'b0}};
else if (s_axi_arvalid && !s_axi_arready)
axi_araddr <= s_axi_araddr[c_addr_w - 1 : $clog2(c_data_w/8)];
// Read Response
always @(posedge aclk)
if (!aresetn) begin
s_axi_rvalid <= 1'b0;
s_axi_rresp <= 2'b00;
end else if (s_axi_arvalid && s_axi_arready && !s_axi_rvalid) begin
s_axi_rvalid <= 1'b1;
s_axi_rresp <= 2'b00;
end else if (s_axi_rvalid && s_axi_rready)
s_axi_rvalid <= 1'b0;
// Read Data
always @(posedge aclk)
if (!aresetn)
s_axi_rdata <= {c_data_w{1'b0}};
else if (s_axi_arvalid && s_axi_arready && !s_axi_rvalid)
s_axi_rdata <= registers_rd[axi_araddr];
// Read Register Constants
genvar j;
generate
for (j = 0; j <= no_regs - 1; j = j + 1) begin
if (j <= id_description_hi) assign registers_rd[j] = id_description[32*(j-id_description_lo) +: 32];
else if (j <= id_company_hi ) assign registers_rd[j] = id_company [32*(j-id_company_lo ) +: 32];
else if (j <= id_author_hi ) assign registers_rd[j] = id_author [32*(j-id_author_lo ) +: 32];
else if (j <= id_version_hi ) assign registers_rd[j] = id_version [32*(j-id_version_lo ) +: 32];
else if (j <= id_timestamp_hi ) assign registers_rd[j] = id_timestamp [32*(j-id_timestamp_lo ) +: 32];
else if (j <= id_hash_hi ) assign registers_rd[j] = id_hash [32*(j-id_hash_lo ) +: 32];
else assign registers_rd[j] = 32'h00000000;
end
endgenerate
endmodule

5. Open & edit block design

Open the block design by clicking on Open Block Design under the IP INTEGRATOR heading inside the Flow Navigator section.

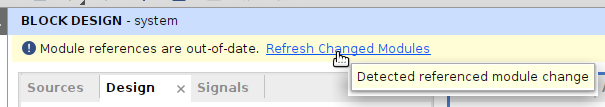

At the top of the the BLOCK DESIGN section there should be a message saying Module references are out-of-date. Refresh Changed Modules. Click on Refresh Changed Modules to update the block design. Missing Image!

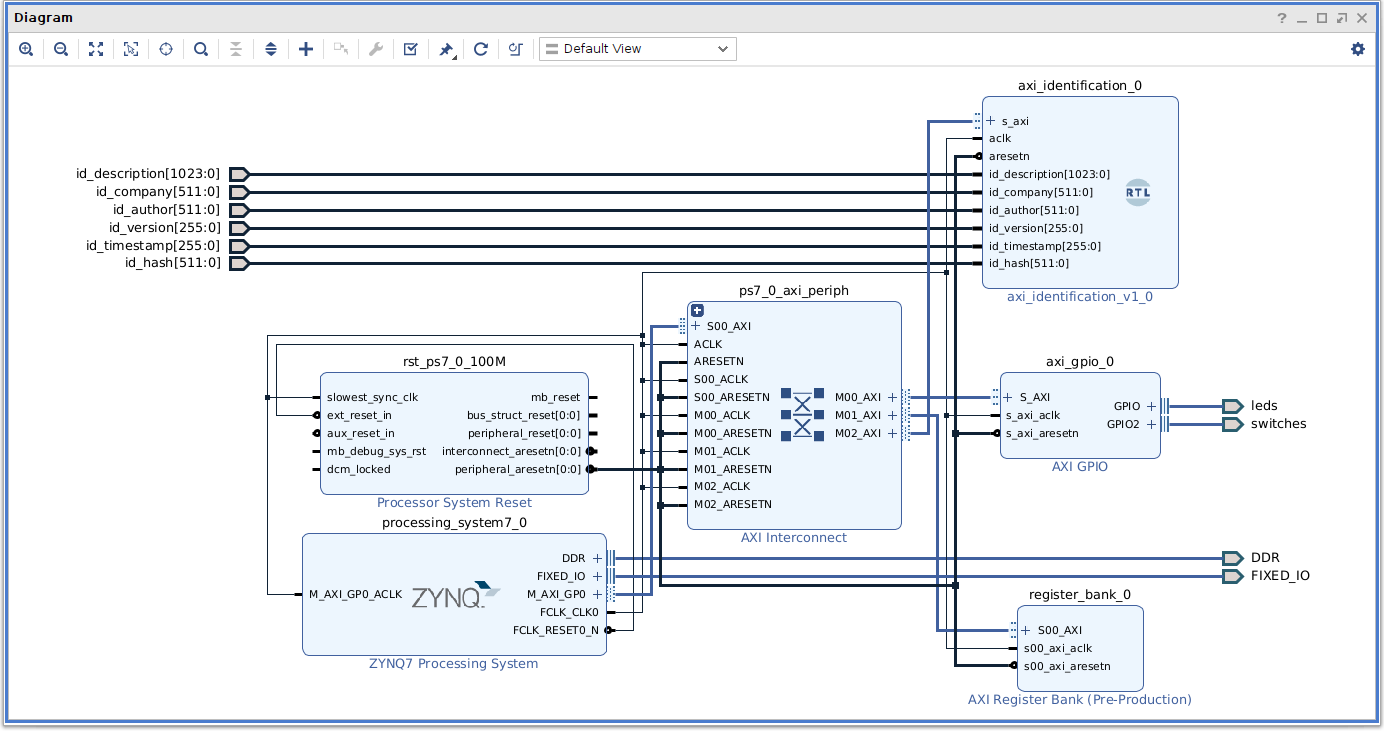

The axi_identification_0 module in the block design should now show an extra input port called id_hash. Bring the new port out of the block design by right clicking on it and selecting Make External from the context menu. Rename the new external port to id_hash by removing the _0 from its name.

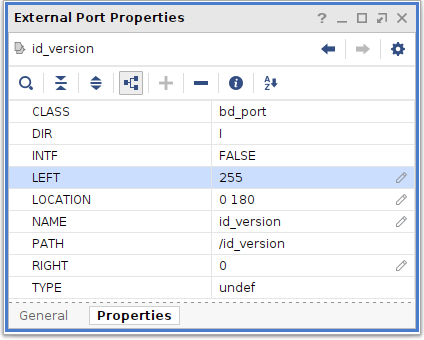

The id_version external port requires its width to be increased. Click on the id_version external port and in the External Ports Properties pane select Properties and change LEFT from 127 to 255. Missing Image!

Verify the block design is error free by clicking on the Validate Design Missing Image!

icon. Once validated save the block design. Missing Image!

6. Add GIT hash entry to top level HDL

Update system_wrapper.sv to add the new GIT hash entry id_hash to the list of identification strings. Do a little housekeeping on the source code as well.

steve@Desktop:~/projects/zedboard_leds_switches$ subl fw/src/diagram/system/hdl/system_wrapper.sv

system_wrapper.sv

//
// File .......... system_wrapper.sv
// Author ........ Steve Haywood
// Version ....... 1.1
// Date .......... 2 October 2022
// Standard ...... IEEE 1800-2017
// Description ...
// Top level wrapper for the underlying block design.
//
timeunit 1ns;
timeprecision 1ps;
module system_wrapper #
(
// Parameters
parameter string id_description = "", // P:Description ............ Max 128 Characters
parameter string id_company = "", // P:Company ................ Max 64 Characters
parameter string id_author = "", // P:Author ................. Max 64 Characters
parameter string id_version = "", // P:Version ................ Max 32 Characters
parameter string id_timestamp = "", // P:Timestamp .............. Max 32 Characters
parameter string id_hash = "" // P:Hash ................... Max 64 Characters
)
(
// LEDs
output [ 7:0] leds_tri_o, // O:LEDs
// Switches
input [ 7:0] switches_tri_i, // I:Switches
// System
inout [14:0] DDR_addr, // B:Address
inout [ 2:0] DDR_ba, // B:Bank Address
inout DDR_cas_n, // B:Column Address Select
inout DDR_ck_n, // B:Clock (Neg)
inout DDR_ck_p, // B:Clock (Pos)
inout DDR_cke, // B:Clock Enable
inout DDR_cs_n, // B:Chip Select
inout [ 3:0] DDR_dm, // B:Data Mask
inout [31:0] DDR_dq, // B:Data Input/Output
inout [ 3:0] DDR_dqs_n, // B:Data Strobe (Neg)
inout [ 3:0] DDR_dqs_p, // B:Data Strobe (Pos)
inout DDR_odt, // B:Output Dynamic Termination
inout DDR_ras_n, // B:Row Address Select
inout DDR_reset_n, // B:Reset
inout DDR_we_n, // B:Write Enable
inout FIXED_IO_ddr_vrn, // B:Termination Voltage
inout FIXED_IO_ddr_vrp, // B:Termination Voltage
inout [53:0] FIXED_IO_mio, // B:Peripheral Input/Output
inout FIXED_IO_ps_clk, // B:System Reference Clock
inout FIXED_IO_ps_porb, // B:Power On Reset
inout FIXED_IO_ps_srstb // B:External System Reset
);
// Function to convert a string to a vector (max 128 characters)
function [1023:0] fmt(input string str);
int len;
bit [1023:0] tmp;
len = str.len();
for (int i=0; i<len; i++)
tmp[8*i +: 8] = str.getc(i);
fmt = tmp;
endfunction
// Top-Level Block Design
system system_i
(
// Identification Strings
.id_description ( fmt(id_description) ), // P:Description
.id_company ( fmt(id_company) ), // P:Company
.id_author ( fmt(id_author) ), // P:Author
.id_version ( fmt(id_version) ), // P:Version
.id_timestamp ( fmt(id_timestamp) ), // P:Timestamp
.id_hash ( fmt(id_hash) ), // P:Hash
// LEDs
.leds_tri_o ( leds_tri_o ), // O:LEDs
// Switches
.switches_tri_i ( switches_tri_i ), // I:Switches
// System
.DDR_addr ( DDR_addr ), // B:Address
.DDR_ba ( DDR_ba ), // B:Bank Address
.DDR_cas_n ( DDR_cas_n ), // B:Column Address Select
.DDR_ck_n ( DDR_ck_n ), // B:Clock (Neg)
.DDR_ck_p ( DDR_ck_p ), // B:Clock (Pos)
.DDR_cke ( DDR_cke ), // B:Clock Enable
.DDR_cs_n ( DDR_cs_n ), // B:Chip Select
.DDR_dm ( DDR_dm ), // B:Data Mask
.DDR_dq ( DDR_dq ), // B:Data Input/Output
.DDR_dqs_n ( DDR_dqs_n ), // B:Data Strobe (Neg)
.DDR_dqs_p ( DDR_dqs_p ), // B:Data Strobe (Pos)
.DDR_odt ( DDR_odt ), // B:Output Dynamic Termination
.DDR_ras_n ( DDR_ras_n ), // B:Row Address Select
.DDR_reset_n ( DDR_reset_n ), // B:Reset
.DDR_we_n ( DDR_we_n ), // B:Write Enable
.FIXED_IO_ddr_vrn ( FIXED_IO_ddr_vrn ), // B:Termination Voltage
.FIXED_IO_ddr_vrp ( FIXED_IO_ddr_vrp ), // B:Termination Voltage
.FIXED_IO_mio ( FIXED_IO_mio ), // B:Peripheral Input/Output
.FIXED_IO_ps_clk ( FIXED_IO_ps_clk ), // B:System Reference Clock
.FIXED_IO_ps_porb ( FIXED_IO_ps_porb ), // B:Power On Reset
.FIXED_IO_ps_srstb ( FIXED_IO_ps_srstb ) // B:External System Reset
);
endmodule

7. Modify build hook scripts

Remove the build timestamp field from the product identification file as it is no longer required (the GIT timestamp will be used instead). Manually change the version to 4.0 which will be the version number for the next release of firmware. Note the previous version did not align with the GIT tag which was a mistake, this will now be corrected by using version 4.0.

steve@Desktop:~/projects/zedboard_leds_switches$ subl fw/project.txt

project.txt

Zedboard LEDs & Switches Example Design
SpaceWire UK
Steve Haywood
4.0

Edit the pre-synthesis TCL script to remove the auto-incrementing version/revision functionality and add in the necessary GIT queries to obtain the identification fields and determine if the build source is clean (no pending commits or pushes).

steve@Desktop:~/projects/zedboard_leds_switches$ subl fw/src/script/pre_synth.tcl

pre_synth.tcl

#
# File .......... pre_synth.tcl
# Author ........ Steve Haywood
# Version ....... 1.1
# Date .......... 2 October 2022
# Description ...
# Script to read product/project information from a text file, obtain GIT
# repository information and set the generics/parameters on the top level
# module.
#
# Read Product/Project Information
if { [catch {set id_file [open "../../../project.txt" r]} msg] } {
set id_description "?"
set id_company "?"
set id_author "?"
set id_version "?"
puts "ERROR :-"
puts $msg
} {
gets $id_file id_description
gets $id_file id_company
gets $id_file id_author
gets $id_file id_version
close $id_file
}
# Get GIT timestamp
set dfmt "%d-%b-%Y - %H:%M:%S"
if { [catch {set id_timestamp [exec git log -1 --pretty=%cd --date=format:$dfmt]} msg] } {
set id_timestamp "00-Xxx-0000 - 00:00:00"
puts "ERROR :-"
puts $msg
}
# Get GIT hash
if { [catch {set id_hash [exec git log -1 --pretty=%H]} msg] } {
set id_hash "0000000000000000000000000000000000000000"
puts "ERROR :-"
puts $msg
}
# Get GIT status
if { [catch {set status [exec git status -s]} msg] } {
append id_version " (undefined)"
puts "ERROR :-"
puts $msg
} {
if {$status ne ""} {
append id_version " (unstaged)"
} {
if { [catch {set status [exec git branch -r --contains $id_hash]} msg] } {
append id_version " (undefined)"
puts "ERROR :-"
puts $msg
} {
if {$status eq ""} {
append id_version " (unpushed)"
}
}
}
}
# Replace space character with its octal code
proc space_replace {str} {
return [string map {" " "\\040"} $str]
}
# Replace spaces in information strings
set id_description [space_replace $id_description]
set id_company [space_replace $id_company]
set id_author [space_replace $id_author]
set id_version [space_replace $id_version]
set id_timestamp [space_replace $id_timestamp]
set id_hash [space_replace $id_hash]
# Set Generics/Parameters
set_property generic " \
id_description=\"$id_description\" \
id_company=\"$id_company\" \
id_author=\"$id_author\" \
id_version=\"$id_version\" \
id_timestamp=\"$id_timestamp\" \
id_hash=\"$id_hash\" \
" [current_fileset]

Remove the post-bitstream hook from Vivado's build process by navigating Tools » Settings.... In the Settings dialog select Bitstream under Project Settings and highlight the previously entered TCL script ~/projects/zedboard_leds_switches/fw/src/script/post_bit.tcl. Press the Delete key to remove it and then click Apply followed by OK.

Remove the post-bitstream TCL script from the repository.

steve@Desktop:~/projects/zedboard_leds_switches$ git rm fw/src/script/post_bit.tcl

For the modified script to work properly untracked files need to be kept away from the status command. To do this a blanket GIT ignore can be added that ignores everything GIT isn't tracking.

steve@Desktop:~/projects/zedboard_leds_switches$ echo "/*" > .gitignore
steve@Desktop:~/projects/zedboard_leds_switches$ git add -f .gitignore

Just like the bitstream, the hardware platform can be generated from source, hence it is prudent at this point to remove it from the repository.

steve@Desktop:~/projects/zedboard_leds_switches$ git rm fw/system_wrapper.xsa

8. Check build hook script is working as expected

Check the current status of the GIT repository.

steve@Desktop:~/projects/zedboard_leds_switches$ git status
On branch master
Your branch is up-to-date with 'origin/master'.

Changes to be committed:
  (use "git restore --staged ..." to unstage)
  new file:   .gitignore
  deleted:    fw/src/script/post_bit.tcl
  deleted:    fw/system_wrapper.xsa

Changes not staged for commit:
  (use "git add ..." to update what will be committed)
  (use "git restore ..." to discard changes in working directory)
  modified:   fw/project.txt
  modified:   fw/src/design/axi_identification.v
  modified:   fw/src/diagram/system/hdl/system_wrapper.sv
  modified:   fw/src/diagram/system/system.bd
  modified:   fw/src/script/pre_synth.tcl

Examine the last log entry for the GIT repository.

steve@Desktop:~/projects/zedboard_leds_switches$ git log -1
commit 42e2ca1aceecb80a55942e7540060b3a1b75d17f (HEAD -> master, tag: v3.0, origin/master, origin/HEAD)
Author: Steve Haywood <steve@spacewire.co.uk>
Date: Sun Jan 16 12:48:44 2022 +0000

Added AXI Identification to the design.

Run synthesis to see what values are placed in the identification parameters by the pre_synth TCL script. Click on Run Synthesis under the SYNTHESIS heading inside the Flow Navigator section. Missing Image!

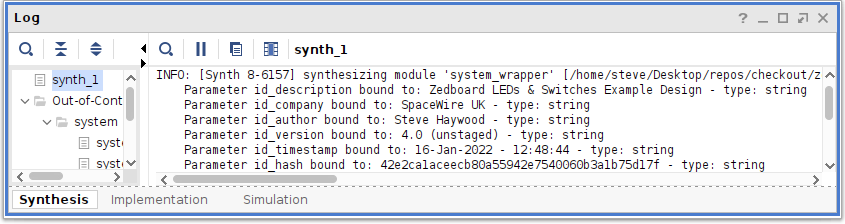

Examine the Log tab at the bottom of the Vivado cockpit window, scrolling down a little to see the parameter report. Missing Image!

The id_timestamp & id_hash are as shown in the log of the last GIT commit. The id_version is as entered in the project.txt file but is appended with (unstaged) to illustrate the bitstream will NOT be produced from files committed in the local repository.

Commit the files.

steve@Desktop:~/projects/zedboard_leds_switches$ git commit -am "Updated Firmware Identification fields to use static information from GIT"
steve@Desktop:~/projects/zedboard_leds_switches$ git tag -a v4.0 -m "ZYNQ, GPIO, Register Bank & Identification (timestamp & hash from GIT)"

Rerun GIT status & log.

steve@Desktop:~/projects/zedboard_leds_switches$ git status
On branch master
Your branch is ahead of 'origin/master' by 1 commit.
(use "git push" to publish your local commits)

nothing to commit, working tree clean

steve@Desktop:~/projects/zedboard_leds_switches$ git log -1
commit cc42e7ba8be329a22b17f7a78f3d28d9784f59a0 (HEAD -> master, tag: v4.0)
Author: Steve Haywood <steve@spacewire.co.uk>
Date: Sun Oct 23 09:25:16 2022 +0100

Updated Firmware Identification fields to use static information from GIT

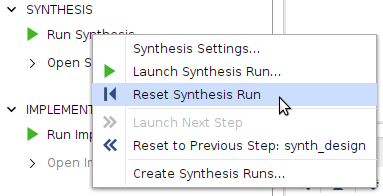

Reset the synthesis run by right clicking on Run Synthesis under SYNTHESIS and selecting Reset Synthesis Run,. Missing Image!

Run synthesis again. Missing Image!

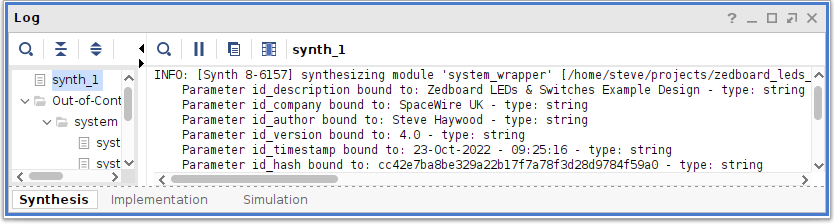

Examine the Log tab again. Missing Image!

The id_timestamp & id_hash are as shown in the log of the last GIT commit (now updated). The id_version is as entered in the project.txt file but is appended with (unpushed) to illustrate the bitstream will NOT be produced from files pushed to the remote repository.

Push the files to the remote repository.

steve@Desktop:~/projects/zedboard_leds_switches$ git push

Again, reset the synthesis run, run the synthesis and check the parameter report in the log tab. Missing Image!

Bingo! The id_timestamp & id_hash are as shown in the log of the last GIT commit. The id_version is as entered in the project.txt and is clean (no appended text) illustrating the bitstream will be produced from source safely held in the remote repository.

A generated bitstream (.bit) contains a 112 byte header that contains various pieces of dynamic information such as the build timestamp. A secondary bitstream (.bin) file can also be created that doesn't contain this header. To enable the creatation of the alternative bitstream navigate Tools » Settings... from the main menu and select Bitstream under Project Settings. Check the -bin_file option and click OK to commit the changes. Missing Image!

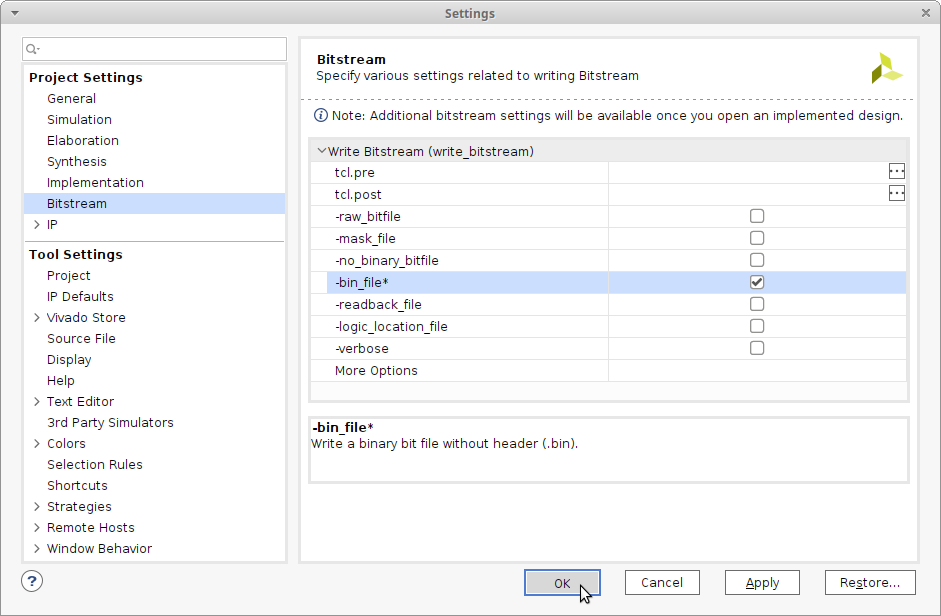

Generate the programmable logic bitstream by clicking on Generate Bitstream under the PROGRAM AND DEBUG heading inside the Flow Navigator section. Missing Image!

Obtain the checksum of the bitstream by using either system_wrapper.bit (less the header) or system_wrapper.bin.

steve@Desktop:~/projects/zedboard_leds_switches$ dd if=fw/vivado/project.runs/impl_1/system_wrapper.bit skip=112 bs=512 iflag=skip_bytes | md5sum
7901+1 records in
7901+1 records out
4045564 bytes (4.0 MB, 3.9 MiB) copied, 0.00829275 s, 488 MB/s
aa330b5b405de83453b6bdb36abf8197 -
steve@Desktop:~/projects/zedboard_leds_switches$ md5sum fw/vivado/project.runs/impl_1/system_wrapper.bin
aa330b5b405de83453b6bdb36abf8197 fw/vivado/project.runs/impl_1/system_wrapper.bin

Quit Vivado and delete (or rename) the project folder.

steve@Desktop:~/projects/zedboard_leds_switches$ cd ..
steve@Desktop:~/projects$ rm -rf zedboard_leds_switches

Clone the GIT repository of the project, checkout the version as shown by the hash held in the Firmware and rebuilt the project from scratch. The hardware platform is automatically exported by the build script after the bitstream is generated.

steve@Desktop:~/projects$ git clone git@192.168.2.20:zedboard_leds_switches.git
steve@Desktop:~/projects$ cd zedboard_leds_switches
steve@Desktop:~/projects/zedboard_leds_switches$ git checkout cc42e7ba8be329a22b17f7a78f3d28d9784f59a0
steve@Desktop:~/projects/zedboard_leds_switches$ create_vivado_project.sh build

Obtain the checksum of the bitstream by using system_wrapper.bit (less the header).

steve@Desktop:~/projects/zedboard_leds_switches$ dd if=fw/vivado/project.runs/impl_1/system_wrapper.bit skip=112 bs=512 iflag=skip_bytes | md5sum
7901+1 records in
7901+1 records out
4045564 bytes (4.0 MB, 3.9 MiB) copied, 0.00829275 s, 488 MB/s
aa330b5b405de83453b6bdb36abf8197 -

Lovely Jubbly! The bitstreams from the previous build and the new build are identical.

9. Create project information file

Create a project information file for the PetaLinux project just like the one used for for the Vivado project. Set the version to 10.0 to align with the next GIT tag that will be used.

Steve@Desktop:~/projects/zedboard_leds_switches$ cd ~/projects/zedboard_linux/os/petalinux
steve@Desktop:~/projects/zedboard_linux/os/petalinux$ subl project-spec/meta-user/recipes-apps/website/files/project.txt

project.txt

Zedboard PetaLinux Example Design
SpaceWire UK
Steve Haywood
10.0

10. Modify BitBake recipe

Modify the BitBake recipe to include the new project information file.

steve@Desktop:~/projects/zedboard_linux/os/petalinux$ subl project-spec/meta-user/recipes-apps/website/website.bb

website.bb

#
# This file is the website recipe.
#
SUMMARY = "Simple website application"
SECTION = "PETALINUX/apps"
LICENSE = "MIT"
LIC_FILES_CHKSUM = "file://${COMMON_LICENSE_DIR}/MIT;md5=0835ade698e0bcf8506ecda2f7b4f302"
SRC_URI = "file://index.html"
SRC_URI += "file://uptime.js"
SRC_URI += "file://zedboard.png"
SRC_URI += "file://styles.css"
SRC_URI += "file://cgi-bin/index.cgi"
SRC_URI += "file://cgi-bin/uptime.cgi"
SRC_URI += "file://amber.gif"
SRC_URI += "file://green.gif"
SRC_URI += "file://red.gif"
SRC_URI += "file://project.txt"
FILES_${PN} += "/srv/www"
S = "${WORKDIR}"
do_install() {
install -d ${D}/srv/www
install -m 0644 ${S}/index.html ${D}/srv/www/index_original.html
install -m 0644 ${S}/uptime.js ${D}/srv/www
install -m 0644 ${S}/zedboard.png ${D}/srv/www
install -m 0644 ${S}/styles.css ${D}/srv/www
install -m 0644 ${S}/amber.gif ${D}/srv/www
install -m 0644 ${S}/green.gif ${D}/srv/www
install -m 0644 ${S}/red.gif ${D}/srv/www
install -m 0644 ${S}/project.txt ${D}/srv/www
install -d ${D}/srv/www/cgi-bin
install -m 0755 ${S}/cgi-bin/index.cgi ${D}/srv/www/cgi-bin
install -m 0755 ${S}/cgi-bin/uptime.cgi ${D}/srv/www/cgi-bin
}

11. Create a PetaLinux build script

Create a PetaLinux build script similar to the pre-synthesis TCL script. This script will query GIT and update the project information file with the timestamp & hash of the last commit, the one that is currently being used to build the PetaLinux project.

steve@Desktop:~/projects/zedboard_linux/os/petalinux$ cd ~/projects/common
steve@Desktop:~/projects/common$ subl other/src/script/petalinux-build-id.sh
steve@Desktop:~/projects/common$ chmod +x other/src/script/petalinux-build-id.sh

petalinux-build-id.sh

#!/bin/bash
#
# File .......... petalinux-build-id.tcl
# Author ........ Steve Haywood
# Version ....... 1.0
# Date .......... 2 October 2022
# Description ...
# Script to read project information file, obtain GIT repository information,
# append project information file with GIT information, build PetaLinux project
# and then restore project information file.
#
#
# Set identification file
project="project-spec/meta-user/recipes-apps/website/files/project.txt"
# Only perform bulk of actions if identification file
if [ -f "$project" ]; then
# Read project information
readarray -t ids < project-spec/meta-user/recipes-apps/website/files/project.txt
# Display identification information
echo -e '\033[1mNOTE\033[0m: Building PetaLinux with the following identification'
echo "Description ... ${ids[0]}"
echo "Company ....... ${ids[1]}"
echo "Author ........ ${ids[2]}"
# Get GIT timestamp
id_timestamp=$(git log -1 --pretty=%cd --date=format:"%d-%b-%Y - %H:%M:%S")
if [ $? -ne 0 ]; then
id_timestamp="00-Xxx-0000 - 00:00:00"
fi
# Get GIT hash
id_hash=$(git log -1 --pretty=%H)
if [ $? -ne 0 ]; then
id_hash="0000000000000000000000000000000000000000"
fi
# Get GIT status
id_append=""
status=$(git status -s)
if [ $? -ne 0 ]; then
id_append="(undefined)"
else
if [ ! -z "$status" ]; then
id_append="(unstaged)"
else
status=$(git branch -r --contains ${id_hash})
if [ $? -ne 0 ]; then
id_append="(undefined)"
else
if [ -z "$status" ]; then
id_append="(unpushed)"
fi
fi
fi
fi
# Display identification information
echo "Version ....... ${ids[3]} ${id_append}"
echo "Timestamp ..... $id_timestamp"
echo "Hash .......... $id_hash"
# Modify project information file
fname="$project"
echo ${ids[0]} > ${fname} # Description
echo ${ids[1]} >> ${fname} # Company
echo ${ids[2]} >> ${fname} # Author
echo ${ids[3]} ${id_append} >> ${fname} # Version
echo ${id_timestamp} >> ${fname} # Timestamp
echo ${id_hash} >> ${fname} # Hash
# Build PetaLinux
$(which petalinux-build)
jobs -l
wait
# Restore project information file
echo ${ids[0]} > ${fname} # Description
echo ${ids[1]} >> ${fname} # Company
echo ${ids[2]} >> ${fname} # Author
echo ${ids[3]} >> ${fname} # Version
else
# Build PetaLinux
$(which petalinux-build)
fi

Make life easier by using an alias for petalinux-build such that it calls petalinux-build-id, add this within the shell initialization script.

steve@Desktop:~/projects/common$ subl ~/.bashrc

.bashrc (partial)

# Aliases
alias petalinux-build='~/projects/common/other/src/script/petalinux-build-id.sh'

12. Commit new & updated files

Commit the updated Common files and push the commit up to the remote repository.

steve@Desktop:~/projects/common$ git add other/src/script/petalinux-build-id.sh
steve@Desktop:~/projects/common$ git commit -am "Added PetaLinux build script that updates the project information file with timestamp & hash."
steve@Desktop:~/projects/common$ git push
steve@Desktop:~/projects/common$ cd ~/projects/zedboard_linux/os/petalinux

13. Update website to display new PetaLinux information & Firmware hash

Update the existing HTML to include a new PetaLinux Information section & add the GIT hash entry in the Firmware Information section.

steve@Desktop:~/projects/zedboard_linux/os/petalinux$ subl project-spec/meta-user/recipes-apps/website/files/cgi-bin/index.cgi

index.cgi

#!/bin/sh
# Output Header
printf "Content-type: text/html\n\n"
# Get information
sys_host=$(hostname)
sys_time=$(date)
sys_load=$(awk '{print $1}' /proc/loadavg)
sys_up=$(awk '{print $1}' /proc/uptime)
cpu_model=$(grep model /proc/cpuinfo | cut -d : -f2 | tail -1 | sed 's/\s//')
cpu_cores=$(grep -c ^processor /proc/cpuinfo)
mem_total=$(free -m | awk 'NR==2{print $2}')
mem_used=$(free -m | awk 'NR==2{print $3}')
mem_free=$(free -m | awk 'NR==2{print $4}')
net_mac=$(cat /sys/class/net/eth0/address)
net_ip_loc=$(ip a | grep inet | grep -vw lo | grep -v inet6 | cut -d \/ -f1 | sed 's/[^0-9\.]*//g')
net_ip_ext=$(wget -q -O- http://ipecho.net/plain)
# Output HTML
cat <<EOF
<!DOCTYPE html>
<html lang="en">
<head>
<meta http-equiv="content-type" content="text/html; charset=UTF-8">
<link href="../styles.css" rel="stylesheet">
<title>Zedboard Webserver</title>
</head>
<body onload="add_register()">
<div class="section"><h2>Zedboard Webserver</h2></div>
<div class="section">
<table>
<thead>
<tr><th colspan="3">Operating System Information <button onclick="read_os_ids()">Read ID</button></th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:right">Description :</td>
<td style="text-align:left" id="oid_0">Unknown</td>
<td><img id="osid_0" style="vertical-align:middle" src="../amber.gif" title="Unknown!" alt="Missing Image!"></td>
</tr>
<tr>
<td style="text-align:right">Company :</td>
<td style="text-align:left" id="oid_1">Unknown</td>
<td><img id="osid_1" style="vertical-align:middle" src="../amber.gif" title="Unknown!" alt="Missing Image!"></td>
</tr>
<tr>
<td style="text-align:right">Author :</td>
<td style="text-align:left" id="oid_2">Unknown</td>
<td><img id="osid_2" style="vertical-align:middle" src="../amber.gif" title="Unknown!" alt="Missing Image!"></td>
</tr>
<tr>
<td style="text-align:right">Version :</td>
<td style="text-align:left" id="oid_3">Unknown</td>
<td><img id="osid_3" style="vertical-align:middle" src="../amber.gif" title="Unknown!" alt="Missing Image!"></td>
</tr>
<tr>
<td style="text-align:right">Timestamp :</td>
<td style="text-align:left" id="oid_4">Unknown</td>
<td><img id="osid_4" style="vertical-align:middle" src="../amber.gif" title="Unknown!" alt="Missing Image!"></td>
</tr>
<tr>
<td style="text-align:right">Hash :</td>
<td style="text-align:left" id="oid_5">Unknown</td>
<td><img id="osid_5" style="vertical-align:middle" src="../amber.gif" title="Unknown!" alt="Missing Image!"></td>
</tr>
</tbody>
</table>
<table>
<thead>
<tr><th colspan="3">Firmware Information <input type="submit" value="Read ID" id="read_ids" onclick="read_ids()"></th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:right">Description :</td>
<td style="text-align:left" id="id_0">Unknown</td>
<td><img id="sid_0" style="vertical-align:middle" src="../amber.gif" title="Unknown!" alt="Missing Image!"></td>
</tr>
<tr>
<td style="text-align:right">Company :</td>
<td style="text-align:left" id="id_1">Unknown</td>
<td><img id="sid_1" style="vertical-align:middle" src="../amber.gif" title="Unknown!" alt="Missing Image!"></td>
</tr>
<tr>
<td style="text-align:right">Author :</td>
<td style="text-align:left" id="id_2">Unknown</td>
<td><img id="sid_2" style="vertical-align:middle" src="../amber.gif" title="Unknown!" alt="Missing Image!"></td>
</tr>
<tr>
<td style="text-align:right">Version :</td>
<td style="text-align:left" id="id_3">Unknown</td>
<td><img id="sid_3" style="vertical-align:middle" src="../amber.gif" title="Unknown!" alt="Missing Image!"></td>
</tr>
<tr>
<td style="text-align:right">Timestamp :</td>
<td style="text-align:left" id="id_4">Unknown</td>
<td><img id="sid_4" style="vertical-align:middle" src="../amber.gif" title="Unknown!" alt="Missing Image!"></td>
</tr>
<tr>
<td style="text-align:right">Hash :</td>
<td style="text-align:left" id="id_5">Unknown</td>
<td><img id="sid_5" style="vertical-align:middle" src="../amber.gif" title="Unknown!" alt="Missing Image!"></td>
</tr>
</tbody>
</table>
</div>
<div class="section"><img src="../zedboard.png" alt="Missing Image!"></div>
<div class="section">
<table>
<tr><th colspan="2">System</th></tr>
<tr><td>Hostname</td>
<td>${sys_host}</td>
</tr><tr><td>Time</td><td>${sys_time}</td></tr>
<tr><td>Uptime</td><td><span id="uptime_text">${sys_up}</span> seconds <button onclick="get_uptime()">Refresh</button> Auto :
<select id="uptime" onchange="uptime();">
<option value="0">Off</option>
<option value="1">1s</option>
<option value="5">5s</option>
</select>
</td></tr>
</table>
<table>
<tr><th colspan="2">CPU</th></tr>
<tr><td>Model</td>
<td>${cpu_model}</td></tr>
<tr><td>Cores</td><td>${cpu_cores}</td></tr>
<tr><td>Load</td><td>${sys_load}</td></tr>
</table>
<table>
<tr><th colspan="2">Memory</th></tr>
<tr><td>Total</td><td>${mem_total} Mb</td></tr>
<tr><td>Used</td><td>${mem_used} Mb</td></tr>
<tr><td>Free</td><td>${mem_free} Mb</td></tr>
</table>
<table>
<tr><th colspan="2">Network</th></tr>
<tr><td>MAC Address</td><td>${net_mac}</td></tr>
<tr><td>Internal IP</td><td>${net_ip_loc}</td></tr>
<tr><td>External IP</td><td>${net_ip_ext}</td></tr>
</table>
</div>
<div class="section">
<table id="registers">
<tr>
<th>Address</th>
<th>Peek Value</th>
<th>Sel</th>
<th>Peek</th>
<th>Status</th>
<th>Copy</th>
<th>Poke Value</th>
<th>Sel</th>
<th>Poke</th>
<th>Status</th>
<th>Description</th>
</tr>
</table>
<br><br>
<input title="Add new row to end of address table" type="button" value="Add" onclick="add_row()">
<select title="Set type of row to add to address table" id="type">
<option value="0">Register</option>
<option value="1">Section</option>
</select>
<input title="Remove last address from table" type="button" value="Remove" onclick="rem_register()">
<input title="Peek all selected addresses in table" type="button" value="Peek All" onclick="peek_all()">
<input title="Copy all table peek values into poke values" type="button" value="Copy All" onclick="copy_all()">
<input title="Poke all selected addresses in table" type="button" value="Poke All" onclick="poke_all()">
Peek Refresh :
<select title="Set timer interval for automatic peek of table addresses" id="timer" onchange="timer()">
<option value="0">Off</option>
<option value="1">1s</option>
<option value="5">5s</option>
</select>
Number Format :
<select title="Set number format for peek and poke values" id="format" onchange="format()">
<option value="0">Hexadecimal</option>
<option value="1">Unsigned</option>
</select>
Configuration :
<button title="Create configuration file from table" onclick="create_config()">Create...</button> <a title="Right click and Save Link As... to locate and rename this file" download="config.txt" id="download" href="" style="display: none">config.txt</a>
<input title="Read configuration file into table" type="file" id="load_config">
</div>
<div class="section">Designed by Steve Haywood @ 2021</div>
<script src="../uptime.js"></script>
</body>
</html>
EOF

14. Update Javascript to deal with new PetaLinux information & Firmware hash

Update the existing Javascript to include code for reading and displayed the PetaLinux Information, and reading & displaying the GIT hash string in the Firmware Information section.

steve@Desktop:~/projects/zedboard_linux/os/petalinux$ subl project-spec/meta-user/recipes-apps/website/files/uptime.js

uptime.js

// Requests
var timer_uptime;
var timer_peek_all;
// Download OS information file & display result
async function read_os_ids() {
let response = await fetch("/project.txt");
if (response.status == 200) {
let ids = await response.text();
fields = ids.split(/\r?\n/);
}
for (var i = 0; i < 6; i++) {
const now = Date.now();
const txt_obj = document.getElementById("oid_" + i);
const img_obj = document.getElementById("osid_" + i);
if (response.status == 200) {
if (i < fields.length && fields[i] != "") {
img_obj.src = "../green.gif?" + now;
img_obj.title = "Last file fetch successful";
txt_obj.innerHTML = fields[i];
} else {
img_obj.src = "../red.gif?" + now;
img_obj.title = "Missing field information";
txt_obj.innerHTML = "Unknown";
}
} else {
img_obj.src = "../red.gif?" + now;
img_obj.title = "Last file fetch failed";
txt_obj.innerHTML = "Unknown";
}
}
}
// Peek all strings
function read_ids() {
read_id(0x000, 0);
read_id(0x080, 1);
read_id(0x0C0, 2);
read_id(0x100, 3);
read_id(0x120, 4);
read_id(0x140, 5);
}
// Peek string & display result
function read_id(offset, reg) {
var url = "/cgi-bin/peekstring?0x40000000&4096&" + offset + "&128";
if (window.XMLHttpRequest) {
var ajaxReq = new XMLHttpRequest();
ajaxReq.onreadystatechange = function() {
if (ajaxReq.readyState == 4 && ajaxReq.status == 200) {
var respText = ajaxReq.responseText;
var img_obj = document.getElementById("sid_" + reg);
// Unique number is added to image to avoid caching issues on separate animations
const now = Date.now();
if (respText.substr(0,6) == "Error:") {
img_obj.src = "../red.png?" + now;
img_obj.title = "Last peekstring failed : " + respText.substr(7);
} else {
const now = Date.now();
img_obj.src = "../green.gif?" + now;
img_obj.title = "Last peekstring successful";
document.getElementById("id_" + reg).innerHTML = respText;
}
}
}
ajaxReq.open("POST", url, true);
ajaxReq.send(null);
}
}
// Get uptime
function get_uptime(reg) {
var url = "cgi-bin/uptime.cgi";
if (window.XMLHttpRequest) {
var ajaxReq = new XMLHttpRequest();
ajaxReq.onreadystatechange = function() {
if (ajaxReq.readyState == 4 && ajaxReq.status == 200) {
var respText = ajaxReq.responseText;
txtObj = document.getElementById("uptime_text");
if (txtObj) {
txtObj.innerHTML = respText;
}
}
}
ajaxReq.open("POST", url, true);
ajaxReq.send(null);
}
}
// Update uptime timer
function uptime() {
clearInterval(timer_uptime);
var uptime = document.getElementById("uptime");
var interval = uptime.value;
if (interval > 0) {
timer_uptime = setInterval("get_uptime()", 1000 * interval);
}
}
// Update peek_all timer
function timer() {
clearInterval(timer_peek_all);
var timer = document.getElementById("timer");
interval = timer.value;
if (interval > 0) {
timer_peek_all = setInterval("peek_all()", 1000 * interval);
}
}
// Update number format
function format() {
var table = document.getElementById("registers");
var rows = table.rows.length;
var peek;
var poke;
for (var index = 0; index < rows; index++) {
peek = document.getElementById("peek_" + index);
if (peek) {
peek.value = fmtUnsignedLong(parseInt(peek.value));
}
poke = document.getElementById("poke_" + index);
if (poke) {
poke.value = fmtUnsignedLong(parseInt(poke.value));
}
}
}
// Convert unsigned long to dec/hex string
function fmtUnsignedLong(value) {
var format = document.getElementById("format");
var hexStr;
if (format.value == 0) {
hexStr = value.toString(16).toUpperCase();
hexStr = "0x" + "00000000".substr(0, 8 - hexStr.length) + hexStr;
} else {
hexStr = value.toString(10);
}
return hexStr;
}
// Copy peek to poke
function copy(reg) {
var peek = document.getElementById("peek_" + reg);
if (peek) {
var poke = document.getElementById("poke_" + reg);
if (poke) {
poke.value = peek.value;
}
}
}
// Copy all peek to poke
function copy_all() {
var table = document.getElementById("registers");
var rows = table.rows.length - 1;
for (var index = 0; index < rows; index++) {
copy(index);
}
}
// Peek address & display result
function peek(reg) {
var url = "/cgi-bin/peek?" + document.getElementById("addr_" + reg).value;
if (window.XMLHttpRequest) {
var ajaxReq = new XMLHttpRequest();
ajaxReq.onreadystatechange = function() {
if (ajaxReq.readyState == 4 && ajaxReq.status == 200) {
var respText = ajaxReq.responseText;
var img_obj = document.getElementById("speek_" + reg);
// Unique number is added to image to avoid caching issues on separate animations
const now = Date.now();
if (respText.substr(0,6) == "Error:") {
img_obj.src = "../red.gif?" + now;
img_obj.title = "Last peek failed : " + respText.substr(7);
} else {
img_obj.src = "../green.gif?" + now;
img_obj.title = "Last peek successful";
document.getElementById("peek_" + reg).value = fmtUnsignedLong(parseInt(respText));
}
}
}
ajaxReq.open("POST", url, true);
ajaxReq.send(null);
}
}
// Peek all selected addresses in section
function peek_section(row) {
var obj_sel;
do {
row++;
obj_sel = document.getElementById("peek_sel_" + row);
if (obj_sel) {
if (obj_sel.checked) {
peek(row);
}
}
} while (obj_sel);
}
// Peek all selected addresses in table
function peek_all() {
var table = document.getElementById("registers");
var rows = table.rows.length - 1;
for (var index = 0; index < rows; index++) {
const obj_sel = document.getElementById("peek_sel_" + index);
if (obj_sel) {
if (obj_sel.checked) {
peek(index);
}
}
}
}
// Poke address & display result
function poke(reg) {
var url = "/cgi-bin/poke?" + document.getElementById("addr_" + reg).value + "&" + document.getElementById("poke_" + reg).value;
if (window.XMLHttpRequest) {
var ajaxReq = new XMLHttpRequest();
ajaxReq.onreadystatechange = function() {
if (ajaxReq.readyState == 4 && ajaxReq.status == 200) {
var respText = ajaxReq.responseText;
var img_obj = document.getElementById("spoke_" + reg);
// Unique number is added to image to avoid caching issues on separate animations
const now = Date.now();
if (respText.substr(0,6) == "Error:") {
img_obj.src = "../red.gif?" + now;
img_obj.title = "Last poke failed : " + respText.substr(7);
} else {
img_obj.src = "../green.gif?" + now;
img_obj.title = "Last poke successful";
}
}
}
ajaxReq.open("POST", url, true);
ajaxReq.send(null);
}
}
// Poke all selected addresses in section
function poke_section(row) {
var obj_sel;
do {
row++;
obj_sel = document.getElementById("poke_sel_" + row);
if (obj_sel) {
if (obj_sel.checked) {
poke(row);
}
}
} while (obj_sel);
}
// Poke all selected addresses in table
function poke_all() {
var table = document.getElementById("registers");
var rows = table.rows.length - 1;
for (var index = 0; index < rows; index++) {
const obj_sel = document.getElementById("poke_sel_" + index);
if (obj_sel) {
if (obj_sel.checked) {
poke(index);
}
}
}
}
// Add row to table
function add_row() {
const obj_type = document.getElementById("type");
const row_type = obj_type.value;
switch(row_type) {
case "0":
add_register();
break;
case "1":
add_section();
break;
default:
break;
}
}
// Add row to table
function add_register(reg) {
var table = document.getElementById("registers");
var next = table.rows.length - 1;
var row = table.insertRow(-1);
var newcell;
var addr = 0x41200000;
if (next > 0) {
const obj_addr = document.getElementById("addr_" + (next - 1));
if (obj_addr) {
addr = parseInt(document.getElementById("addr_" + (next - 1)).value) + 4;
}
}
newcell = row.insertCell(0);
newcell.innerHTML = '<input title="Address to peek/poke" type="text" id="addr_' + next + '" value="' + fmtUnsignedLong(addr) + '" size="10">';
newcell = row.insertCell(1);
newcell.innerHTML = '<input title="Value peeked at address" type="text" id="peek_' + next + '" value="0x00000000" size="10" readonly="readonly"></td>';
newcell = row.insertCell(2);
newcell.innerHTML = '<input title="Select address for peeking" type="checkbox" id="peek_sel_' + next + '" checked></td>';
newcell = row.insertCell(3);
newcell.innerHTML = '<input title="Peek address" type="submit" value="Peek" onclick="peek(' + next + ')">';
newcell = row.insertCell(4);
newcell.innerHTML = '<img title="Peek status" id="speek_' + next + '" style="vertical-align:middle" src="../amber.gif" alt="Missing Image!">';
newcell = row.insertCell(5);
newcell.innerHTML = '<input title="Copy peek value into poke value" type="submit" value=">>" onclick="copy(' + next + ')">';
newcell = row.insertCell(6);
newcell.innerHTML = '<input title="Value to poke at address" type="text" id="poke_' + next + '" value="0x00000000" size="10">';
newcell = row.insertCell(7);
newcell.innerHTML = '<input title="Select address for poking" type="checkbox" id="poke_sel_' + next + '" checked></td>';
newcell = row.insertCell(8);
newcell.innerHTML = '<input title="Poke address" type="submit" value="Poke" onclick="poke(' + next + ')">';
newcell = row.insertCell(9);
newcell.innerHTML = '<img title="Poke status" id="spoke_' + next + '" style="vertical-align:middle" src="../amber.gif" alt="Missing Image!">';
newcell = row.insertCell(10);
newcell.innerHTML = '<input title="Description of address" type="text" id="name_' + next + '" value="Register @ ' + fmtUnsignedLong(addr) + '" size="40">';
}
// Add group row to table
function add_section(reg) {
var table = document.getElementById("registers");
var next = table.rows.length - 1;
var row = table.insertRow(-1);
var newcell;
newcell = row.insertCell(0);
newcell.colSpan = "3";
newcell.innerHTML = "--- Section ---";
newcell = row.insertCell(1);
newcell.innerHTML = '<input title="Peek all selected addresses in section" type="submit" value="Peek" onclick="peek_section(' + next + ')">';
newcell = row.insertCell(2);
newcell.colSpan = "4";
newcell.innerHTML = "--- Section ---";
newcell = row.insertCell(3);
newcell.innerHTML = '<input title="Poke all selected addresses in section" type="submit" value="Poke" onclick="poke_section(' + next + ')">';
newcell = row.insertCell(4);
newcell = row.insertCell(5);
newcell.colSpan = "2";
newcell.innerHTML = '<input title="Description of section" type="text" id="name_' + next + '" value="Section Description" size="40">';
}
// Remove row from table
function rem_register(reg) {
var table = document.getElementById("registers");
if (table.rows.length > 1) {
table.deleteRow(-1);
}
}
// Remove all rows from table
function remove_all() {
var table = document.getElementById("registers");
var rows = table.rows.length - 1;
for (var index = 0; index < rows; index++) {
table.deleteRow(-1);
}
}
// Note: browser file access is made difficult for security reasons - there maybe a better way of doing file read & write.
var config_file = null;
// Create virtual configuration file from address table for user to download
function create_config() {
var text = "";
var table = document.getElementById("registers");
const rows = table.rows.length - 1;
for (var index = 0; index < rows; index++) {
const obj_addr = document.getElementById("addr_" + index);
if (obj_addr) { // Register type
var addr = document.getElementById("addr_" + index).value;
var peek_sel = document.getElementById("peek_sel_" + index).checked;
var poke = document.getElementById("poke_" + index).value;
var poke_sel = document.getElementById("poke_sel_" + index).checked;
var name = document.getElementById("name_" + index).value;
text += "reg" + "|" + addr + "|" + peek_sel + "|" + poke + "|" + poke_sel + "|"+ name + "\n";
} else { // Section type
var name = document.getElementById("name_" + index).value;
text += "sec" + "|" + name + "\n";
}
}
const data = new Blob([text], {type: 'text/plain'});
if (config_file !== null) {
URL.revokeObjectURL(config_file);
}
config_file = URL.createObjectURL(data);
var link = document.getElementById('download');
link.href = config_file;
link.style.display = 'inline';
}
// Read configuration file and update address table
function load_config(input) {
var file = input.target.files[0];
if (file) {
var reader = new FileReader();
reader.onload = function(input) {
var contents = input.target.result;
const lines = contents.split(/\r\n|\n/);
remove_all();
lines.forEach((line) => {
if (line.length > 0) {
var table = document.getElementById("registers");
var next = table.rows.length - 1;
const values = line.split("|");
switch(values[0]) {
case "reg":
add_register();
document.getElementById("addr_" + next).value = values[1];
if (values[2] == "false") {
document.getElementById("peek_sel_" + next).checked = false;
}
document.getElementById("poke_" + next).value = values[3];
if (values[4] == "false") {
document.getElementById("poke_sel_" + next).checked = false;
}
document.getElementById("name_" + next).value = values[5];
break;
case "sec":
add_section();
document.getElementById("name_" + next).value = values[1];
break;
default:
alert("Error: Unrecognized table type found (" + values[0] + "), ignoring.");
}
}
});
};
reader.readAsText(file);
}
}
document.getElementById('load_config').addEventListener('change', load_config, false);

15. Update hardware platform

Configure the PetaLinux project to use the exported hardware platform from the zedboard_leds_switches Vivado project.

steve@Desktop:~/projects/zedboard_linux/os/petalinux$ petalinux-config --get-hw-description ../../../zedboard_leds_switches/fw/system_wrapper.xsa

The configuration menu now appears.

Select Save to save the configuration. Missing Image!

Select Ok to confirm the save. Missing Image!

Select Exit to continue. Missing Image!

Select Exit to exit the menu. Missing Image!

16. Commit new & updated files

Commit the updated PetaLinux files, create an annotated tag and push the commit & tag up to the remote repository.

steve@Desktop:~/projects/zedboard_linux/os/petalinux$ git commit -am "Updated webpage to include PetaLinux ID table & add hash field to Firmware ID table."
steve@Desktop:~/projects/zedboard_linux/os/petalinux$ git tag -a v10.0 -m "PetaLinux, Peek/Poke, LED Runner, Webserver, Peek/Poke CGI, PL Access, Style Sheet, Register Bank & ID Strings (PetaLinux & Firmware hash) with XSA from zedboard_leds_switches v4.0"
steve@Desktop:~/projects/zedboard_linux/os/petalinux$ git push

17. Build & package PetaLinux

Rebuild PetaLinux to include the updates.

steve@Desktop:~/projects/zedboard_linux/os/petalinux$ source ~/.bashrc
steve@Desktop:~/projects/zedboard_linux/os/petalinux$ petalinux-build

Note that the petalinux-build command now diverts off to petalinux-build-id.sh so the following message should be displayed atfer calling petalinux-build.

NOTE: Building PetaLinux with the following identification
Description ... Zedboard PetaLinux Example Design
Company ....... SpaceWire UK
Author ........ Steve Haywood
Version ....... 10.0 (unstaged)
Timestamp ..... 23-Oct-2022 - 10:04:44
Hash .......... 980d0a89f629f246e18f79df9f69bb7d35c0a185

Hold the phone! Stop the build process with Ctrl-C. Somehow the build is using unstaged files. Forget to add the new project.txt file!

Add the missing file and perform the necessary GIT finger work.

steve@Desktop:~/projects/zedboard_linux/os/petalinux$ git add project-spec/meta-user/recipes-apps/website/files/project.txt
steve@Desktop:~/projects/zedboard_linux/os/petalinux$ git commit -am "Updated webpage to include PetaLinux ID table & add hash field to Firmware ID table."
steve@Desktop:~/projects/zedboard_linux/os/petalinux$ git tag -d v10.0
steve@Desktop:~/projects/zedboard_linux/os/petalinux$ git tag -a v10.0 -m "PetaLinux, Peek/Poke, LED Runner, Webserver, Peek/Poke CGI, PL Access, Style Sheet, Register Bank & ID Strings (PetaLinux & Firmware hash) with XSA from zedboard_leds_switches v4.0"
steve@Desktop:~/projects/zedboard_linux/os/petalinux$ git push

Attempt to rebuild PetaLinux again.

steve@Desktop:~/projects/zedboard_linux/os/petalinux$ petalinux-build

This time the build should be deemed as using fully staged and pushed files with no unsavoury comments after the version number.

NOTE: Building PetaLinux with the following identification
Description ... Zedboard PetaLinux Example Design
Company ....... SpaceWire UK
Author ........ Steve Haywood
Version ....... 10.0
Timestamp ..... 23-Oct-2022 - 10:08:02
Hash .......... 9bea7fd2705efc6da3b975e0e05b28ec57872afd

Package up PetaLinux ready for deployment.

steve@Desktop:~/projects/zedboard_linux/os/petalinux$ petalinux-package --prebuilt --force

18. Setup Zedboard hardware

If not already, connect up the hardware as follows :-

Xubuntu PC USB ⇄ Zedboard USB JTAG/Debug
Xubuntu PC USB ⇄ Zedboard USB UART
Zedboard Ethernet ⇄ Router
Xubuntu PC Ethenet ⇄ Router
Router ⇄ Internet

Set the boot mode jumpers on the Zedboard for JTAG. Missing Image!

Power on the Zedboard.

19. Launch MiniCom terminal emulator

If not already running, open up a new terminal and launch the MiniCom terminal emulator.

steve@Desktop:~$ minized

Welcome to minicom 2.7.1

OPTIONS: I18n
Compiled on Dec 23 2019, 02:06:26.
Port /dev/ttyACM0, 06:34:25

Press CTRL-A Z for help on special keys

20. Deploy firmware & software on Zedboard

Deploy PetaLinux to the Zedboard via JTAG.

steve@Desktop:~/projects/zedboard_linux/os/petalinux$ petalinux-boot --jtag --prebuilt 3

21. Check everything is working as expected

All being well the following sequence of events should be observed, pay particular attention to point 2.

The blue done LED illuminates indicating the Programmable Logic (PL) has been programmed.
LED 7 and 1 illuminate indicating the bitstream from the updated zedboard_leds_switches project is in use.
The software runs on the Processor System (PS).
PetaLinux starts to boot.
The led-runner application launches and executes the expanding & contracting LED illumination sequence.
The PetaLinux login prompt appears in the terminal emulator.

Access the webserver running on the Zedboard using a browser pointing at the Zedboard's IP address (192.168.2.87). Click the Read ID buttons in both the Operating System Information & Firmware Information sectons to read the Identification information from the OS filesystem & PL address space. All being well the following should be displayed in the Operating System Information & Firmware Information sections.

Seems silly not to use the GIT tag for the Version since they are in lockstep, but as seen previously, a GIT tag is not immutable unlike a GIT timestamp & GIT hash.

By including the hashes and marking any unclean builds with either unstaged or unpushed means there is always a direct link back to the original files that created the builds.
